Velocity 107-0035 External Cat5e U/UTP Cable – 305m Black Duct Grade
The Velocity 107-0035 is a 305 metre external Cat5e U/UTP network cable designed for professional data, networking and CCTV cabling installations. It combines 4-pair 24AWG solid copper conductors with a black duct-grade polyethylene outer sheath, providing a practical cable solution for external and duct-based installation environments where this type of PE-sheathed network cable is required.
Supplied in a full 305m box, this Cat5e cable is suitable for Fast Ethernet and Gigabit Ethernet applications. The U/UTP construction means the four twisted pairs are unshielded, while the solid copper conductors make the cable suitable for structured fixed network cabling applications.
Key Features
-
Velocity product code: 107-0035
-
Cable category: Cat5e
-
Cable construction: U/UTP unshielded twisted pair
-
Conductors: Solid copper
-
Conductor size: 24AWG
-
Pair count: 4 pairs
-
Cable length: 305m
-
Outer sheath: Duct-grade PE polyethylene
-
Colour: Black
-
Metre marking: Reverse marked from 305m to 0m
-
Handling: Low-memory outer sheath
-
Packaging: Heavy-duty triple-layer cardboard dispensing box
-
Network use: Suitable for Fast Ethernet and Gigabit Ethernet applications
Solid Copper 24AWG Construction
The 107-0035 uses solid copper conductors rather than CCA conductors. It is manufactured as a 4-pair 24AWG Cat5e cable, making it well suited to fixed structured network cabling where a solid-conductor cable is required.
Each pair is twisted as part of the Cat5e U/UTP construction. U/UTP means there is no additional overall foil or braided shielding around the cable pairs, making this a conventional unshielded Category 5e network cable.
Black Duct-Grade PE Outer Sheath
The cable is finished with a black duct-grade polyethylene outer sheath. This distinguishes it from standard indoor PVC or LSZH network cable and makes the 107-0035 suitable for external and duct-based installation applications where a PE-sheathed Cat5e cable is appropriate.
The black outer finish also makes the cable easy to identify against typical white or grey internal network cable when organising mixed installations.

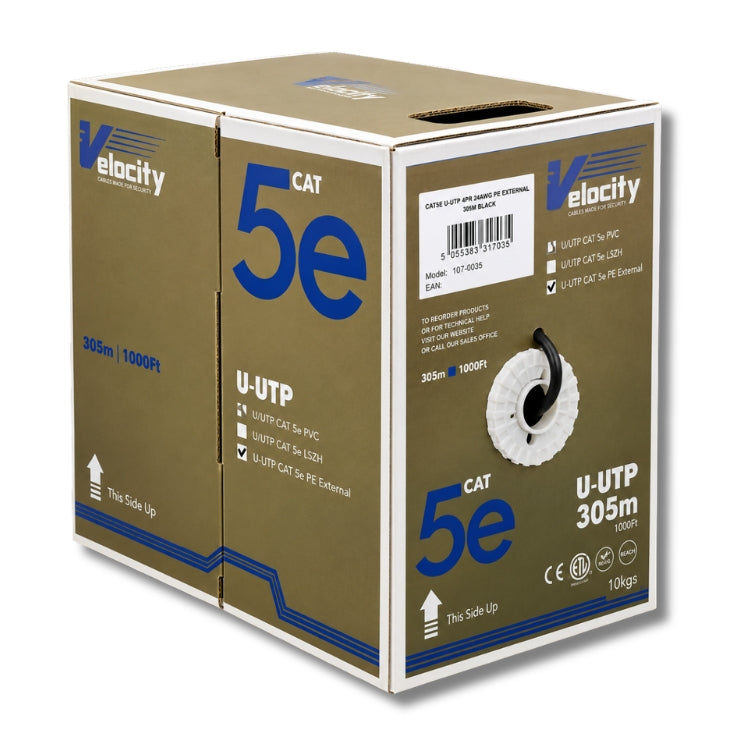

305m Box with Reverse Metre Markings
Each box contains 305 metres of cable. The outer sheath is printed with reverse metre markings running from 305m towards 0m, allowing installers to monitor how much cable has been pulled and how much remains in the box.
This can be particularly useful on multi-run installations where accurate cable-length tracking helps installers plan remaining runs and reduce unnecessary waste.
Low-Memory Cable for Easier Installation
The outer sheath is designed with low memory retention to help reduce recoiling as cable is pulled from the box. The cable is supplied in a heavy-duty triple-layer cardboard dispensing box designed to support clean, controlled cable payout during installation.
The boxed format also incorporates strong carrying handles and is intended to help keep the remaining cable organised while multiple network or CCTV cable runs are being installed.
Suitable for CCTV and Network Cabling
The Velocity 107-0035 can be used as part of compatible Cat5e network infrastructure for applications such as IP networking and CCTV network installations. The manufacturer-listed specification states that the cable is suitable for both Fast Ethernet and Gigabit Ethernet applications.
For CCTV installations, cable type, total run length, connected equipment and any power-over-network requirements should always be checked against the specifications of the devices being installed.
Verified Product Specifications
| Brand |
Velocity |
| Product Code |
107-0035 |
| Category |
Cat5e |
| Cable Type |
U/UTP |
| Shielding |
Unshielded |
| Conductor Gauge |
24AWG |
| Number of Pairs |
4 Pair |
| Conductor Material |
Solid Copper |
| Outer Sheath |
PE Polyethylene, Duct Grade |
| Colour |
Black |
| Cable Length |
305m |
| Metre Marking |
Reverse Marked 305m to 0m |
| Sheath Handling |
Low Memory |
| Packaging |
Heavy-Duty Triple-Layer Cardboard Dispensing Box |
| Network Applications |
Fast Ethernet and Gigabit Ethernet |
Frequently Asked Questions
Is the Velocity 107-0035 a Cat5e cable?
Yes. The 107-0035 is a Category 5e U/UTP network cable supplied in a 305m box.
Is this cable solid copper?
Yes. The verified specification lists solid copper conductors rather than CCA conductors.
What conductor size does the cable use?
The Velocity 107-0035 uses 24AWG conductors arranged as four twisted pairs.
Is the cable shielded?
No. It is U/UTP cable, meaning the twisted pairs do not have additional foil or braided shielding.
What type of outer sheath does it have?
It has a black duct-grade PE polyethylene outer sheath.
How much cable is supplied?
Each box contains 305 metres of cable.
Does the cable have metre markings?
Yes. The sheath is reverse marked from 305m towards 0m so installers can monitor the amount of cable used and the amount remaining.
Can the Velocity 107-0035 be used for Gigabit Ethernet?
Yes. The listed product specification states that it is suitable for Fast Ethernet and Gigabit Ethernet applications.
Can this cable be used for CCTV installations?
It can be used as Cat5e network cabling in compatible IP CCTV and networking installations. Always confirm the requirements of the cameras, network equipment and total cable run before installation.
Is this the same as internal LSZH Cat5e cable?
No. This model uses a black duct-grade PE outer sheath. It should not be described as an LSZH internal cable unless separate manufacturer documentation confirms that specification.
