Velocity 107-0062 305m Cat5e U/UTP LSZH Network Cable
The Velocity 107-0062 is a professional 305 metre Cat5e U/UTP network cable designed for internal Ethernet, data and compatible IP CCTV installations. It combines 24AWG 4-pair solid copper construction with a white LSZH low-smoke zero-halogen outer sheath, providing a practical choice for installers who require bulk Cat5e cabling for indoor network projects.
Supplied in a heavy-duty installation box, the cable incorporates reverse metre markings from 305 metres down to 0 metres. This allows installers to quickly monitor how much cable has been used and how much remains in the box during an installation.
Solid Copper 24AWG Cat5e Construction
This Velocity Cat5e cable uses 24AWG solid copper conductors arranged as four twisted pairs. Solid copper construction makes the cable suitable for fixed structured network cabling where reliable terminations and consistent conductor construction are required.
This product should not be confused with CCA, or Copper Clad Aluminium, network cable. The Velocity 107-0062 is specifically identified as having a solid copper core.
Cat5e U/UTP Network Cable
The cable uses U/UTP construction, also commonly described as UTP or unshielded twisted pair. This means there is no additional metallic overall screen or individual pair shielding.
Good network installation practice should be followed when routing unshielded data cable, including appropriate separation from mains electrical wiring and other potential sources of interference.
White LSZH Low-Smoke Zero-Halogen Sheath
The Velocity 107-0062 features a white LSZH outer sheath. LSZH means Low Smoke Zero Halogen and describes the outer cable sheath construction.
This makes the product particularly relevant where an LSZH cable has been specified for an internal network installation. Any project-specific building, fire or regulatory requirements should still be checked by the installer before installation.
Suitable for Fast Ethernet and Gigabit Ethernet Applications
The cable is specified for Fast Ethernet and Gigabit Ethernet applications, making it suitable for a wide range of compatible network and data installations when correctly terminated and installed.
Actual network performance depends on the complete installation, including cable-run length, termination quality, connectors, patching hardware and connected networking equipment.
Ideal for Internal CCTV and Network Cabling
The Velocity 107-0062 can be used for compatible internal Ethernet and IP CCTV network installations where Cat5e U/UTP cabling is appropriate.
Typical applications include internal IP CCTV network runs, network video recorder connections, Ethernet data cabling, network switches, routers, office networks, structured cabling and other compatible indoor network installations.
Always check the requirements of the connected equipment and the complete installation before fitting the cable, particularly where specific PoE, fire-classification or compliance requirements apply.

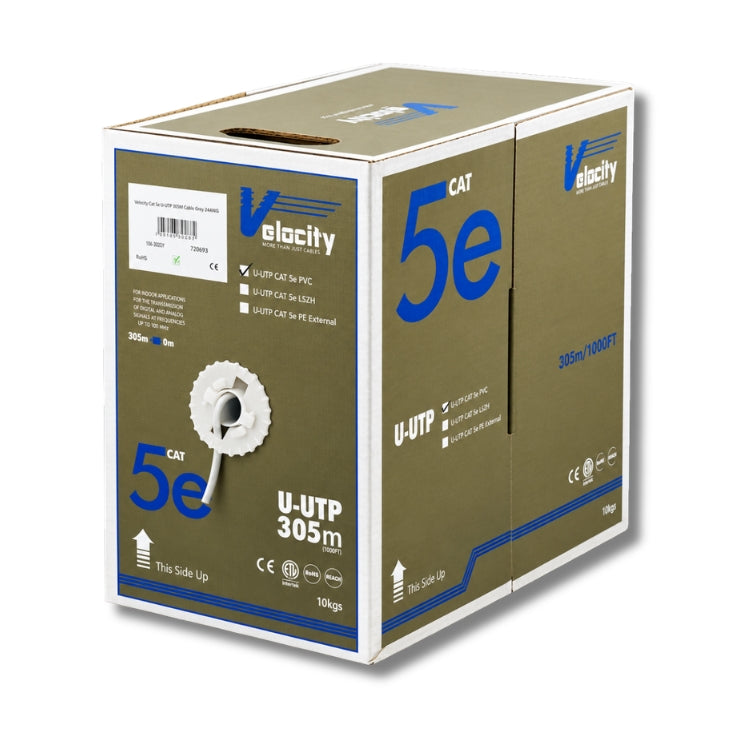

305 Metre Installer Box
The cable is supplied in a 305 metre box, giving installers enough bulk cable to create multiple network runs or cut individual runs to the required length.
The heavy-duty cardboard box is designed to contain the cable while it is being pulled during installation. Snag-free coiling and strong carry handles help make the cable easier to transport and dispense on site.
Reverse Metre Marking
Metre markings are printed on the cable sheath in reverse order from 305 metres to 0 metres.
This allows the installer to calculate cable usage more efficiently. For example, the sheath marking provides a quick indication of how much cable has already been pulled and approximately how much cable remains in the box.
Low-Memory Outer Sheath
The outer sheath has been designed with low memory retention to help reduce recoiling as the cable is pulled from the box.
This installer-focused feature can make cable handling easier when completing longer or multiple internal network runs.
Technical Specifications
| Specification |
Details |
| Brand |
Velocity |
| Model / Product Code |
107-0062 |
| Product Type |
Bulk Network Cable |
| Network Category |
Cat5e |
| Cable Construction |
U/UTP / Unshielded Twisted Pair |
| Conductor Gauge |
24AWG |
| Number of Pairs |
4 Pair |
| Conductor Material |
Solid Copper |
| Outer Sheath |
LSZH – Low Smoke Zero Halogen |
| Colour |
White |
| Cable Length |
305 Metres |
| Installation Environment |
Internal |
| Ethernet Application |
Fast Ethernet and Gigabit Ethernet |
| Metre Marking |
Reverse marking from 305m to 0m |
| Sheath Handling |
Low-memory outer sheath |
| Supply Format |
Heavy-duty cardboard installer box |
Why Choose Velocity 107-0062 Cat5e Cable?
The Velocity 107-0062 combines solid copper conductors, Cat5e U/UTP construction, a 24AWG 4-pair design and a white LSZH sheath in a practical 305 metre installer box.
Features such as reverse metre markings, low-memory cable handling and snag-free boxed dispensing make it particularly useful for installers carrying out internal CCTV, Ethernet and structured network cabling projects.
Frequently Asked Questions
What is the Velocity 107-0062?
The Velocity 107-0062 is a 305 metre Cat5e U/UTP internal network cable with 24AWG 4-pair solid copper conductors and a white LSZH outer sheath.
Is the Velocity 107-0062 full copper or CCA?
It is specified with a solid copper core. It is not described as CCA cable.
How long is the cable?
The box contains 305 metres of Cat5e network cable.
What conductor size does this cable use?
The cable is specified as 24AWG.
How many pairs are inside the cable?
It uses a 4-pair twisted-pair construction.
Is this cable shielded?
No. The Velocity 107-0062 is U/UTP, meaning it is an unshielded twisted-pair network cable.
What does LSZH mean?
LSZH stands for Low Smoke Zero Halogen and refers to the construction of the cable's outer sheath.
What colour is the cable?
The outer LSZH sheath is white.
Is this cable designed for indoor use?
Yes. This model is identified as an internal Cat5e network cable.
Can the Velocity 107-0062 be used outdoors?
This exact model is specified as an internal cable and is not advertised as an outdoor, UV-resistant or duct-grade cable. A purpose-designed external cable should be used for outdoor installations.
Can I use this cable for IP CCTV?
Yes. It is suitable for compatible internal IP CCTV Ethernet network installations where Cat5e U/UTP cabling meets the requirements of the equipment and installation.
Does this cable support Gigabit Ethernet?
Yes. The Velocity 107-0062 is specified as suitable for Fast Ethernet and Gigabit Ethernet applications when correctly installed and terminated.
Does this cable support PoE?
A specific PoE rating or PoE class has not been verified for this exact product listing. Check the requirements of the connected PoE device, switch or NVR and the complete cable run before installation.
Does this cable have metre markings?
Yes. The cable includes reverse metre markings running from 305 metres down to 0 metres, helping installers measure cable usage and the amount remaining.
What is a low-memory cable sheath?
The low-memory sheath is designed to help reduce the tendency of the cable to recoil after being pulled from the box, making installation and cable handling easier.
Is the cable supplied in a box?
Yes. The 305 metre cable is supplied in a heavy-duty cardboard installer box designed for convenient cable dispensing and carrying.
Are RJ45 connectors fitted to this cable?
No pre-fitted RJ45 connectors are stated. This is bulk installation cable intended to be cut and terminated to suit the installation.
Does this cable have a verified CPR or fire classification?
An exact CPR or fire classification has not been verified for model 107-0062 from the available product information. Do not assume a particular classification solely because the cable has an LSZH sheath.
Is this suitable for direct burial?
No direct-burial rating has been verified for this internal cable. Use cable specifically designed and rated for underground or external applications where required.
