Velocity 107-0032 Internal Cat5e U/UTP 24AWG Solid Copper Cable 305m – Grey PVC

Velocity 107-0032 Internal Cat5e U/UTP Cable – 305m Grey PVC

The Velocity 107-0032 is a 305 metre internal Category 5e U/UTP network cable designed for professional networking, structured cabling and compatible IP CCTV installations. It combines four twisted pairs of 24AWG solid copper conductors with a grey PVC outer sheath, providing a practical cable solution for fixed internal network installations.

Supplied in a full 305m dispensing box, the cable is suitable for Fast Ethernet and Gigabit Ethernet applications. Its U/UTP construction means the cable uses unshielded twisted pairs, while the solid copper core makes it suitable for professional fixed network cabling where solid copper conductors are required.

Key Features

• Brand: Velocity
• Product Code: 107-0032
• Cable Category: Cat5e
• Cable Construction: U/UTP
• Conductor Gauge: 24AWG
• Pair Count: 4 Pair
• Conductor Material: Solid Copper
• Outer Sheath: Grey PVC
• Installation Type: Internal
• Cable Length: 305m
• Metre Marking: Reverse marked from 305m to 0m
• Sheath Design: Low memory retention
• Packaging: Heavy-duty triple-layer cardboard dispensing box
• Network Applications: Fast Ethernet and Gigabit Ethernet

24AWG Solid Copper Conductors

The Velocity 107-0032 uses solid copper conductors arranged as four twisted pairs. Its 24AWG construction provides a professional Cat5e cabling solution for fixed internal network installations.

Solid copper construction also clearly distinguishes this model from lower-cost CCA cable products. The exact conductor material should always be considered when selecting network cable for a professional CCTV or structured cabling project.

Cat5e U/UTP Construction

This model uses U/UTP construction, meaning the cable consists of unshielded twisted pairs without an additional overall foil or braided screen. It is designed as a conventional Category 5e network cable for compatible Ethernet installations.

The manufacturer-listed specification states that the cable is suitable for both Fast Ethernet and Gigabit Ethernet applications.

Grey PVC Outer Sheath for Internal Installations

The 107-0032 is finished with a grey PVC outer sheath and is sold as an internal network cable. This makes it suitable for appropriate indoor structured cabling, data-network and CCTV installation environments where PVC-sheathed Cat5e cable is suitable.

This particular model should not be confused with the Velocity external duct-grade PE version or the separate Velocity LSZH cable products. It is specifically the grey PVC internal variant, product code 107-0032.

305m Box with Reverse Metre Markings

Each box contains 305 metres of cable. Reverse metre markings are printed on the outer sheath from 305m towards 0m, helping installers monitor how much cable has been pulled and how much remains in the box.

This is particularly useful on larger CCTV and network installations where several cable runs need to be measured and planned efficiently.

Low-Memory Sheath for Easier Cable Pulling

The cable features a low-memory outer sheath designed to help reduce recoiling as the cable is pulled from its dispensing box. This helps provide cleaner handling during installation and can make longer cable pulls easier to manage.

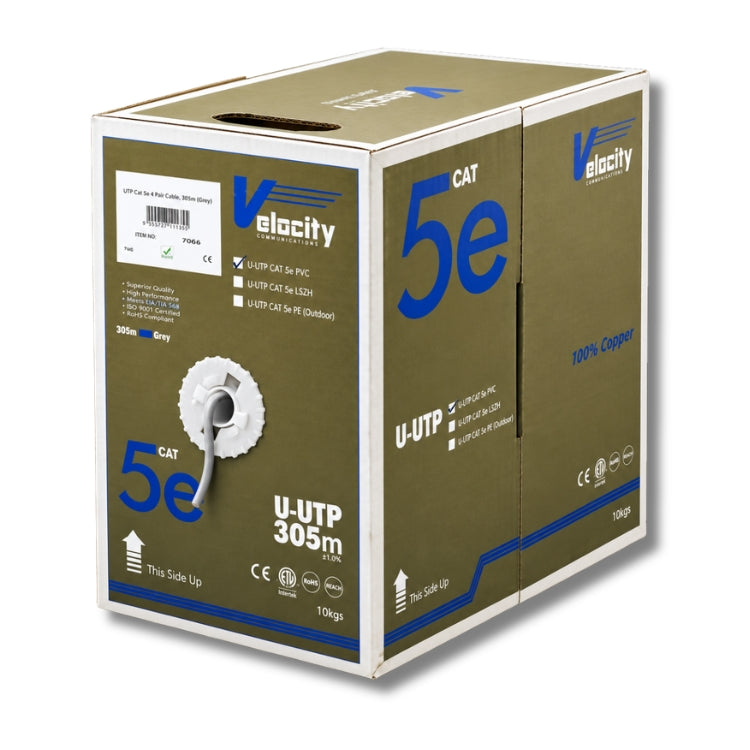

Heavy-Duty Dispensing Box

The Velocity 107-0032 is supplied in a triple-layer heavy-duty cardboard box designed to contain and dispense the cable during installation. The boxed format helps keep the remaining cable controlled and organised while installers work through multiple network runs.

Suitable for CCTV and Network Installations

Cat5e cable is widely used as part of compatible Ethernet-based installations, making the Velocity 107-0032 suitable for a range of structured networking and compatible IP CCTV cabling applications.

When using the cable as part of a CCTV or networking system, installers should always check the connected equipment, cable-run requirements and installation environment to ensure the complete system is suitable for the intended application.

Verified Product Specifications

Frequently Asked Questions

Is the Velocity 107-0032 a Cat5e cable?

Yes. The Velocity 107-0032 is a Category 5e U/UTP network cable supplied in a 305m box.

Is this cable solid copper?

Yes. The listed specification confirms that the Velocity 107-0032 uses a solid copper core.

What conductor size does the cable use?

It uses 24AWG conductors arranged as four twisted pairs.

Is the Velocity 107-0032 shielded?

No. It is U/UTP cable, meaning the twisted pairs are unshielded and there is no additional overall foil or braided screen.

What colour is the cable?

The cable has a grey PVC outer sheath.

Is this an internal or external Cat5e cable?

This specific Velocity 107-0032 model is the internal grey PVC version. It should not be confused with Velocity external duct-grade PE cable products.

How much cable is supplied?

Each box contains 305 metres of Cat5e cable.

Does the cable have metre markings?

Yes. The outer sheath is reverse marked from 305m towards 0m so installers can monitor the amount used and the amount remaining.

Can the Velocity 107-0032 be used for Gigabit Ethernet?

Yes. The listed product information states that it is suitable for both Fast Ethernet and Gigabit Ethernet applications.

Can this cable be used for CCTV?

It can be used as Cat5e network cabling in compatible Ethernet-based IP CCTV installations. Always confirm the requirements of the connected cameras, switches, recorders and installation environment.

Is this cable LSZH?

No LSZH specification is stated for this model. The Velocity 107-0032 is specifically listed with a grey PVC outer sheath, so it should not be described as LSZH.

Is this the same as CCA Cat5e cable?

No. The listed specification for the Velocity 107-0032 states that it uses a solid copper core.
