The HiLook IPC-T229HA-LU(2.8mm) is a 2MP PoE turret IP camera with Smart Hybrid Light illumination, a built-in microphone and IP67 weatherproofing, designed as a compact value-tier outdoor turret.

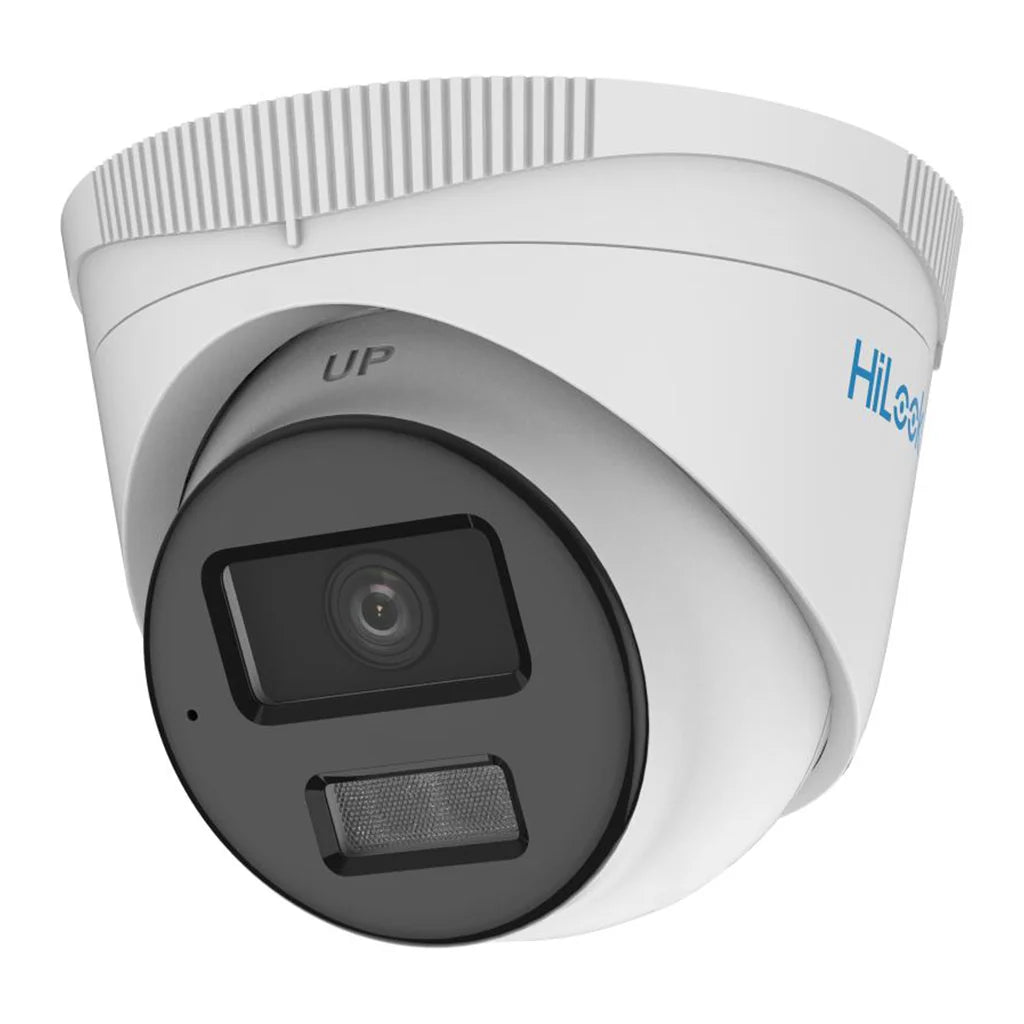

HiLook IPC-T229HA-LU(2.8mm) 2MP Smart Hybrid Light Turret IP Camera
The HiLook IPC-T229HA-LU uses a 1/2.8" Progressive Scan CMOS sensor delivering up to 1920 × 1080 (2MP) resolution, with a large F1.0 aperture giving a minimum colour illumination of 0.001 Lux (AGC on). Smart Hybrid Light combines IR and white-light illumination for colour imaging when needed.
The 2.8mm fixed lens gives a horizontal field of view of 106°, vertical FOV of 56° and diagonal FOV of 129°. A built-in microphone (the "LU" in the model name) adds audio capture, and the camera is rated IP67 for outdoor use.
2MP Imaging & Wide 106° Field of View
Maximum resolution is 1920 × 1080, giving a wide 106° horizontal field of view well suited to covering entrances, driveways and open areas from a single camera position.
Smart Hybrid Light & Low-Light Performance
Smart Hybrid Light pairs IR and white-light illuminators, with a minimum colour illumination of 0.001 Lux (F1.0, AGC on), giving strong low-light colour detail when the light is active.
Built-In Microphone & Network Security
A built-in microphone allows audio to be captured alongside video footage. The camera supports password protection, complicated password enforcement, HTTP/ONVIF digest authentication, watermarking and host (MAC) authentication.
Power & IP67 Weatherproofing
Powered via PoE (IEEE 802.3af, Class 3, max 6.5W) or 12V DC (0.45A, max 5.4W) through a 5.5mm coaxial connector with reverse polarity protection. Rated IP67, operating from −30°C to +60°C.
KEY BENEFITS
- Wide 106° field of view covers large areas from one camera
- Smart Hybrid Light delivers colour imaging when needed
- Built-in microphone adds audio context to recordings
- Single PoE cable for power and data
- IP67 rated for year-round outdoor use
KEY FEATURES
- 2MP (1920 × 1080) resolution
- 1/2.8" Progressive Scan CMOS sensor
- 2.8mm fixed lens — H.FOV 106°, V.FOV 56°, D.FOV 129°
- F1.0 fixed aperture
- Smart Hybrid Light — IR + White Light
- Min. illumination 0.001 Lux (colour, F1.0, AGC on)
- Built-in microphone
- PoE IEEE 802.3af Class 3 (max 6.5W); 12VDC ±25%, 0.45A, max 5.4W alternative
- IP67 weather rating
IDEAL FOR
- Entrances, driveways and open-area coverage
- Residential outdoor monitoring
- Retail and small commercial premises
- Value-tier installations needing audio-equipped recording
- Sites wanting a wide field of view from a single camera position
- Budget hybrid analog/IP camera systems needing an IP turret
- Locations wanting Smart Hybrid Light colour capture without a full ColorVu-tier camera
| Specification |
Details |
| Brand |
HiLook by Hikvision |
| Model |
IPC-T229HA-LU(2.8mm) |
| Product Type |
2MP Smart Hybrid Light Fixed Turret Network Camera |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Max Resolution |
1920 × 1080 (2MP) |
| Focal Length |
2.8mm (fixed) |
| Aperture |
F1.0 (fixed) |
| Horizontal FOV |
106° |
| Vertical FOV |
56° |
| Diagonal FOV |
129° |
| Min. Illumination (Colour) |
0.001 Lux @ F1.0, AGC ON |
| Smart Detection |
Human/vehicle detection (base value-camera feature; confirm before publishing) |
| Audio |
Built-in microphone; bitrates G.711/G.722.1/G.726/MP2L2/AAC-LC |
| Power Supply |
PoE IEEE 802.3af Class 3 (max 6.5W); 12VDC ±25%, 0.45A, max 5.4W |
| Weather Rating |
IP67 |
| Users |
Password protection, HTTP/ONVIF digest authentication, host (MAC) authentication |
| Colour |
White (standard HiLook finish — confirm before publishing) |
| Warranty |
Manufacturer standard warranty (confirm current term before publishing) |
COMMON QUESTIONS
What is the HiLook IPC-T229HA-LU used for?
It is a 2MP outdoor turret IP camera with Smart Hybrid Light night vision, a built-in microphone and IP67 weatherproofing, suited to residential and small commercial outdoor monitoring.
What field of view does the 2.8mm lens give?
Horizontal 106°, vertical 56°, diagonal 129°.
Does it record audio?
Yes, via a built-in microphone.
Is it suitable for outdoor use?
Yes, it carries an IP67 rating.
How is it powered?
Via PoE (IEEE 802.3af, Class 3, max 6.5W) or a 12V DC power supply (max 5.4W) as an alternative.
