The Hikvision DS-QAE0420G1-V is a professional-grade 20 Watt analog column speaker engineered for high-quality public address (PA) paging and background music broadcasts. Featuring an IP66 weatherproof rating, it is built to operate reliably in both indoor and exposed outdoor environments, utilizing premium aerospace-grade magnetic components. Housed in a durable white engineering plastic casing with a protective steel mesh grille, the DS-QAE0420G1-V features a 4-inch full-frequency driver and a 0.75-inch high-frequency tweeter. With integrated 100V constant voltage and standard 8 Ohm fixed-resistance connection blocks, alongside L-brackets for angle adjustment, it represents a complete, versatile sound distribution solution for classrooms, retail avenues, and transit gates.

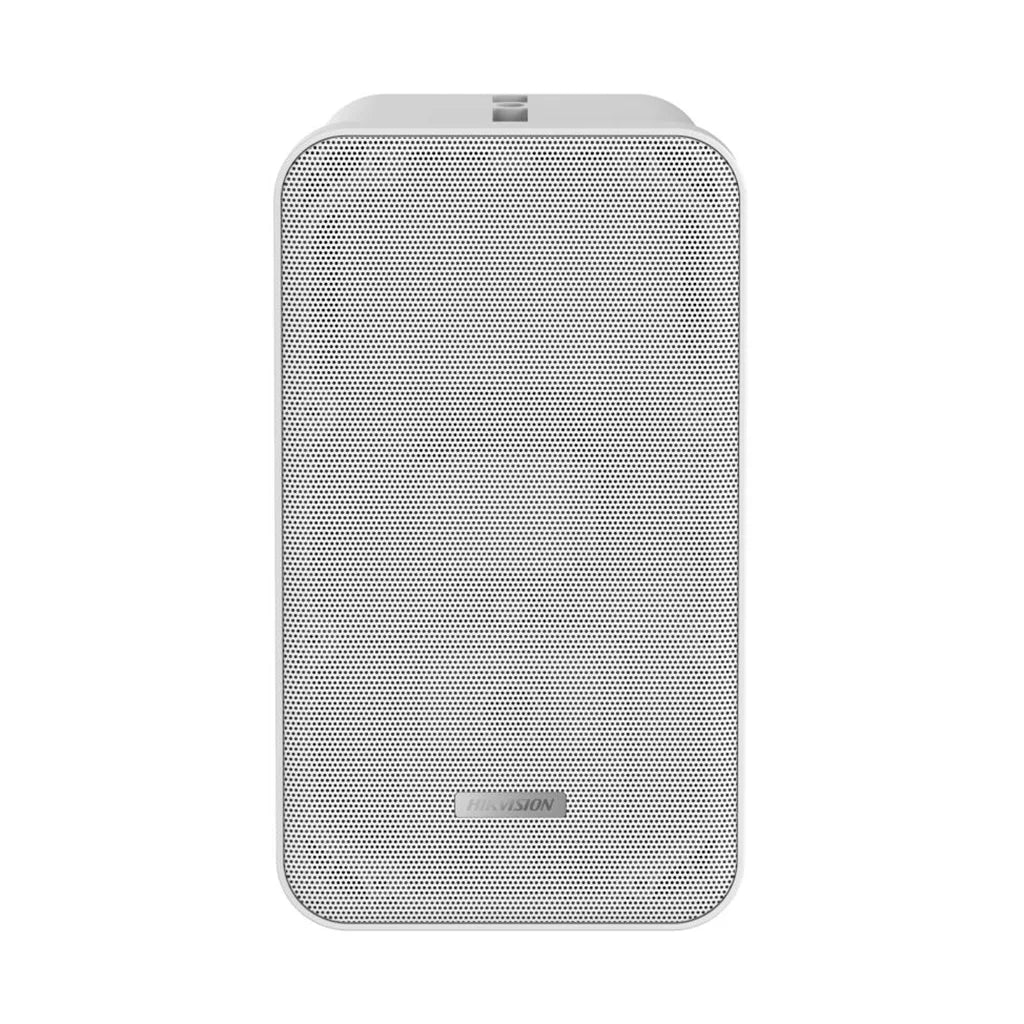

Hikvision DS-QAE0420G1-V White 20W Weatherproof Analog Column Speaker
The Hikvision DS-QAE0420G1-V is a professional-grade 20 Watt analog column speaker engineered for high-quality public address (PA) paging and background music broadcasts. Featuring an IP66 weatherproof rating, it is built to operate reliably in both indoor and exposed outdoor environments, utilizing premium aerospace-grade magnetic components. This makes it an essential tool for professional security networks.
Housed in a durable white engineering plastic casing with a protective steel mesh grille, the DS-QAE0420G1-V features a 4-inch full-frequency driver and a 0.75-inch high-frequency tweeter. With integrated 100V constant voltage and standard 8 Ohm fixed-resistance connection blocks, alongside L-brackets for angle adjustment, it represents a complete, versatile sound distribution solution for classrooms, retail avenues, and transit gates. Installing this device ensures continuous stability and reliability in any access control or surveillance system.
20 Watt Paging Audio Driver
Combines a 4-inch full-range driver and a 0.75-inch tweeter to deliver 20 Watts of clear, intelligible vocal paging and bright background music.
IP66 Weatherproof Outdoor Rating
The reinforced plastic body is rated IP66, making it completely protected against dust and high-pressure water jets from any direction.
Dual Connection Terminal Options
Equipped with a green terminal block that supports both standard 8 Ohm low-impedance loops and 100V constant-voltage line inputs.
Ultra-Wide Audio Dispersion
Provides broad coverage angles of 150° horizontal and 160° vertical, reducing acoustic dead-zones in large open halls or outdoor corridors.
Steel Mesh Front Grille
Features a durable steel mesh front cover, protecting the internal speaker cones from physical damage and vandals in public areas.
Aerospace Magnetic Design
Built with aerospace-grade magnetic components and a lightweight sound film, ensuring clear audio projection over long distances.
Note: Ensure your amplifier output matches the COM/100V constant voltage or 8 Ohm terminal blocks during physical speaker installation.
KEY BENEFITS
- IP66 weatherproof design makes it suitable for schoolyards and parking bays.
- Dual-driver layout (4" woofer + 0.75" tweeter) delivers full-frequency sound range.
- High 20W rated power easily covers outdoor walkways and commercial hallways.
- 100V terminal allows daisy-chaining multiple speakers over long cable runs.
- Includes adjustable L-brackets for quick vertical wall mounting and down-angle tuning.
- Reinforced plastic chassis resists fading and weathering in outdoor installations.
- mat-white styling matches modern office, retail, and classroom environments.
- 96 dB maximum SPL ensures voice pages remain audible over background crowds.
- Wide temperature range guarantees operation in freezing winters and hot summers.
- Backed by a 2-year manufacturer warranty for long-term project reliability.
KEY FEATURES
- Model Code: DS-QAE0420G1-V
- Speaker Woofers: 1 × 4-inch full-frequency driver
- Speaker Tweeters: 1 × 0.75-inch high-frequency tweeter
- Rated Audio Power: 20 W continuous capacity
- Nominal Impedance: 8 Ohm resistance rating
- Maximum Acoustic SPL: 96 dB sound pressure level
- Sensitivity: 89.5 dB ± 3 dB (1m / 1W)
- Frequency Response: 100 Hz to 20 kHz range
- Horizontal Coverage: 150° wide dispersion
- Vertical Coverage: 160° wide dispersion
- Connection Interface: Green terminal block (COM/100V/8Ω)
- Casing Material: Reinforced engineering plastic back
- Front Grille Material: Durable Steel mesh cover
- Weather Protection: IP66 rated housing
- Dimensions (W x D x H): 161.9 × 119.8 × 280.0 mm
IDEAL FOR
- School playgrounds and outdoor assembly yards.
- Retail storefront walkways and shopping aisles.
- Public transport platform gates and bus terminals.
- Corporate conference rooms and reception halls.
- Healthcare clinic corridors and patient waiting rooms.
- Hotel lobby gardens and background music areas.
- Coffee shop terraces and outdoor restaurant seating.
- Warehouse loading bays requiring paging sirens.
- Government building corridors and security checkpoints.
- Industrial training rooms requiring vocal amplification.
- Municipal parks and public squares paging arrays.
- Sites where weatherproof wall-mounted paging is required.
SYSTEM COMPATIBILITY
- Compatible with Hikvision active amplifiers and PA systems.
- Supports standard 100V constant-voltage public address lines.
- Works with standard 8 Ohm low-impedance audio amplifiers.
- Supports standard copper speaker wires (14AWG to 18AWG).
- Fits standard brick, concrete, drywall, and wooden panels.
- Supports daisy-chain setups where line voltage and power match.
- Compatible with standard paging intercom sound systems.
- Works alongside standard analog paging desks.
- Fits standard AV display cabinets and shelving arrays.
- Works with Hikvision network alarm sound linkages.
- Fits wall surface mounting with included L-brackets.
- Suitable for continuous outdoor PA broadcasting.
- Meets standard regulatory safety and acoustic requirements.
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-QAE0420G1-V |
| Product Type |
20W Weatherproof Analog Column Speaker |
| Rated Power |
20 W |
| Impedance |
8 Ω |
| Speaker Unit |
1 × 4" full-frequency driver, 1 × 0.75" tweeter |
| Sensitivity |
89.5 dB ± 3 dB (1 m, 1 W) |
| Maximum SPL |
96 dB |
| Frequency Response |
100 Hz to 20 kHz |
| Horizontal Coverage |
150° |
| Vertical Coverage |
160° |
| Audio Interface |
Green terminal block (COM/100V/8Ω) |
| Protection Level |
IP66 dust and water resistant |
| Back Cover Material |
Reinforced engineering plastic |
| Front Grille Material |
Steel mesh cover |
| Mounting Bracket |
L-bracket (adjustable angle) included |
| Operating Temperature |
-25 °C to +55 °C (-13 °F to 131 °F) |
| Operating Humidity |
< 90% RH (Non-condensing) |
| Dimensions (W x D x H) |
161.9 mm × 119.8 mm × 280.0 mm |
| Net Weight |
Approx. 1.87 kg (4.12 lbs) |
| Casing Color |
White |
| Acoustic Construction |
Aerospace magnetic design |
| Warranty |
2-Year Manufacturer Warranty |
FREQUENTLY ASKED QUESTIONS (FAQs)
What is the primary usage of the DS-QAE0420G1-V?
The speaker is designed for high-quality public address paging and background music in both indoor and outdoor spaces like schools, stores, and plazas.
Can this speaker be used outdoors in the rain?
Yes, the speaker features an IP66 weatherproof rating, protecting it against heavy rain and dust, suitable for outdoor walls.
What type of inputs does it support?
It supports both 100V constant-voltage paging lines (for daisy-chaining) and standard 8 Ohm low-impedance inputs.
What drivers are built inside this column speaker?
It contains one 4-inch full-frequency driver and one 0.75-inch high-frequency tweeter for crisp vocals and music.
Does it include a wall mount bracket?
Yes, L-shaped mounting brackets are included in the package, allowing you to mount it on walls and adjust the tilt angle.
What is the maximum volume level?
The speaker has a rated power of 20 Watts and delivers a maximum sound pressure level (SPL) of 96 dB.
What is the frequency response?
The frequency range spans from 100 Hz to 20 kHz, ensuring clean treble and vocal presence.
What is the speaker casing made of?
The back cover is made of reinforced engineering plastic, and the front cover is steel mesh.
What color is this speaker casing?
The speaker is finished in a clean matte white color.
Can it connect directly to standard NVRs?
No, it is an analog speaker that requires an audio amplifier (such as the DS-QAE0A60G1-VB) to drive it.
