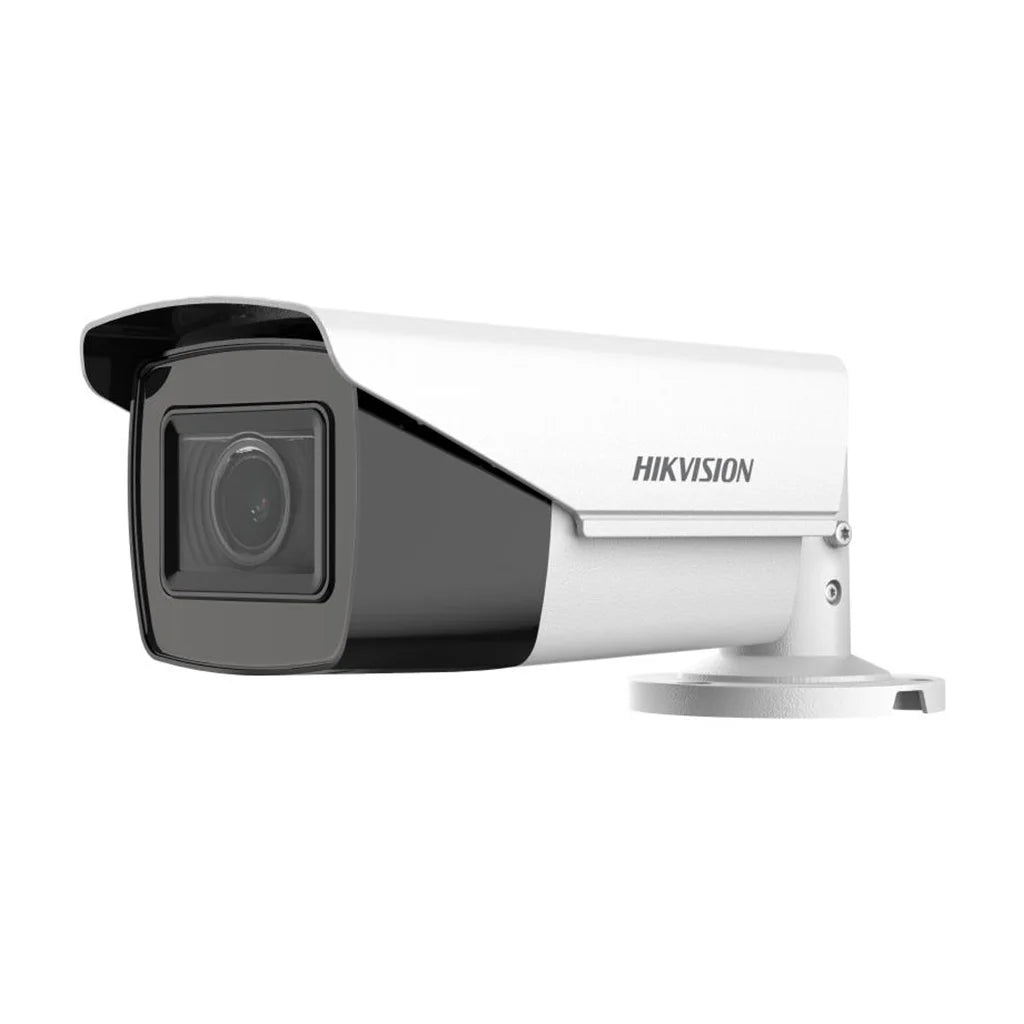

Hikvision DS-2CE19H0T-IT3ZE 5MP PoC Motorized Varifocal Bullet Camera

The Hikvision DS-2CE19H0T-IT3ZE(C) is a professional-grade 5 Megapixel Power over Coaxial (PoC) motorized varifocal bullet analog camera designed for demanding outdoor and perimeter security applications. Utilizing a high-performance 5MP CMOS sensor and EXIR night vision technology, it captures ultra-sharp 2560 × 1944 resolution video, providing up to 40 meters of uniform night illumination. Housed in a rugged, weatherproof IP67 metal and plastic bullet casing, this advanced security camera features a 2.7 mm to 13.5 mm motorized varifocal lens that automatically focuses when adjusting the zoom. Supporting a switchable output and PoC.at power standards, it represents a complete, versatile surveillance solution for commercial warehouses, open yards, and perimeter fence lines.

Hikvision DS-2CE19H0T-IT3ZE 5MP PoC Motorized Varifocal Bullet Camera

The Hikvision DS-2CE19H0T-IT3ZE(C) is a professional-grade 5 Megapixel Power over Coaxial (PoC) motorized varifocal bullet analog camera designed for demanding outdoor and perimeter security applications. Utilizing a high-performance 5MP CMOS sensor and EXIR night vision technology, it captures ultra-sharp 2560 × 1944 resolution video, providing up to 40 meters of uniform night illumination. This makes it an essential tool for professional security networks.

Housed in a rugged, weatherproof IP67 metal and plastic bullet casing, this advanced security camera features a 2.7 mm to 13.5 mm motorized varifocal lens that automatically focuses when adjusting the zoom. Supporting a switchable output and PoC.at power standards, it represents a complete, versatile surveillance solution for commercial warehouses, open yards, and perimeter fence lines. Installing this device ensures continuous stability and reliability in any access control or surveillance system.

5MP High-Resolution Video

Captures video at an ultra-high 2560 × 1944 resolution (5MP) using an progressive CMOS sensor, providing excellent pixel density for identifying faces and license plates.

Motorized Varifocal Lens

Equipped with a 2.7 mm to 13.5 mm motorized lens, allowing remote zoom and automatic focus adjustments directly from the DVR or client software.

40m EXIR Night Vision

Utilizes advanced EXIR infrared technology, providing uniform night illumination up to 40 meters without center overexposure or dark corners.

Power over Coaxial (PoC) Support

Allows both video signals and power to be transmitted over a single coaxial cable when connected to PoC DVRs, simplifying cable management.

Digital Wide Dynamic Range

Incorporates digital WDR technology to balance high-contrast lighting, rendering clear video detail in both bright and shadowed areas of the same scene.

IP67 Weatherproof Construction

Features a robust physical enclosure rated IP67 for complete protection against dust and water ingress, suitable for installation in exposed outdoor zones.

Note: Ensure your DVR supports 5MP TVI input resolution and PoC standard protocols to utilize the full video clarity and one-cable installation.

KEY BENEFITS

• Vivid 5MP video resolution delivers extreme clarity for forensic video reviews.
• Motorized lens allows installers to adjust the viewing angle remotely without climbing ladders.
• Long-range 40m IR range easily covers wide parking lots and industrial yards.
• PoC support simplifies installation by delivering power and video over one coaxial cable.
• IP67 weatherproofing ensures stable operation in heavy rain, snow, and wind.
• Digital WDR balances high-contrast backlight areas for clear, legible images.
• Anti-reflective glass increases infrared transmittance for cleaner night video.
• Heavy-duty metal front cover provides rugged physical protection.
• Low power draw configuration reduces overall electricity and running costs.
• Wide operating temperature range ensures performance in freezing winter conditions.

KEY FEATURES

• Model Code: DS-2CE19H0T-IT3ZE
• Image Sensor: 5 Megapixel Progressive CMOS
• Resolution: 2560 × 1944 (5MP HD)
• Lens Type: Motorized varifocal (auto-focus)
• Focal Length: 2.7 mm to 13.5 mm varifocal
• Lens Field of View: 95° to 26° Horizontal
• Lens Mount: Φ14 mount standard
• Frame Rates (TVI): 5MP@20fps, 4MP@25fps
• Minimum Illumination: 0.01 Lux @ (F1.6, AGC ON)
• Night Vision Type: EXIR smart IR
• Supplement Light Range: Up to 40 m IR range
• Signal Output: 1 HD analog output
• Power Standard: 12 VDC / PoC.at (Max 8.7 W)
• Ingress Protection: IP67 dust and water resistant
• Camera Net Weight: Solid varifocal build at approx. 677g

IDEAL FOR

• Commercial parking lots and vehicle entrances.
• Warehouse perimeters and exterior fence lines.
• Public passageways and transit station perimeters.
• Retail storefront perimeters and exterior walls.
• School campus outdoor grounds and play yards.
• Industrial plant perimeters requiring long-range night vision.
• Office exterior facades and entry checkpoints.
• Bank exteriors requiring high-definition recording.
• Unattended logistics yards needing rugged cameras.
• Replacing older analog cameras with 5MP PoC resolution.
• High-contrast entrances with strong backlighting.
• Exposed outdoor walls subject to harsh weather.

SYSTEM COMPATIBILITY

• Compatible with Hikvision Turbo HD PoC DVR series.
• Supports standard TVI, CVI, AHD, and CVBS signals.
• Works with standard 12V DC power distribution units.
• Compatible with standard BNC coaxial video cables (RG59/RG6).
• Configurable via Hikvision DVR OSD coaxial menu system.
• Supports Hikvision DS-1280ZJ-S junction mounting boxes.
• Integrates with Hikvision DS-1275ZJ-SUS pole mounting brackets.
• Works alongside coax telemetry DVR configurations.
• Supports standard video baluns over UTP.
• Compatible with standard VMS platforms via DVR integration.
• Works alongside Hikvision access control and intercom networks.
• Supports PoC power injection over standard coaxial wiring.
• Integrates with Hikvision smart event notification cloud system.

TECHNICAL SPECIFICATIONS

FREQUENTLY ASKED QUESTIONS (FAQs)

What is the resolution of the DS-2CE19H0T-IT3ZE(C)?

The camera has a 5 megapixel sensor that records at 2560 × 1944 resolution for maximum video clarity.

What is a motorized varifocal lens?

It means you can adjust the camera's zoom (focal length from 2.7 mm to 13.5 mm) remotely, and the camera will automatically adjust its focus so you don't need to do it manually.

What night vision range does it support?

Using advanced EXIR technology, the camera provides uniform infrared night vision up to 40 meters in complete darkness.

How does Power over Coaxial (PoC) work?

PoC allows the camera to draw its electrical power directly from a compatible PoC DVR over the same coaxial video cable, eliminating the need for local power adapters.

Is the camera weatherproof?

Yes, it is rated IP67 for water and dust resistance, making it suitable for exposed outdoor installations.

What power source does it require?

It supports standard 12 VDC (± 15%) or PoC.at inputs. Power consumption is max. 8.7 W.

Does this camera use PoE?

No, this is an analog camera that uses coaxial BNC connections for video and standard DC/AC terminals for power. It does not support Power over Ethernet (PoE).

What mounting brackets are compatible?

It is compatible with standard DS-1280ZJ-S junction boxes for clean cabling.

What is the difference between this and dome models?

This bullet form factor is more visible and serves as an active visual deterrent, and provides a longer 40m IR range compared to dome models.

Does it support WDR?

Yes, it features digital Wide Dynamic Range (WDR), which balances scenes with high contrast backlighting to prevent silhouetting.
