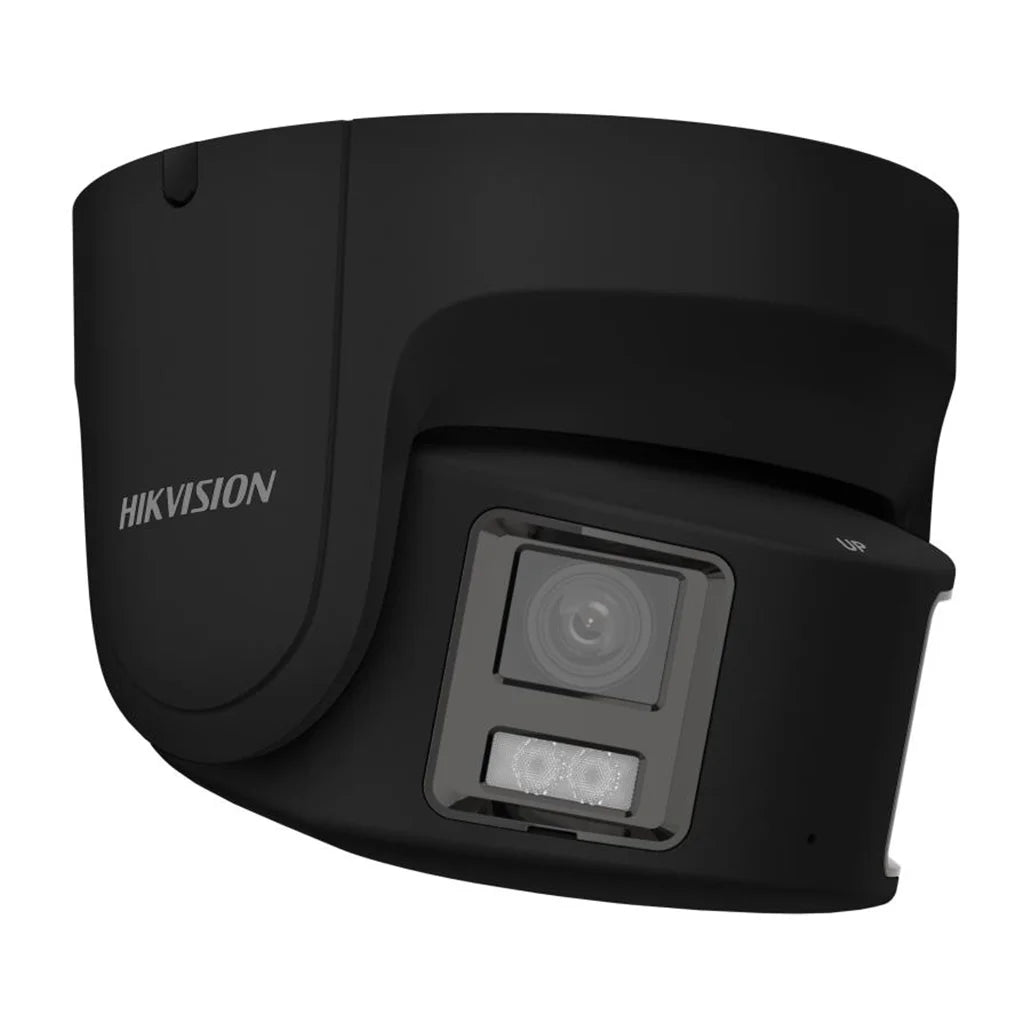

Black Hikvision DS-2CD2387G2P-LSU/SL Panoramic Overview
The Hikvision DS-2CD2387G2P-LSU/SL(4mm)(C) in black is an 8MP ColorVu panoramic fixed turret network camera with two 1/1.8-inch image sensors and two fixed 4mm F1.0 lenses. The exact base model remains DS-2CD2387G2P-LSU/SL(4mm)(C); black describes the supplied housing finish rather than changing the customer-facing core model code.
The two sensor views are stitched into one 5120 × 1440 panoramic image covering approximately 180° horizontally and 44° vertically. White supplement light reaches up to 30 metres. The camera also includes 130dB WDR, human and vehicle classification, a built-in microphone, a 1.2W speaker, external audio input/output, one alarm input and output, a white warning strobe and audible-warning capability.
Key Benefits
-
Black panoramic housing: monitors a broad area from one dark-finish camera body.
-
One stitched 180° image: presents the covered scene as one panoramic stream rather than two separate channels.
-
8MP panoramic detail: records at up to 5120 × 1440.
-
Dual ColorVu sensors: two 1/1.8-inch sensors and F1.0 lenses support colour-focused low-light imaging.
-
30m white supplement light: supports colour monitoring without falsely claiming infrared illumination.
-
Human and vehicle classification: supported events can focus on relevant targets.
-
Two-way audio: the built-in microphone and 1.2W speaker support compatible communication.
-
Active deterrence: a white warning strobe and audible warning can be linked to events.
-
External integration: line audio and alarm input/output are provided.
-
IP67 protection: supports correctly installed indoor or outdoor use.
Key Features
- 8MP panoramic maximum resolution of 5120 × 1440
- Black metal turret housing
- Two 1/1.8-inch progressive-scan CMOS sensors
- Dual fixed 4mm F1.0 lenses
- One stitched panoramic image
- Approximately 180° horizontal and 44° vertical coverage
- Minimum colour illumination of 0.0005 lux
- White supplement light up to 30 metres
- 130dB WDR
- Human and vehicle classification
- Built-in microphone and 1.2W speaker
- External audio input/output
- One alarm input and one alarm output
- White warning strobe and audible warning
- Memory-card support up to 512GB
- 12V DC or standard IEEE 802.3af PoE
- IP67 weather resistance
Technical Specifications
| Base model |
DS-2CD2387G2P-LSU/SL(4mm)(C) |
| Colour |
Black finish |
| Camera type |
Panoramic fixed turret network camera with active deterrence |
| Image sensors |
2 × 1/1.8-inch progressive-scan CMOS |
| Maximum resolution |
5120 × 1440 |
| Panoramic output |
One stitched image |
| Maximum frame rate |
With WDR off: up to 20fps at 5120 × 1440. With WDR on: up to 12.5fps in 50Hz mode or 15fps in 60Hz mode at full resolution. |
| Minimum illumination |
Colour: 0.0005 lux at F1.0 with AGC on; 0 lux with supplement light |
| Lenses |
Dual fixed 4mm lenses, F1.0 |
| Field of view |
Approximately 180° horizontal and 44° vertical |
| Angle adjustment |
Pan 0° to 30°, tilt -75° to 75° and rotation 0° to 360° |
| Supplement light |
White light up to 30m |
| Wide dynamic range |
130dB |
| Analytics |
Human and vehicle classification; face capture and scene-change detection |
| Built-in audio |
Built-in microphone and 1.2W speaker |
| External audio |
One line input and one line output |
| Alarm interface |
One input and one output |
| Active deterrence |
White warning strobe and audible warning |
| Local storage |
Compatible microSD-family cards up to 512GB |
| Network and API |
RJ45 10/100Mbps; ONVIF Profiles S, G and T; ISAPI and SDK |
| Power |
12V DC, maximum 10.5W; IEEE 802.3af PoE Class 3, maximum 12.5W |
| Operating conditions |
-30°C to 60°C; relative humidity 95% or less, non-condensing |
| Protection |
IP67; no specific anti-corrosion protection level stated |
| Dimensions |
155 × 155.3 × 155mm |
| Weight |
Approximately 1110g |
Panoramic Recording and Frame Rate
The two sensors create one stitched 5120 × 1440 image rather than two independent streams. Confirm that the recorder supports this panoramic resolution and has sufficient channel, bandwidth and decoding capacity.
At full resolution, enabling 130dB WDR reduces the maximum frame rate compared with WDR-off operation. This should be considered where smooth motion and strong backlight handling are both important.
Lighting, Audio and Deterrence
This model uses white supplement light for colour-focused monitoring. No infrared range is stated. The built-in microphone and speaker support compatible two-way audio, while the white strobe and audible warning provide active deterrence.
Confirm NVR support for the panoramic stream, two-way audio, alarm and warning controls, standard PoE capacity, storage-card compatibility and mounting accessories before ordering.
Frequently Asked Questions
Is this the black version?
Yes. Black describes the finish; the base model remains DS-2CD2387G2P-LSU/SL(4mm)(C).
What is the maximum resolution?
5120 × 1440.
Is it one image or two channels?
It is one stitched panoramic image.
What is the field of view?
Approximately 180° horizontal and 44° vertical.
Does it have infrared?
No infrared range is stated. It uses white supplement light up to 30 metres.
Does it support two-way audio?
Yes.
Does it have active deterrence?
Yes.
Does it have alarm I/O?
Yes, one input and one output.
Does it require PoE+?
No. It uses standard IEEE 802.3af PoE.
What storage is supported?
Compatible cards up to 512GB.
