Hikvision DS-2CD2387G2P-LSU/SL Panoramic Overview

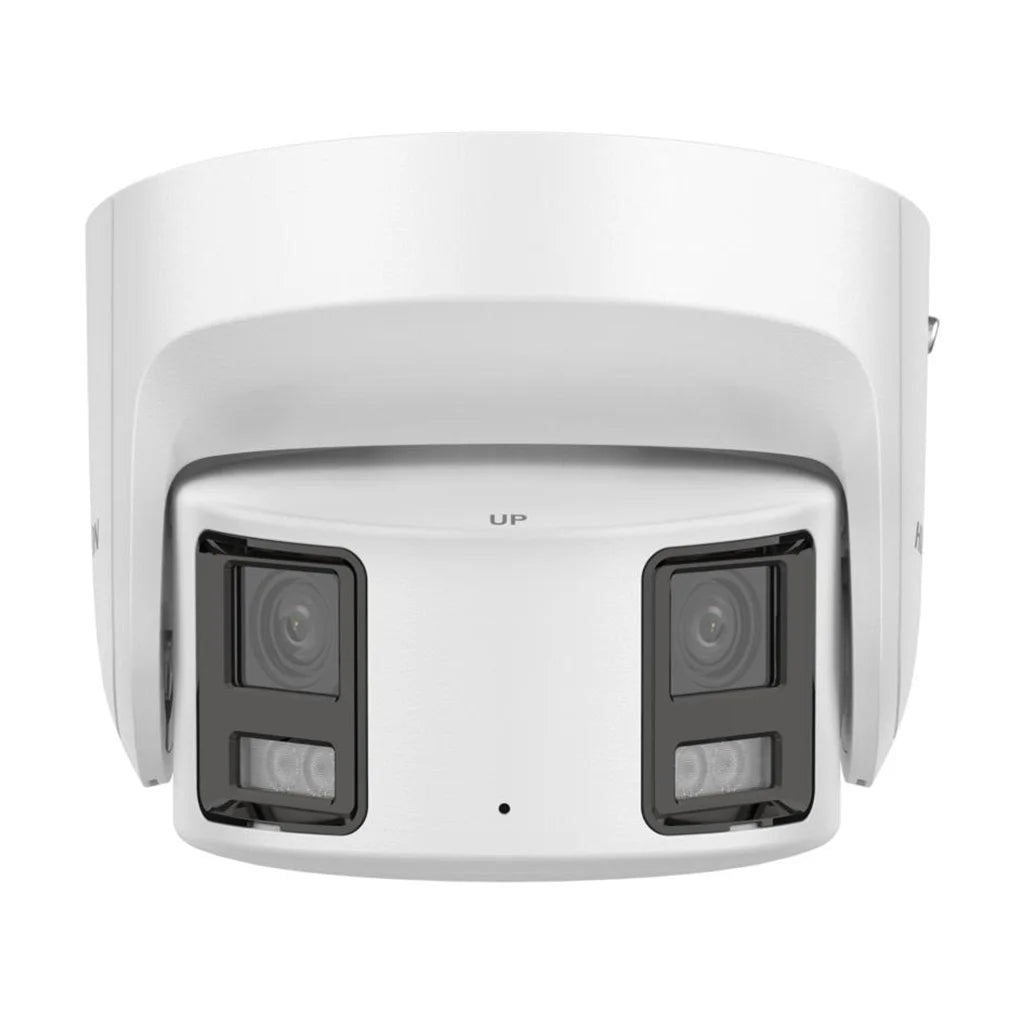

The Hikvision DS-2CD2387G2P-LSU/SL(4mm)(C) is an 8MP ColorVu panoramic fixed turret network camera with two 1/1.8-inch image sensors and two fixed 4mm F1.0 lenses. The two sensor views are stitched into one wide 5120 × 1440 image covering approximately 180° horizontally and 44° vertically.
The camera provides full-colour monitoring supported by white supplement light up to 30 metres. It also includes 130dB WDR, human and vehicle classification, a built-in microphone, a 1.2W speaker, external audio input/output, one alarm input and output, a white warning strobe and audible-warning capability. Compatible microSD-family cards up to 512GB can be used for local recording.
Key Benefits
-
One stitched 180° image: presents the complete covered scene as one panoramic stream rather than two separate customer-facing channels.
-
8MP panoramic detail: records at up to 5120 × 1440 for broad-area monitoring from one mounting point.
-
Dual ColorVu sensors: two 1/1.8-inch sensors and F1.0 lenses support colour-focused imaging under limited illumination.
-
White supplement light: provides manufacturer-rated illumination up to 30 metres without incorrectly claiming infrared operation.
-
Human and vehicle classification: supported events can focus on relevant target types.
-
Integrated two-way audio: the built-in microphone and 1.2W speaker support compatible communication.
-
Active deterrence: the white warning strobe and audible warning can be linked to supported events.
-
External integration: line audio and alarm input/output support compatible devices.
-
Local recording: compatible memory cards up to 512GB are supported.
-
IP67 metal housing: supports correctly installed indoor or outdoor use.
Key Features
- 8MP panoramic maximum resolution of 5120 × 1440
- Two 1/1.8-inch progressive-scan CMOS sensors
- Dual fixed 4mm lenses with F1.0 aperture
- One stitched panoramic image
- Approximately 180° horizontal and 44° vertical field of view
- Minimum colour illumination of 0.0005 lux at F1.0 with AGC enabled
- White supplement light up to 30 metres
- Smart supplement-light control
- 130dB true wide dynamic range
- Human and vehicle classification for supported events
- Face capture and scene-change detection
- Built-in microphone and 1.2W speaker
- One line audio input and one line audio output
- One alarm input and one alarm output
- White warning strobe and audible warning
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3af PoE power
- IP67 weather resistance
Technical Specifications
| Model |
DS-2CD2387G2P-LSU/SL(4mm)(C) |
| Camera type |
Panoramic fixed turret network camera with active deterrence |
| Image sensors |
2 × 1/1.8-inch progressive-scan CMOS |
| Maximum resolution |
5120 × 1440 |
| Panoramic output |
One stitched image covering the complete scene |
| Maximum frame rate |
With WDR off: up to 20fps at 5120 × 1440 in 50Hz or 60Hz mode. With WDR on: up to 12.5fps in 50Hz mode or 15fps in 60Hz mode at maximum resolution. |
| Minimum illumination |
Colour: 0.0005 lux at F1.0 with AGC on; 0 lux with supplement light |
| Lenses |
Dual fixed 4mm lenses, F1.0 |
| Field of view |
Approximately 180° horizontal and 44° vertical |
| Angle adjustment |
Pan 0° to 30°, tilt -75° to 75° and rotation 0° to 360° during installation |
| Supplement light |
White light up to 30m with smart supplement-light control |
| Wide dynamic range |
130dB |
| Video compression |
H.265+, H.265, H.264+ and H.264; MJPEG on the sub-stream |
| Analytics |
Human and vehicle classification for supported events; face capture and scene-change detection |
| Built-in audio |
Built-in microphone and 1.2W speaker; manufacturer specifies up to 95dB sound pressure at 10cm |
| External audio |
One line input and one line output |
| Alarm interface |
One input and one output |
| Active deterrence |
White warning strobe and audible warning |
| Local storage |
Compatible microSD, microSDHC or microSDXC cards up to 512GB |
| Network interface |
1 × RJ45 10/100Mbps self-adaptive Ethernet port |
| Interoperability |
ONVIF Profiles S, G and T; ISAPI and SDK |
| Power |
12V DC, maximum 10.5W; IEEE 802.3af PoE Class 3, maximum 12.5W |
| Operating conditions |
-30°C to 60°C; relative humidity 95% or less, non-condensing |
| Housing |
Metal, white finish |
| Protection |
IP67; no specific anti-corrosion protection level stated |
| Dimensions |
155 × 155.3 × 155mm |
| Weight |
Approximately 1110g |
Understanding the Panoramic Image
The camera uses two sensors internally but produces one stitched 5120 × 1440 panoramic image. It should not be described as two independent 4MP streams. Confirm that the recorder supports the unusual panoramic resolution, required frame rate, bandwidth and decoding load before ordering.
When 130dB WDR is enabled, the maximum frame rate at full resolution is lower than when WDR is disabled. Choose the recording profile according to whether maximum motion smoothness or strong backlight handling is more important for the installation.
Night Imaging and Detection
This model uses white supplement light for colour-focused monitoring and does not have a manufacturer-stated infrared illuminator. Practical illumination range depends on mounting height, reflective surfaces, weather, available ambient light and configuration.
Human and vehicle classification is available for supported event types. Detection performance depends on target size, camera angle, lighting, scene conditions and correct configuration.
Two-Way Audio, Deterrence and Compatibility
The built-in microphone and 1.2W speaker support compatible two-way communication. The white warning strobe and audible warning can be linked to supported events. External line audio and alarm interfaces are also provided for compatible equipment.
Confirm NVR panoramic-resolution support, two-way audio, alarm and deterrence controls, standard PoE capacity, storage-card support and mounting accessories before ordering. The warning strobe is a deterrence signal rather than a claimed long-range scene illuminator.
Frequently Asked Questions
What is the exact model?
DS-2CD2387G2P-LSU/SL(4mm)(C).
What is the maximum resolution?
5120 × 1440, presented as one panoramic image.
Does it provide one image or two separate channels?
It provides one stitched panoramic image.
What is the field of view?
Approximately 180° horizontal and 44° vertical.
Does it use infrared illumination?
No infrared range is stated for this model. Hikvision specifies white supplement light up to 30 metres.
What is the full-resolution frame rate?
Up to 20fps with WDR off. With WDR on, up to 12.5fps in 50Hz mode or 15fps in 60Hz mode.
Does it support two-way audio?
Yes. It includes a built-in microphone and 1.2W speaker.
Does it have active deterrence?
Yes. It includes a white warning strobe and audible warning.
Does it require PoE+?
No. Hikvision specifies standard IEEE 802.3af PoE Class 3.
What storage and protection are supported?
Compatible cards up to 512GB and IP67 weather resistance.
