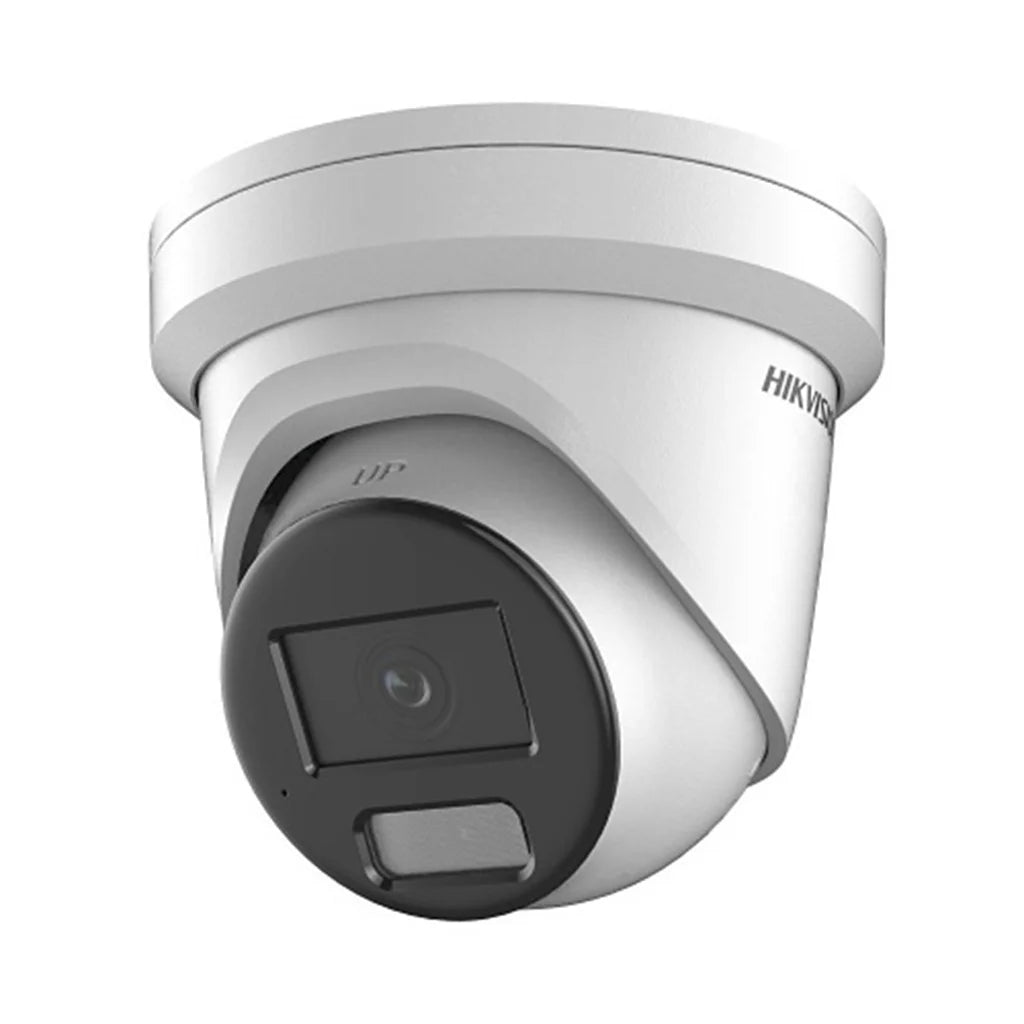

Hikvision DS-2CD2386G2H-IS2U/SL Product Overview
The Hikvision DS-2CD2386G2H-IS2U/SL(2.8mm)(eF) is an 8MP AcuSense Powered-by-DarkFighter fixed turret network camera with integrated two-way audio and active deterrence. Its 1/1.8-inch progressive-scan CMOS sensor records at up to 3840 × 2160, while the fixed 2.8mm F1.0 lens provides a wide 105° horizontal field of view.
The `/SL` hardware includes two built-in microphones, a 2W speaker, one line audio input and output, one alarm input and output, a white warning strobe and audible-warning capability. Infrared illumination reaches up to 30 metres. The camera also provides 120dB WDR, human and vehicle classification, face capture and local memory-card support up to 512GB.
Key Benefits
-
4K 8MP detail: records at up to 3840 × 2160 for detailed monitoring and evidence.
-
Wide 2.8mm view: provides 105° horizontal coverage for entrances, offices, retail areas, yards and general surveillance.
-
DarkFighter low-light imaging: the large sensor and F1.0 aperture support useful colour detail under limited illumination.
-
30m infrared: supports monochrome monitoring in darkness.
-
AcuSense classification: supported events can distinguish human and vehicle targets.
-
Integrated two-way audio: dual microphones and a 2W speaker support compatible communication and warning playback.
-
Active deterrence: a white warning strobe and audible warning can be linked to supported events.
-
External integration: line audio and alarm input/output support compatible equipment.
-
Local recording: compatible memory cards up to 512GB are supported.
-
IP67 housing: supports correctly installed indoor or outdoor use.
Key Features
- 8MP maximum resolution of 3840 × 2160
- 1/1.8-inch progressive-scan CMOS sensor
- 2.8mm fixed focal lens with F1.0 aperture
- 105° horizontal, 56° vertical and 130° diagonal field of view
- Minimum colour illumination of 0.0008 lux at F1.0
- Infrared illumination up to 30 metres
- 120dB wide dynamic range
- Human and vehicle classification for supported events
- Face capture and scene-change detection
- Two built-in microphones and 2W speaker
- One line audio input and one line audio output
- One alarm input and one alarm output
- White warning strobe and audible warning
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3at PoE+ power
- IP67 weather resistance
Technical Specifications
| Model |
DS-2CD2386G2H-IS2U/SL(2.8mm)(eF) |
| Camera type |
Fixed turret network camera with active deterrence |
| Image sensor |
1/1.8-inch progressive-scan CMOS |
| Maximum resolution |
3840 × 2160 |
| Maximum frame rate |
25fps at 3840 × 2160 in 50Hz mode; 24fps at 3840 × 2160 in 60Hz mode, with up to 30fps at supported lower resolutions |
| Minimum illumination |
Colour: 0.0008 lux at F1.0 with AGC on; black and white: 0 lux with infrared |
| Lens |
2.8mm fixed focal lens, F1.0 |
| Field of view |
Horizontal 105°; vertical 56°; diagonal 130° |
| Physical adjustment |
Pan 0° to 360°, tilt 0° to 75° and rotation 0° to 360° during installation |
| Infrared range |
Up to 30m |
| Wide dynamic range |
120dB |
| Analytics |
Human and vehicle classification for supported motion and perimeter events; face capture and scene-change detection |
| Built-in audio |
Two built-in microphones and 2W speaker; manufacturer specifies up to 105dB sound pressure at 10cm |
| External audio |
One line input and one line output |
| Alarm interface |
One input and one output |
| Active deterrence |
White warning strobe and audible warning |
| Local storage |
Compatible microSD, microSDHC or microSDXC cards up to 512GB |
| Network interface |
1 × RJ45 10/100Mbps self-adaptive Ethernet port |
| Interoperability |
ONVIF Profiles S, G and T; ISAPI and SDK |
| Power |
12V DC, maximum 16W; IEEE 802.3at PoE+ Class 4, maximum 18W |
| Operating conditions |
-30°C to 60°C; relative humidity 95% or less, non-condensing |
| Housing |
Metal, white finish |
| Protection |
IP67 weather resistance |
| Dimensions |
Ø138.3 × 115.4mm |
| Weight |
Approximately 780g |
Low-Light Imaging and Detection
Powered-by-DarkFighter imaging and the F1.0 lens support useful colour detail under limited illumination. AcuSense can classify human and vehicle targets for compatible motion and perimeter events. Face capture and scene-change detection are also available.
Two-Way Audio and Active Deterrence
The two built-in microphones and 2W speaker support compatible two-way communication. The white warning strobe and audible warning can be linked to supported events. The strobe is a warning device and must not be presented as general long-range white scene illumination.
External line audio and alarm interfaces are provided for compatible equipment. Event linkage, warning volume and specialised controls can depend on firmware, recorder and management software.
Installation and Compatibility
Confirm NVR 8MP decoding, required frame rate, AcuSense, two-way audio, alarm and deterrence controls, PoE+ capacity, storage-card support and mounting accessories before ordering. Third-party ONVIF integration does not guarantee access to every Hikvision-specific feature.
Frequently Asked Questions
What is the exact model?
DS-2CD2386G2H-IS2U/SL(2.8mm)(eF).
What is the maximum resolution?
3840 × 2160, commonly described as 8MP or 4K.
What is the field of view?
105° horizontal, 56° vertical and 130° diagonal.
What is the infrared range?
Up to 30 metres under manufacturer test conditions.
Does it classify people and vehicles?
Yes, for supported event types.
Does it support two-way audio?
Yes. It includes two microphones and a 2W speaker.
Does it have active deterrence?
Yes. It includes a white warning strobe and audible warning.
Does it provide audio and alarm interfaces?
Yes. It has one input and one output for each.
What storage is supported?
Compatible microSD-family cards up to 512GB.
What power is required?
12V DC or IEEE 802.3at PoE+ Class 4.
