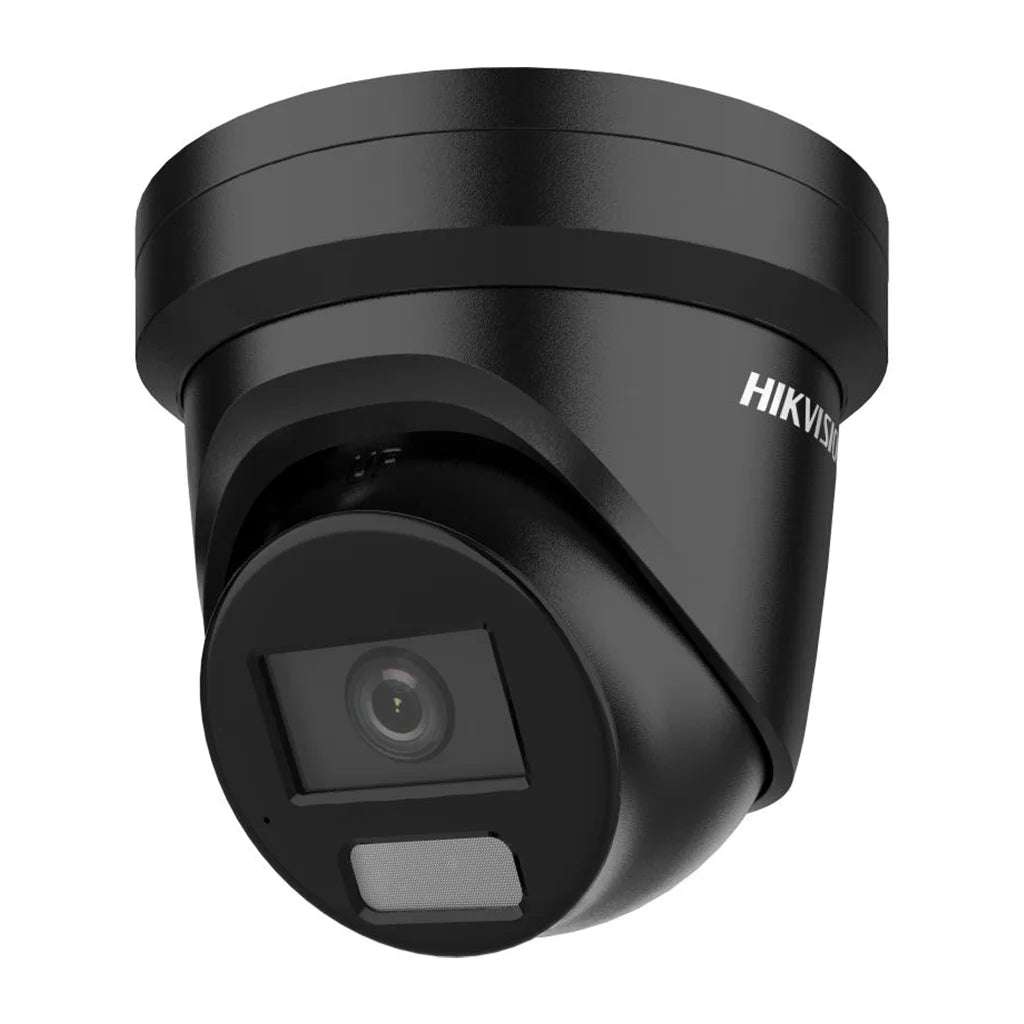

Black Hikvision DS-2CD2366G2H-IU Product Overview
The Hikvision DS-2CD2366G2H-IU(2.8mm)(eF) in black is a 6MP AcuSense Powered-by-DarkFighter fixed turret network camera with a built-in microphone. Its 1/2.4-inch progressive-scan CMOS sensor records at up to 3200 × 1800, while the fixed 2.8mm F1.0 lens provides a wide 114.8° horizontal field of view.
The camera combines a manufacturer-rated minimum colour illumination of 0.001 lux, infrared illumination up to 30 metres and 120dB WDR. AcuSense analytics support human and vehicle classification for compatible motion and perimeter events. It also provides face capture, scene-change detection and local memory-card support up to 512GB. Hikvision does not state a built-in speaker, external audio input/output or alarm input/output for this exact IU model.
Key Benefits
-
Detailed 6MP monitoring: captures up to 3200 × 1800 for high-detail live viewing and playback.
-
Wide 2.8mm view: the 114.8° horizontal field of view suits entrances, shops, offices, yards and general surveillance areas.
-
DarkFighter low-light imaging: the F1.0 lens supports useful colour detail where ambient illumination is limited.
-
30m infrared: provides monochrome night monitoring in darkness under manufacturer test conditions.
-
AcuSense classification: supported events can distinguish human and vehicle targets to reduce irrelevant alerts.
-
120dB WDR: helps retain detail where bright and shaded areas appear together.
-
Built-in microphone: records audio without misleadingly implying speaker playback or two-way audio.
-
Protected black housing: the metal turret enclosure is rated IP67.
Key Features
- 6MP maximum resolution of 3200 × 1800
- 1/2.4-inch progressive-scan CMOS image sensor
- 2.8mm fixed focal lens with F1.0 aperture
- 114.8° horizontal field of view
- Minimum colour illumination of 0.001 lux at F1.0 with AGC enabled
- Infrared illumination up to 30 metres
- 120dB true wide dynamic range
- H.265+, H.265, H.264+ and H.264 compression
- Human and vehicle classification for supported events
- Line crossing, intrusion, region entrance and region exit detection
- Face capture and scene-change detection
- Built-in microphone
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3af PoE power
- IP67 weather resistance
Technical Specifications
| Base model |
DS-2CD2366G2H-IU(2.8mm)(eF) |
| Colour |
Black finish |
| Camera type |
Fixed turret network camera |
| Image sensor |
1/2.4-inch progressive-scan CMOS |
| Maximum resolution |
3200 × 1800 |
| Maximum frame rate |
25fps at 3200 × 1800 in 50Hz mode; 24fps at 3200 × 1800 in 60Hz mode, with up to 30fps at supported lower resolutions |
| Minimum illumination |
Colour: 0.001 lux at F1.0 with AGC on; black and white: 0 lux with infrared |
| Lens |
2.8mm fixed focal lens, F1.0 |
| Field of view |
Approximately 114.8° horizontal |
| Physical adjustment |
Pan 0° to 360°, tilt 0° to 75° and rotation 0° to 360° during installation |
| Infrared range |
Up to 30m |
| Wide dynamic range |
120dB |
| Analytics |
Human and vehicle classification for supported motion and perimeter events; face capture and scene-change detection |
| Built-in audio |
Built-in microphone |
| Speaker and external interfaces |
No built-in speaker, external audio input/output or alarm input/output stated for this exact model |
| Local storage |
Compatible microSD, microSDHC or microSDXC cards up to 512GB |
| Network |
RJ45 Ethernet with ONVIF-compatible integration |
| Power |
12V DC or IEEE 802.3af PoE; manufacturer product data states maximum consumption up to 8W |
| Operating conditions |
-30°C to 60°C; relative humidity 95% or less, non-condensing |
| Housing |
Black metal turret housing |
| Protection |
IP67 weather resistance |
Low-Light Imaging and Detection
Powered-by-DarkFighter technology and the F1.0 lens support colour imaging where ambient light is limited. When available light is insufficient, the infrared illuminator provides monochrome imaging. Practical night performance depends on mounting, reflective surfaces, scene conditions and configuration.
AcuSense can classify human and vehicle targets for supported motion, line-crossing, intrusion, region-entry and region-exit events. Face capture and scene-change detection are also available. Detection performance depends on target size, camera angle, lighting and correct setup.
Audio, Storage and Compatibility
The built-in microphone records audio. No speaker or audio output is stated, so this listing does not claim two-way audio. The internal slot supports compatible microSD-family cards up to 512GB; a card is normally sold separately.
Confirm NVR 6MP decoding, required frame rate, AcuSense and audio-recording support, PoE capacity, storage-card compatibility and mounting accessories before ordering.
Frequently Asked Questions
Is this the black version?
Yes. Black describes the housing finish; the base model remains DS-2CD2366G2H-IU(2.8mm)(eF).
What is the maximum resolution?
3200 × 1800, commonly described as 6MP.
What lens is fitted?
A fixed 2.8mm F1.0 lens.
What is the horizontal field of view?
Approximately 114.8°.
What is the infrared range?
Hikvision specifies up to 30 metres under manufacturer test conditions.
Does it classify people and vehicles?
Yes, for supported event types.
Does it have a built-in microphone?
Yes.
Does it support two-way audio?
No built-in speaker or audio output is stated for this exact model.
What storage is supported?
Compatible microSD-family cards up to 512GB.
What is the weather rating?
IP67.
