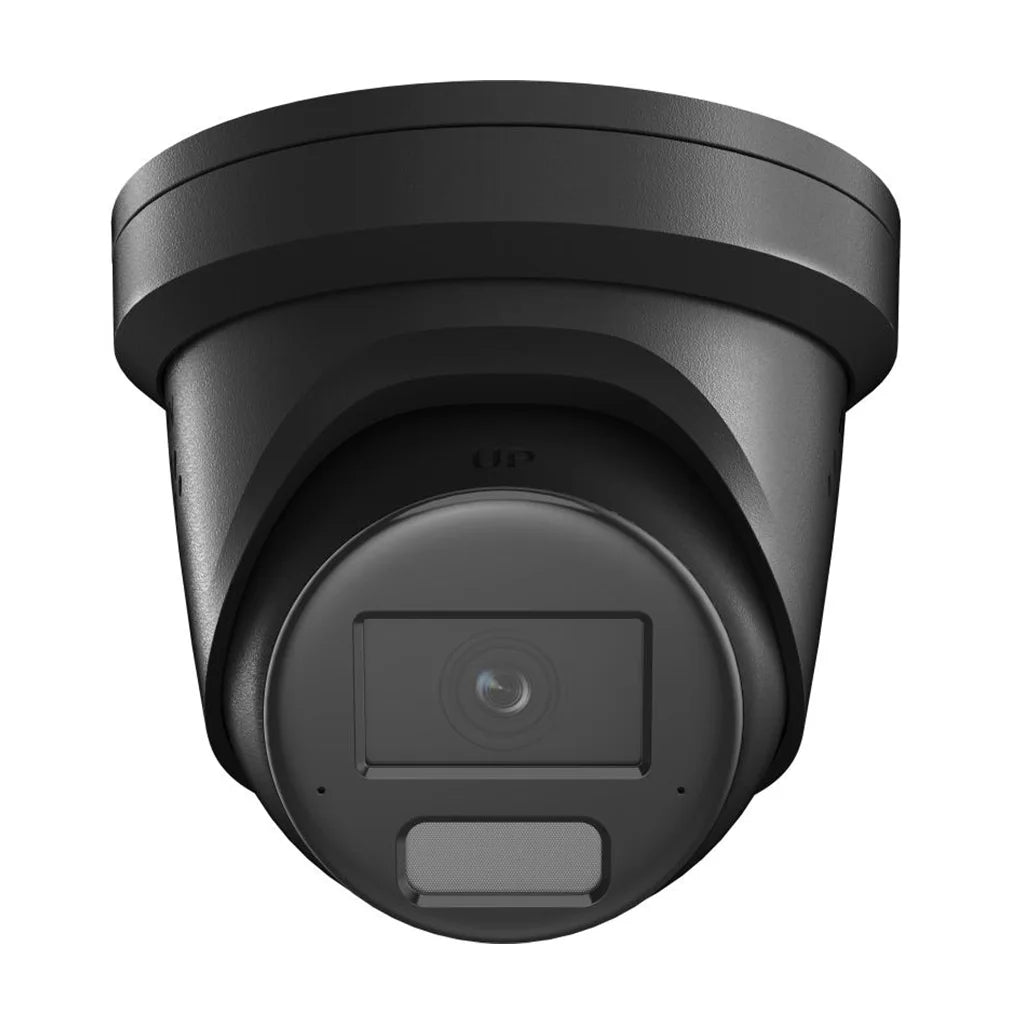

Black Hikvision DS-2CD2346G2H-IS2U/SL Product Overview
The Hikvision DS-2CD2346G2H-IS2U/SL(2.8mm)(eF) in black is a 4MP AcuSense Powered-by-DarkFighter fixed turret network camera with built-in two-way audio and active deterrence. Its 1/3-inch progressive-scan CMOS sensor records at up to 2688 × 1520, while the fixed 2.8mm F1.0 lens provides an approximately 100° horizontal field of view.
The camera includes infrared illumination up to 30 metres, 120dB WDR and human and vehicle classification for supported events. The /SL hardware provides built-in audio capture, a built-in speaker, external audio input/output, one alarm input and output, a white warning strobe and audible-warning capability. Compatible memory cards up to 512GB are supported.
Key Benefits
-
Black metal finish: suited to installations where a dark camera housing is required.
-
Detailed 4MP video: records at up to 2688 × 1520 at 25fps in 50Hz mode or 30fps in 60Hz mode.
-
DarkFighter low-light imaging: the F1.0 lens and 0.001-lux rating support useful detail in very low illumination.
-
Infrared night monitoring: built-in IR has a manufacturer-rated range of up to 30 metres.
-
AcuSense classification: supported events can distinguish human and vehicle targets.
-
Integrated two-way audio: built-in audio capture and a speaker support compatible communication.
-
Active deterrence: a white warning strobe and audible warning can be linked to supported events.
-
Protected housing: the black metal turret enclosure is rated IP67.
Key Features
- 4MP maximum resolution of 2688 × 1520
- Black metal turret housing
- 1/3-inch progressive-scan CMOS sensor
- 2.8mm fixed lens with F1.0 aperture
- Minimum colour illumination of 0.001 lux at F1.0 with AGC enabled
- Infrared illumination up to 30 metres
- 120dB wide dynamic range
- Human and vehicle classification for supported events
- Face-capture and scene-change-detection support
- Built-in microphone and speaker
- External audio input and output
- One alarm input and one alarm output
- White warning strobe and audible warning
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3at PoE+ power
- IP67 weather resistance
Technical Specifications
| Model |
DS-2CD2346G2H-IS2U/SL(2.8mm)(eF) |
| Colour |
Black finish |
| Camera type |
Fixed turret network camera with active deterrence |
| Image sensor |
1/3-inch progressive-scan CMOS |
| Maximum resolution |
2688 × 1520 |
| Maximum frame rate |
25fps in 50Hz mode or 30fps in 60Hz mode at maximum resolution |
| Minimum illumination |
Colour: 0.001 lux at F1.0 with AGC on; 0 lux with infrared |
| Lens |
2.8mm fixed focal lens, F1.0 |
| Field of view |
Approximately 100° horizontal and 55° vertical |
| Physical adjustment |
Pan 0° to 360°, tilt 0° to 75° and rotation 0° to 360° |
| Infrared range |
Up to 30m |
| Wide dynamic range |
120dB |
| Analytics |
Human and vehicle classification for supported events; face capture and scene-change detection |
| Built-in audio |
Built-in microphone and speaker for compatible two-way audio |
| External audio |
One input and one output |
| Alarm interface |
One input and one output |
| Active deterrence |
White warning strobe and audible warning |
| Local storage |
Compatible microSD-family cards up to 512GB |
| Power |
12V DC, maximum 16W; IEEE 802.3at PoE+ Class 4, maximum 18W |
| Operating conditions |
-30°C to 60°C; relative humidity 95% or less, non-condensing |
| Housing |
Black metal housing |
| Protection |
IP67 |
| Dimensions |
Ø138.3 × 115.4mm |
| Weight |
Approximately 780g |
Deterrence, Audio and Compatibility
The /SL version can link its warning strobe, audible warning, recording and alarm output to supported events. The strobe is a warning device and must not be described as a long-range white scene illuminator.
Confirm NVR 4MP support, PoE+ capacity, AcuSense, two-way audio, alarm, deterrence, memory-card and mounting compatibility before ordering. Advanced functions can depend on compatible Hikvision firmware, recorder or software.
Frequently Asked Questions
Is this the black version?
Yes. This listing is for the black-finish DS-2CD2346G2H-IS2U/SL(2.8mm)(eF).
What is the maximum resolution?
2688 × 1520, commonly described as 4MP.
What lens is fitted?
A fixed 2.8mm F1.0 lens.
What is the infrared range?
Up to 30 metres under manufacturer test conditions.
Can it classify people and vehicles?
Yes, for supported event types.
Does it support two-way audio?
Yes. It has built-in audio capture and a built-in speaker.
Does it include external audio connections?
Yes. One audio input and one audio output are provided.
Does it include active deterrence?
Yes. It includes a white warning strobe and audible warning.
What storage is supported?
Compatible memory cards up to 512GB.
What PoE standard is required?
IEEE 802.3at PoE+ Class 4.
