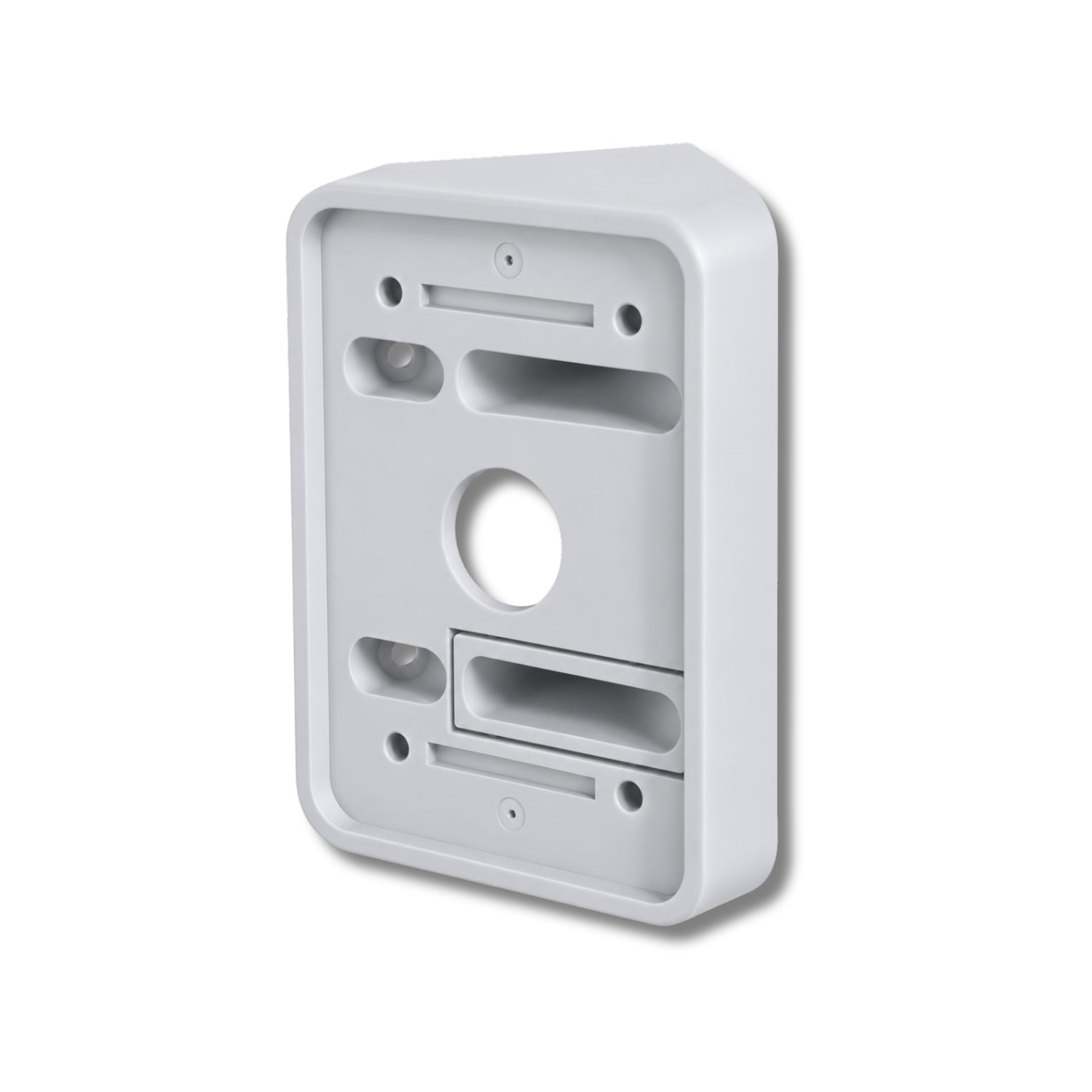

Pyronix XD-45D-ADAPTER 45° Mounting Adapter
The Pyronix XD-45D-ADAPTER is a genuine 45° mounting accessory designed for the separate XD-WALLBRACKET and compatible Pyronix XD external intruder detectors.
It allows a supported detector to be positioned at approximately 90° to the wall, providing greater flexibility when arranging external wall and perimeter detection.
Manufactured from 3mm polycarbonate, the adapter measures 109 x 80 x 49mm and is identified as Environmental Class IV in the manufacturer installation guide.
Key Features
- Genuine Pyronix XD mounting accessory
- Exact model: XD-45D-ADAPTER
- 45° angled mounting design
- Enables 90° wall positioning with XD-WALLBRACKET
- Designed for compatible Pyronix XD detectors
- XD10TTAM and XD15TT referenced in the official installation guide
- Left and right mounting arrangements illustrated
- 3mm polycarbonate construction
- 109 x 80 x 49mm dimensions
- Environmental Class IV
- No electrical power required
Improved Detector Positioning
The adapter is used alongside the XD-WALLBRACKET to change the position of a compatible external intruder detector relative to the mounting wall.
This can be useful when directing the detector towards a required wall-protection area or external perimeter. Actual coverage depends on the detector model and installation conditions.
Compatibility and Installation
The manufacturer's installation guide specifically mentions XD10TTAM and XD15TT. Compatibility with other XD detector variants should be checked before purchase.
Important: The XD-WALLBRACKET is required and is a separate product. This listing is for the XD-45D-ADAPTER only, not a complete detector or wall-bracket kit.
Follow Pyronix installation document RINS1666-1 for the correct assembly and left/right orientation.
Technical Specifications
| Brand |
Pyronix |
| Model |
XD-45D-ADAPTER |
| Manufacturer SAP |
361300070 |
| Product Type |
Detector Mounting Adapter |
| Angle |
45° |
| Combined Positioning |
90° to Wall with XD-WALLBRACKET |
| Compatible Bracket |
XD-WALLBRACKET |
| Material |
3mm Polycarbonate |
| Dimensions |
109 x 80 x 49mm |
| Environmental Class |
IV |
| Power Requirement |
None |
Frequently Asked Questions
What is the XD-45D-ADAPTER used for?
It provides an angled mounting arrangement for compatible XD external intruder detectors when used with XD-WALLBRACKET.
Can it position the detector at 90° to the wall?
Yes. The combined mounting arrangement allows approximately 90° positioning.
Is XD-WALLBRACKET included?
No wall bracket is confirmed as included. XD-WALLBRACKET is a separate required product.
Which detectors are supported?
The official installation guide mentions XD10TTAM and XD15TT. Check other detector models individually.
What is the adapter made from?
The official material specification is 3mm polycarbonate.
Can it be used for external installations?
The manufacturer identifies Environmental Class IV. Installation must follow the compatible detector and bracket instructions.
Is this an electronic alarm device?
No. It is a mechanical mounting accessory with no independent electronic detection or power requirement.
Are mounting screws supplied?
The exact fixing quantities are not confirmed in the public manufacturer documentation. Check the supplied package.
