The Hikvision DS-E08NI-Q1/8P(SSD 2T) is a professional 8-channel eNVR (Network Video Recorder) featuring integrated SSD storage, 8 built-in PoE ports, and ultra-low power consumption. Engineered with pre-installed 2TB eSSD storage, a compact mini-chassis design, H.265+ compression, and intelligent target classification, it offers high reliability, silent operation, and seamless plug-and-play installation for modern residential and light commercial security systems.

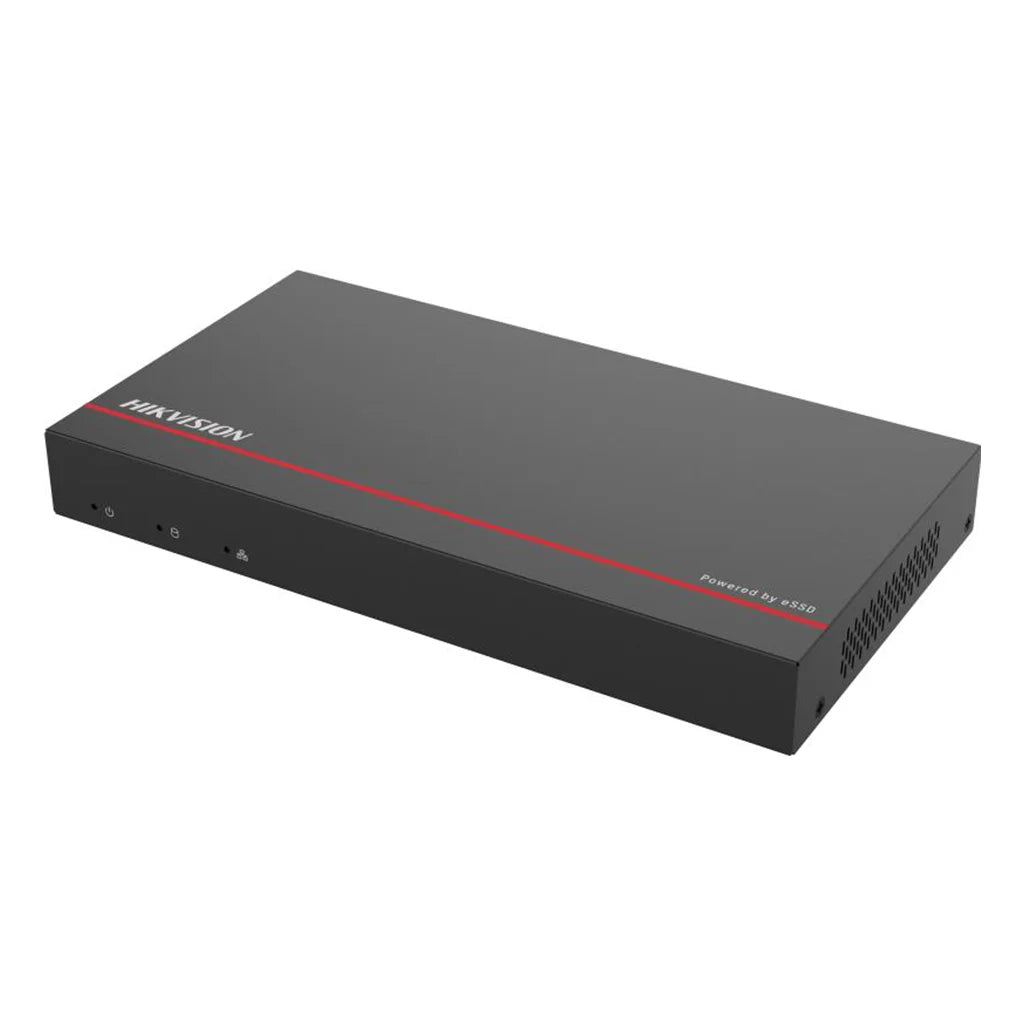

Hikvision DS-E08NI-Q1/8P(SSD 2T) 8-ch eNVR with Built-in 2TB SSD
This eco-friendly network video recorder is designed for security systems that require a highly reliable, compact, and energy-efficient recording solution. Built with eSSD technology rather than traditional mechanical hard drives, the recorder is completely silent, runs cooler, and is highly resistant to physical shocks and vibrations. The pre-installed 2TB eSSD provides ample storage capacity for daily video recordings, ensuring the unit is ready to use straight out of the box without requiring manual drive installation or complex configuration.
The NVR is equipped with 8 independent PoE (Power over Ethernet) network interfaces, allowing IP cameras to be connected directly to the recorder. This single-cable installation supplies both power and data transmission to the cameras, simplifying setup, eliminating the need for external PoE switches, and reducing overall system cabling costs.
Integrated eSSD Storage Technology
Unlike standard NVRs that require separate mechanical hard drives, the DS-E08NI-Q1/8P(SSD 2T) features integrated eSSD (Embedded Solid State Drive) storage. This solid-state design eliminates moving mechanical parts, resulting in whisper-silent operation, reduced heat generation, and a failure rate significantly lower than traditional HDD-based systems, ensuring your security footage is recorded reliably 24/7.
Note: This model has a pre-installed 2TB eSSD. SSD storage is not user-replaceable or upgradable. It supports up to 8 channels of IP cameras with a total power budget of 58W across its PoE ports.
H.265+ Smart Video Compression
The NVR utilizes Hikvision's advanced H.265+ video compression technology, which dramatically reduces the bandwidth and storage footprint of high-resolution video streams. By optimizing the encoding process based on scene dynamics, H.265+ can save up to 75% on storage space compared to standard H.264 encoding, allowing you to store more days of footage on the built-in 2TB SSD.
Intelligent Target Classification
Equipped with smart analytic capabilities, the recorder supports basic deep-learning algorithms when paired with compatible smart cameras. It facilitates faster search times and more accurate playback by classifying events, helping security operators quickly locate critical segments of footage, such as vehicle or human activity, without having to review hours of static recordings.
Compact Mini-Chassis Design
Measuring just 225 × 122 × 27 mm, the DS-E08NI-Q1/8P(SSD 2T) features a ultra-compact mini-chassis. Its small size allows it to be installed discreetly in tight spaces, such as behind monitors, under desks, or inside small communication cabinets. The fanless design ensures completely silent operation, making it ideal for residential areas or small office spaces.
Secure Communication and Remote Access
The NVR supports secure network communication and is fully integrated with the Hik-Connect mobile application and iVMS-4200 management software. This allows users to easily view live video streams, search playback archives, configure settings, and receive instant push notifications for motion alerts from anywhere in the world.
KEY BENEFITS
- Pre-installed 2TB eSSD storage provides plug-and-play reliability with zero disk installation.
- 8 built-in PoE ports supply both power and data over a single cable to connected cameras.
- Completely silent, fanless operation makes it perfect for office or home environments.
- Up to 75% savings on storage and bandwidth with efficient H.265+ compression.
- Highly resistant to physical shock and vibration compared to mechanical NVRs.
- Discreet, ultra-compact mini-size chassis fits into tight, space-restricted locations.
- Ultra-low power consumption (under 10W) reduces ongoing operational costs.
- Supports high-definition recording up to 4MP resolution for crisp video playback.
- Seamless remote viewing and configuration via the Hik-Connect mobile app.
- Built-in smart search features simplify locating critical security events.
KEY FEATURES
- 8 network camera inputs supporting up to 8-ch IP video feeds.
- Pre-installed 2TB internal eSSD (embedded Solid State Drive).
- 8 independent RJ-45 10/100 Mbps PoE network interfaces.
- Supports H.265+ / H.265 / H.264+ / H.264 video compression formats.
- 60 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth.
- Decoding capability: up to 4-ch @ 1080p (25 fps).
- Recording resolution up to 4 Megapixels (MP).
- HDMI video output supporting resolutions up to 1920 × 1080 @ 60Hz.
- Total PoE power budget of 58 W.
- Two USB 2.0 ports on the rear panel for mouse and backup export.
- Operating temperature range: -10 °C to 50 °C (14 °F to 122 °F).
- Fanless, completely silent thermal design.
- Power consumption: ≤ 10 W (with eSSD storage).
- Compact dimensions: 225 × 122 × 27 mm (8.9" × 4.8" × 1.1").
- Extremely lightweight design weighing only approx. 0.5 kg.
IDEAL FOR
- Residential homes
- Small offices
- Retail shops
- Cafes and restaurants
- Boutiques
- Small warehouses
- Dry cleaners
- Server racks with limited space
- Mobile security units
- Temporary site monitoring
- Quiet office environments
- Multi-family housing units
SYSTEM COMPATIBILITY
- Compatible with Hikvision network IP cameras up to 4MP
- Compatible with third-party IP cameras supporting ONVIF protocols
- Compatible with iVMS-4200 client software for Windows and macOS
- Compatible with Hik-Central professional VMS
- Compatible with Hik-Connect mobile application (iOS & Android)
- ONVIF (Profile S, Profile G, Profile T) compliant
- Supports standard RTSP streams for custom integration
- Integrates with web browsers via standard plugin-free HTML5 access
- Supports SMTP protocol for automatic email alarm alerts
- Compatible with Hik-Partner Pro installer app
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-E08NI-Q1/8P(SSD 2T) |
| Product Type |
8-Channel eNVR (Network Video Recorder) |
| Storage Capacity |
2TB eSSD (Built-in, pre-installed) |
| IP Camera Inputs |
8 Channels |
| Incoming Bandwidth |
60 Mbps |
| Outgoing Bandwidth |
60 Mbps |
| Video Output |
1-ch HDMI (up to 1920 × 1080/60Hz) |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Decoding Capability |
4-ch @ 1080p (25 fps) |
| Recording Resolution |
Up to 4 MP |
| PoE Interfaces |
8 × RJ-45 10/100 Mbps (IEEE 802.3af/at) |
| PoE Power Budget |
58 W |
| USB Interface |
2 × USB 2.0 (Rear panel) |
| Power Supply |
48 VDC, 1.35 A |
| Power Consumption |
≤ 10 W (with eSSD) |
| Operating Temperature |
-10 °C to 50 °C (14 °F to 122 °F) |
| Operating Humidity |
10% to 90% |
| Dimensions (W × D × H) |
225 × 122 × 27 mm (8.9" × 4.8" × 1.1") |
| Weight |
Approx. 0.5 kg (1.1 lb.) |
FREQUENTLY ASKED QUESTIONS (FAQs)
What is an eNVR and how does it differ from a standard NVR?
An eNVR (Eco-friendly Network Video Recorder) utilizes integrated SSD (Solid State Drive) technology for storage instead of traditional mechanical hard drives (HDDs). This makes it highly resistant to vibrations, quieter, more compact, and significantly more energy-efficient.
What is the storage capacity of the DS-E08NI-Q1/8P(SSD 2T)?
This model comes with a built-in, pre-installed 2TB eSSD. The storage is integrated directly into the hardware and is not user-replaceable or upgradable.
How many cameras can I connect to this eNVR?
It supports up to 8 channels of IP network cameras.
Does this eNVR support Power over Ethernet (PoE)?
Yes, it features 8 independent built-in PoE (IEEE 802.3af/at) RJ-45 network interfaces. This allows you to connect cameras directly to the NVR for both power and data transmission without needing an external switch.
What is the total PoE power budget of this device?
The NVR has a total PoE power budget of 58 W, supporting standard IP cameras within this total limit.
What video compression formats are supported?
It supports H.265+, H.265, H.264+, and H.264 compression algorithms. H.265+ is highly efficient, reducing storage space and bandwidth requirements by up to 75%.
What is the maximum recording resolution?
The DS-E08NI-Q1/8P(SSD 2T) supports recording resolutions up to 4 Megapixels (MP).
What video output ports are available?
It is equipped with 1 HDMI video output port supporting resolutions up to 1920 × 1080 at 60Hz. It does not feature a VGA port.
Is the storage expandable via external hard drives?
No, this unit is designed exclusively with the pre-installed internal 2TB eSSD. It does not support additional internal SATA drives, though backup files can be exported via USB.
Can I view the camera feeds remotely?
Yes, it is fully compatible with Hikvision's Hik-Connect mobile application (iOS & Android) and iVMS-4200 software, allowing for remote live viewing, playback, and push notifications.
