The HiLook THC-T250-MS(2.8mm) is a 5MP Turbo HD turret camera with EXIR 2.0 infrared illumination, a built-in microphone and IP67 weatherproofing, switchable across TVI/AHD/CVI/CVBS signal types over a single coax cable.

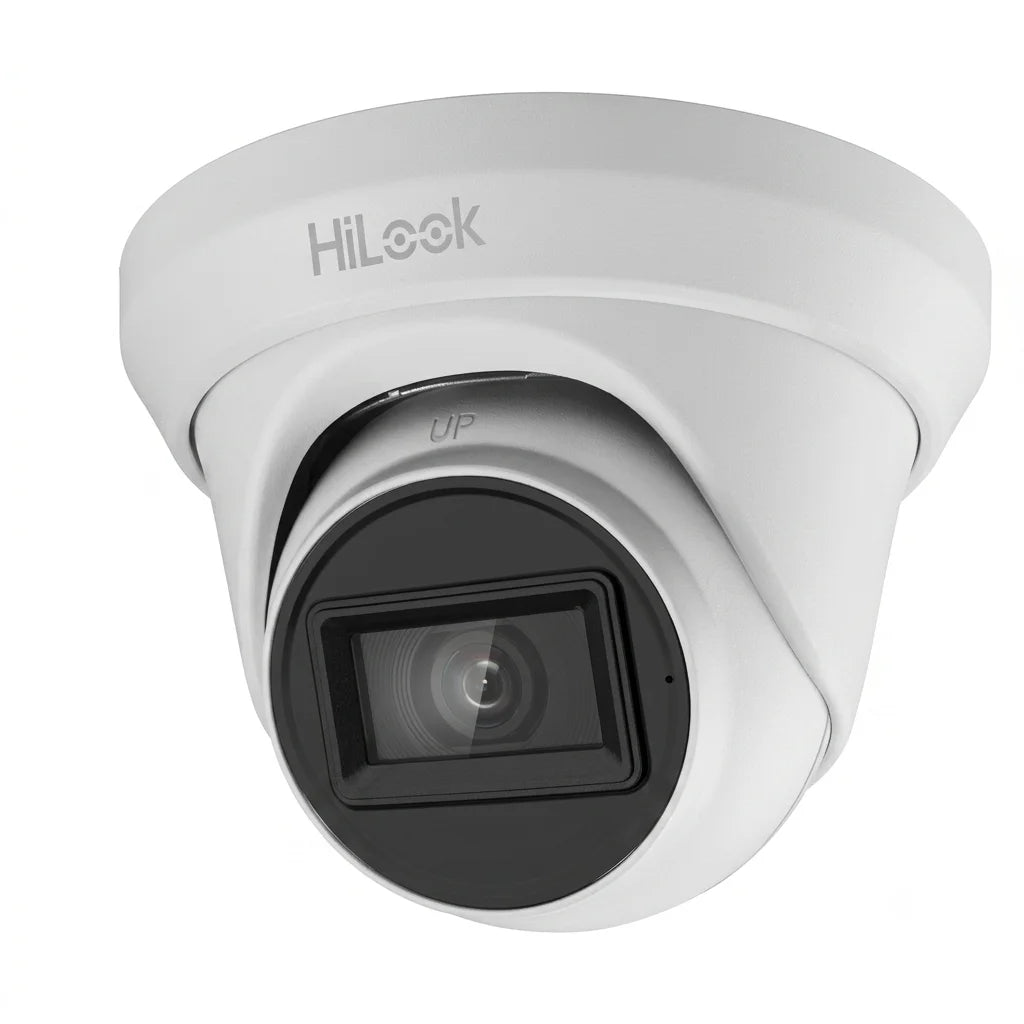

HiLook THC-T250-MS(2.8mm) 5MP EXIR Audio Turret Camera
The HiLook THC-T250-MS uses a CMOS sensor delivering 2560 × 1944 (5MP) resolution, with a minimum illumination of 0.01 Lux (F1.2, AGC on) and 0 Lux with IR active. The 2.8mm fixed lens gives a horizontal field of view of 85.5°.
EXIR 2.0 infrared technology provides night vision illumination up to 40 metres. A built-in microphone captures audio over coax, and the camera is rated IP67 for outdoor use.
5MP Imaging
Resolution is 2560 × 1944, giving more detail than standard 1080p analog cameras for identification and evidential use.
Switchable Signal Support (TVI/AHD/CVI/CVBS)
A single coaxial port supports four switchable analog signal types, allowing the camera to work with a wide range of existing analog DVRs.
EXIR 2.0 Night Vision
EXIR 2.0 infrared technology provides consistent illumination up to 40 metres, giving reliable black & white night vision.
Built-In Microphone & IP67 Weatherproofing
A built-in microphone transmits audio over the same coaxial cable as video. The camera is rated IP67 against dust and water ingress, operating from −40°C to +60°C.
KEY BENEFITS
- 5MP resolution captures clear detail for identification
- Works with existing analog DVRs via switchable TVI/AHD/CVI/CVBS signal support
- EXIR 2.0 night vision up to 40m
- Built-in microphone adds audio context to recordings
- IP67 rated with a wide operating temperature range
- Simple single-coax installation, no PoE or network configuration required
KEY FEATURES
- 5MP (2560 × 1944) resolution
- 2.8mm fixed lens — 85.5° horizontal FOV
- Min. illumination 0.01 Lux (F1.2, AGC on), 0 Lux (IR)
- EXIR 2.0 — IR range up to 40m
- Switchable TVI/AHD/CVI/CVBS signal output from one port
- Built-in microphone, audio over coax
- IP67 weather rating
- Weight approx. 450g
- Operating temperature −40°C to +60°C
IDEAL FOR
- Entrances, driveways and wide-area outdoor coverage
- Residential and small commercial installations upgrading an existing analog DVR
- Sites wanting extended IR range (up to 40m) for larger outdoor areas
- Retrofitting analog systems where PoE/IP cabling isn't available
- Installations wanting audio alongside video without extra cabling
- Mixed-brand analog DVR setups needing TVI/AHD/CVI/CVBS flexibility
- Extreme-climate installations, given the −40°C to +60°C operating range
- Budget-conscious 5MP upgrades from lower-resolution analog cameras
| Specification |
Details |
| Brand |
HiLook by Hikvision |
| Model |
THC-T250-MS(2.8mm) |
| Product Type |
5MP EXIR Audio Turret Turbo HD Camera |
| Max Resolution |
2560 × 1944 (5MP) |
| Signal System |
Switchable TVI/AHD/CVI/CVBS (4-in-1) |
| Focal Length |
2.8mm (fixed) |
| Horizontal FOV |
85.5° |
| Min. Illumination |
0.01 Lux @ F1.2, AGC ON; 0 Lux with IR |
| IR Technology |
EXIR 2.0 |
| IR Range |
Up to 40m |
| Audio |
Built-in microphone, over coaxial cable |
| Weather Rating |
IP67 |
| Operating Temperature |
−40°C to +60°C, ≤90% humidity (non-condensing) |
| Weight |
Approx. 450g |
| Colour |
White (standard HiLook finish — confirm before publishing) |
| Warranty |
Manufacturer standard warranty (confirm current term before publishing) |
COMMON QUESTIONS
What resolution does the THC-T250-MS record at?
Up to 2560 × 1944 (5MP).
What signal types does it support?
TVI, AHD, CVI and CVBS, switchable from a single coaxial output.
What is the IR night vision range?
Up to 40 metres via EXIR 2.0 infrared technology.
Does it have audio?
Yes, a built-in microphone transmits audio over the same coaxial cable as video.
Is it suitable for outdoor use?
Yes, it carries an IP67 rating and operates from −40°C to +60°C.
Does it need a network connection or PoE?
No, it connects over a standard coaxial cable to a compatible Turbo HD DVR.
What lens options are available?
This listing is the 2.8mm variant.
How much does the camera weigh?
Approximately 450g.
