The HiLook DVR-204U-M1(E) is a 4-channel 1U Turbo HD digital video recorder built for small to medium sites that need reliable local recording with smart analytics. It combines 5-in-1 analog support (HDTVI/AHD/CVI/CVBS) with additional IP camera inputs, giving installers flexibility to mix analog and network cameras on one recorder. Deep-learning motion detection is enabled by default, cutting false alarms from leaves, lights, and other non-human/vehicle movement.

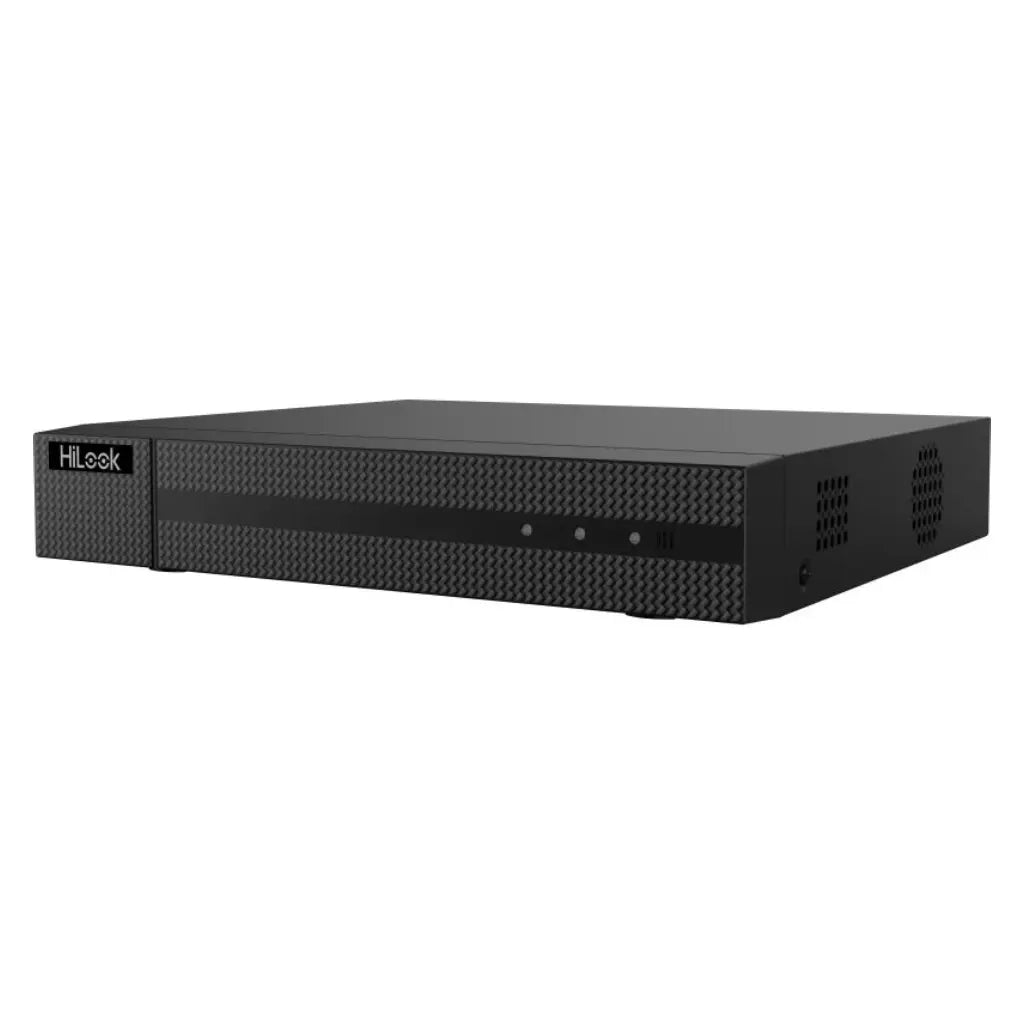

HiLook DVR-204U-M1(E) 4-Channel 5MP 1U H.265 Turbo HD DVR
Designed as part of HiLook's Turbo HD DVR range, the DVR-204U-M1(E) supports up to 8MP HDTVI input on select channels and encodes efficiently with H.265, keeping storage requirements manageable even at higher resolutions. A single SATA interface accepts drives up to 10TB, and simultaneous HDMI/VGA output makes it straightforward to connect to a monitor or existing display.
Alongside its analog inputs, the DVR-204U-M1(E) accepts additional IP camera channels (up to 6 in enhanced IP mode) at up to 8MP resolution with H.265+/H.265/H.264+/H.264 compression, letting a single recorder cover a hybrid analog/IP installation. Remote viewing, playback, and motion notifications are available from anywhere via the Hik-Connect app.
Smart Motion Detection
Deep-learning-based Motion Detection 2.0 is enabled by default on all analog channels. It classifies detected movement as human or vehicle, filtering out false triggers from leaves, insects, headlights, and other environmental noise, and supports quick search by object or event type during playback.
Recording & Storage
The DVR-204U-M1(E) records via H.265 Pro+ compression for reduced storage overhead, with a single SATA interface supporting drives up to 10TB. Smart search tools make it quick to locate relevant footage during playback.
Connectivity
A single RJ45 10M/100M self-adaptive Ethernet port provides network connectivity, and the recorder can be extended to Wi-Fi networks using a compatible USB Wi-Fi dongle. HiLookVision and DDNS support simplify remote network setup.
KEY BENEFITS
- Reduced false alarms thanks to default-enabled human/vehicle motion classification
- Flexible hybrid installation — mix analog (HDTVI/AHD/CVI/CVBS) and IP cameras on one recorder
- Lower storage costs from efficient H.265 Pro+ compression
- Remote monitoring from anywhere via the Hik-Connect app
- Simple single-HDD setup supporting drives up to 10TB
KEY FEATURES
- 4-channel 1U DVR with 5-in-1 analog input support (HDTVI/AHD/CVI/CVBS) plus IP camera input
- Up to 8MP HDTVI input support on select channels
- Up to 6-ch IP camera input in enhanced IP mode, up to 8MP, H.265+/H.265/H.264+/H.264
- Deep-learning Motion Detection 2.0 (human/vehicle classification) enabled by default
- 1 SATA interface, supports HDD up to 10TB
- Simultaneous HDMI/VGA video output
- 1 RJ45 10M/100M self-adaptive Ethernet interface
- USB Wi-Fi dongle compatible for wireless network connection
- Hik-Connect remote app support
IDEAL FOR
- Small retail units and shops
- Home and residential CCTV systems
- Small offices needing hybrid analog/IP recording
- Budget-conscious installs needing smart motion filtering
| Specification |
Details |
| Brand |
HiLook (by Hikvision) |
| Model |
DVR-204U-M1(E) |
| Product Type |
Digital Video Recorder |
| Channels |
4-channel analog (HDTVI/AHD/CVI/CVBS), plus up to 6-ch IP (enhanced IP mode) |
| Max Resolution |
Up to 8MP (HDTVI input, select channels); IP input up to 8MP |
| Video Compression |
H.265 Pro+ / H.265 / H.264+ / H.264 |
| Analog Video Input |
4-ch BNC (1.0 Vp-p, 75Ω), coaxitron supported |
| Smart Detection |
Deep-learning Motion Detection 2.0 (human/vehicle classification), default on |
| Storage |
1 SATA interface, up to 10TB HDD capacity |
| Video Output |
HDMI/VGA simultaneous output |
| Network |
1 RJ45 10M/100M self-adaptive Ethernet; USB Wi-Fi dongle compatible |
| Remote Access |
Hik-Connect app (iOS/Android) |
| Power Consumption |
≤ 15W (without HDD) |
| Weight |
≤ 1.16kg (without HDD) |
| Dimensions |
265 × 225 × 48mm |
| Warranty |
Manufacturer standard warranty (confirm current term before publishing) |
COMMON QUESTIONS
Can I mix analog and IP cameras on the DVR-204U-M1(E)?
Yes. It supports 4 analog channels (HDTVI/AHD/CVI/CVBS) and additional IP camera channels (up to 6 in enhanced IP mode), so you can run a hybrid system from one recorder.
What is the maximum HDD size supported?
The recorder has 1 SATA interface supporting a single HDD up to 10TB.
Does it support human/vehicle detection?
Yes, deep-learning Motion Detection 2.0 is enabled by default on all analog channels and classifies movement as human or vehicle to reduce false alarms.
Can I view cameras remotely?
Yes, via the Hik-Connect app for iOS and Android, which supports live view, playback, and motion notifications.
Does the DVR support Wi-Fi?
There is no built-in Wi-Fi, but it is compatible with supported USB Wi-Fi dongles for wireless network connection.
What does the "(E)" in the model name mean?
"(E)" denotes a hardware/regional revision of the base DVR-204U-M1 — it is spec-identical to the standard DVR-204U-M1.
Is this the same product as the DVR-204U-M1/T?
No. The DVR-204U-M1/T is a separate model in HiLook's range with different encoding capability and IP channel support — it is not the same product as the DVR-204U-M1(E).
