The HiLook THC-T150-MS(2.8mm) is a 5MP Turbo HD turret camera with a built-in microphone, digital WDR and IP67 weatherproofing, switchable across TVI/AHD/CVI/CVBS signal types over a single coax cable.

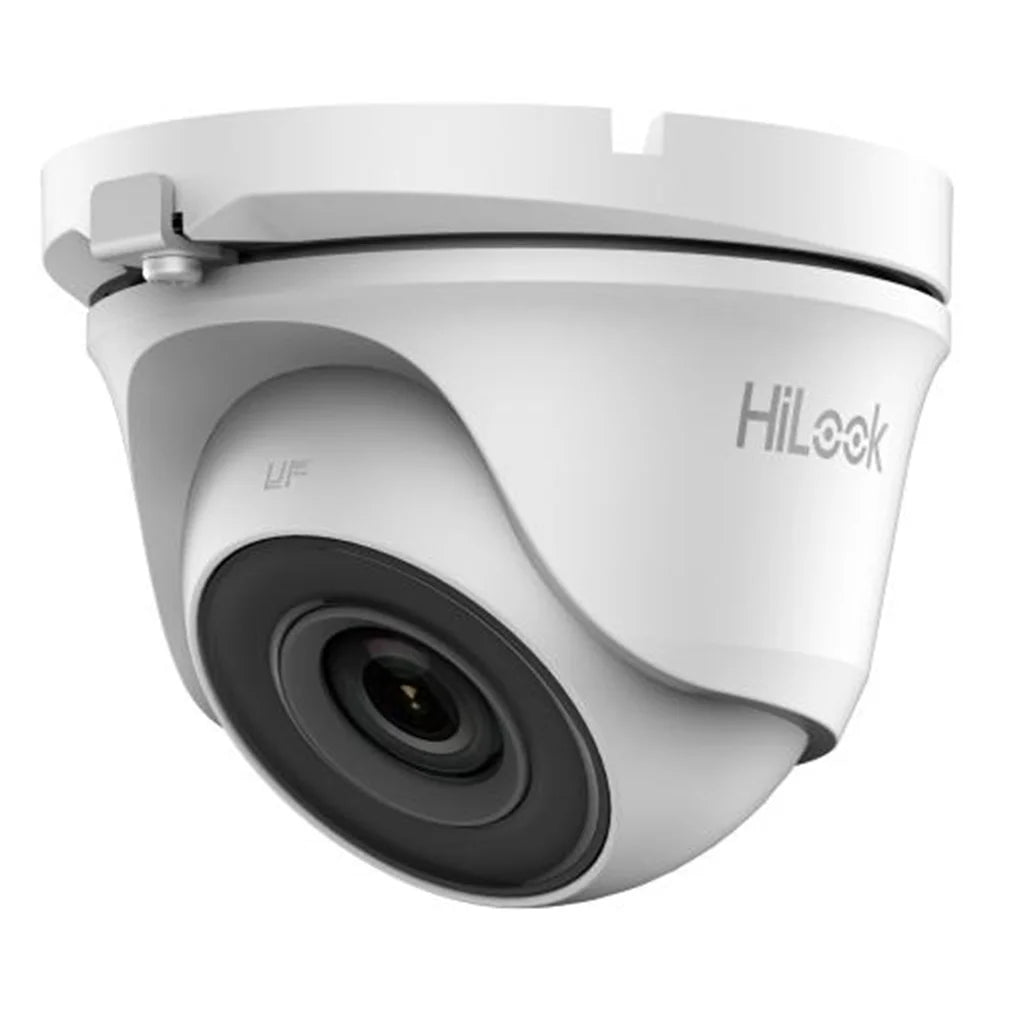

HiLook THC-T150-MS(2.8mm) 5MP Audio Turret Camera
The HiLook THC-T150-MS uses a CMOS sensor delivering 2560 × 1944 (5MP) resolution. The 2.8mm fixed lens gives a horizontal field of view of 85.5°, and digital WDR helps balance exposure in high-contrast scenes.
Infrared illumination reaches up to 30 metres, and a built-in microphone captures audio over coax. The camera is rated IP67 for outdoor use, suitable for both indoor and outdoor installation.
5MP Imaging & Digital WDR
Resolution is 2560 × 1944, with digital Wide Dynamic Range processing helping maintain visible detail across both bright and shaded areas of the same scene.
Switchable Signal Support (TVI/AHD/CVI/CVBS)
A single coaxial port supports four switchable analog signal types, allowing the camera to work with a wide range of existing analog DVRs.
IR Night Vision & Built-In Microphone
Infrared illumination provides night vision up to 30 metres, and a built-in microphone transmits audio over the same coaxial cable as video (Audio over Coax).
IP67 Weatherproofing
Rated IP67 against dust and water ingress, suitable for permanent indoor or outdoor installation.
KEY BENEFITS
- 5MP resolution captures clear detail for identification
- Digital WDR handles high-contrast scenes
- Works with existing analog DVRs via switchable TVI/AHD/CVI/CVBS signal support
- Built-in microphone adds audio context to recordings
- 30m IR night vision range
- IP67 rated for indoor and outdoor use
KEY FEATURES
- 5MP (2560 × 1944) resolution
- 2.8mm fixed lens — 85.5° horizontal FOV
- Digital WDR
- IR night vision up to 30m
- Switchable TVI/AHD/CVI/CVBS signal output from one port
- Built-in microphone, Audio over Coax (AoC)
- IP67 weather rating
IDEAL FOR
- Entrances, driveways and wide-area outdoor coverage
- Residential and small commercial installations upgrading an existing analog DVR
- Sites with high-contrast lighting needing digital WDR
- Retrofitting analog systems where PoE/IP cabling isn't available
- Installations wanting audio alongside video without extra cabling
- Mixed-brand analog DVR setups needing TVI/AHD/CVI/CVBS flexibility
- Indoor or outdoor installs given the IP67 rating covers both
- Budget-conscious 5MP upgrades from lower-resolution analog cameras
| Specification |
Details |
| Brand |
HiLook by Hikvision |
| Model |
THC-T150-MS(2.8mm) |
| Product Type |
5MP Audio Turret Turbo HD Camera |
| Max Resolution |
2560 × 1944 (5MP) |
| Signal System |
Switchable TVI/AHD/CVI/CVBS (4-in-1) |
| Focal Length |
2.8mm (fixed) |
| Horizontal FOV |
85.5° |
| WDR |
Digital WDR |
| IR Range |
Up to 30m |
| Audio |
Built-in microphone, Audio over Coax (AoC) |
| Weather Rating |
IP67 (indoor/outdoor) |
| Colour |
White (standard HiLook finish — confirm before publishing) |
| Power / Weight / Dimensions |
Not confirmed from the pages reviewed — verify before publishing |
| Warranty |
Manufacturer standard warranty (confirm current term before publishing) |
COMMON QUESTIONS
What resolution does the THC-T150-MS record at?
Up to 2560 × 1944 (5MP).
What signal types does it support?
TVI, AHD, CVI and CVBS, switchable from a single coaxial output.
Does it have audio?
Yes, a built-in microphone transmits audio over the same coaxial cable as video (Audio over Coax).
What is the IR night vision range?
Up to 30 metres.
Is it suitable for outdoor use?
Yes, it carries an IP67 rating suitable for both indoor and outdoor installation.
Does it need a network connection or PoE?
No, it connects over a standard coaxial cable to a compatible Turbo HD DVR.
What is Digital WDR?
A processing technique that helps balance exposure in scenes with both bright and shaded areas.
What lens options are available?
This listing is the 2.8mm variant.
