The HiLook PTZ-N2D400M-DE/14(2.8/8mm) is a 4MP dual-channel PT camera that combines a fixed panoramic lens with a moving pan-tilt-zoom lens in a single unit. The two channels work together — the panoramic lens keeps a constant wide overview while the PTZ lens zooms in to follow and capture detail — delivering both situational awareness and close-up identification from one camera.

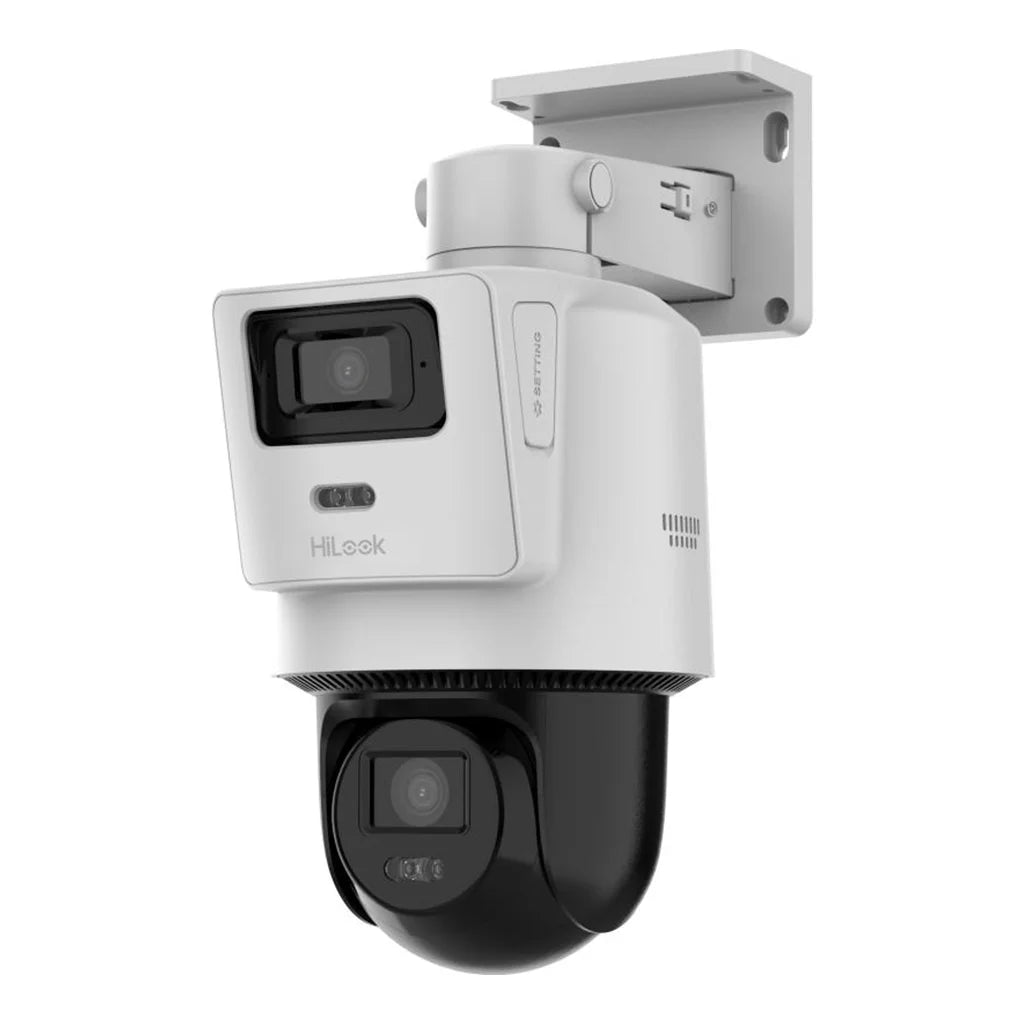

HiLook PTZ-N2D400M-DE/14(2.8/8mm) 4MP Dual-Channel Panoramic & PTZ Camera
The HiLook PTZ-N2D400M-DE/14 is a 4MP dual-lens pan-tilt network camera that pairs a wide fixed panoramic channel with a movable PTZ channel. This dual-channel design lets one camera maintain a broad overview of a scene while simultaneously zooming and tracking a subject of interest, combining the strengths of a fixed camera and a PTZ in a single device.
With hybrid IR and white-light illumination on both channels, human and vehicle detection and two-way audio, it is well suited to monitoring open areas such as yards, car parks and forecourts where both wide coverage and detail are needed.
Dual-Channel Panoramic and PTZ Design
Two 1/2.8" 4MP sensors capture video at up to 2560 × 1440 each. The panoramic channel (2.8mm, 94° horizontal FOV) provides a constant wide overview, while the PTZ channel (up to 8mm, 44° horizontal FOV) pans, tilts and zooms to follow and capture close detail — so nothing is missed even while zoomed in.
Hybrid Light on Both Channels
Both channels feature hybrid supplemental light, combining infrared and white LEDs for clear imaging at night. This delivers full-colour or infrared night vision across both the wide overview and the zoomed detail view.
Human and Vehicle Detection
Deep-learning Motion Detection 2.0 classifies human and vehicle targets, triggering alerts and recording only for relevant activity and greatly reducing false alarms from animals, foliage or lights.
Two-Way Audio and Flexible Power
Built-in audio supports two-way communication. The camera is powered by PoE (802.3at) or 12V DC and operates across a wide temperature range from -30°C to 50°C for demanding outdoor environments.
KEY BENEFITS
- Wide overview and zoomed detail from one camera
- Dual-channel: fixed panoramic + moving PTZ
- PTZ channel tracks and zooms on subjects
- Hybrid IR and white light on both channels
- Human and vehicle detection reduces false alarms
- Two-way audio communication
- 4MP resolution on both channels
- PoE or 12V DC power
- Wide -30°C to 50°C operating range
- Ideal for open areas needing coverage and detail
KEY FEATURES
- 4MP dual-channel PT camera (panoramic + PTZ)
- 2 × 1/2.8" progressive scan CMOS
- 2560 × 1440 per channel
- Panoramic lens 2.8mm (94° H FOV)
- PTZ lens up to 8mm (44° H FOV)
- Hybrid light (IR + white) on both channels
- 0.005 lux colour / 0 lux with IR
- Deep-learning Motion Detection 2.0 (human/vehicle)
- Two-way audio
- H.265/H.264/Smart265/Smart264 compression
- PoE (802.3at, ~21.5W) or 12V DC (18W)
- Operating temperature -30°C to 50°C
- Dimensions 134 × 213.5 × 291.7mm
IDEAL FOR
- Yards and compounds
- Car parks and forecourts
- Building perimeters
- Commercial and industrial premises
- Open areas needing overview and detail
- Target tracking applications
- Outdoor surveillance
| Specification |
Details |
| Brand |
HiLook |
| Model |
PTZ-N2D400M-DE/14(2.8/8mm) |
| Product Type |
Dual-Channel PT Camera |
| Resolution |
4MP per channel |
| Max Resolution |
2560 × 1440 (each channel) |
| Image Sensor |
2 × 1/2.8" Progressive Scan CMOS |
| Panoramic Lens |
2.8mm (94° H FOV) |
| PTZ Lens |
Up to 8mm (44° H FOV) |
| Channels |
Dual (panoramic + PTZ) |
| Supplement Light |
Hybrid IR + White (both channels) |
| Min. Illumination |
0.005 lux colour / 0 lux with IR |
| Smart Detection |
Motion Detection 2.0 (human/vehicle) |
| Audio |
Two-way |
| Video Compression |
H.265/H.264/Smart265/Smart264 |
| Power |
PoE 802.3at (~21.5W) or 12V DC (18W) |
| Operating Temperature |
-30°C to 50°C |
| Dimensions |
134 × 213.5 × 291.7mm |
| Weight |
1000 g |
| Indoor / Outdoor |
Outdoor |
| Warranty |
Not specified |
COMMON QUESTIONS
What is the PTZ-N2D400M-DE/14 used for?
It is a 4MP dual-channel PT camera that combines a fixed panoramic view with a moving PTZ lens, giving both a constant wide overview and zoomed-in detail from a single camera — ideal for yards, car parks and open areas.
How does the dual-channel design work?
One channel is a fixed panoramic lens that keeps a wide overview, while the second is a PTZ lens that pans, tilts and zooms to follow and capture close detail — so the overview is never lost while zoomed in.
What are the two lens focal lengths?
The panoramic channel uses a 2.8mm lens (94° field of view) and the PTZ channel uses up to an 8mm lens (44° field of view).
Does it work at night?
Yes. Both channels have hybrid IR and white-light illumination for clear night imaging.
Does it reduce false alarms?
Yes. Deep-learning Motion Detection 2.0 classifies human and vehicle targets, reducing false alarms.
How is it powered?
It supports PoE (802.3at) or 12V DC.
