HiLook IPC-T260HAD-LUF/SL(2.8mm) is a 6MP dual-lens 180° panoramic turret IP camera with Smart Hybrid Light, Motion Detection 2.0, two-way audio, built-in strobe light and audio alarm, and PoE. Using two stitched 2.8mm lenses it delivers a single seamless 180° wide-angle view from one compact housing, suited to large-area indoor and outdoor surveillance.

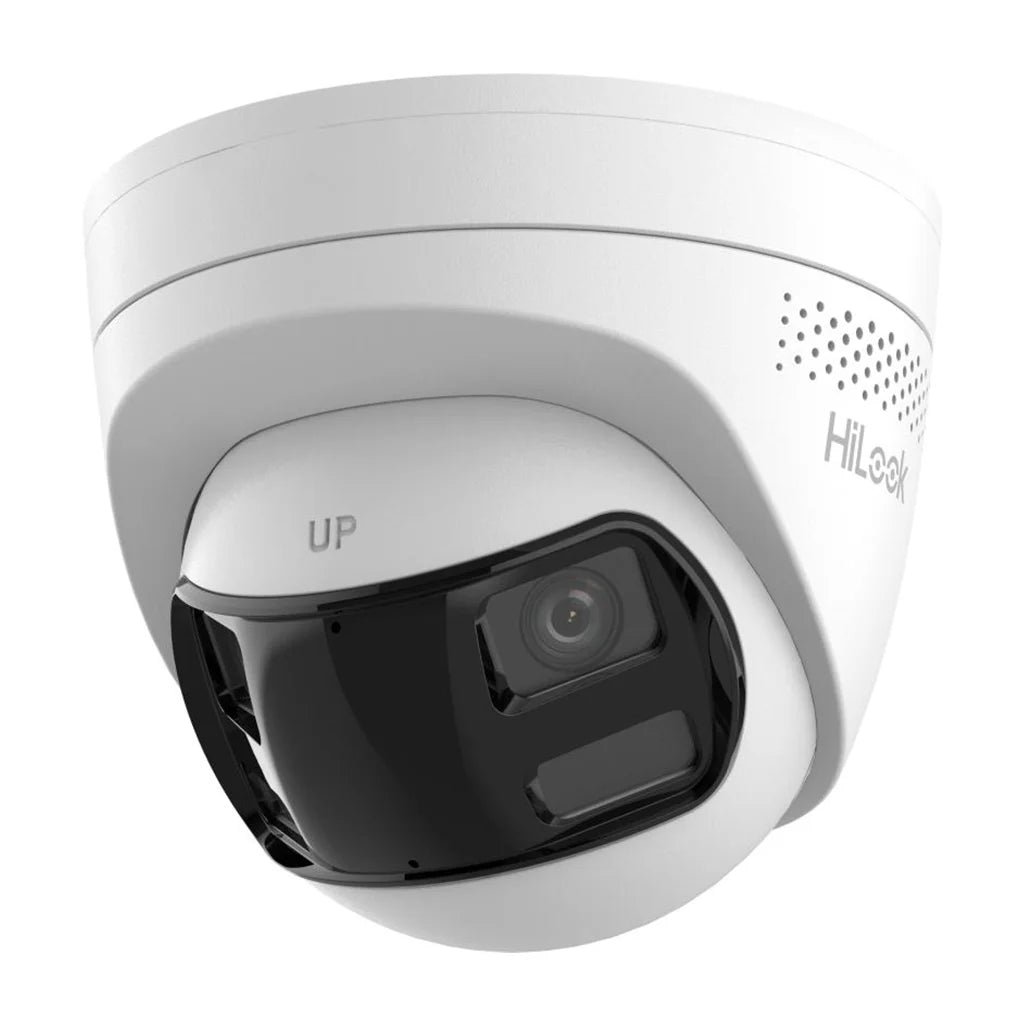

HiLook IPC-T260HAD-LUF/SL(2.8mm) 6MP Dual-Lens 180° Panoramic Smart Hybrid Light Turret IP Camera with Siren and Strobe

The HiLook IPC-T260HAD-LUF/SL(2.8mm) is a 6MP PoE turret network camera from HiLook by Hikvision, delivering a seamless 180° panoramic field of view from a single compact housing using two stitched 2.8mm fixed lenses. With a maximum resolution of 3632 × 1632, it provides broad wide-angle coverage suited to car parks, retail frontages, courtyards, building entrances and other large open areas where a single standard camera cannot cover the full scene.

The camera combines Smart Hybrid Light technology — switching between infrared and white light on event detection — with Motion Detection 2.0 human and vehicle classification, built-in two-way audio, and an integrated strobe light and audio alarm for active intruder deterrence. This is the turret housing variant; the bullet housing equivalent is the IPC-B460HAD-LUF/SL(2.8mm).

6MP 180° Dual-Lens Panoramic View

Two 2.8mm fixed lenses with a combined horizontal FOV of 180° and vertical FOV of 77° produce a single stitched panoramic image at 3632 × 1632 pixels. The stitching process is handled internally, delivering a naturally flat panoramic output without the aggressive dewarping distortion associated with fisheye lenses. This makes the camera well suited to wide-area monitoring such as retail counters, car parks, perimeter walls, building frontages and courtyards where a single camera needs to cover the full scene.

Smart Hybrid Light — Three Lighting Modes

The camera features Smart Hybrid Light combining IR and white light illumination in three selectable modes:

• Smart Mode (default) — infrared illumination operates by default; white light activates automatically when a human or vehicle is detected, switching to vivid colour imaging at the moment of detection
• 24/7 Colour Mode — white light remains on continuously for full-colour imaging at all times
• IR Mode — infrared only, producing black and white images in low light

Supplement light range is up to 30 metres. Minimum colour illumination is 0.005 Lux at F1.6 with AGC on; in complete darkness the camera captures at 0 Lux with IR or white light active.

Motion Detection 2.0 — Human and Vehicle Classification

Motion Detection 2.0 uses deep learning to classify movement as a human or a vehicle, filtering out environmental false alarms from animals, foliage, shadows and lighting changes. Alerts and recording triggers respond only to confirmed human or vehicle events, reducing unnecessary notifications and making it faster to find relevant footage in recordings.

Active Deterrence — Strobe Light and Audio Alarm

The camera includes a built-in white strobe light and audio alarm that can activate automatically when a human or vehicle is detected, or manually via the HiLookVision app or client software. The Live Guard feature provides four built-in voice broadcast options as well as a customisable audio upload, allowing installers to configure verbal warnings in addition to the siren tone. This active deterrence capability is designed to warn off intruders before an incident escalates.

Two-Way Audio

A built-in microphone and speaker support two-way audio communication, allowing real-time verbal interaction with people in the camera's field of view via the HiLookVision app or connected NVR client. This supports both Live Guard voice warnings and general monitoring communication.

On-Board Storage

A built-in microSD/SDHC/SDXC card slot supports cards up to 512GB, providing a substantial local edge recording capacity independent of an NVR. This allows the camera to function as a standalone recording device or as a backup layer alongside a network recorder.

H.265+ Compression and PoE

Main stream video compression supports H.265+/H.265/H.264+/H.264, with H.265+ significantly reducing storage and bandwidth requirements. The camera is powered via PoE (IEEE 802.3af) over a single Ethernet cable, with no separate power supply required.

IP67 Weatherproof Rating

The turret housing carries an IP67 weather rating, providing full dust ingress protection and resistance to water immersion. Operating temperature range is −30°C to +60°C, suitable for year-round UK outdoor installation.

NVR Compatibility Note

This camera is designed for use with HiLook and Hikvision NVRs that support stitched panoramic input and a minimum 6MP channel resolution. It can be used with third-party ONVIF NVRs but may require manual configuration — the stitched panoramic output may not display correctly on all non-native recorders. Confirm NVR compatibility before deployment.

KEY BENEFITS

• 180° panoramic view from a single camera replaces multiple cameras in open areas
• 6MP 3632 × 1632 stitched resolution delivers detailed wide-angle footage
• Smart Hybrid Light switches to colour automatically on human/vehicle detection
• Motion Detection 2.0 filters alerts to human and vehicle events only
• Built-in strobe light and audio alarm actively deter intruders on detection
• Two-way audio enables real-time voice communication and remote verbal warnings
• MicroSD card slot supports up to 512GB local edge recording
• Single PoE cable carries power and data — simplified installation
• IP67 rated for year-round outdoor installation
• H.265+ compression reduces storage and bandwidth requirements
• Turret housing for flexible wall or ceiling mounting
• DORI: Detection 42m / Observation 16m / Recognition 8m / Identification 4m

KEY FEATURES

• 6MP dual-lens panoramic turret camera — 3632 × 1632 stitched resolution
• 1/2.5" Progressive Scan CMOS sensor
• Dual 2.8mm fixed lenses — H.FOV 180°, V.FOV 77°
• F1.6 aperture, M12 lens mount
• DORI: D 42m / O 16m / R 8m / I 4m
• Smart Hybrid Light — IR + White Light, up to 30m
• Min. illumination: 0.005 Lux (colour, F1.6), 0 Lux with light
• Motion Detection 2.0 — human and vehicle classification
• Live Guard — white strobe + audio alarm (4 built-in voice options)
• Built-in microphone and speaker — two-way audio
• H.265+ / H.265 / H.264+ / H.264 main stream compression
• MicroSD/SDHC/SDXC — up to 512GB
• PoE IEEE 802.3af
• 1 × RJ45 10M/100M Ethernet
• Pan 0°–360°, Tilt 0°–75°, Rotate 0°–360°
• IP67 weather rating
• Operating temperature −30°C to +60°C
• ONVIF Profile S, T, G
• White finish

IDEAL FOR

• Car parks and open outdoor areas
• Retail shop fronts and counters
• Building entrances and courtyards
• Perimeter walls and fences
• Warehouses and logistics areas
• Locations where 180° coverage from a single camera is required
• Installations requiring active deterrence with strobe and audio
• Sites where two-way audio communication is needed

FREQUENTLY ASKED QUESTIONS (FAQs)

What is the IPC-T260HAD-LUF/SL used for?

It is a 6MP dual-lens panoramic turret camera providing a single stitched 180° wide-angle view from one device. It is suited to car parks, retail fronts, building entrances and open areas where broad coverage from a single camera is required, combined with Smart Hybrid Light, active deterrence and two-way audio.

What is the difference between this and the IPC-B460HAD-LUF/SL?

Both cameras share identical sensors, lenses, resolution, Smart Hybrid Light, Motion Detection 2.0, strobe/alarm and audio specifications. The difference is housing: IPC-T260HAD is a turret for ceiling or wall mounting with three-axis adjustment; IPC-B460HAD is a bullet for wall or bracket mounting with a sun shield.

What is the difference between this and the IPC-T269HAD-LUF/SL?

The IPC-T269HAD-LUF/SL is a ColorVu-focused variant with an F1.0 aperture for even lower minimum illumination (0.001 Lux colour). The IPC-T260HAD-LUF/SL uses an F1.6 aperture (0.005 Lux colour) and Smart Hybrid Light. Both are 6MP 180° dual-lens turret cameras — the T269 is the higher-spec ColourVu model.

Will it work with any NVR?

The camera works with compatible HiLook and Hikvision NVRs that support stitched panoramic input and a minimum 6MP channel resolution. It can be used with third-party ONVIF NVRs but may require manual configuration — confirm compatibility before purchasing.

Does it record locally without an NVR?

Yes. The microSD/SDXC slot supports cards up to 512GB for standalone local recording.

How does the strobe and audio alarm work?

The Live Guard function activates the white strobe light and audio alarm when a human or vehicle is detected. It can also be triggered manually via the HiLookVision app. Four built-in voice broadcasts are included and custom audio can be uploaded.

Is it suitable for outdoor use?

Yes. The camera is IP67 rated and operates from −30°C to +60°C, suitable for permanent UK outdoor installation.
