The HiLook IPC-B140HA(4mm) is a 4MP PoE bullet IP camera with Smart Dual-Light illumination, 120dB-class low-light performance and IP67 weatherproofing, built for outdoor monitoring in a fixed bullet housing.

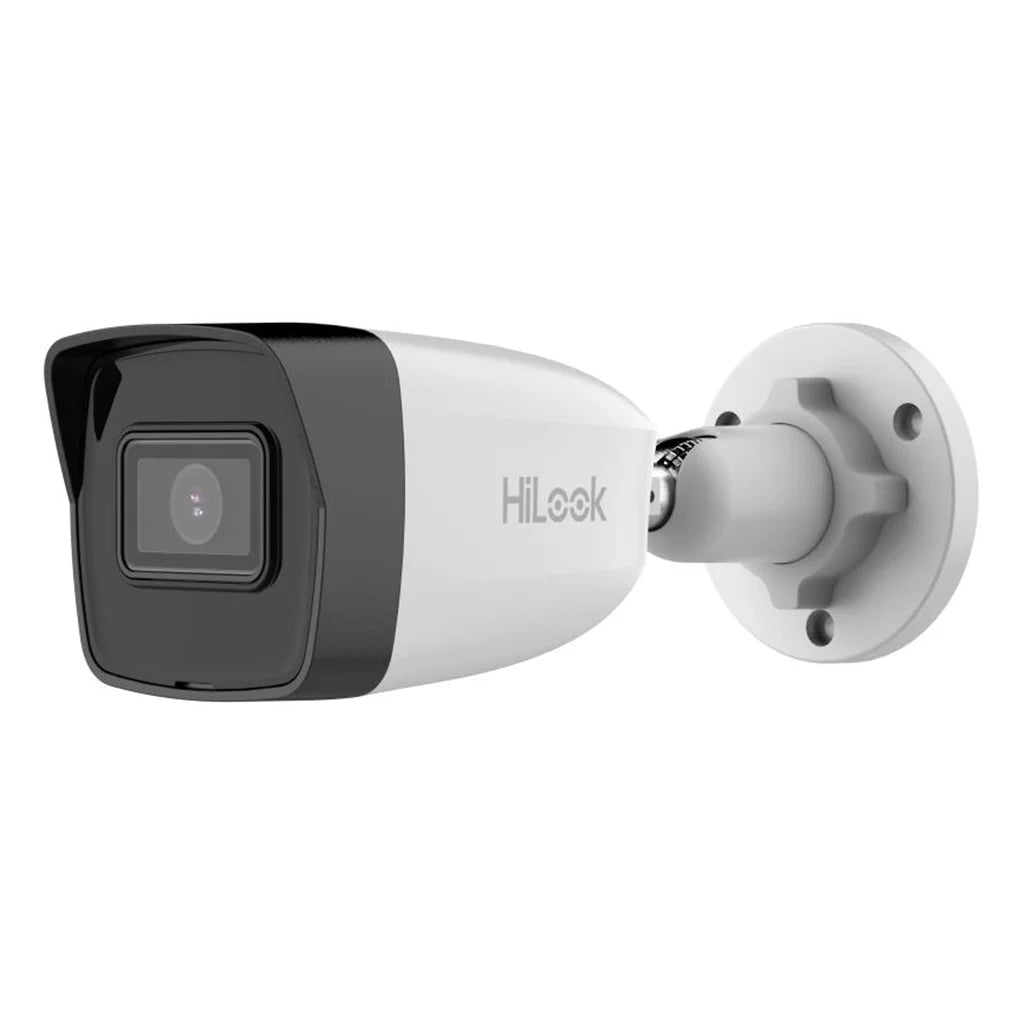

HiLook IPC-B140HA(4mm) 4MP Fixed Bullet IP Camera
The HiLook IPC-B140HA uses a 1/3" Progressive Scan CMOS sensor delivering up to 2560 × 1440 (4MP) resolution, with a minimum colour illumination of 0.005 Lux (F1.6, AGC on) and IR night vision in full darkness.
This 4mm fixed lens gives a horizontal field of view of 78°, vertical FOV of 42° and diagonal FOV of 93°, longer-range monitoring of narrower approaches. The camera is rated IP67 for permanent outdoor installation.
4MP Imaging & 4mm Lens
Maximum resolution is 2560 × 1440, encoded via H.265+/H.265/H.264+/H.264 on the main stream. The 4mm lens provides a 78° horizontal field of view suited to longer-range monitoring of narrower approaches.
Low-Light Performance
A F1.6 aperture gives a minimum colour illumination of 0.005 Lux (AGC on), with IR-assisted black & white imaging down to 0 Lux in complete darkness.
Power & IP67 Weatherproofing
Powered via PoE for straightforward single-cable installation. Rated IP67 against dust and water ingress, suitable for permanent outdoor use.
KEY BENEFITS
- 4MP resolution for clear identification detail
- Good low-light sensitivity (0.005 Lux colour)
- Single PoE cable for power and data
- IP67 rated for year-round outdoor use
KEY FEATURES
- 4MP (2560 × 1440) resolution
- 1/3" Progressive Scan CMOS sensor
- 4mm fixed lens — H.FOV 78°, V.FOV 42°, D.FOV 93°
- Min. illumination 0.005 Lux (colour, F1.6, AGC on), 0 Lux (IR)
- H.265+ / H.265 / H.264+ / H.264 main stream compression
- PoE powered
- IP67 weather rating
IDEAL FOR
- Longer approach paths and narrower perimeters
- Residential outdoor monitoring
- Retail and small commercial premises
- Car parks and loading areas
- Warehouse and yard perimeters
- Budget-conscious hybrid analog/IP installations needing a straightforward bullet camera
- Sites where a discreet bullet form factor is preferred over turret or dome
- Value-tier deployments where microphone/audio capture is not required
| Specification |
Details |
| Brand |
HiLook by Hikvision |
| Model |
IPC-B140HA(4mm) |
| Product Type |
4MP Fixed Bullet Network Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Max Resolution |
2560 × 1440 (4MP) |
| Focal Length |
4mm (fixed) |
| Horizontal FOV |
78° |
| Vertical FOV |
42° |
| Diagonal FOV |
93° |
| Min. Illumination (Colour) |
0.005 Lux @ F1.6, AGC ON |
| Min. Illumination (B/W) |
0 Lux with IR |
| Day / Night |
IR cut filter |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 (main); H.265 / H.264 / MJPEG (sub) |
| Power Supply |
PoE |
| Weather Rating |
IP67 |
| Audio |
Not confirmed on this base (non-LU) model — verify before publishing; the related "-LU" variant adds a built-in microphone |
| Colour |
White (standard HiLook finish — confirm before publishing) |
| Warranty |
Manufacturer standard warranty (confirm current term before publishing) |
COMMON QUESTIONS
How is the IPC-B140HA different from the IPC-B140HA-LU?
They share the same sensor, resolution and lens options. The "-LU" variant is confirmed to add a built-in microphone; this listing is for the base model, and we have not been able to confirm whether it includes a microphone — please verify before publishing if audio capture is required.
What field of view does the 4mm lens give?
Horizontal 78°, vertical 42°, diagonal 93°.
Is it suitable for outdoor use?
Yes, it carries an IP67 dust and water resistance rating.
How is it powered?
Via Power over Ethernet (PoE).
