The Hikvision DS-QAZ0206G1-S is a professional 6 Watt ceiling-mounted secondary (passive) speaker designed to extend audio coverage in public address, background music, and notification systems. Engineered as an expansion unit, it connects directly to compatible primary network speakers (such as Hikvision network ceiling speakers) using a fixed resistance terminal. Featuring an 8 Ohm rated impedance and a highly durable plastic chassis with a metal mesh grille cover, the DS-QAZ0206G1-S delivers a maximum sound pressure level of 100 dBSPL and a frequency response of 300 Hz to 15 kHz. With its compact recessed profile requiring a 160 mm ceiling cutout, it represents a simple, cost-effective way to double the coverage of an audio zone.

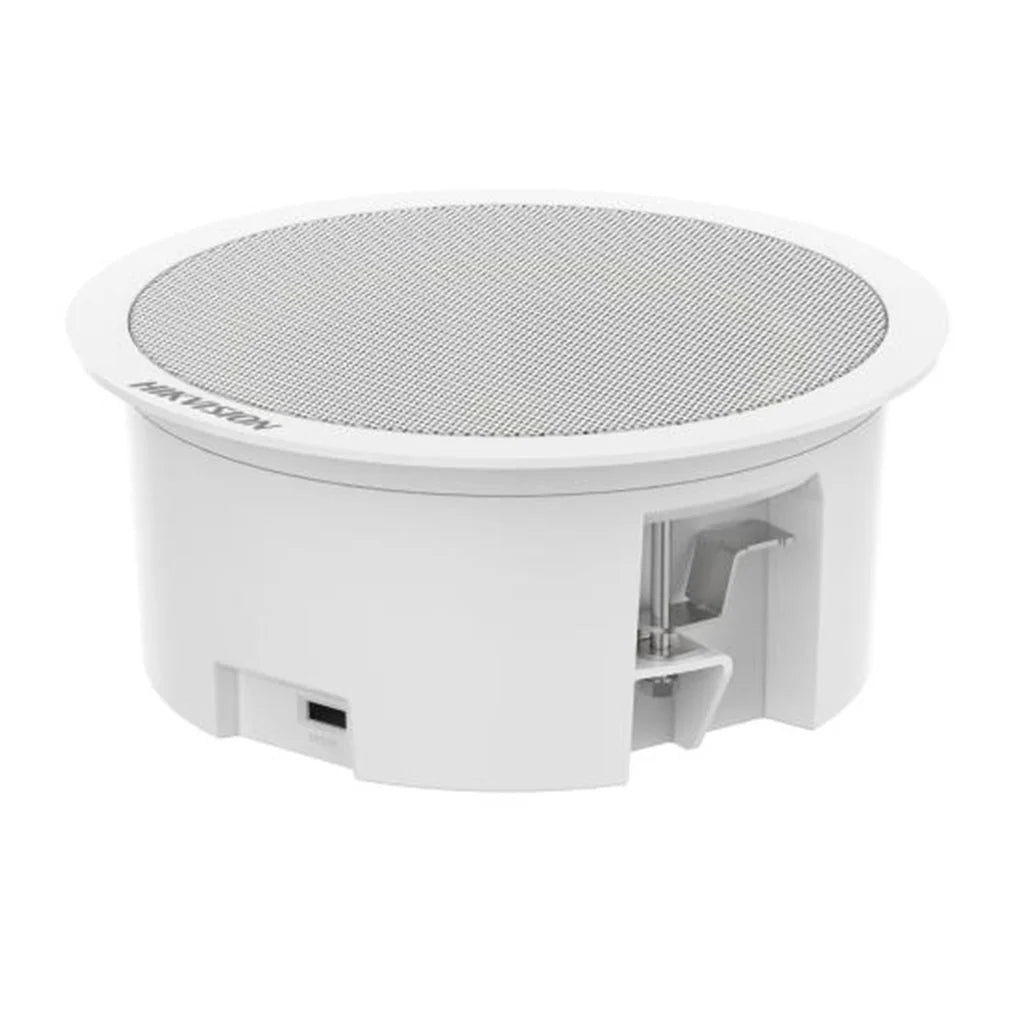

Hikvision DS-QAZ0206G1-S 6W Ceiling Secondary Speaker
The Hikvision DS-QAZ0206G1-S is a professional 6 Watt ceiling-mounted secondary (passive) speaker designed to extend audio coverage in public address, background music, and notification systems. Engineered as an expansion unit, it connects directly to compatible primary network speakers (such as Hikvision network ceiling speakers) using a fixed resistance terminal. This makes it an essential tool for professional security networks.
Featuring an 8 Ohm rated impedance and a highly durable plastic chassis with a metal mesh grille cover, the DS-QAZ0206G1-S delivers a maximum sound pressure level of 100 dBSPL and a frequency response of 300 Hz to 15 kHz. With its compact recessed profile requiring a 160 mm ceiling cutout, it represents a simple, cost-effective way to double the coverage of an audio zone. Installing this device ensures continuous stability and reliability in any access control or surveillance system.
6W Secondary Audio Extension
Serves as a passive secondary speaker that receives amplified signals from a primary network speaker, expanding coverage area without extra power lines.
8 Ohm Fixed Impedance Input
Equipped with a standard 8 Ohm fixed resistance input port, allowing it to integrate with standard low-impedance audio lines.
High Sensitivity and SPL Output
Features a sensitivity of 93 dB (1W/1m) and generates a maximum acoustic sound pressure level of 100 dBSPL for clear vocal reproduction.
300 Hz to 15 kHz Frequency Response
Delivers an optimized frequency range designed for speech intelligibility and clear background music distribution in public spaces.
Flush Ceiling Recessed Profile
Designed for flush ceiling mounting with a 160 mm cutout, blending seamlessly into offices, retail spaces, and school classrooms.
Durable Hybrid Casing Materials
Built with a lightweight, flame-retardant plastic housing and a protective metal mesh grille to ensure long-term physical durability.
Note: This is a passive secondary speaker. It does not support network connections or PoE directly and must be connected to a primary active speaker.
KEY BENEFITS
- Inexpensive audio extension doubles the coverage of primary IP network speakers.
- Flush recessed ceiling mounting provides a neat, unobtrusive installation.
- Excellent speech intelligibility makes it ideal for public announcements.
- Pre-fitted spring clamp mounting clips simplify ceiling board installation.
- Metal mesh grille protects the speaker cone from dust and debris.
- Wide operating temperature range supports installation in drafty ceilings.
- No local power outlet required, drawing power directly from the primary unit.
- Integrates seamlessly into larger multi-zone commercial paging grids.
- Lightweight 0.3 kg build reduces mechanical load on ceiling tiles.
- Neutral white architectural finish blends with standard ceiling grids.
KEY FEATURES
- Model Code: DS-QAZ0206G1-S
- Device Type: Ceiling Secondary Speaker (Passive)
- Rated Power: 6 W
- Rated Impedance: 8 Ω
- Sensitivity: 93 dB (1 m, 1 W)
- Max Acoustic Pressure: 100 dBSPL
- Frequency Response: 300 Hz to 15 kHz
- Signal to Noise Ratio: 82 dB
- Interface Port: 1x Fixed resistance input (8 Ω)
- Device Material: Flame-retardant plastic body
- Cover Mesh: Protective Metal mesh grille
- Dimensions: Ø 179 mm × 77.5 mm
- Hole Size: Ceiling cutout Ø 160 mm required
- Net Weight: Approx. 0.3 kg (0.66 lbs)
- Chassis Colour: Architectural White finish
IDEAL FOR
- Office corridors and open-plan desk zones.
- Retail boutique shops and convenience stores.
- School classrooms and administrative corridors.
- Hospital clinic lobbies and waiting rooms.
- Public library reading areas and studies.
- Hotel corridors and breakfast dining areas.
- Conference rooms requiring speech amplification.
- Public restrooms and changing facilities.
- Commercial receptions and registration counters.
- Extending existing active ceiling speaker setups.
- Low-cost background music installations.
- Ceiling grid tile installations requiring minimal weight.
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-QAZ0206G1-S |
| Product Type |
Ceiling Secondary Speaker |
| Rated Power |
6 W |
| Impedance |
8 Ω |
| Sensitivity (1m, 1W) |
93 dB |
| Max Acoustic Pressure |
100 dBSPL |
| Frequency Response |
300 Hz to 15 kHz |
| Signal-to-Noise Ratio (SNR) |
82 dB |
| Input Interface |
Fixed Resistance terminal (8 Ω) × 1 |
| Operating Temperature |
-10 °C to +50 °C (+14 °F to +122 °F) |
| Operating Humidity |
Up to 90% RH (Non-condensing) |
| Chassis Material |
Flame-retardant Plastic |
| Mesh Material |
Metal Grille |
| Diameter |
Ø 179 mm (7.05") |
| Depth / Height |
77.5 mm (3.05") |
| Hole Size / Cutout |
Ø 160 mm (6.3") |
| Net Weight |
Approx. 0.3 kg (0.66 lbs) |
| Signal Evacuation |
Voice paging support |
| Mounting method |
Ceiling recessed spring clamp |
| Sound coverage |
Conical dispersion pattern |
| Power Source |
Driven by primary active unit (no power required) |
| Chassis Colour |
White |
Frequently Asked Questions
Is the DS-QAZ0206G1-S an IP network speaker?
No. This is a passive secondary speaker. It has no network port or PoE capability and must be wired to an active primary speaker or amplifier.
How much power does it support?
It has a rated power output of 6 Watts with a nominal impedance of 8 Ohms.
What size cutout is required for ceiling installation?
You will need to cut a hole with a diameter of 160 mm in your ceiling panel for flush installation.
Can I connect this to a standard network switch?
No, you cannot. It must be connected to the speaker output terminal of a primary active speaker or amplifier, not a network switch.
What is the maximum volume it can produce?
It can generate a maximum sound pressure level (SPL) of 100 dBSPL at a distance of 1 meter.
Does it include a built-in microphone?
No, it is a speaker only and does not contain a built-in microphone for two-way audio talkback.
Can I use it outdoors?
No, this speaker is designed for indoor applications. It is not weatherproofed against rain or high moisture.
Is the grille removable?
Yes, the metal mesh grille can be carefully removed for cleaning or painting to match ceiling colours.
How many secondary speakers can I connect to one primary speaker?
Generally, you can connect one secondary speaker of matching impedance to a compatible Hikvision active network speaker. Refer to the active unit's manual.
Does it include mounting clips?
Yes, it features integrated spring-loaded ceiling clamps that lock the speaker securely into the ceiling panel cutout.
