The Hikvision DS-QAE0A60G1-VB is a professional 60 Watt public address analog amplifier designed for background music and vocal paging systems in small-to-medium commercial zones. Featuring integrated Bluetooth 5.3 and a USB 2.0 interface, it supports wireless music streaming and direct flash drive media playback. Housed in a compact, durable white engineering plastic casing, the amplifier is equipped with a 6.35 mm microphone input and dual zone partition volume controls. With comprehensive built-in protection against short-circuits, overcurrent, and over-temperature, it represents a complete, highly reliable sound reinforcement solution for retail shops, offices, cafes, and classrooms.

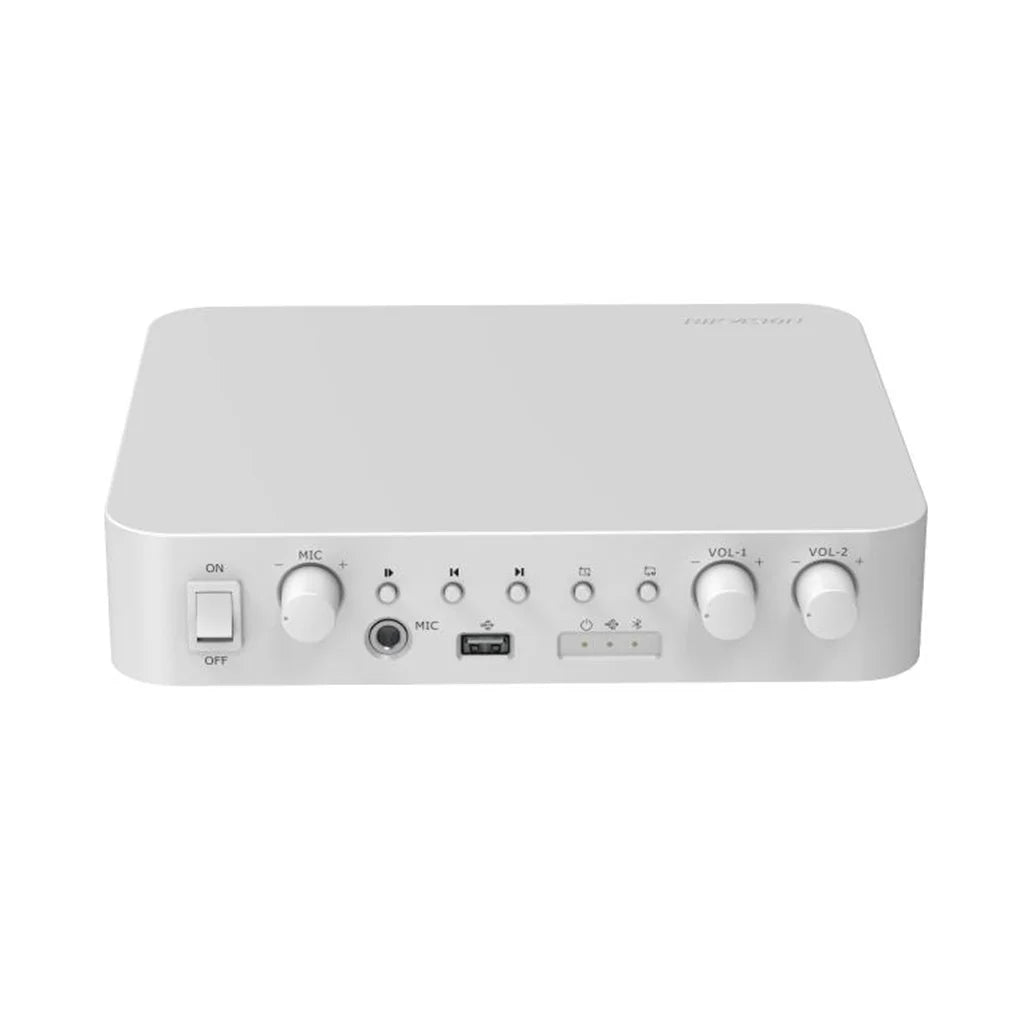

Hikvision DS-QAE0A60G1-VB White 60W Public Address Analog Amplifier
The Hikvision DS-QAE0A60G1-VB is a professional 60 Watt public address analog amplifier designed for background music and vocal paging systems in small-to-medium commercial zones. Featuring integrated Bluetooth 5.3 and a USB 2.0 interface, it supports wireless music streaming and direct flash drive media playback. This makes it an essential tool for professional security networks.
Housed in a compact, durable white engineering plastic casing, the amplifier is equipped with a 6.35 mm microphone input and dual zone partition volume controls. With comprehensive built-in protection against short-circuits, overcurrent, and over-temperature, it represents a complete, highly reliable sound reinforcement solution for retail shops, offices, cafes, and classrooms. Installing this device ensures continuous stability and reliability in any access control or surveillance system.
60 Watt Analog Power Output
Delivers up to 60 Watts of robust audio power, supporting both constant voltage (100V) and constant resistance (4-8 Ohm) speaker configurations.
Integrated Bluetooth 5.3
Features a built-in Bluetooth 5.3 receiver with a 10m range, allowing seamless wireless audio streaming from smartphones, tablets, or laptops.
Local USB Media Playback
Includes a USB 2.0 port that supports MP3 and WAV playback from FAT32 or EXFAT formatted flash drives for convenient scheduled music playlists.
Dedicated Microphone Input
Equipped with a front-panel 6.35 mm TRS microphone jack, supporting direct voice paging overrides and priority announcements.
Dual-Zone Volume Controls
Allows operators to manage audio output levels across two independent partitions or zones, optimizing sound distribution for different building areas.
Comprehensive Circuit Protection
Features built-in safety protection against short-circuits, overcurrent, over-temperature, anti-static charges, power surges, and electrical shock.
Note: Ensure speaker impedance or line-voltage settings match the constant voltage (100V) or constant resistance (4-8 Ohm) output terminals during wiring.
KEY BENEFITS
- Power output of 60W easily drives multiple ceiling or wall-mounted speakers.
- Built-in Bluetooth 5.3 enables simple wireless pairing for background music.
- USB port allows continuous standalone audio playback without needing a computer.
- Front-panel microphone jack allows immediate announcement overrides.
- Dual-zone partitioning controls volume independently in separate rooms.
- Multiple protection features prevent amplifier burnout from faulty speaker wiring.
- Compact, lightweight design fits easily onto office shelves and AV racks.
- Matte white chassis styling matches modern office walls and decor.
- RCA input and output ports support daisy-chain cascading of up to 3 units.
- Includes 24VDC power supply adapter for stable and safe low-voltage operation.
KEY FEATURES
- Model Code: DS-QAE0A60G1-VB
- Rated Audio Power: 60 W continuous output
- Wireless Connection: Bluetooth 5.3 receiver
- Local Interface: USB 2.0 media port
- Microphone Port: 1 × 6.35 mm TRS jack
- Analog Inputs: 1 × RCA auxiliary input
- Analog Outputs: 1 × RCA line cascade output
- Speaker Outputs: 100V line and 4-8 Ohm terminals
- Frequency Response (USB/BT): 20 Hz to 20 kHz
- Frequency Response (MIC/RCA): 20 Hz to 8 kHz
- Total Harmonic Distortion: ≤ 1% low distortion
- Signal-to-Noise Ratio: ≥ 100 dB high clarity
- Volume Partitioning: 2 independent zone controls
- Operating Temperature: Rated -10°C to +55°C
- Product Net Weight: Solid layout at approx. 1.4 kg
IDEAL FOR
- Small retail shops and boutique stores.
- Restaurants, cafes, and coffee shops.
- School classrooms and lecture rooms.
- Commercial offices and meeting rooms.
- Healthcare clinic reception and waiting areas.
- Public lobbies requiring paging speakers.
- Warehouse office units requiring audio amplifiers.
- Replacing older, bulky audio rack amplifiers.
- Small gyms and yoga studios needing background music.
- Exhibition halls requiring standalone audio playback.
- Admin rooms managing local paging microphones.
- Sites requiring simple, low-maintenance sound setups.
SYSTEM COMPATIBILITY
- Compatible with standard 100V public address speakers.
- Works with standard 4 Ohm to 8 Ohm passive speakers.
- Supports standard dynamic microphones with 6.35 mm plugs.
- Works with standard RCA analog stereo audio cables.
- Compatible with Bluetooth-enabled smartphones and computers.
- Supports USB flash drives up to 64 GB capacity.
- Works alongside standard security system audio linkages.
- Supports daisy-chain cascading for up to 3 amplifiers.
- Compatible with standard 24V DC power adapters.
- Fits desktop shelves or standard bracket mount surfaces.
- Works on concrete, wood, and metal AV shelving.
- Suitable for continuous operation under rated loads.
- Meets standard regulatory safety and acoustic requirements.
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-QAE0A60G1-VB |
| Product Type |
60W Public Address Analog Amplifier |
| Rated Power |
60 W (24 VDC) |
| Bluetooth Version |
Bluetooth 5.3 |
| Bluetooth Range |
Up to 10 m |
| USB Interface |
1 × USB 2.0 (FAT32/EXFAT supported) |
| Microphone Input |
1 × 6.35 mm TRS phone jack |
| Audio Inputs |
Bluetooth, USB, Microphone, RCA |
| Audio Outputs |
RCA line-out, constant voltage (100V), constant resistance (30W × 2, 4Ω to 8Ω) |
| Frequency Response (USB/BT) |
20 Hz to 20 kHz |
| Frequency Response (MIC/RCA) |
20 Hz to 8 kHz |
| Total Harmonic Distortion |
≤ 1% (at 1/3 rated power, 1 kHz) |
| Signal-to-Noise Ratio |
≥ 100 dB |
| Volume Control Zones |
2 separate zones with independent controls |
| Circuit Protection |
Short-circuit, overcurrent, over-temperature, anti-static, surge |
| Casing Material |
High-strength engineering plastic |
| Chassis Color |
White |
| Power Supply |
24 VDC / 2.5 A (power adapter included) |
| Operating Temperature |
-10 °C to +55 °C (14 °F to 131 °F) |
| Operating Humidity |
10% to 90% RH (Non-condensing) |
| Dimensions (W x D x H) |
190.8 mm × 230.8 mm × 51.2 mm |
| Net Weight |
Approx. 1445.5 g (3.19 lbs) |
FREQUENTLY ASKED QUESTIONS (FAQs)
What is the DS-QAE0A60G1-VB primarily used for?
The amplifier is designed to power background music speakers and microphone paging systems in commercial spaces like retail shops, restaurants, and offices.
Does it support Bluetooth wireless connectivity?
Yes, it has integrated Bluetooth 5.3, allowing you to stream music wirelessly from a smartphone or computer up to 10m away.
What type of speaker connections does it support?
It supports both constant voltage (100V) systems for multi-speaker layouts and constant resistance (4Ω to 8Ω) connections.
Does it have a microphone input?
Yes, it includes a front-panel 6.35 mm jack for connecting standard paging microphones.
Can I play music from a USB flash drive?
Yes, it features a USB 2.0 port that supports direct playback of MP3 and WAV files from FAT32/EXFAT formatted drives.
Are there separate zone controls?
Yes, the amplifier features dual partition volume knobs on the front panel to adjust the sound levels of two separate areas independently.
Can I connect multiple amplifiers together?
Yes, it has an RCA auxiliary output that supports cascading up to 3 amplifiers together to expand your sound system.
What safety protections are built-in?
It features comprehensive protection against short-circuit, overcurrent, over-temperature, anti-static charges, and power surges.
Is the power adapter included?
Yes, a 24 VDC, 2.5 A power supply adapter is included in the package.
What color is this amplifier casing?
The amplifier has a clean, professional matte white finish.
