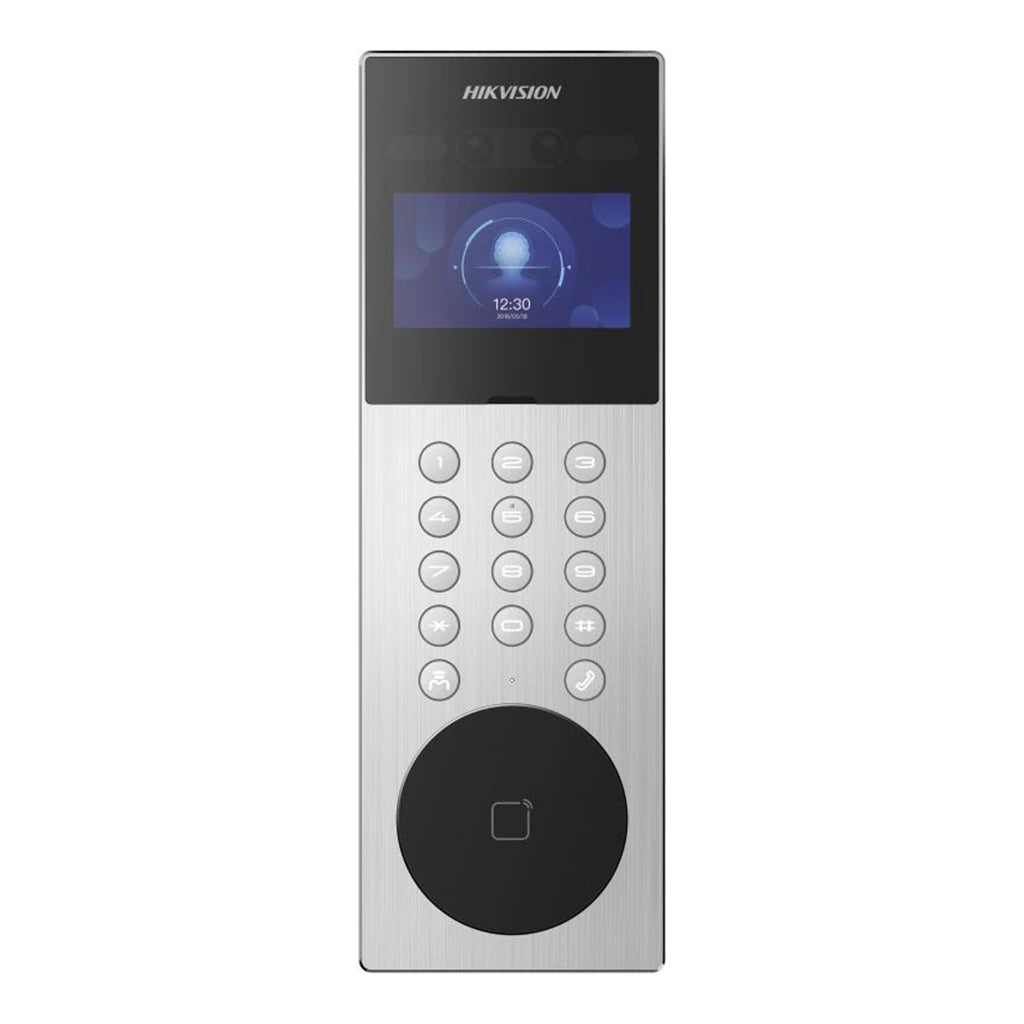

Hikvision DS-KD9203-ME6 Outdoor Video Intercom Door Station

The Hikvision DS-KD9203-ME6 is a professional-grade outdoor video intercom door station designed to provide secure, high-definition entry monitoring and access control. Equipped with a high-resolution camera and clear two-way audio, it allows occupants to verify visitors and control access points safely and efficiently. Constructed from weather-resistant durable polycarbonate & metal alloy, this outdoor station includes adaptive night illumination to ensure sharp video capture even in complete darkness. Supporting standard network protocols, remote app control, and physical lock control connections, it represents a robust frontline security solution for residential and commercial perimeters.

Hikvision DS-KD9203-ME6 Outdoor Video Intercom Door Station

The Hikvision DS-KD9203-ME6 is a professional-grade outdoor video intercom door station designed to provide secure, high-definition entry monitoring and access control. Equipped with a high-resolution camera and clear two-way audio, it allows occupants to verify visitors and control access points safely and efficiently. This makes it an essential tool for professional security networks.

Constructed from weather-resistant durable polycarbonate & metal alloy, this outdoor station includes adaptive night illumination to ensure sharp video capture even in complete darkness. Supporting standard network protocols, remote app control, and physical lock control connections, it represents a robust frontline security solution for residential and commercial perimeters. Installing this device ensures continuous stability and reliability in any access control or surveillance system.

High-Definition Video Capture

Equipped with an HD camera utilizing Wide Dynamic Range (WDR) to capture sharp, clear facial details under high-contrast lighting conditions.

Integrated Access Control

Features built-in Mifare card readers or keypad support, allowing authorized personnel to unlock gates and doors via cards, key fobs, or access codes.

All-Weather Weatherproof Design

IP65 rated housing guarantees continuous operation and protection against heavy rain, dust, and outdoor environmental hazards.

Adaptive Night Vision Backlight

Includes integrated infrared (IR) or white-light LED illumination, automatically activating to deliver clear video feeds in near-total darkness.

Clear Two-Way Audio Calls

Features an omnidirectional microphone and a high-volume speaker with echo cancellation for easy verbal interaction at the doorway.

Lock Control Relay Outputs

Provides built-in physical relay outputs to connect and trigger electric door locks, gates, and automated barrier systems directly.

Note: Professional installation and proper cabling protection are recommended to ensure weatherproofing and physical security of the door station.

KEY BENEFITS

• Secures main entrances by allowing visual and audio verification of visitors before entry.
• IP65 weatherproof housing ensures reliable performance in rain, snow, and extreme temperatures.
• Captures clear facial detail day or night with smart WDR camera and night vision.
• Integrates access control card readers for convenient keyless entry for employees or residents.
• Allows direct communication with visitors via indoor stations or the Hik-Connect mobile app.
• Connects and powers electric lock systems directly from the built-in lock relay outputs.
• Built-in tamper alarm immediately alerts the security network if the unit is vandalized.
• Supports Power over Ethernet (PoE) for simple single-cable network and power runs.
• Features a durable, modern vandal-resistant housing that deters physical tampering.
• Allows easy integration with external security cameras and local CCTV recording networks.

KEY FEATURES

• Model Number: DS-KD9203-ME6
• Device Category: Outdoor Door Station
• Camera Resolution: 2MP HD Camera with 1080p stream
• Lens Angle: Wide-angle view (up to 180° field of view)
• Audio Quality: High-performance dual-way audio
• Night Vision: Integrated Infrared (IR) / LED backlight
• Card Reader: Built-in Mifare card reader (where supported)
• Access Control: Keypad, card, or remote app unlocking
• Weather Rating: IP65 dust and water resistant
• Material Construction: Durable Polycarbonate & Metal Alloy
• Network Protocol: TCP/IP, RTSP, and standard networks
• Power Supply: Standard PoE (802.3af) / 12 VDC
• Relay Interfaces: 2 lock relays, door contact inputs
• Installation Style: Touch Screen/Keypad Entry Interface
• Operating Temperature: Rated from -40°C to +60°C

IDEAL FOR

• Front doors, garden gates, and perimeters of residential villas.
• Commercial office entrances and corporate office doors.
• Apartment blocks, flats, and multi-tenant residential complexes.
• Industrial warehouses, factories, and gated staff entrances.
• Public school campuses, nurseries, and university gates.
• Unattended loading docks and secure delivery bays.
• Gated communities requiring centralized access control points.
• Renovations replacing old mechanical doorbells with smart video intercoms.
• High-exposure outdoor walls facing severe wind, dust, and rain.
• Commercial premises requiring card or keypad access control.
• Integration with residential automation and smart home networks.
• Sites utilizing standard PoE infrastructure for single-cable setup.

SYSTEM COMPATIBILITY

• Fully compatible with Hikvision KH-series indoor touch screen monitors.
• Supports remote access and push alerts via Hik-Connect mobile app.
• Integrates with Hikvision NVRs and DVRs for continuous CCTV recording.
• Works with Hik-Central Professional access control management systems.
• Compatible with standard RJ45 Power over Ethernet (PoE) switches.
• Supports 12V DC power distribution units and power adapters.
• Works with electric strikes, magnetic locks, and drop bolts via relays.
• Compatible with external exit buttons and request-to-exit sensors.
• Supports modular sub-modules via local communication bus.
• Integrates with local network storage and NAS server backups.
• Works alongside Hikvision Master Station consoles for guard calls.
• Supports secure firmware upgrades over the local network.
• Integrates with local home automation systems via SDK.

TECHNICAL SPECIFICATIONS

FREQUENTLY ASKED QUESTIONS (FAQs)

What is the primary function of the Hikvision DS-KD9203-ME6?

The DS-KD9203-ME6 is an outdoor video intercom door station that captures HD video, supports two-way audio, and controls gates/doors via card readers or buttons.

Does it support PoE?

Yes, it supports standard Power over Ethernet (PoE 802.3af), allowing you to power it and transmit data over one network cable.

Can I answer door calls on my phone?

Yes, when paired with an indoor station, door station calls are routed to the Hik-Connect mobile app, allowing you to speak and unlock gates remotely.

Is the door station weatherproof?

Yes, it has an IP65 ingress protection rating, making it highly dust-proof and water-resistant for harsh outdoor weather.

How does the night vision work?

It includes built-in infrared (IR) or white-light LEDs that automatically activate in low-light conditions to provide clear night video feeds.

Can it trigger electric locks?

Yes, the door station has built-in lock relay outputs to connect and trigger electric strikes, magnetic locks, or gate motors directly.

Does it have built-in access control?

Yes, depending on the model, it features an integrated card reader (Mifare or EM) or keypad, allowing secure keyless entry.

What is the camera field of view?

It features a wide-angle lens with a horizontal field of view of up to 124° or 180°, ensuring wide coverage of your entryway.

What happens if someone tries to steal the unit?

It has a built-in tamper detection switch on the back that instantly triggers a loud alarm and sends an alert to your app if the unit is detached.

What mounting options are available?

It can be surface-mounted or flush-mounted on walls, and is compatible with standard Hikvision protective hoods and brackets.
