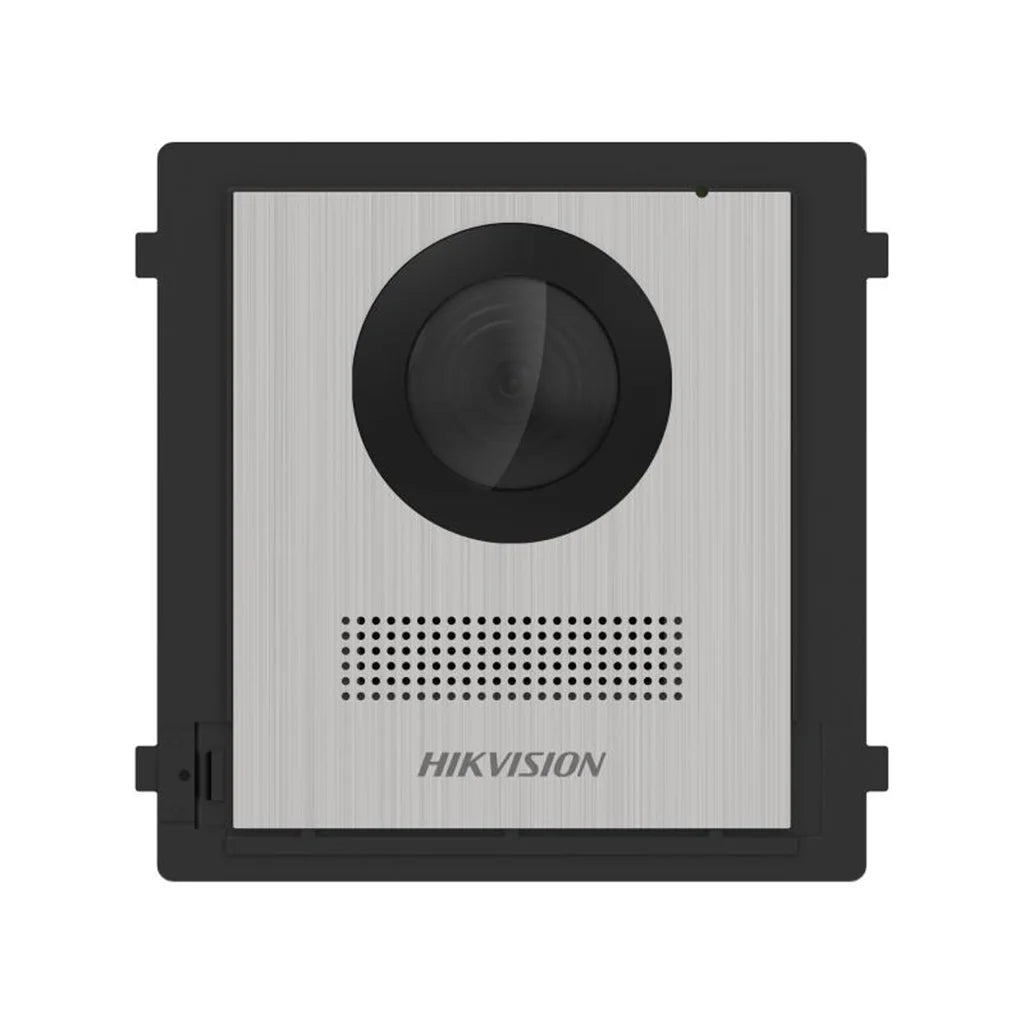

The Hikvision DS-KD8003-IME1(B)/NS is a professional-grade outdoor video intercom door station built in durable stainless steel, designed to provide secure, high-definition entry monitoring and access control without a physical call button. Equipped with a high-resolution camera and clear two-way audio, it allows occupants to verify visitors and control access points safely and efficiently, making it a robust frontline security solution for residential and commercial perimeters.
Constructed from corrosion-resistant stainless steel, this outdoor station includes adaptive night illumination to ensure sharp video capture even in complete darkness. Supporting standard network protocols, remote app control, and physical lock control connections, it is engineered for demanding coastal, industrial, or high-traffic installations where a standard polycarbonate housing would not withstand daily wear.
High-Definition Video Capture
Equipped with a 2MP HD camera utilising Wide Dynamic Range (WDR) to capture sharp, clear facial details under high-contrast lighting conditions.
No-Button Modular Configuration
The /NS variant omits the physical call button, making it ideal for integration into modular multi-tenant panels alongside separate nametag or keypad calling modules rather than as a standalone single-button unit.
Stainless Steel Weatherproof Housing
IP65 rated stainless steel housing guarantees continuous operation and protection against heavy rain, dust, salt air, and outdoor environmental hazards, outlasting standard polycarbonate door stations in harsh climates.
Adaptive Night Vision Backlight
Includes integrated infrared (IR) illumination, automatically activating to deliver clear video feeds in near-total darkness.
Clear Two-Way Audio Calls
Features an omnidirectional microphone and a built-in loudspeaker with noise suppression and echo cancellation for easy verbal interaction at the doorway.
Lock Control Relay Outputs
Provides built-in physical relay outputs to connect and trigger electric door locks, gates, and automated barrier systems directly.
Note: As this variant has no physical call button, it should be paired with a nametag module (DS-KD-KK), keypad module (DS-KD-KP), or 12-button module (DS-KD-K12) and a compatible mounting bracket to form a complete modular door station.
KEY BENEFITS
- Secures main entrances by allowing visual and audio verification of visitors before entry.
- Stainless steel IP65 weatherproof housing ensures reliable performance in rain, snow, salt air, and extreme temperatures.
- Captures clear facial detail day or night with WDR camera and infrared night vision.
- No-button design integrates cleanly into modular multi-tenant intercom panels.
- Allows direct communication with visitors via indoor stations or the Hik-Connect mobile app.
- Connects and powers electric lock systems directly from the built-in lock relay outputs.
- Supports Power over Ethernet (PoE) for simple single-cable network and power runs.
- Corrosion-resistant stainless steel construction suited to coastal and industrial sites.
KEY FEATURES
- Model Number: DS-KD8003-IME1(B)/NS
- Device Category: Modular Outdoor Door Station Main Unit (no physical button)
- Camera Resolution: 2 MP HD Camera with fisheye lens
- Field of View: Horizontal 146°, Vertical 82°
- Audio Quality: Two-way audio with noise suppression and echo cancellation
- Night Vision: Integrated IR supplement light
- Sub-Module Support: Up to 8 sub-modules (nametag, keypad, card, display)
- Weather Rating: IP65 dust and water resistant
- Material Construction: Stainless Steel
- Network Protocol: TCP/IP, RTSP
- Power Supply: Standard PoE / 12 VDC, 500 mA lock output
- Relay Interfaces: 2 lock relays, max 30 VDC 2A
- Operating System: Embedded Linux, 32 MB ROM, 256 MB RAM
IDEAL FOR
- Coastal properties requiring corrosion-resistant hardware.
- Front doors, garden gates, and perimeters of residential villas.
- Commercial office entrances and corporate office doors.
- Apartment blocks and multi-tenant residential complexes using modular calling panels.
- Industrial warehouses, factories, and gated staff entrances.
- Sites requiring a nametag or keypad module rather than a single call button.
- Gated communities requiring centralised, expandable access control points.
- Sites utilising standard PoE infrastructure for single-cable setup.
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-KD8003-IME1(B)/NS |
| Product Type |
Outdoor Video Intercom Door Station (Modular, No Button) |
| Camera Resolution |
2 MP HD Fisheye Camera |
| Field of View |
Horizontal: 146°, Vertical: 82° |
| Video Compression |
H.264 |
| Wide Dynamic Range |
Supported |
| Night Vision |
IR Supplement Light |
| Audio Input |
Omnidirectional Microphone |
| Audio Output |
Built-in Loudspeaker |
| Audio Quality |
Noise suppression & echo cancellation |
| Sub-Module Capacity |
Max. 8 sub-modules |
| Network Interface |
1 × RJ-45, standard PoE |
| Lock Relay |
2 × lock relay outputs, max 30 VDC 2A |
| Lock Power Output |
12 V, 500 mA direct output |
| Ingress Protection |
IP65 Weatherproof |
| Housing Material |
Stainless Steel |
| Operation System |
Embedded Linux, 32 MB ROM, 256 MB RAM |
| Power Input |
Standard PoE / 12 VDC |
| Configuration |
Remote web configuration |
| Warranty |
2-Year Manufacturer Warranty |
Frequently Asked Questions
What does the "/NS" suffix mean on this model?
It denotes the No-Button, Stainless Steel variant of the DS-KD8003-IME1(B) modular door station — the same core camera and audio unit but without the built-in physical call button and finished in stainless steel rather than polycarbonate/aluminium, intended for installation alongside a separate nametag or keypad calling module.
Does it support PoE?
Yes, it supports standard Power over Ethernet, allowing you to power it and transmit data over a single network cable, simplifying installation at outdoor entry points.
Can I answer door calls on my phone?
Yes, when paired with a compatible indoor station or configured on the network, door station calls can be routed to the Hik-Connect mobile app, letting you speak with visitors and release locks remotely.
Is the door station weatherproof?
Yes, it carries an IP65 ingress protection rating and a stainless steel housing, making it highly resistant to dust, rain, and salt air, which suits coastal and industrial installations better than standard finishes.
How does the night vision work?
It uses a built-in infrared supplement light that automatically activates in low-light conditions, maintaining clear facial detail on the video feed after dark.
Can it trigger electric locks?
Yes, the unit provides two lock relay outputs and a direct 12V/500mA power feed, enough to connect and trigger an electric strike or magnetic lock without an additional power supply.
Why would I choose this over the standard DS-KD8003-IME1(B)?
Choose this variant where a nametag, keypad, or card module will handle visitor calling instead of a single button, or where the stainless steel finish is needed for durability against weather and corrosion.
What mounting bracket does it need?
It requires a separate flush (DS-KD-ACF series) or surface (DS-KD-ACW series) mounting bracket, purchased separately, matching the number of modules in the final panel.
What is the camera field of view?
It uses a fisheye lens with a wide field of view of 146° horizontal and 82° vertical, giving broad coverage of the entryway in a single frame.
Can multiple sub-modules be added later?
Yes, the main unit supports up to 8 sub-modules such as nametag panels, keypads, and card readers, so the installation can be expanded as tenant requirements grow.
