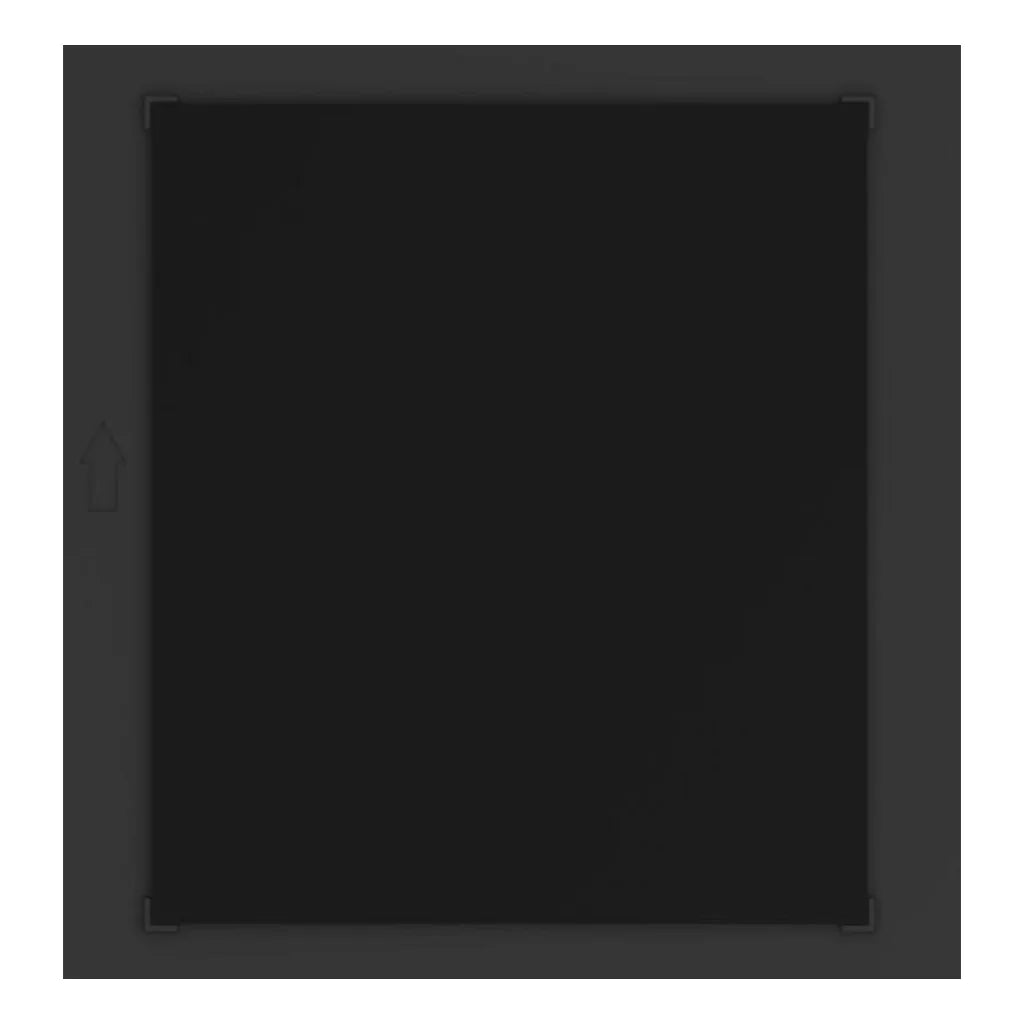

Hikvision DS-KD-BK Modular Video Intercom Blank Module
The Hikvision DS-KD-BK is a high-quality sub-module designed for modular video intercom door station installations. Built to extend the capabilities of the main camera module, it allows installers to customize door entry configurations with specific visitor interfaces. This makes it an essential tool for professional security networks.
Housed in a rugged aluminum / plastic casing, this sub-module integrates seamlessly into Hikvision's modular frames and brackets. With easy connection interfaces and power supplied via the main unit, it ensures a clean, customizable, and reliable access control installation. Installing this device ensures continuous stability and reliability in any access control or surveillance system.
Modular Intercom Integration
Connects directly to the main video door station unit via a simple ribbon cable, expanding visitor interface functions.
Robust Weatherproof Housing
IP65 rated construction ensures continuous protection against rain, dust, and outdoor environmental hazards.
User-Friendly Interface
Provides highly visible call buttons, keypads, or touch screens with clear backlighting to guide visitors at the door.
Easy Installation & Setup
Fits securely into standard Hikvision flush or surface mounting frames without complex wiring or tools.
Customizable configurations
Allows systems to be tailored with specific module combinations like card readers, keypads, displays, and nametags.
Tamper Alarm Protection
Built-in tamper protection alerts the central security network if the sub-module is detached or physically tampered with.
Note: This sub-module requires a Hikvision modular door station main unit (e.g. DS-KD8003-IME1) to function.
KEY BENEFITS
- Enables complete customization of entry panels to suit different building layouts.
- IP65 weatherproofing ensures reliable performance in harsh outdoor climates.
- Saves wiring time with plug-and-play connections to the main modular unit.
- Durable metal or polycarbonate casing deters vandalism and physical abuse.
- Backlit interface ensures easy visibility for visitors in low-light environments.
- Allows easy upgrades or replacement of individual modules without replacing the system.
- Maintains a unified, professional appearance across all components in the frame.
- Provides direct visual or auditory feedback to visitors when calling.
- Integrates seamlessly with existing access control cards, key fobs, or PINs.
- Backed by a 2-Year manufacturer warranty for long-term reliability and support.
KEY FEATURES
- Model Number: DS-KD-BK
- Device Category: Modular Intercom Sub-Module
- Module Function: Blank Module
- Interface Connection: 8-pin module connection port
- Power Supply: 12 VDC (supplied by the main module)
- Power Consumption: Low energy draw, typically under 2W
- Material Construction: Aluminum / Plastic
- Weather Rating: IP65 dust and water resistant
- Vandal Rating: Robust mechanical design
- Backlight: Built-in LED button illumination
- Physical Controls: Tactile keys or capacitive touch panels
- Mounting Type: Frame flush or surface mounted
- Working Humidity: 10% to 90% RH (non-condensing)
- Working Temperature: Rated from -40°C to +60°C
- Net Weight: Lightweight design, approx. 200g
IDEAL FOR
- Multi-apartment blocks requiring digital keypads or nametag buttons.
- Commercial office entrances needing card reader access points.
- Gated driveways requiring digital code entry for visitors.
- Custom intercom layouts in hotels, schools, and hospitals.
- Renovations expanding existing intercom systems with extra call modules.
- Public entrances requiring clear backlit labels for residents.
- Sites requiring vandal-resistant modular security panels.
- Properties with mixed staff and visitor entrance access policies.
- Modular layouts combining video cameras, door readers, and displays.
- Environments exposed to severe rain, dust, and temperature shifts.
- System designers looking for scalable, modular door entry layouts.
- Installations requiring quick, tool-free sub-module connectivity.
SYSTEM COMPATIBILITY
- Exclusively compatible with Hikvision modular main door stations.

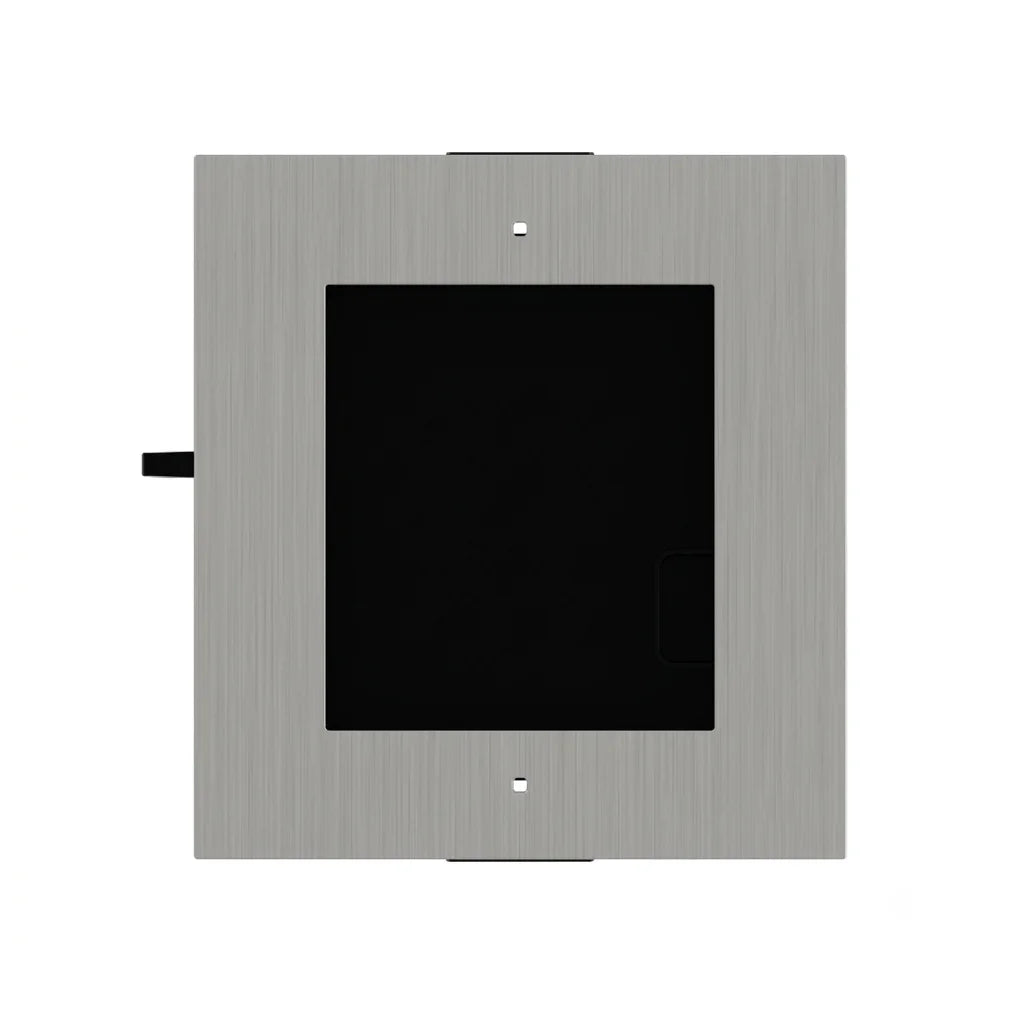

- Works in frames like DS-KD-ACF and DS-KD-ACW series.
- Powered directly by the main camera module via ribbon cable.
- Configurable via Hik-Connect and IVMS-4200 software platforms.
- Supports integration with electric locks via the main door station.
- Works in conjunction with Hikvision indoor video monitors.
- Supports connection of up to 8 sub-modules in a single frame.
- Compatible with Mifare and EM card security standards.
- Supports firmware updates through the main module network link.
- Compatible with standard Hikvision installation brackets.
- Works alongside external safety loops and alarm systems.
- Integrates with commercial access control system networks.
- Supports remote status checks via Hik-Central management suite.
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-KD-BK |
| Product Type |
Modular Video Intercom Sub-Module |
| Function |
Blank Module |
| Input Voltage |
12 VDC (powered by main module) |
| Output Power |
12 VDC output for downstream modules |
| Power Consumption |
≤ 2 W |
| Interface Connection |
2 × 8-pin module connectors (In & Out) |
| Button / Key Type |
Tactile buttons / capacitive keys |
| Backlight |
LED backlit buttons |
| Material |
Aluminum / Plastic |
| Protection Level |
IP65 Weatherproof |
| Vandal Resistance |
Robust build |
| Working Temperature |
-40°C to +60°C (-40°F to 140°F) |
| Working Humidity |
10% to 90% RH (non-condensing) |
| Installation Type |
Modular Frame mounted |
| Chassis Colour |
Metallic Silver / Black |
| Dimensions |
98 mm × 100 mm × 34 mm |
| Net Weight |
Approx. 190 g (0.42 lbs) |
| Certification |
CE, FCC, RoHS |
| Application |
Outdoor Modular Intercom Expansion |
| Warranty |
2-Year Manufacturer Warranty |
| Sub-module Cascading |
Supports cascading up to 8 modules |
FREQUENTLY ASKED QUESTIONS (FAQs)
What is the purpose of the Hikvision DS-KD-BK sub-module?
The DS-KD-BK is an expansion module that connects to the main modular door station to provide card reading, keypad dialling, or name tags.
Does this module work on its own?
No, it requires a modular door station main unit (like DS-KD8003-IME1) to function and receive power.
How is it powered?
It is powered directly by the main camera module using an 8-pin ribbon cable, eliminating the need for a separate power supply.
Is the sub-module weatherproof?
Yes, it carries an IP65 protection rating, ensuring reliable operation in outdoor rain, snow, and dust.
How many sub-modules can I connect in a single system?
You can cascade up to 8 sub-modules from a single main camera module within the mounting frames.
Does it have backlit buttons?
Yes, it features integrated LED backlighting to ensure keys and labels are clearly visible to visitors at night.
What material is it made of?
It is made of rugged aluminum / plastic to resist weathering and physical wear.
How do you configure the sub-module?
Configuration is done through the main door station via the IVMS-4200 software or the Hik-Connect mobile app.
Does it support Mifare or EM cards?
Depending on the card reader model, it supports either 13.56MHz Mifare cards or 125kHz EM cards for secure keyless entry.
What is the warranty period?
It comes with a standard 2-Year manufacturer warranty covering parts and labor.
