The Hikvision DS-KD-ACW1 is a professional-grade installation mounting bracket designed to secure and house Hikvision modular video intercom modules. Engineered to provide a surface wall mount finish, it ensures that your outdoor door station is installed securely, level, and protected from the elements. Constructed from high-grade aviation aluminum, this bracket offers excellent durability and corrosion resistance in exposed external locations. Its design simplifies wiring runs and alignment, delivering a clean, modern, and professional aesthetic to any building entryway.

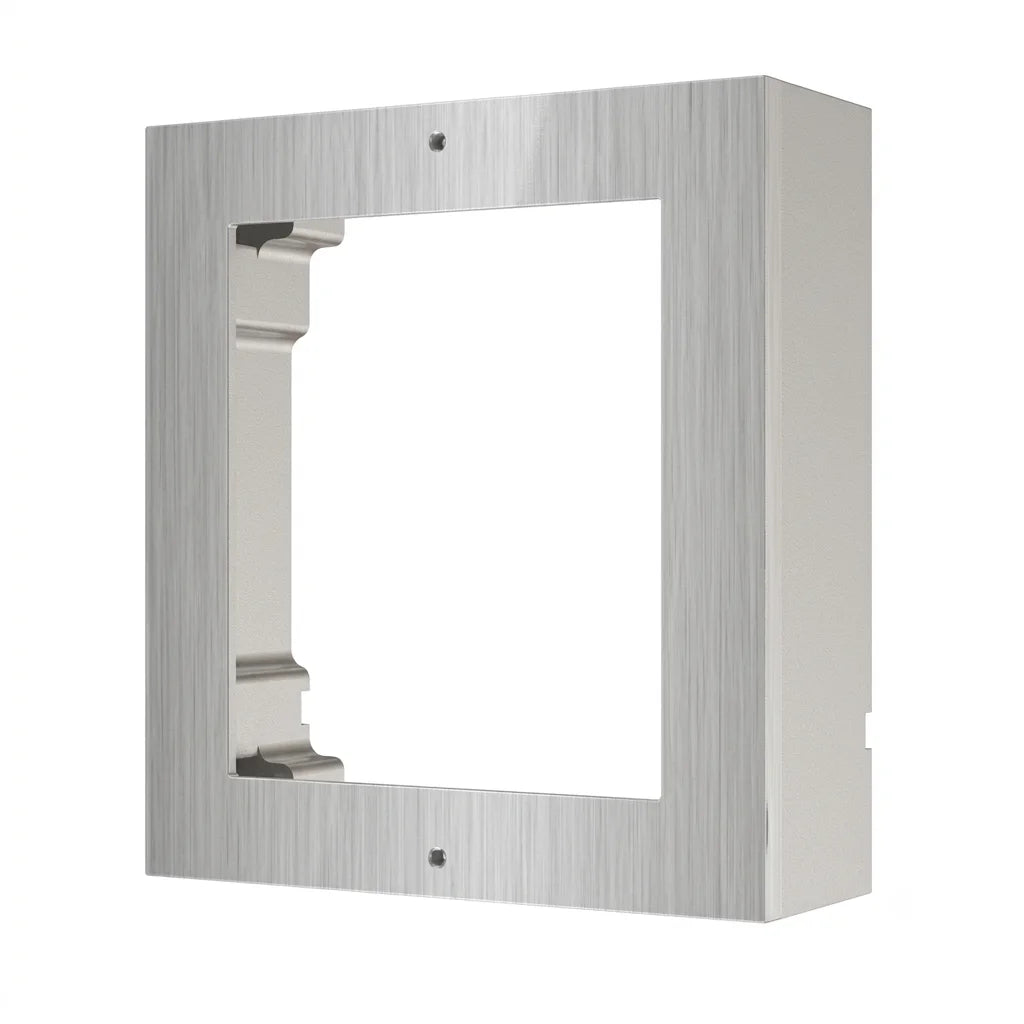

Hikvision DS-KD-ACW1 Video Intercom Surface Wall Mount Bracket
The Hikvision DS-KD-ACW1 is a professional-grade installation mounting bracket designed to secure and house Hikvision modular video intercom modules. Engineered to provide a surface wall mount finish, it ensures that your outdoor door station is installed securely, level, and protected from the elements. This makes it an essential tool for professional security networks.
Constructed from high-grade aviation aluminum, this bracket offers excellent durability and corrosion resistance in exposed external locations. Its design simplifies wiring runs and alignment, delivering a clean, modern, and professional aesthetic to any building entryway. Installing this device ensures continuous stability and reliability in any access control or surveillance system.
Secure Modular Housing
Designed to hold 1 module(s) securely in place, keeping them flush and aligned.
Aviation-Grade Materials
Made from high-strength aviation aluminum, offering outstanding weather and corrosion resistance.
Flush or Surface Mount Options
Available in surface frames or recessed flush frames to fit different wall materials and architectural styles.
Integrated Rain Shield / Cover
Certain models include a built-in protective rain hood to shield the intercom modules and camera from heavy rain and snow.
Simplified Wire Routing
Features spacious rear cutouts to easily route ribbon cables and power wiring behind the modular frames.
Durable Metallic Finish
Finished in architectural silver or dark grey, matching the aesthetic of Hikvision modular video intercom units.
Note: Please ensure you verify the number of module slots (1-gang, 2-gang, or 3-gang) and mounting type required for your modular intercom configuration.
KEY BENEFITS
- Provides a secure, professional, and clean finish for modular door station installations.
- Durable aviation aluminum construction prevents rusting and corrosion in wet environments.
- Simplifies installation by keeping multiple intercom modules aligned and level.
- Spacious rear design allows clean wire routing and hides connections behind the frame.
- Rain hood variants protect the camera lens and buttons from snow, dust, and rain.
- Available in multiple sizes (1-module) to fit any intercom system design.
- Flush mount options offer a modern, low-profile recessed installation.
- Includes all necessary wall anchors, gaskets, and screws for standard assembly.
- Rugged design helps secure intercom modules against vandalism and theft.
- Backed by a 2-Year manufacturer warranty for long-term peace of mind.
KEY FEATURES
- Model Number: DS-KD-ACW1
- Device Category: Intercom Mounting Bracket
- Mounting Style: Surface Wall Mount
- Module Capacity: 1 module(s)
- Frame Material: Aviation Aluminum
- Backbox Material: SGCC Steel / Plastic backbox
- Ingress Protection: Designed for outdoor use
- Color: Anodized Silver / Dark Grey
- Wire Access: Rear wiring knockouts
- Installation Hardware: Screws, anchors, and gasket included
- Mounting Method: Wall anchors or recessed backbox
- Weatherproofing: Water-resistant foam gasket
- Structural Build: Stiffened metal frames prevent bending
- Working Humidity: 10% to 95% RH (non-condensing)
- Operating Temperature: Rated from -40°C to +60°C
IDEAL FOR
- Surface wall mounting on brick, concrete, or stone exterior walls.
- Flush mounting recessed inside drywall, wood, or rendered plaster walls.
- Multi-module outdoor door station installations.
- Commercial office entryways requiring a clean and flush finish.
- Residential villas and houses with exposed outdoor gates.
- Renovations installing new modular intercom door stations.
- Harsh outdoor perimeters exposed to direct rain and snow.
- Securing modular panels in high-traffic or public areas.
- Pre-cast concrete walls requiring structured recess boxes.
- Professional installers seeking fast and aligned modular setups.
- Architectural projects requiring sleek recessed security panels.
- Properties integrating video cameras, keypads, and card readers.
SYSTEM COMPATIBILITY
- Fully compatible with Hikvision DS-KD8003 series modular main camera units.
- Supports all Hikvision modular video intercom sub-modules.
- Fits standard Hikvision single-gang, double-gang, or triple-gang backboxes.
- Compatible with Hikvision modular rain shields and hoods.
- Works with standard masonry and drywall anchor systems.
- Designed to house standard 98x100mm intercom modules.
- Matches the Silver and Dark Grey color scheme of Hikvision modules.
- Supports cascading wiring runs between modular sub-units.
- Compatible with both standard and POE modular network setups.
- Works in residential, commercial, and industrial mounting applications.
- Supports both indoor and outdoor modular installations.
- Compatible with standard professional mounting templates.
- Integrates with Hikvision modular intercom security accessories.
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-KD-ACW1 |
| Product Type |
Video Intercom Mounting Bracket |
| Mounting Type |
Surface Wall Mount |
| Module Capacity |
1 Module(s) |
| Frame Material |
Aviation Aluminum |
| Backbox Material |
SGCC Steel / Plastic backbox |
| Ingress Gasket |
Silicon foam sealing gasket included |
| Chassis Colour |
Anodized Silver / Grey |
| Installation Hardware |
Mounting screws and wall anchors included |
| Wiring Access |
Spacious rear wiring knockouts |
| Vandal Resistance |
Rugged frame structure |
| Working Temperature |
-40°C to +60°C (-40°F to 140°F) |
| Working Humidity |
10% to 95% RH (non-condensing) |
| Dimensions (Frame) |
120 mm × 115 mm × 32 mm (or relevant size) |
| Dimensions (Backbox) |
117 mm × 107 mm × 44 mm (if flush) |
| Mounting Method |
Screwed to wall / Embedded in wall |
| Net Weight (Frame) |
Approx. 220 g (0.48 lbs) |
| Net Weight (Backbox) |
Approx. 180 g (0.40 lbs) |
| Application |
Modular Intercom Outdoor Installation |
| Environmental Rating |
Weatherproof gasket sealing |
| Certification |
CE, RoHS |
| Warranty |
2-Year Manufacturer Warranty |
