Description
Product Overview

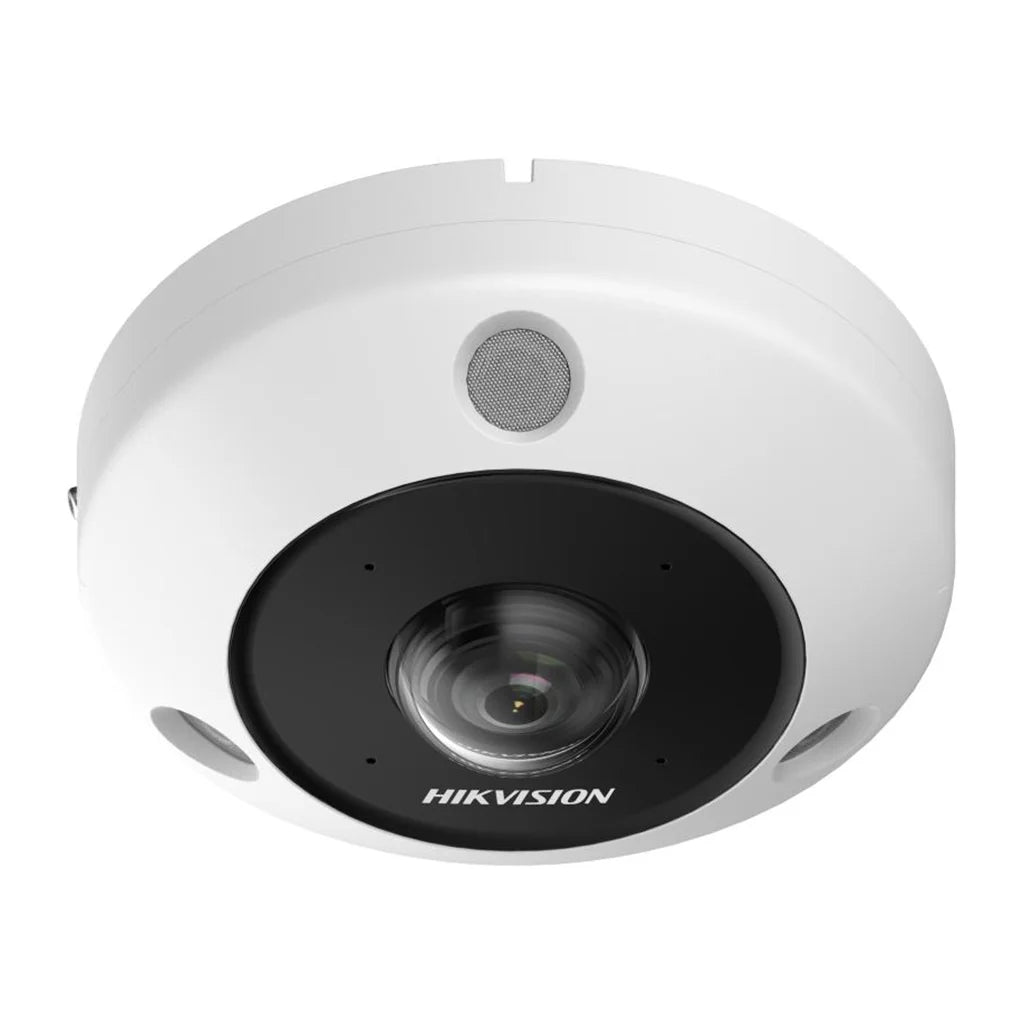

Hikvision DS-2CD63C5G1-IVS(1.29mm) is a 12MP DeepinView fisheye network camera for high-detail panoramic coverage. Its 1/1.8-inch progressive-scan CMOS sensor records at up to 3504 × 3504, while the fixed 1.29mm panomorph fisheye lens provides a 180° horizontal and vertical field of view.
The surface-mount IVS version includes infrared illumination up to 15 metres, four built-in microphones and one built-in speaker for two-way audio. It also supports heat-map analysis, people counting, queue management, intersection analysis, external audio and alarm interfaces, RS-485, microSD storage up to 256GB, HEOP 2.0, a built-in heater, IP67 weather protection and IK10 vandal resistance.
Key Features
- 12MP maximum resolution: 3504 × 3504
- 1.29mm fixed panomorph fisheye lens
- 180° horizontal and vertical field of view
- Infrared illumination up to 15m
- Digital WDR
- Heat map, people counting, queue management and intersection analysis
- Four built-in microphones and one built-in speaker
- One line audio input and one line audio output
- Two alarm inputs and two alarm outputs
- RS-485 interface
- microSD/microSDHC/microSDXC support up to 256GB
- HEOP 2.0 platform
- 12V DC or IEEE 802.3af PoE
- Built-in heater, IP67 and IK10
Technical Specifications
| Model |
DS-2CD63C5G1-IVS(1.29mm) |
| Camera type |
Surface-mount fisheye network camera |
| Image sensor |
1/1.8-inch progressive-scan CMOS |
| Maximum resolution |
3504 × 3504 |
| Lens |
1.29mm fixed panomorph fisheye, F2.2 |
| Field of view |
180° horizontal and 180° vertical |
| Infrared range |
Up to 15m |
| WDR |
Digital WDR |
| Audio |
Four built-in microphones, one built-in speaker, one line input and one line output |
| Alarm |
Two inputs and two outputs |
| Storage |
Compatible microSD cards up to 256GB |
| Power |
12V DC, maximum 11.5W; IEEE 802.3af PoE, maximum 12.5W |
| Protection |
Built-in heater, IP67 and IK10 |
Compatibility and Installation
Fisheye cameras use panoramic and dewarped display modes that depend on recorder and client-software support. Confirm NVR compatibility with 3504 × 3504 video, fisheye dewarping, analytics, audio/alarm functions, PoE capacity, storage and mounting before ordering.
Frequently Asked Questions
Is this an ANPR camera?
No. Hikvision specifies retail and behavioural analytics such as heat map, people counting and queue management; dedicated ANPR/LPR is not stated.
Does it support two-way audio?
Yes. This IVS version has built-in microphones and a built-in speaker.
Can it be installed outdoors?
Hikvision specifies IP67 weather protection and IK10 vandal resistance for this surface-mount version.
