The Hikvision DS-2TD1228T-2/QA(B) is a professional HeatPro bi-spectrum network turret camera engineered for advanced thermal monitoring, perimeter protection, and early fire warnings. Featuring an ultra-sensitive 256 × 192 resolution thermal module and a high-definition 4MP optical camera, this IP67 weather-protected camera delivers excellent visibility in all lighting conditions. With its built-in deep learning target classification, it represents an outstanding security asset for demanding commercial and industrial properties.

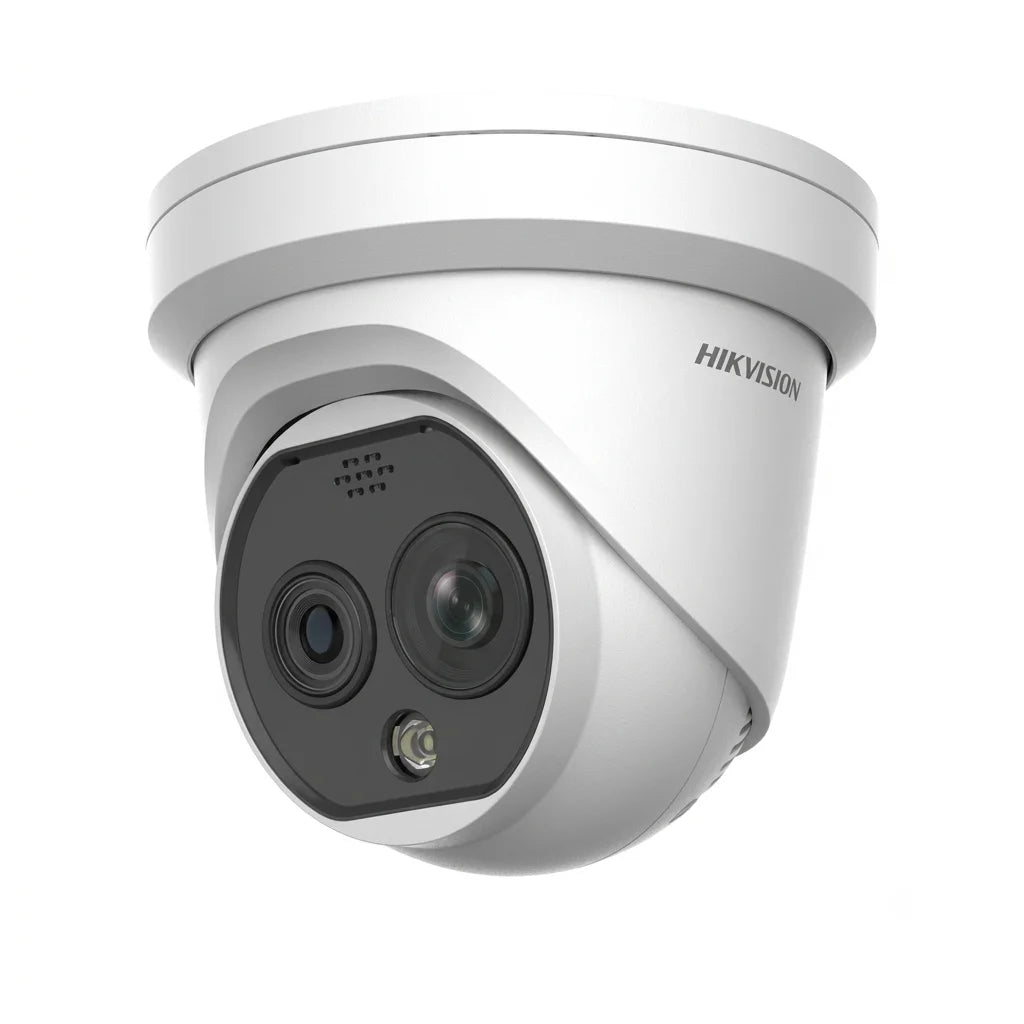

Hikvision DS-2TD1228T-2/QA(B) HeatPro Bi-Spectrum Turret Camera
This premium bi-spectrum turret camera is designed for security systems that require both visual surveillance and precise temperature monitoring. The thermal sensor features a 256 × 192 resolution with a 12 μm pixel pitch and a thermal sensitivity (NETD) of ≤ 35 mK. This high sensitivity allows the camera to detect minute temperature differences and spot anomalies early, which is essential for fire prevention and critical infrastructure security. The 2.1mm fixed thermal lens delivers a wide 90.0° × 65.4° field of view, providing a broad coverage zone for close-range targets.
The optical module boasts a 1/2.7" Progressive Scan CMOS sensor delivering a 4MP (2688 × 1520) resolution, accompanied by a 2.2 mm lens. The bi-spectrum feature allows the system to overlay thermal and optical images (bi-spectrum image fusion), providing security personnel with a highly detailed composite view that facilitates faster object recognition and decision-making.
Advanced Bi-Spectrum Image Fusion
Unlike standard thermal cameras, the DS-2TD1228T-2/QA(B) features advanced bi-spectrum image fusion technology. This blends the visual details of the 4MP optical sensor with the thermal heat map from the VOx detector. The fused image allows operators to identify outlines, text, and specific objects much faster, removing the ambiguity of standard thermal-only feeds.
Note: This model supports high-accuracy temperature measurements ranging from -20°C to 550°C (-4°F to 1022°F) with a precision of ±2°C or ±2%. You can configure up to 21 measurement rules simultaneously across points, lines, and areas.
AI-Powered Perimeter Protection
Integrated deep-learning algorithms classify moving targets into human and vehicle categories. This advanced classification filters out false alarms from leaves, animals, rain, and light changes, ensuring that security alerts are highly accurate and actionable. It supports line crossing, intrusion detection, and region entrance/exit rules.
Early Fire & Smoking Detection
The DS-2TD1228T-2/QA(B) features dedicated fire and smoking detection algorithms. By analyzing temperature rises and specific flame shapes, the camera can detect fires in their earliest stages, generating rapid alerts before visible smoke or flames reach traditional fire sensors.
Rugged IP67 and Anti-Corrosion Build
Housed in a robust IP67 weather-resistant enclosure, the camera is designed to withstand extreme outdoor conditions, including heavy rain, dust, and freezing temperatures. Its compact turret form factor allows for flexible ceiling or wall mounting.
Secure Communication and Edge Recording
The camera supports advanced network encryption including HTTPS, SSL/TLS, and 802.1X. It features a built-in MicroSD slot supporting up to 256 GB cards for local backup recording during network dropouts, ensuring no security footage or thermal data is lost.
KEY BENEFITS
- Dual-spectrum monitoring combines thermal details and high-resolution 4MP optical video.
- Precise temperature measurement from -20°C to 550°C for early industrial warning.
- Early flame and smoking detection to prevent catastrophic fire damage.
- Deep-learning target classification reduces false alarms from weather or animals.
- Wide 90-degree field of view ensures extensive short-range perimeter coverage.
- Bi-spectrum fusion overlays visual details for fast target identification.
- IP67 weatherproof housing for indoor and outdoor installation.
- Built-in IR illuminator with up to 15 meters range for night verification.
- Local edge storage up to 256 GB avoids loss of critical security data.
- Supports PoE (802.3af) for simple, single-cable power and data installation.
KEY FEATURES
- Thermal sensor: 256 × 192 resolution, 12 μm pixel pitch, NETD ≤ 35 mK.
- Thermal lens: 2.1 mm focal length, 90.0° × 65.4° field of view.
- Optical sensor: 1/2.7" Progressive Scan CMOS, 4MP (2688 × 1520) resolution.
- Optical lens: 2.2 mm focal length, wide-angle visual.
- Bi-spectrum image fusion and picture-in-picture display modes.
- Temperature measurement range: -20°C to 550°C (-4°F to 1022°F) with ±2°C/±2% accuracy.
- Fire detection, smoking detection, and sun-reflection filter algorithms.
- Built-in IR illuminator with up to 15 meters range.
- IP67 weather protection, robust turret housing.
- Power options: 12 VDC or PoE (802.3af).
- MicroSD card slot supporting up to 256 GB.
- Supports 1 audio input/output and alarm interfaces.
- H.265 / H.264 / MJPEG video compression.
- Dual-stream configuration for efficient bandwidth utilization.
- Built-in TPM 2.0 security chip for hardware-level key encryption.
IDEAL FOR
- Industrial sites
- Electrical substations
- Chemical plants
- Waste recycling centers
- Wood yards
- Warehouses
- Seaports and harbors
- Coastal boundaries
- High-security boundaries
- Commercial storage yards
- Server rooms and data centers
- Machine monitoring applications
SYSTEM COMPATIBILITY
- Compatible with Hikvision DS-7600/7700/9600 series NVRs
- Compatible with iVMS-4200 software client
- Compatible with Hik-Central professional VMS
- Compatible with Hik-Connect mobile application (iOS & Android)
- ONVIF (Profile S, Profile G, Profile T) compliant
- ISAPI and SDK integration support
- Web browser access via Internet Explorer, Chrome, and Firefox
- Supports standard RTSP streams for third-party VMS integration
- Integrates with industrial SCADA systems via Modbus TCP
- Supports SMTP for automated email alarm notifications
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-2TD1228T-2/QA(B) |
| Product Type |
Thermal & Optical Bi-Spectrum Turret Camera |
| Thermal Sensor |
Vanadium Oxide Uncooled Focal Plane Arrays |
| Thermal Resolution |
256 × 192 |
| Pixel Pitch |
12 μm |
| NETD |
≤ 35 mK (@25°C, F# = 1.0) |
| Thermal Lens Focal Length |
2.1 mm |
| Thermal Field of View |
90.0° × 65.4° (H × V) |
| Optical Sensor |
1/2.7" Progressive Scan CMOS |
| Optical Resolution |
4MP (2688 × 1520) |
| Optical Lens Focal Length |
2.2 mm |
| IR Distance |
Up to 15 meters |
| Temperature Range |
-20°C to 550°C (-4°F to 1022°F) |
| Temperature Accuracy |
Max. ± 2°C, ± 2% |
| Measurement Rules |
21 rules (10 points, 10 areas, 1 line) |
| Video Compression |
H.265 / H.264 / MJPEG |
| Edge Storage |
MicroSD/SDHC/SDXC up to 256 GB |
| Ingress Protection |
IP67 rating |
| Operating Temperature |
-40°C to 65°C (-40°F to 149°F) |
| Power Input |
12 VDC or PoE (802.3af, Class 3) |
| Dimensions |
138.3 mm × 138.3 mm × 123.1 mm |
| Weight |
Approx. 0.94 kg |
FREQUENTLY ASKED QUESTIONS (FAQs)
What is a bi-spectrum camera?
A bi-spectrum camera integrates both a thermal sensor and a traditional optical visual sensor within the same housing. It allows operators to view the thermal image, the optical image, or a fused composite overlay of both streams.
How does early fire detection work on this model?
The DS-2TD1228T-2/QA(B) utilizes specialized thermographic algorithms to detect rapid temperature spikes and specific flame shapes, allowing it to trigger fire alarms at the earliest stages, before traditional smoke detectors can respond.
What is the benefit of the IP67 rating?
The IP67 rating guarantees that the camera housing is protected against dust and water ingress, allowing it to operate reliably in challenging industrial environments.
Can this camera measure temperature in specific locations?
Yes. The camera supports up to 21 measurement rules simultaneously, including 10 points, 10 areas, and 1 temperature measurement line, allowing for targeted temperature tracking on machines or panels.
What is the thermal sensitivity (NETD) of this camera?
The NETD is ≤ 35 mK. This exceptionally low noise level allows the thermal sensor to distinguish minute temperature differences down to 0.035°C, yielding high-contrast thermal video.
Does it support Power over Ethernet (PoE)?
Yes. The camera supports standard PoE (802.3af, Class 3) for simple, single-cable power and data installation, in addition to traditional 12 VDC power inputs.
What is the detection range of the 2.1mm lens?
The 2.1mm lens offers a wide horizontal field of view of 90 degrees, making it suitable for wide-angle monitoring of close-range targets.
Does the camera ignore pets?
Yes. When installed at the recommended height and configured properly, the built-in deep-learning target classification helps ignore pets and other small animals to reduce false alarms.
What storage options are supported?
The camera features a built-in MicroSD card slot that supports cards up to 256 GB, providing local edge storage for continuous backup recording during network dropouts.
What software can I use to manage this camera?
The camera can be managed via Hikvision's iVMS-4200 software, Hik-Central, or remote mobile monitoring via the Hik-Connect mobile app. It is also ONVIF compliant for third-party compatibility.
