Hikvision DS-2CD2346G2H-IU Product Overview

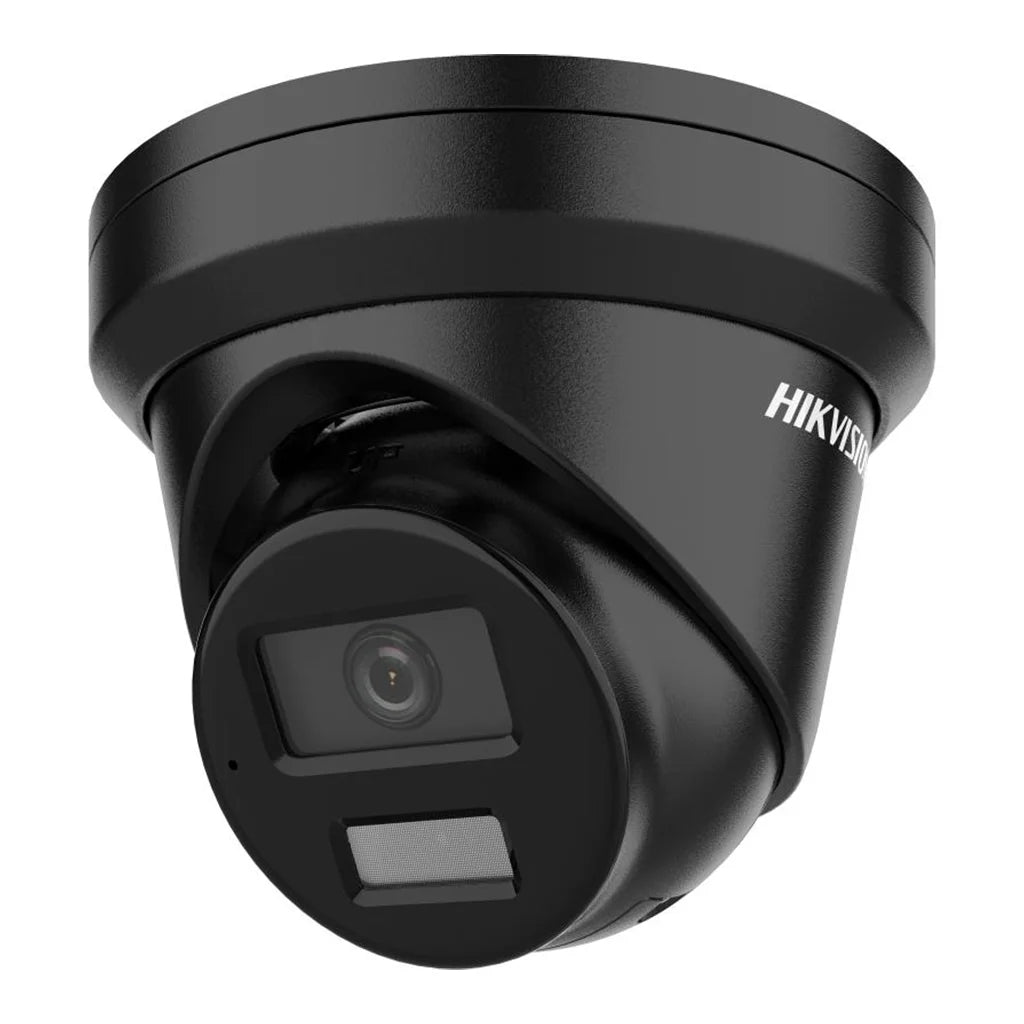

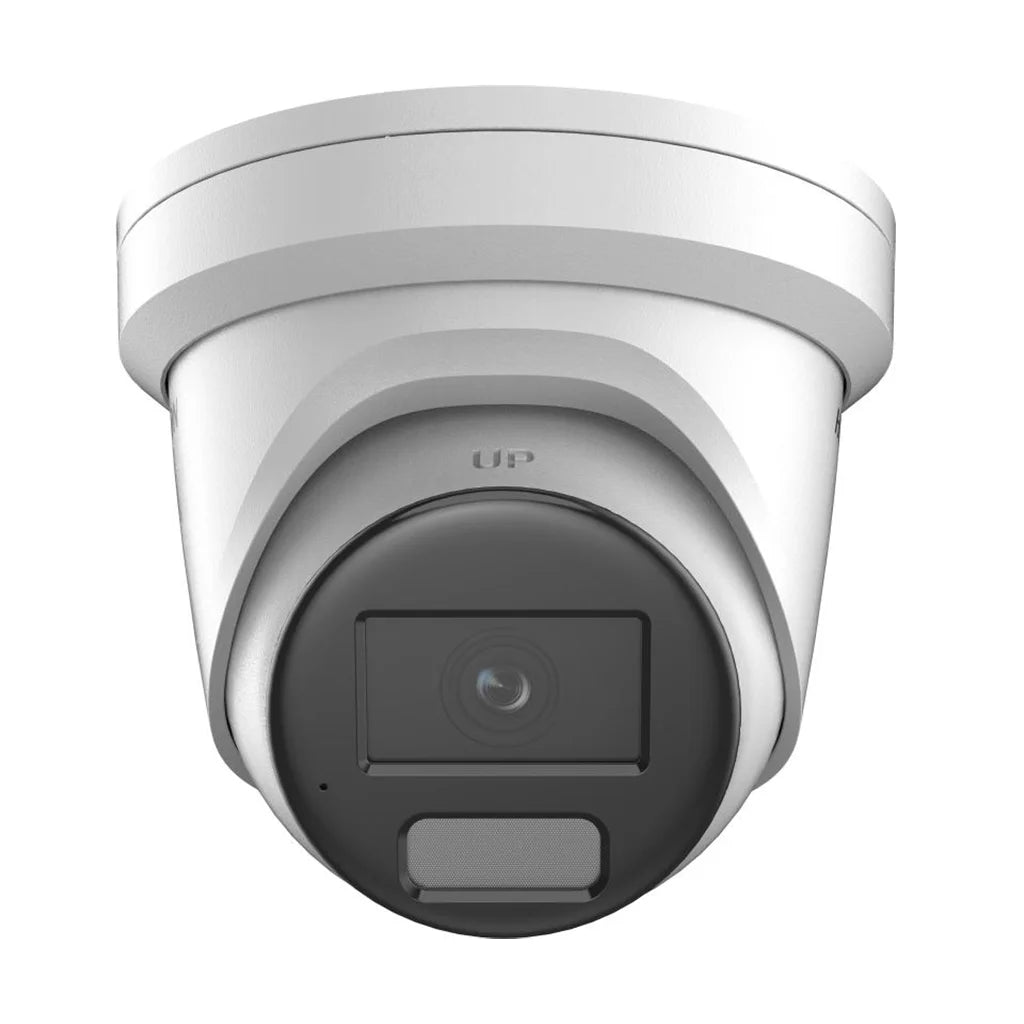

The Hikvision DS-2CD2346G2H-IU(2.8mm)(eF) is a 4MP AcuSense Powered-by-DarkFighter fixed turret network camera with a built-in microphone. Its 1/3-inch progressive-scan CMOS sensor records at up to 2688 × 1520, while the fixed 2.8mm F1.0 lens provides a wide 100.2° horizontal field of view.
The camera combines a manufacturer-rated minimum colour illumination of 0.001 lux, infrared illumination up to 30 metres and 120dB WDR. Deep-learning analytics support human and vehicle classification for compatible motion and perimeter events. It also provides face capture, scene-change detection and local memory-card support up to 512GB. Hikvision does not state a built-in speaker, external audio input/output or alarm input/output for this exact IU model.
Key Benefits
-
Detailed 4MP video: records at up to 2688 × 1520 at 25fps in 50Hz mode or 30fps in 60Hz mode.
-
Wide scene coverage: the fixed 2.8mm lens provides a 100.2° horizontal view.
-
DarkFighter low-light imaging: the F1.0 aperture supports useful colour detail in very low illumination.
-
Infrared night monitoring: built-in 850nm IR has a manufacturer-rated range of up to 30 metres.
-
AcuSense classification: supported events can distinguish human and vehicle targets.
-
Backlight handling: 120dB WDR helps retain detail where bright and dark areas appear together.
-
Built-in audio capture: the integrated microphone records sound without implying speaker playback.
-
Protected metal housing: the enclosure is rated IP67 for water and dust resistance.
Key Features
- 4MP maximum resolution of 2688 × 1520
- 1/3-inch progressive-scan CMOS sensor
- 2.8mm fixed focal lens with F1.0 aperture
- 100.2° horizontal, 54.7° vertical and 119.7° diagonal field of view
- Minimum colour illumination of 0.001 lux at F1.0 with AGC enabled
- Infrared illumination up to 30 metres
- 120dB true wide dynamic range
- H.265+, H.265, H.264+ and H.264 compression
- Human and vehicle classification for supported events
- Line crossing, intrusion, region entrance and region exit support
- Face-capture and scene-change-detection support
- Built-in microphone with environmental-noise filtering
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3af PoE power
- IP67 weather resistance
Technical Specifications
| Model |
DS-2CD2346G2H-IU(2.8mm)(eF) |
| Camera type |
Fixed turret network camera |
| Image sensor |
1/3-inch progressive-scan CMOS |
| Maximum resolution |
2688 × 1520 |
| Maximum frame rate |
25fps at maximum resolution in 50Hz mode; 30fps in 60Hz mode |
| Minimum illumination |
Colour: 0.001 lux at F1.0 with AGC on; black and white: 0 lux with infrared |
| Lens |
2.8mm fixed focal lens, F1.0 |
| Field of view |
Horizontal 100.2°; vertical 54.7°; diagonal 119.7° |
| Depth of field |
Approximately 1.9m to infinity |
| Physical adjustment |
Pan 0° to 360°, tilt 0° to 75° and rotation 0° to 360° during installation |
| Infrared range |
Up to 30m, 850nm |
| Wide dynamic range |
120dB |
| Video compression |
H.265+, H.265, H.264+ and H.264; MJPEG on the sub-stream |
| Analytics |
Human and vehicle classification for supported motion and perimeter events; face capture and scene-change detection |
| Built-in audio |
Built-in microphone; mono audio capture |
| Speaker and external interfaces |
No built-in speaker, external audio input/output or alarm input/output stated |
| Local storage |
microSD, microSDHC or microSDXC card support up to 512GB |
| Network interface |
1 × RJ45 10/100Mbps self-adaptive Ethernet port |
| Interoperability |
ONVIF Profiles S, G and T; ISAPI and SDK |
| Power |
12V DC ±25%, maximum 7.2W; IEEE 802.3af PoE Class 3, maximum 9W |
| Operating conditions |
-30°C to 60°C; relative humidity 95% or less, non-condensing |
| Housing |
Metal, white finish |
| Protection |
IP67 weather resistance; no IK impact rating stated |
| Dimensions |
Ø138.3 × 115.4mm |
| Weight |
Approximately 550g |
Detection and Low-Light Imaging
Powered-by-DarkFighter technology and the F1.0 lens support colour imaging where ambient light is limited. When the available light is insufficient, the infrared illuminator provides monochrome imaging. Hikvision specifies an IR range of up to 30 metres, although practical performance depends on mounting, surfaces and scene conditions.
AcuSense can classify human and vehicle targets for supported motion, line-crossing, intrusion, region-entry and region-exit events. Face capture and scene-change detection are also available. Detection performance depends on target size, camera angle, lighting and correct configuration.
Audio, Storage and Compatibility
The camera has a built-in microphone for audio capture. No built-in speaker or audio output is stated, so this listing does not claim two-way audio. The internal slot supports compatible microSD-family cards up to 512GB; a card is normally sold separately.
Confirm NVR 4MP decoding, AcuSense support, audio recording, PoE capacity, memory-card compatibility and the required mounting accessory before ordering. ONVIF support can assist third-party integration, but it does not guarantee access to every Hikvision analytics or audio feature.
Frequently Asked Questions
What is the maximum resolution?
2688 × 1520, commonly described as 4MP.
What lens is fitted?
A fixed 2.8mm F1.0 lens.
What is the field of view?
100.2° horizontal, 54.7° vertical and 119.7° diagonal.
Can the lens zoom remotely?
No. This is a fixed-lens camera.
What is the infrared range?
Hikvision specifies up to 30 metres under manufacturer test conditions.
What does AcuSense do?
It classifies human and vehicle targets for supported motion and perimeter events.
Does it have a built-in microphone?
Yes. It has a built-in microphone with environmental-noise filtering.
Does it support two-way audio?
No built-in speaker or audio output is stated for this exact model.
What memory-card capacity is supported?
Compatible microSD-family cards up to 512GB are supported.
Is it suitable for outdoor installation?
The metal housing is rated IP67. Correct sealing, mounting and cable protection remain necessary.
