Hikvision DS-2CD23166G3-IS2UY/SL Product Overview

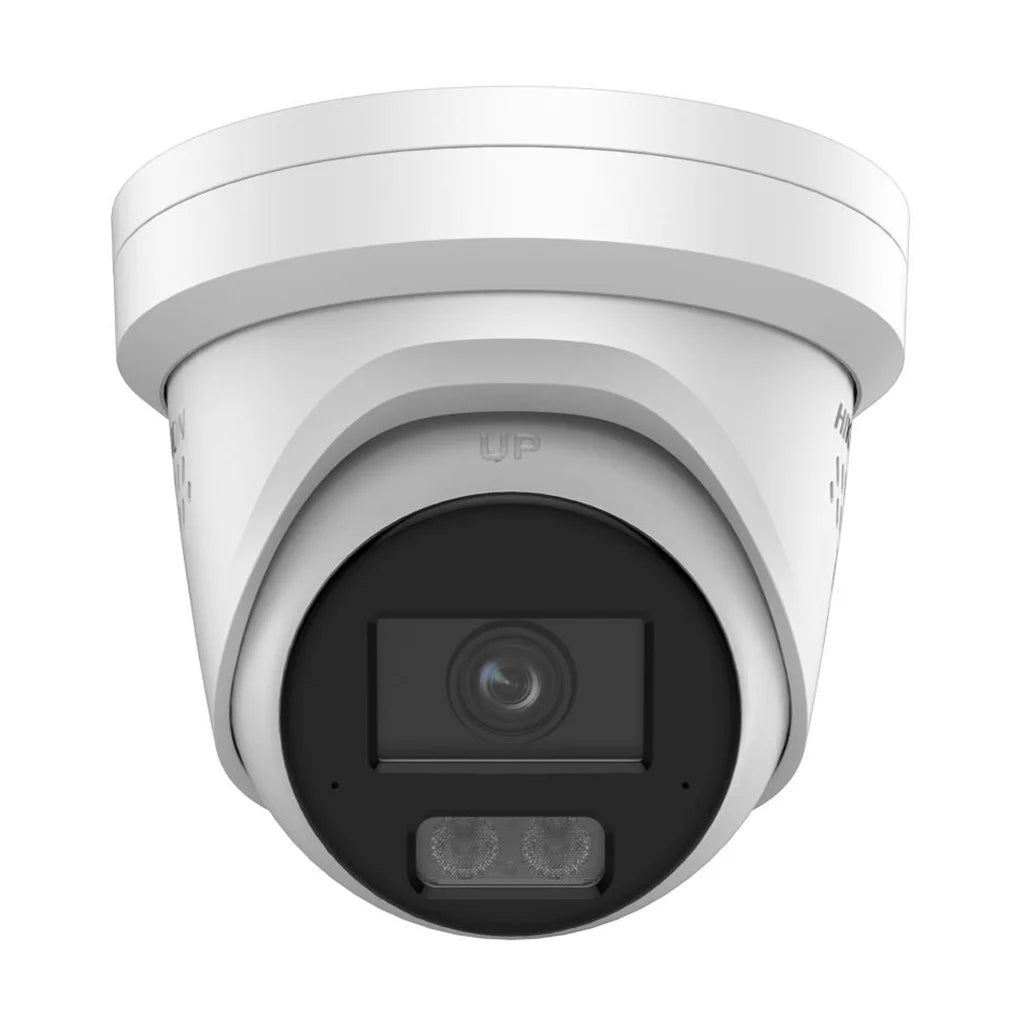

The Hikvision DS-2CD23166G3-IS2UY/SL(2.8mm)(eF) is a 16MP AcuSense Powered-by-DarkFighter fixed turret network camera with integrated two-way audio and active deterrence. Its 1/1.8-inch progressive-scan CMOS sensor records at up to 4608 × 3456, while the fixed 2.8mm F1.6 lens provides a 94.5° horizontal field of view.
The /SL hardware includes an arrayed dual microphone, a 2W built-in speaker, one external audio input and output, one alarm input and output, a white warning strobe and audible-warning capability. Infrared illumination is specified up to 30 metres. The strobe is a warning device and is not described as general long-range scene illumination.
Key Benefits
-
16MP evidence: captures up to 4608 × 3456 for high-detail monitoring.
-
DarkFighter low-light imaging: supports useful detail under limited illumination.
-
30m infrared: built-in IR supports monochrome monitoring in darkness.
-
AcuSense classification: supported events can distinguish human and vehicle targets.
-
Integrated two-way audio: dual microphones and a 2W speaker support compatible communication.
-
Active deterrence: a white strobe and audible warning can be linked to supported events.
-
External integration: one audio input/output and one alarm input/output are provided.
-
Protected housing: IP67 and NEMA 4X moderate anti-corrosion protection.
Key Features
- 16MP maximum resolution of 4608 × 3456
- 12.5fps at maximum resolution in 50Hz mode and 15fps in 60Hz mode
- 20fps at 4608 × 2592
- Up to 25/30fps at supported 4K and lower resolutions
- 1/1.8-inch progressive-scan CMOS sensor
- 2.8mm fixed F1.6 lens
- 94.5° horizontal, 69.9° vertical and 123.2° diagonal field of view
- Minimum colour illumination of 0.0008 lux at F1.6
- Infrared illumination up to 30 metres
- 130dB WDR
- Human and vehicle classification and face capture
- Arrayed dual microphone and 2W speaker
- One line audio input/output and one alarm input/output
- White warning strobe and audible warning
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3at PoE+ power
- IP67 and NEMA 4X moderate anti-corrosion protection
Technical Specifications
| Model |
DS-2CD23166G3-IS2UY/SL(2.8mm)(eF) |
| Camera type |
Fixed turret network camera with active deterrence |
| Image sensor |
1/1.8-inch progressive-scan CMOS |
| Maximum resolution |
4608 × 3456 |
| Maximum frame rate |
12.5fps at full resolution in 50Hz mode; 15fps in 60Hz mode; 20fps at 4608 × 2592; up to 25/30fps at supported 4K and lower resolutions |
| Minimum illumination |
Colour: 0.0008 lux at F1.6 with AGC on; black and white: 0 lux with IR |
| Lens |
2.8mm fixed focal lens, F1.6 |
| Field of view |
Horizontal 94.5°; vertical 69.9°; diagonal 123.2° |
| Physical adjustment |
Pan 0° to 360°, tilt 0° to 75° and rotation 0° to 360° |
| Infrared range |
Up to 30m |
| Wide dynamic range |
130dB |
| Analytics |
Human and vehicle classification for supported motion and perimeter events; face capture |
| Built-in audio |
Arrayed dual microphone and 2W speaker; manufacturer specifies up to 110dB sound pressure at 10cm |
| External audio |
One line input and one line output |
| Alarm interface |
One input and one output |
| Active deterrence |
White warning strobe and audible warning on the /SL model |
| Local storage |
microSD, microSDHC or microSDXC card support up to 512GB |
| Network/API |
RJ45 10/100Mbps; ONVIF Profiles S, G and T, ISAPI, SDK and ISUP |
| Power |
12V DC, maximum 16W; IEEE 802.3at PoE+ Class 4, maximum 18W |
| Operating conditions |
-30°C to 60°C; relative humidity 95% or less, non-condensing |
| Housing |
Metal cover and main body, white finish |
| Protection |
IP67 and NEMA 4X moderate anti-corrosion protection |
| Dimensions |
Ø138.3 × 115.4mm |
| Weight |
Approximately 820g |
Resolution, Deterrence and Audio
Full 16MP recording runs at 12.5fps in 50Hz mode or 15fps in 60Hz mode. The camera can provide 20fps at 4608 × 2592 and higher frame rates at supported lower resolutions. Recorder capability and required motion smoothness should be checked before choosing the recording profile.
The /SL model can link its white strobe and audible warning to supported events. The dual microphones and speaker support compatible two-way audio, while line audio and alarm interfaces support external equipment.
Installation and Compatibility
Confirm NVR 16MP decoding, required frame rate, PoE+ budget, AcuSense, two-way audio, alarm and strobe controls, storage and mounting compatibility. Advanced functions might require compatible Hikvision firmware or software.
Frequently Asked Questions
What is the maximum resolution?
4608 × 3456, commonly described as 16MP.
What is the frame rate at full resolution?
12.5fps in 50Hz mode or 15fps in 60Hz mode.
What is the infrared range?
Up to 30 metres.
Does it classify people and vehicles?
Yes, for supported event types.
Does it support two-way audio?
Yes. It has dual microphones and a built-in speaker.
Does it include active deterrence?
Yes. The /SL model includes a white strobe and audible warning.
Does it provide audio and alarm interfaces?
Yes, one input and output for each.
What storage is supported?
Compatible cards up to 512GB.
What PoE standard is required?
IEEE 802.3at PoE+ Class 4.
What protection applies?
IP67 and NEMA 4X moderate anti-corrosion protection.
