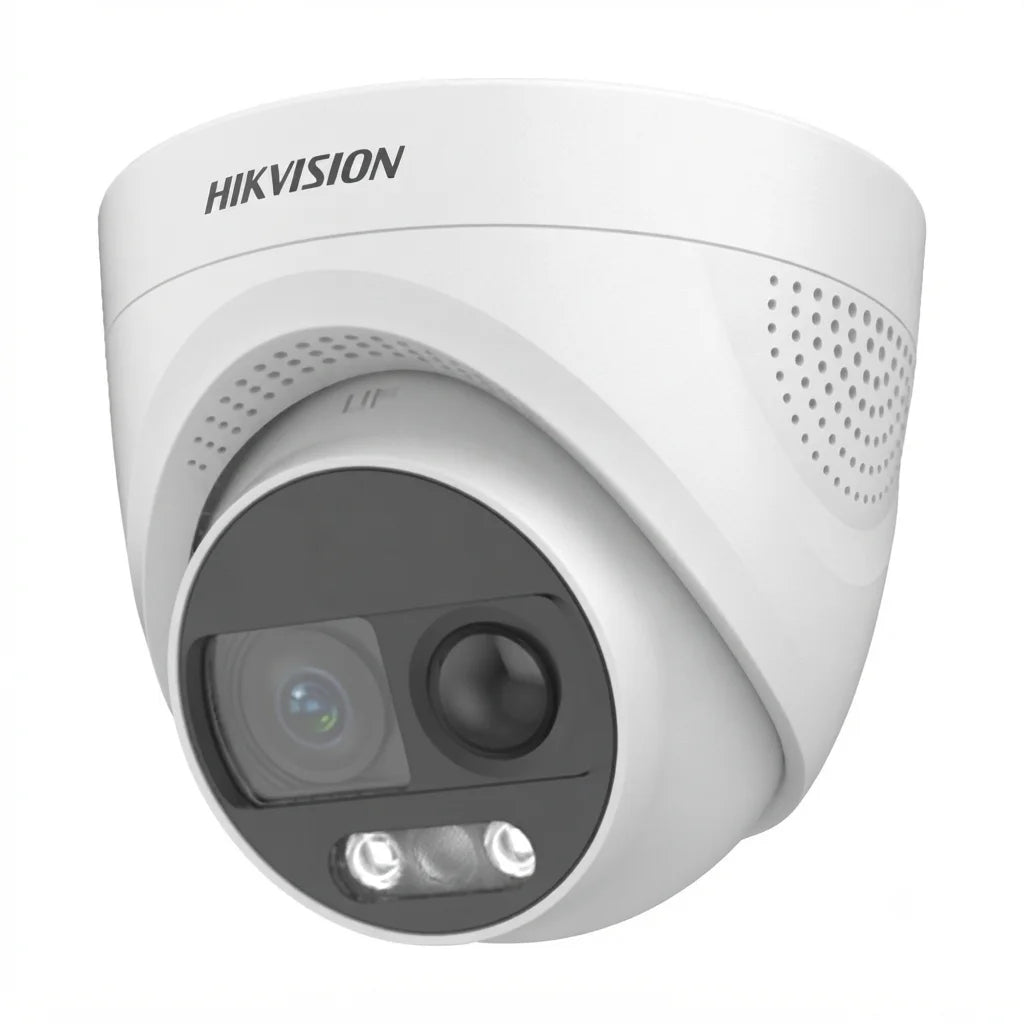

Hikvision DS-2CE72KF3T-PIRXO 3K ColorVu PIR Active Deterrence Turret Camera (2.8mm)

The Hikvision DS-2CE72KF3T-PIRXO(2.8mm) is a professional-grade 3K (5 Megapixel) ColorVu fixed turret analog camera featuring built-in Passive Infrared (PIR) motion detection and active warning deterrence. Designed for round-the-clock color security, it utilizes a super-aperture F1.0 lens to capture bright, full-colour video under low-light conditions down to 0.0003 Lux. Housed in a rugged weatherproof IP67 turret casing, the DS-2CE72KF3T-PIRXO features an integrated strobe light warning and a built-in siren speaker to actively deter intruders upon heat detection. With 130 dB true WDR, 40 meters white light range, and coaxial telemetry controls, it represents a complete proactive surveillance solution for residential facades, retail perimeters, and commercial warehouses.

Hikvision DS-2CE72KF3T-PIRXO 3K ColorVu PIR Active Deterrence Turret Camera (2.8mm)

The Hikvision DS-2CE72KF3T-PIRXO(2.8mm) is a professional-grade 3K (5 Megapixel) ColorVu fixed turret analog camera featuring built-in Passive Infrared (PIR) motion detection and active warning deterrence. Designed for round-the-clock color security, it utilizes a super-aperture F1.0 lens to capture bright, full-colour video under low-light conditions down to 0.0003 Lux. This makes it an essential tool for professional security networks.

Housed in a rugged weatherproof IP67 turret casing, the DS-2CE72KF3T-PIRXO features an integrated strobe light warning and a built-in siren speaker to actively deter intruders upon heat detection. With 130 dB true WDR, 40 meters white light range, and coaxial telemetry controls, it represents a complete proactive surveillance solution for residential facades, retail perimeters, and commercial warehouses. Installing this device ensures continuous stability and reliability in any access control or surveillance system.

ColorVu 24/7 Full-Colour Imaging

ColorVu technology uses an F1.0 super-aperture and high-performance sensor to maintain bright, full-colour video day and night, even in complete darkness.

PIR Heat-Sensitive Motion Sensor

Features a built-in Passive Infrared (PIR) detector with a 110° coverage angle and 11-meter range, triggering alerts based on human body thermal patterns.

Active Strobe & Siren Deterrence

Includes an integrated flashing red/blue strobe light warning and a high-decibel audio siren to warn off intruders automatically before crimes occur.

3K High-Definition Resolution CMOS

The high-end 3K sensor records at 2960 × 1665 resolution, providing outstanding pixel density for digital zoom verification of faces and plates.

130 dB True Wide Dynamic Range

Incorporates 130 dB true WDR technology to balance high-contrast lighting, rendering clear video detail in both bright and shadowed areas.

IP67 Weatherproof Construction

Features a robust physical enclosure rated IP67 for complete protection against dust and water ingress, suitable for installation in exposed outdoor zones.

Note: Ensure your DVR is configured to support Hikvision coaxial telemetry controls to adjust warning siren settings and alarm outputs.

KEY BENEFITS

• Vivid 3K full-colour video Day and Night ensures high-quality video logs.
• Built-in PIR sensor filters out nuisance alarms from rain, tree movements, and dust.
• Integrated siren and strobe light provide immediate active deterrence against intruders.
• Built-in speaker supports clear pre-recorded warnings and alert sound output.
• PoC support simplifies installation by delivering power and video over one coaxial cable.
• IP67 weatherproofing ensures stable operation in heavy rain, snow, and dust.
• EXIR technology provides uniform 40m white light coverage without dark corners.
• True 130 dB WDR prevents silhouetting in brightly lit entrances or glass doors.
• Compact turret casing design is easy to mount on ceilings and walls.
• Wide operating temperature range ensures performance in freezing winter conditions.

KEY FEATURES

• Model Code: DS-2CE72KF3T-PIRXO
• Image Sensor: 3K Progressive Scan CMOS
• Resolution: 3K (2960 × 1665) 5MP Quality
• Minimum Illumination: 0.0003 Lux @ (F1.0, AGC ON)
• Focal Length: 2.8 mm Fixed Focal Lens
• PIR Sensor Angle: 110° detection field
• PIR Sensor Range: Up to 11 meters detection
• Active Deterrence: Integrated strobe light & siren sounder
• Built-in Audio: High-performance built-in speaker
• Supplement Light Range: Up to 40 m white light
• Wide Dynamic Range: 130 dB True WDR
• Signal Output: Coaxial TVI/AHD/CVI/CVBS switchable
• Ingress Protection: IP67 dust and water resistant
• Dimensions: Ø 109.8 mm × 91.6 mm
• Camera Net Weight: Heavy-duty build at approx. 416g

IDEAL FOR

• Residential driveway and front door perimeter surveillance.
• Commercial building exterior walls and parking lot zones.
• Retail storefront doors and loading bay areas.
• School campus perimeters and outdoor corridors.
• Industrial yard boundaries requiring active deterrence.
• Gated entrance and driveway access monitoring.
• Unattended warehouses needing proactive warning systems.
• Construction sites requiring standalone edge recording.
• Car parks and vehicle entrance lanes requiring color capture.
• Offices and commercial receptions requiring audio interaction.
• Extreme weather outdoor security camera installations.
• High-contrast entrances with strong backlighting.

SYSTEM COMPATIBILITY

• Compatible with Hikvision Turbo HD PoC DVR series.
• Supports TVI, CVI, AHD, and CVBS signals.
• Works with standard 12V DC power distribution units.
• Compatible with standard BNC coaxial video cables (RG59/RG6).
• Configurable via Hikvision DVR OSD coaxial menu system.
• Supports Hikvision DS-1272ZJ-110 wall mount brackets.
• Integrates with Hikvision DS-1280ZJ-TR13 junction mounting boxes.
• Works with alarm system panels via DVR audio/alarm links.
• Supports standard video baluns over UTP grids.
• Compatible with standard VMS platforms via DVR integration.
• Works alongside Hikvision access control and intercom networks.
• Supports PoC power injection over standard coaxial wiring.
• Integrates with Hikvision smart event notification cloud system.

TECHNICAL SPECIFICATIONS

FREQUENTLY ASKED QUESTIONS (FAQs)

What is the main function of the DS-2CE72KF3T-PIRXO?

It is a 3K ColorVu turret camera that combines Passive Infrared (PIR) heat detection with a built-in flashing strobe light and siren to actively scare off intruders.

How does ColorVu technology work?

ColorVu utilizes an F1.0 super-aperture and high-performance sensor to maintain bright, full-colour video day and night, even in complete darkness.

What is the PIR sensor range?

The built-in PIR sensor detects human body heat patterns at an angle of 110° up to a distance of 11 meters.

Can I turn off the siren sound or strobe light?

Yes, you can configure the alarm linkage behavior (enable/disable the siren sound or flashing strobe) through the camera's OSD menu via your DVR.

Is the camera weatherproof?

Yes, the camera carries an IP67 rating, indicating it is completely protected against dust and heavy rain, suitable for outdoor installation.

What resolution does it support?

It records at 3K resolution (2960 × 1665 pixels) for maximum video detail.

Does it support two-way audio?

It features a built-in speaker for siren and pre-recorded alert playback. Direct two-way intercom depends on your DVR audio capabilities.

Does this model support Power over Coaxial (PoC)?

No, this model requires standard 12V DC power wiring. Ensure you have a local 12V power adapter or distribution box channel.

What bracket is compatible?

It is compatible with standard Hikvision DS-1272ZJ-110 wall mounts and DS-1280ZJ-TR13 junction boxes.

What is the lens focal length?

This specific variant uses a 2.8 mm fixed lens, providing a horizontal field of view of 112°.
