The Hikvision iDS-7204HTHI-M1/XT is a professional 4-channel AcuSense Turbo HD DVR designed for intelligent CCTV recording with advanced AI analytics and hybrid camera compatibility. Supporting analogue and IP cameras, Motion Detection 2.0, AcuSearch, 4K HDMI output and H.265 Pro+ compression, it is ideal for homes, retail premises and small commercial surveillance systems.

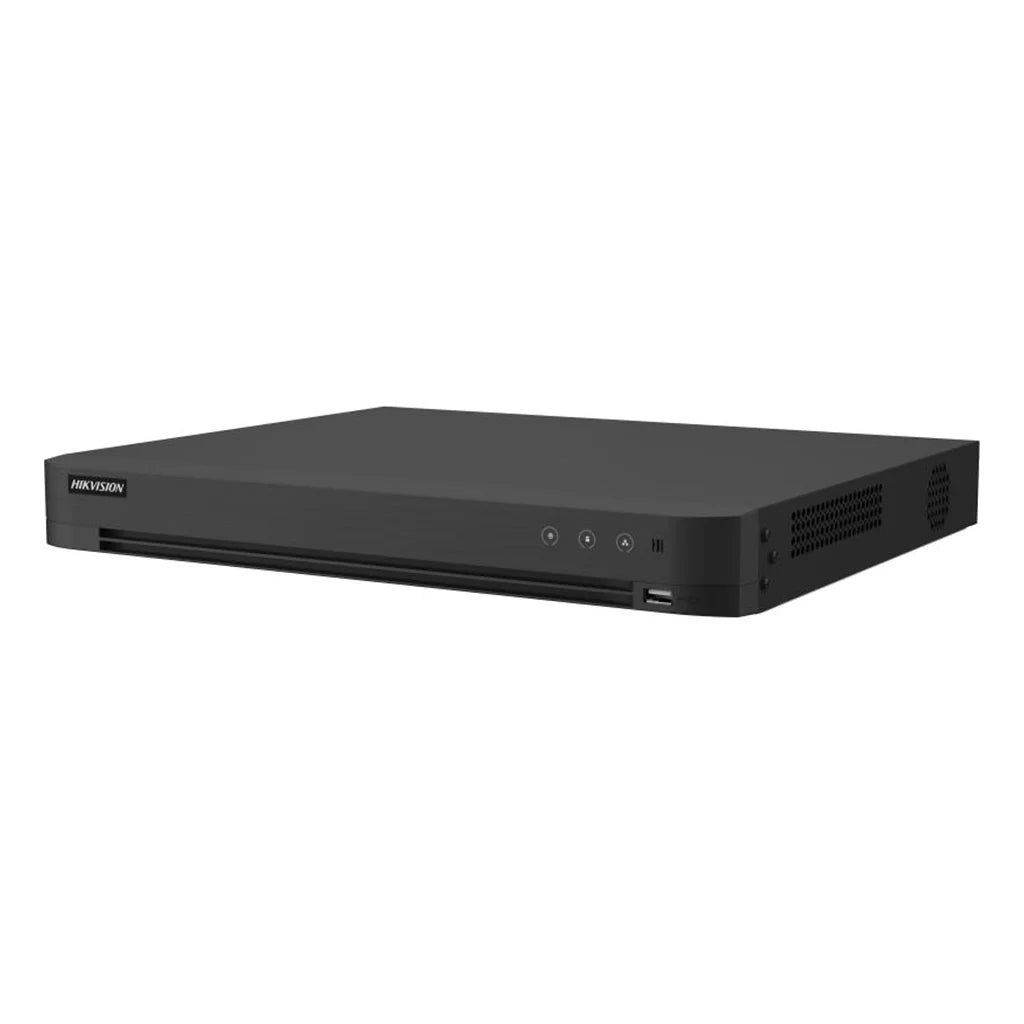

Hikvision iDS-7204HTHI-M1/XT 4-Channel AcuSense Turbo HD DVR
The Hikvision iDS-7204HTHI-M1/XT is a compact, professional Turbo HD Digital Video Recorder that combines reliable CCTV recording with AcuSense deep learning technology. Designed for hybrid surveillance systems, it supports HDTVI, AHD, HDCVI, CVBS and IP cameras, allowing users to upgrade existing analogue installations while integrating modern IP cameras.
Suitable for residential properties, retail shops, offices and small commercial premises, this DVR provides intelligent event detection, efficient video compression and flexible camera compatibility for everyday security applications.
Hybrid Recording for Analogue and IP CCTV Systems
The recorder supports both analogue and IP cameras, providing flexibility for installers and system upgrades.
Recording capabilities include:
- 4 analogue video channels
- Support for up to 8 IP camera channels (Enhanced IP Mode)
- Support for IP cameras up to 8MP
- Compatible with HDTVI, AHD, HDCVI, CVBS and IP cameras
This hybrid capability allows existing analogue CCTV systems to be expanded without replacing all installed cameras.
AI-Powered AcuSense Technology
The DVR incorporates Hikvision AcuSense deep learning technology to improve event accuracy by distinguishing people and vehicles from other moving objects.
Supported AI functions include:
- Motion Detection 2.0
- Human and vehicle classification
- Perimeter protection
- Facial picture comparison
-
AcuSearch for faster event retrieval
These intelligent features help reduce false alarms caused by environmental movement while making important recordings easier to locate.
Efficient H.265 Pro+ Video Compression
The recorder supports:
- H.265 Pro+
- H.265 Pro
- H.265
- H.264+
- H.264
These compression formats reduce bandwidth usage and storage requirements while maintaining high-quality video recording.
4K HDMI Video Output
The DVR features HDMI output up to 3840 × 2160 (4K) together with VGA output, providing clear live viewing and playback on compatible monitors.
Supported display resolutions include:
- 3840 × 2160
- 2560 × 1440
- 1920 × 1080
- Additional lower resolutions
Reliable Storage and Remote Access
The recorder includes a single SATA interface supporting hard drives up to 10TB, providing substantial recording capacity for continuous surveillance.
Additional professional features include:
- HDTVI Two-Way Audio
- Smart Playback
- Hik-Connect remote monitoring
- Hik-Central compatibility
- USB backup
- Gigabit Ethernet connectivity
These features make the recorder suitable for professional CCTV installations requiring secure remote management and efficient playback.
KEY BENEFITS
- 4-channel professional AcuSense DVR
- Supports HDTVI, AHD, HDCVI, CVBS and IP cameras
- Supports up to 8 IP camera channels
- AI human and vehicle classification
- Motion Detection 2.0 improves event accuracy
- Facial picture comparison support
- AcuSearch speeds up footage retrieval
- H.265 Pro+ compression reduces storage requirements
- HDMI output up to 4K
- Supports Hik-Connect remote monitoring
- HDTVI Two-Way Audio support
- Ideal for home and small business CCTV systems
KEY FEATURES
- 4-channel Turbo HD DVR
- Hybrid analogue and IP recording
- Up to 8MP IP camera support
- Up to 8 IP channels
- AcuSense deep learning
- Motion Detection 2.0
- Human & vehicle classification
- Facial picture comparison
- AcuSearch
- H.265 Pro+ compression
- HDMI output up to 4K
- One SATA HDD bay
- HDTVI Two-Way Audio
- Hik-Connect support
IDEAL FOR
- Homes
- Apartments
- Retail shops
- Small offices
- Restaurants
- Cafés
- Small warehouses
- Reception areas
- Residential CCTV systems
- Hybrid analogue and IP CCTV upgrades
- Small commercial surveillance systems
| Specification |
Details |
| Brand |
Hikvision |
| Model |
iDS-7204HTHI-M1/XT |
| Product Type |
4-Channel Turbo HD Digital Video Recorder (DVR) |
| Video Input |
4 BNC Analogue Channels (HDTVI/AHD/HDCVI/CVBS) |
| IP Camera Support |
Up to 8 IP Channels (Enhanced Mode) |
| Maximum IP Camera Resolution |
Up to 8MP |
| Video Compression |
H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| HDMI Output |
1 × HDMI (Up to 3840 × 2160) |
| VGA Output |
1 × VGA |
| Video Resolution Support |
Up to 3840 × 2160 |
| AI Features |
AcuSense, Motion Detection 2.0, Human & Vehicle Classification, Facial Picture Comparison, AcuSearch |
| Motion Detection 2.0 |
Supported on All Analogue Channels |
| Facial Picture Comparison |
Up to 4 Channels |
| Perimeter Protection |
Line Crossing & Intrusion Detection with Human & Vehicle Filtering |
| Audio Compression |
G.711u |
| Audio Input |
1 RCA |
| Audio Output |
1 RCA |
| HDTVI Audio |
Supported |
| Two-Way Audio |
Supported |
| SATA Interfaces |
1 |
| Maximum HDD Capacity |
Up to 10TB |
| Network Interface |
1 × RJ45 10/100/1000 Mbps Ethernet |
| USB Ports |
Front: 1 × USB 2.0, Rear: 1 × USB 3.0 |
| Serial Interface |
RS-485 |
| Remote Access |
Hik-Connect, Hik-Central Compatible |
| Network Protocols |
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP, HTTPS and others |
| Power Supply |
12V DC |
| Power Consumption |
≤18W (Without HDD) |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
10%–90% Non-condensing |
| Chassis Colour |
Black |
| Dimensions |
315 × 242 × 45 mm |
| Weight |
Approx. 1.78 kg (Without HDD) |
| Warranty |
Not specified |
Frequently Asked Questions
What is the Hikvision iDS-7204HTHI-M1/XT used for?
The Hikvision iDS-7204HTHI-M1/XT is a professional 4-channel AcuSense Turbo HD DVR designed for recording and managing CCTV systems in homes, retail shops, offices and small commercial premises. It combines hybrid camera compatibility with AI-powered event filtering for more efficient surveillance.
What camera types are supported?
The recorder supports:
- HDTVI cameras
- AHD cameras
- HDCVI cameras
- CVBS analogue cameras
- Hikvision and compatible ONVIF IP cameras
This allows both new installations and upgrades to existing analogue CCTV systems.
Does it support AI features?
Yes. The DVR features AcuSense deep learning technology with Motion Detection 2.0, human and vehicle classification, facial picture comparison and AcuSearch, helping reduce false alarms and making event searches faster.
Does it support facial recognition?
The iDS-7204HTHI-M1/XT supports facial picture comparison on supported channels. It should not be marketed as a dedicated facial recognition recorder with advanced face database functionality.
Does it support 4K output?
Yes. The HDMI interface supports video output up to 3840 × 2160 (4K), providing clear live viewing and playback on compatible displays.
How much storage does it support?
The recorder includes one SATA interface supporting a hard drive of up to 10TB, providing substantial recording capacity for continuous CCTV recording.
Does it support remote viewing?
Yes. The recorder supports Hik-Connect and Hik-Central, allowing authorised users to view live cameras, playback recordings and manage the system remotely.
Is a hard drive included?
No. Hikvision does not specify that a hard drive is supplied. Storage drives should be purchased separately unless stated otherwise by the retailer.
Does it support audio?
Yes. The DVR supports HDTVI audio, one RCA audio input, one RCA audio output, and two-way audio with compatible equipment.
Is it suitable for home and business CCTV?
Yes. Its combination of AI-powered analytics, hybrid camera support and compact design makes it suitable for residential properties, retail stores, offices and other small commercial CCTV installations.
