The Hikvision iDS-7204HQHI-M1/XT is a 4-channel hybrid digital video recorder (DVR) that brings advanced deep-learning analytics to small CCTV installations. Utilizing Hikvision's AcuSense technology, the unit filters out false alerts by classifying human and vehicle targets. It supports 3K and 5MP Lite recording, offering high-definition video surveillance with optimized storage and bandwidth efficiency.

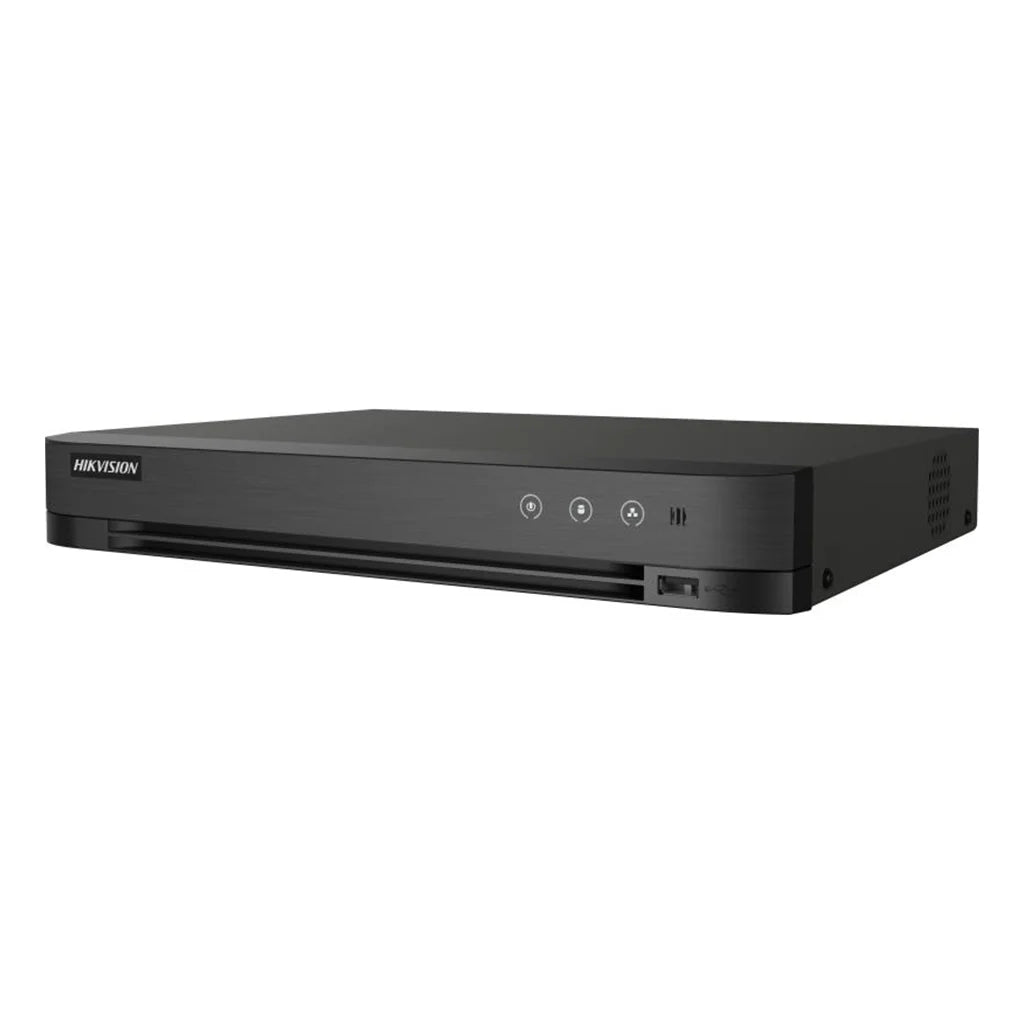

Hikvision iDS-7204HQHI-M1/XT 4-Channel 3K/5MP Lite AcuSense Turbo HD DVR
This 4-channel Pro Series recorder is built for homes and small businesses needing smart event detection and reliable storage. As a 5-in-1 hybrid DVR, it adaptively accepts HDTVI, AHD, CVI, CVBS, and IP inputs, allowing you to easily integrate existing analog BNC cameras and new network cameras on a single recorder. It supports up to 6 IP cameras total, offering room for future expansion.
The built-in AcuSense engine provides deep-learning Motion Detection 2.0 on all analog channels by default, identifying human and vehicle targets and reducing false alarms caused by moving leaves, animals, rain, or shadows. By encoding footage with highly efficient H.265 Pro+ compression, the DVR-204Q-M1/XT series saves up to 75% on bandwidth and storage space, allowing you to maximize the capacity of a single SATA hard drive.
AcuSense Motion Detection 2.0 AI Analytics
Deep-learning algorithms analyze live video feeds to classify targets into human, vehicle, and non-target categories. Virtual line crossing and intrusion lines trigger notifications only when a human or vehicle is detected, saving time during incident investigation.
High-Definition 3K/5MP Lite Encoding
The DVR records analog cameras at up to 3K resolution or 5MP Lite at 12 fps, capturing high-resolution evidence with excellent clarity. It also supports standard 1080p recording at 15 fps and CVBS formats, ensuring backward compatibility with legacy cameras.
H.265 Pro+ Video Compression Efficiency
Hikvision's H.265 Pro+ compression significantly reduces the data size of high-resolution video streams. This helps keep hard drive requirements and costs to a minimum, enabling extended video retention on a single SATA HDD.
KEY BENEFITS
- Dramatically cuts false alarms using deep-learning human and vehicle target classification.
- Protects existing coaxial cabling investments by supporting up to 3K/5MP Lite analog cameras.
- Minimizes storage and bandwidth overhead by up to 75% with H.265 Pro+ compression.
- Supports hybrid flexibility by combining HDTVI, AHD, CVI, CVBS, and IP cameras in one system.
- Provides quick post-event forensic search using AcuSearch and metadata tags.
KEY FEATURES
- 4 BNC analog video inputs supporting adaptive HDTVI, AHD, CVI, and CVBS signals.
- Up to 6-channel IP video input with network camera support up to 6MP.
- Recording resolution up to 3K @ 12 fps, 5MP Lite @ 12 fps, and 1080p @ 15 fps.
- Deep learning AcuSense false alarm filtering (human/vehicle classification) on all analog channels.
- Facial recognition and picture comparison on up to 1 BNC channel.
- Efficient H.265 Pro+ video compression.
- 1 SATA storage interface supporting hard drives up to 10 TB capacity.
- HDMI output up to 1080p and VGA output up to 1080p.
- Audio-over-Coax support for direct audio recording on all TVI channels.
IDEAL FOR
- Upgrading residential and small commercial analog CCTV systems to smart AI-powered high-definition surveillance.
- Properties requiring highly accurate motion alerts without constant false alarm clutter.
- Small retail shops and offices needing hybrid BNC/IP camera setups.
| Specification |
Details |
| Brand |
Hikvision |
| Model |
iDS-7204HQHI-M1/XT |
| Product Type |
Digital Video Recorder |
| Analog Video Input |
4-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| Supported Analog Formats |
HDTVI (3K@20fps, 5 MP@20fps, 4 MP@30fps, 3 MP@15fps, 1080p@30fps, 720p@30fps), AHD (5 MP@20fps, 4 MP@30fps, 1080p@30fps), CVI (4 MP@30fps, 1080p@30fps), CVBS (PAL/NTSC) |
| IP Video Input |
Up to 6-ch (when analog channels are disabled or added as extra), up to 6 MP resolution |
| Encoding Resolution |
3K / 5 MP Lite / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF |
| Frame Rate |
Main stream: 3K@12fps / 5MP Lite@12fps / 4MP@15fps / 3MP@15fps / 1080p@15fps; Sub-stream: WD1/4CIF/CIF@25 fps (PAL) / 30 fps (NTSC) |
| Video Compression |
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Perimeter Protection (AI) |
2-ch human and vehicle classification filtering false alarms (Line crossing, intrusion) |
| Facial Recognition |
1-ch face picture comparison or face detection |
| Storage Interface |
1 SATA interface, supporting up to 10 TB capacity |
| Audio Input/Output |
1-ch input / 1-ch output RCA, and 4-ch coaxial audio input via BNC |
| HDMI Output |
1-ch, 1920 x 1080/60Hz, 1280x1024, 1024x768 |
| VGA Output |
1-ch, 1080p (1920 x 1080)/60Hz, 1280x1024, 1024x768 |
| Network Interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
| USB Interface |
2 x USB 2.0 (rear panel) |
| Power Supply |
12 VDC, 1.5 A |
| Power Consumption |
≤ 8 W (without HDD) |
| Dimensions (W x D x H) |
315 mm x 242 mm x 45 mm |
| Weight |
≤ 1.16 kg (without HDD) |
Frequently Asked Questions
Can I connect older analog BNC cameras to this DVR?
Yes, the hybrid DVR supports traditional CVBS (analog) cameras as well as HDTVI, AHD, and CVI formats, making it easy to upgrade your system in stages.
How many IP cameras can I add?
You can connect up to 6 IP cameras (up to 6MP resolution each) by disabling analog channels or utilizing the Enhanced IP mode.
Does it support Audio-over-Coax (AoC)?
Yes, all BNC ports support coaxial audio transmission. With compatible Hikvision coaxial cameras, the audio is transmitted via the video cable without separate wiring.
Does this DVR come with a hard drive installed?
No, the DVR does not include a hard drive. It has one SATA slot that supports a surveillance-grade 3.5" HDD up to 10 TB capacity.
Can I monitor my system remotely?
Yes, by connecting the DVR to your internet router, you can monitor the live feeds and review recordings on your smartphone using the Hik-Connect app.
