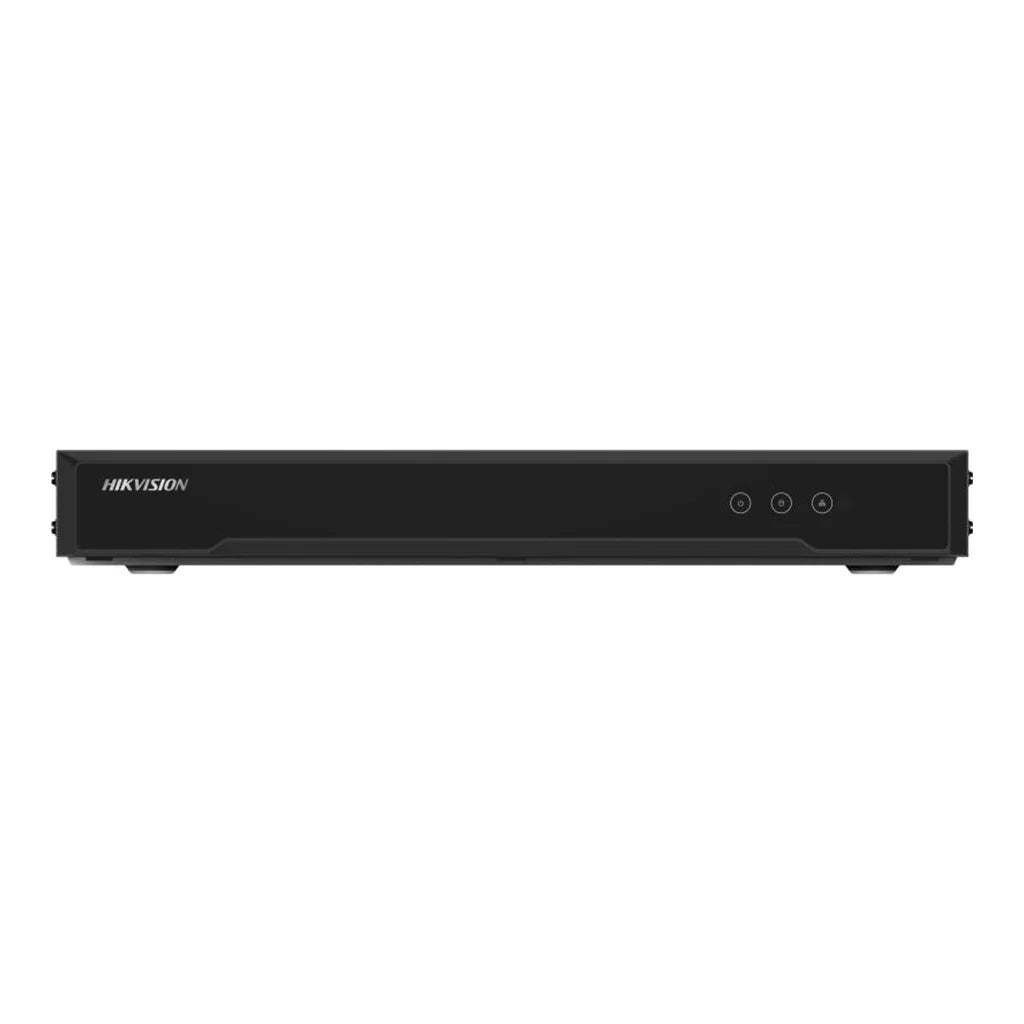

Hikvision iDS-6716HUHI-M 16-Channel 5MP 1U H.265 AcuSense DVR

The Hikvision iDS-6716HUHI-M is a 16-channel 5MP 1U digital video recorder built around Hikvision's Motion Detection 2.0 deep-learning analytics, giving it human and vehicle classification enabled by default on every analogue channel. It sits in Hikvision's Turbo HD Special Series, combining wide analogue channel count with the intelligent filtering usually reserved for higher-tier AcuSense recorders.

Hikvision iDS-6716HUHI-M 16-Channel AcuSense DVR

The iDS-6716HUHI-M supports 16 analogue channels over standard BNC connections, with coaxitron support for PTZ control down the same cable, and can be expanded with up to 8 additional IP camera channels (up to 24 total) at resolutions up to 8MP. On the analogue side it accepts a wide mix of signal types — HDTVI up to 8MP, AHD up to 5MP, and HDCVI up to 4MP — which makes it a practical upgrade path for sites with mixed or legacy analogue camera installations rather than requiring every camera to be replaced.

What distinguishes this model from a standard HUHI-series DVR is that Motion Detection 2.0 with human and vehicle classification is deep-learning based and switched on by default across all analogue channels, not limited to IP channels or requiring a separate licence. This means the recorder itself filters out irrelevant motion — leaves, shadows, small animals — and only flags genuine human or vehicle activity, which meaningfully cuts down on false alerts compared with older motion-detection-only DVRs. Quick search by object type or event is supported directly through the recorder's own interface, so reviewing footage after an incident doesn't require scrubbing through hours of recording manually.

Perimeter Protection

Up to 4 channels support line-crossing detection and intrusion detection, allowing the recorder to flag when a person or vehicle crosses a defined virtual line or enters a restricted zone — useful for perimeter fencing, restricted storage areas or after-hours monitoring where any presence should trigger an alert regardless of general motion.

Network and Storage

The unit uses H.265+/H.265/H.264+/H.264 encoding, with main stream encoding up to 8MP@8fps, 5MP@12fps, 4MP@15fps or 3MP@18fps depending on the connected camera resolution, and a single self-adaptive 10M/100M/1000M RJ45 Ethernet port. Supported network protocols include Hik-Connect for remote mobile viewing, ONVIF for third-party integration, NFS and iSCSI for network storage, and standard DDNS/NTP/UPnP/HTTPS services.

KEY BENEFITS

• Deep-learning human/vehicle filtering enabled by default on all analogue channels
• 16 analogue channels, expandable with up to 8 additional IP channels
• Accepts mixed HDTVI/AHD/HDCVI signals for legacy camera compatibility
• Quick object/event search cuts down manual footage review time
• Perimeter protection (line crossing, intrusion) on up to 4 channels
• 1U form factor suits space-constrained comms cabinets

KEY FEATURES

• 16-ch analogue BNC input with coaxitron PTZ control
• Up to 8 additional IP channels (24 total), up to 8MP
• HDTVI up to 8MP, AHD up to 5MP, HDCVI up to 4MP support
• Motion Detection 2.0 with default human/vehicle classification
• Line crossing and intrusion detection on up to 4 channels
• H.265+/H.265/H.264+/H.264 encoding
• Hik-Connect, ONVIF, NFS, iSCSI, DDNS, NTP, UPnP, HTTPS
• 1x self-adaptive 10M/100M/1000M RJ45 Ethernet port

IDEAL FOR

• Sites with mixed HDTVI/AHD/HDCVI analogue cameras needing one recorder
• Retail, warehouse and commercial sites wanting AI filtering without IP cameras
• Perimeter-monitored sites needing line crossing/intrusion alerts
• Installations needing IP camera expansion alongside existing analogue runs
• Facilities wanting reduced false alerts from irrelevant motion events
• Medium-to-large sites needing 16+ channels in a compact 1U chassis
• Operators needing fast post-incident footage search by object type

Frequently Asked Questions

Does the human/vehicle detection need to be enabled manually?

No. Motion Detection 2.0 with human and vehicle classification is deep-learning based and enabled by default across all 16 analogue channels on this model, so it's already filtering out irrelevant motion like leaves or small animals as soon as the recorder is set up, without needing an extra licence or manual activation.

Can I mix different types of analogue cameras on this recorder?

Yes. It accepts HDTVI up to 8MP, AHD up to 5MP and HDCVI up to 4MP, which means cameras from different analogue standards or resolution tiers can be connected to the same recorder, making it a practical option for sites with cameras installed at different times.

Can I add IP cameras alongside my analogue cameras?

Yes. Beyond its 16 analogue channels, it supports up to 8 additional IP camera channels for a total of 24, with IP channels supporting resolutions up to 8MP, so a site can extend coverage with newer IP cameras without replacing the existing analogue installation.

What does line crossing and intrusion detection actually do?

Line crossing detection triggers an alert when a person or vehicle crosses a virtual line you define on the video, while intrusion detection triggers when something enters a defined zone — both are available on up to 4 channels and are useful for perimeter fencing or restricted areas where any presence outside business hours should raise an alarm.

How does the quick search feature help when reviewing footage?

Because the recorder classifies detected motion as human or vehicle at the point of recording, you can search recorded footage specifically for "person" or "vehicle" events rather than scrubbing through continuous recording manually, which significantly speeds up investigating a specific incident.

Is this recorder suitable for remote viewing on a phone?

Yes. It supports Hik-Connect, Hikvision's mobile and cloud viewing platform, alongside standard DDNS and network protocols, so footage and live views can be accessed remotely once the recorder is registered to an account.

What's the difference between this and a standard non-"iDS" HUHI DVR?

The "iDS" prefix and AcuSense-style Motion Detection 2.0 being enabled by default is the key distinction — standard HUHI-series DVRs typically only offer basic motion detection without deep-learning human/vehicle classification, whereas this model brings that intelligence to a fully analogue-first recorder.

Does adding IP channels reduce how many analogue channels I can use?

No, the 16 analogue channels remain fixed; the additional IP channels are supplementary capacity on top, up to a combined maximum of 24 channels, so you don't lose analogue capacity by adding IP cameras.
