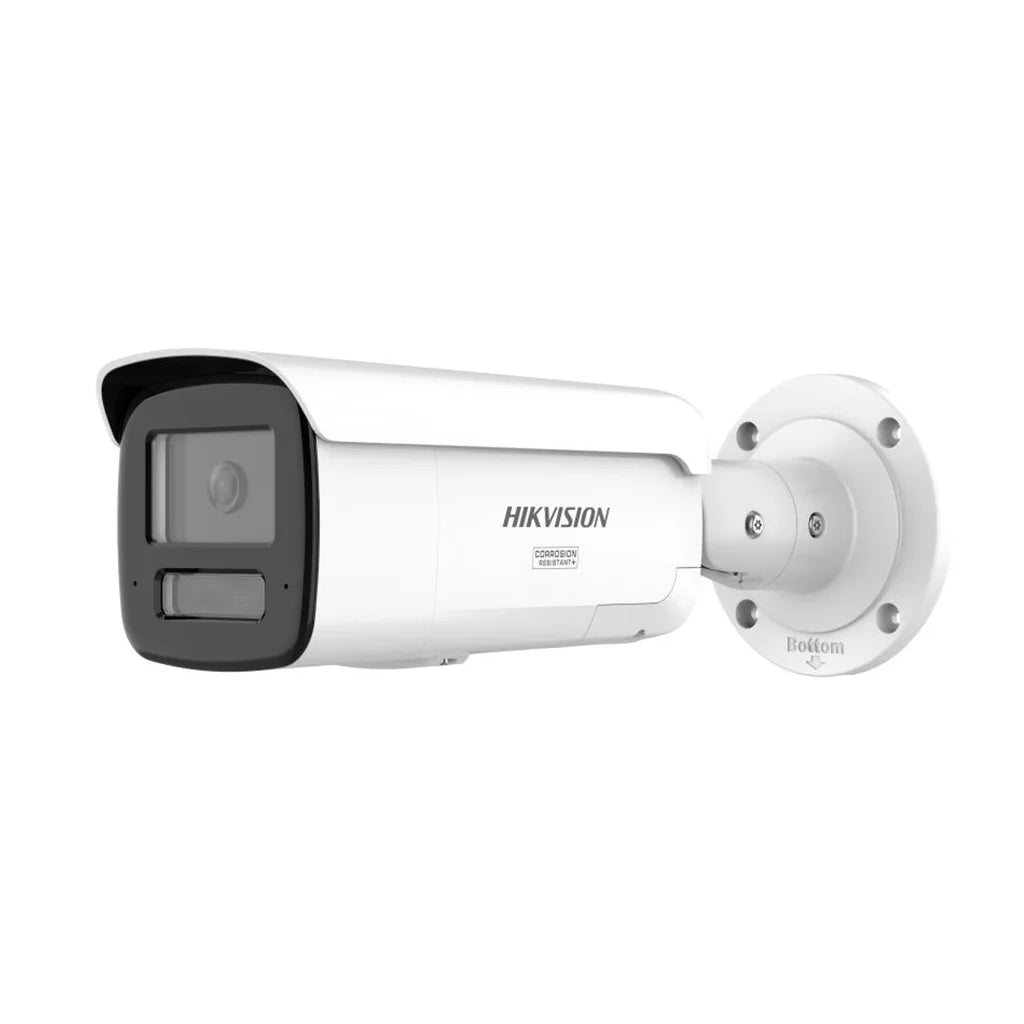

Hikvision DS-2CD2T87G3-LIS2UY/SL 8MP (3840 × 2160) Smart Hybrid Light Bullet Camera (4mm)

The Hikvision DS-2CD2T87G3-LIS2UY/SL(4mm) 8MP (3840 × 2160) Camera is a professional-grade intelligent monitoring solution engineered for high-security environments. Featuring deep learning AI analytics, advanced night light supplements, and anti-corrosion NEMA 4X options (on select models), it guarantees sustained video reliability.

Hikvision DS-2CD2T87G3-LIS2UY/SL(4mm) 8MP (3840 × 2160) Camera

This high-performance IP camera features a progressive scan CMOS image sensor and a specialized 4mm fixed focal lens. Capable of capturing clear video under extreme low-light conditions, it integrates robust Wide Dynamic Range (WDR) of up to 130 dB WDR to resolve details in high-contrast settings. Combined with advanced video compression, it minimizes bandwidth and storage requirements while maximizing plate recognition accuracy.

Built with a weather-resistant IP67 Weatherproof (White anti-corrosion) enclosure, this camera operates reliably in extreme temperatures ranging from -30 °C to 60 °C (-22 °F to 140 °F). It features built-in Live Guard active deterrence (strobe & audio alarm), human/vehicle classification, NEMA 4X algorithms for intelligent threat detection, identification, or active deterrent strobe triggers. Pre-tested for seamless integration, it supports local storage up to Up to 512GB local storage slot and is compatible with standard PoE/PoE+ or local power networks.

High-Definition Video Resolution & Capturing

Captures crystal-clear surveillance feeds at a maximum resolution of 8MP (3840 × 2160), ensuring fine details (such as vehicle license plates or colors) are easily readable during investigations.

Advanced Low-Light Sensor and Specialized Optics

Utilizes a progressive scan CMOS sensor paired with a high-speed 4mm fixed focal lens. Together, they achieve exceptional light sensitivity, minimizing noise and motion blur in dark settings.

Sustained Wide Dynamic Range (WDR)

Incorporates true 130 dB WDR hardware WDR to balance dark shadowed areas and highlights, ensuring clear visibility in high-contrast glare or night headlights.

Smart Deep Learning AI Analytics

Equipped with Live Guard active deterrence (strobe & audio alarm), human/vehicle classification, NEMA 4X analytics to detect, classify, and track targets. Supports allowlist/blocklist database loading or active deterrent strobe triggers.

Rugged Weatherproof and Vandal Protections

Encased in a robust IP67 Weatherproof (White anti-corrosion) and IK10 Vandal Resistant rated housing, built to survive physical impacts, dust storms, heavy downpours, and freezing temperatures in outdoor installations.

Flexible Power and Access Control Interfaces

Supports power inputs including standard 12 VDC / PoE (max 10.5W) and features a network interface, Wiegand output (on select models), and alarm relays for simple access control gate wiring.

Note: Professional installation is recommended. Verify NVR firmware compatibility before connecting for full smart analytics support.

KEY BENEFITS

• Sharp 8MP (3840 × 2160) resolution provides clear vehicle evidence retrieval.
• High-quality 4mm fixed focal lens allows remote focus and zoom adjustments.
• High light sensitivity of Color: 0.0005 Lux @ F1.0; 0 Lux with Light captures details in low light.
• Wide Dynamic Range of 130 dB WDR balances difficult backlighting or headlight glare.
• Supplement light range of Up to 60 meters illuminates vehicle lanes.
• Efficient H.265 / H.264 compression saves network storage space.
• Built-in Live Guard active deterrence (strobe & audio alarm), human/vehicle classification, NEMA 4X analytics reduce security monitoring workloads.
• Onboard card slot supports local edge backup in case of connection drop.
• Rugged IP67 Weatherproof (White anti-corrosion) weatherproof design stands up to outdoor elements.
• Relay outputs support direct connection to barrier gate operators.

KEY FEATURES

• Product Model: Hikvision DS-2CD2T87G3-LIS2UY/SL(4mm)
• Product Type: IP Smart Camera
• Video Resolution: 8MP (3840 × 2160)
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Lens Focal Length: 4mm fixed focal
• Field of View: 89° (Horizontal) / 46° (Vertical)
• Aperture Ratio: F1.0
• Min. Illumination: Color: 0.0005 Lux @ F1.0; 0 Lux with Light
• Wide Dynamic Range (WDR): 130 dB WDR
• IR Range: Up to 60 meters
• Supplement Light Type: Smart Hybrid Light (IR + White Light)
• Video Compression: H.265 / H.264
• Smart Analytics AI: Live Guard active deterrence (strobe & audio alarm), human/vehicle classification, NEMA 4X
• Audio Interfaces: Built-in microphone & speaker
• Alarm Interfaces: 1 × alarm input / 1 × alarm output
• Onboard Storage: Up to 512GB local storage slot
• Weatherproof Rating: IP67 Weatherproof (White anti-corrosion)
• Vandal Resistance: IK10 Vandal Resistant
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Power Requirements: 12 VDC / PoE (max 10.5W)
• Physical Dimensions: 105.0 mm × 289.0 mm × 105.0 mm
• Camera Weight: Approx. 1.1 kg (2.4 lb)

IDEAL FOR

• Residential community entrances and exits
• Commercial building underground parking garages
• Shopping mall parking lot access gates
• Hospital parking and emergency vehicle lanes
• Corporate office perimeter parking ramps
• Industrial warehouse vehicle access portals
• Airport parking lot payment gates
• Government building vehicle access gates
• CCTV toll road control booth stations
• Logistics terminal entry check-in gates
• Smart city traffic parking systems
• Hotel parking garage visitor entries

SYSTEM COMPATIBILITY

• Fully compatible with Hikvision DS-7600 and DS-7700 NVR series
• Optimized for Hikvision DS-9600 series enterprise NVRs
• Compatible with HikCentral and iVMS-4200 video management software
• Supports standard ONVIF profiles for third-party systems integration
• Fits standard Hikvision mounting brackets (pole/wall formats)
• Supports standard RJ45 Ethernet network switches
• Plug-and-play installation with Linux and Windows-based NVR OS
• Supports Hikvision Web GUI storage management and camera tests
• Integrates with Hikvision Smart Storage health status monitoring
• Works with Hik-Connect app for remote viewing and push alerts
• Supports standard Wiegand controllers for building access panels
• Compatible with standard RAID controllers and NAS systems
• Meets security standards for video stream encryption

TECHNICAL SPECIFICATIONS

FREQUENTLY ASKED QUESTIONS (FAQs)

Can I use the DS-2CD2T87G3-LIS2UY/SL(4mm) camera outdoors?

Yes. The camera is rated IP67 Weatherproof (White anti-corrosion) weatherproof and can operate in temperatures between -30 °C to 60 °C (-22 °F to 140 °F).

Does it support license plate recognition?

Yes, it features an integrated ANPR engine specifically built to capture, extract, and analyze license plates, vehicle types, and colors, supporting allowlists and blocklists (on select models).

What lens options are available?

It features a varifocal or fixed 4mm fixed focal lens that can be remotely adjusted or provides optimal focal range for entrance monitoring.

How is the camera powered?

It supports dual power options, drawing power from standard 12 VDC / PoE (max 10.5W) or via standard AC supply lines.

What is the supplement light range?

It includes a built-in light module providing up to Up to 60 meters of illumination in complete darkness.

Does it support onboard backup storage?

Yes, it has a built-in slot that supports MicroSD cards up to Up to 512GB local storage slot for local edge caching.

What is the WDR capability?

It features true 130 dB WDR Wide Dynamic Range to balance glare, backlighting, and dark shadows within a single scene.

Is there audio support?

Yes, the camera includes standard Built-in microphone & speaker interfaces to support local audio capture and transmission.

How do I view the video remotely?

You can view live feeds and recordings via the Hik-Connect mobile app or the iVMS-4200 software on PCs.

What is the warranty period?

This professional camera comes with a 3-year limited warranty backed by Hikvision's global hardware support.
