Black Hikvision DS-2CD2387G2H-LISU/SL Product Overview

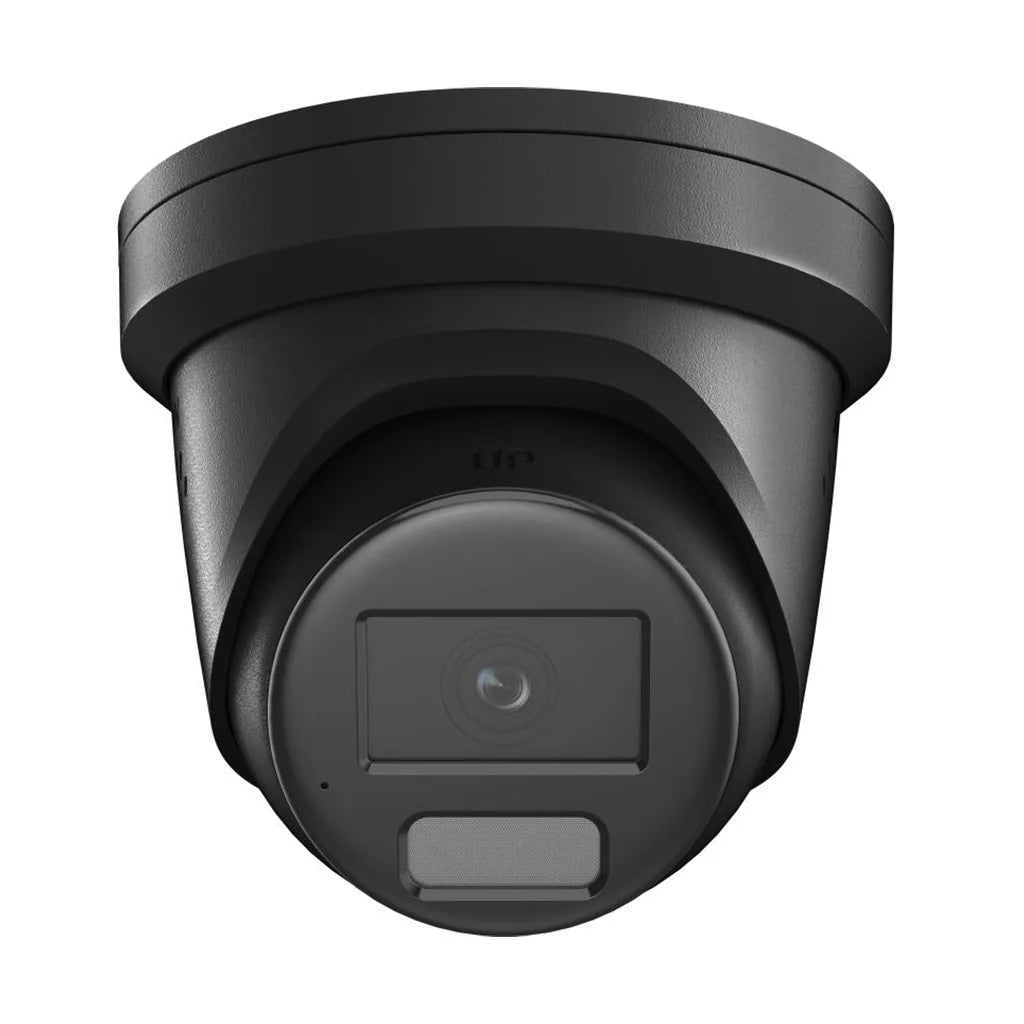

The Hikvision DS-2CD2387G2H-LISU/SL(2.8mm)(eF) in black is an 8MP ColorVu Smart Hybrid Light fixed turret network camera with integrated two-way audio and active deterrence. The exact base model remains DS-2CD2387G2H-LISU/SL(2.8mm)(eF); black describes the supplied housing finish rather than changing the core model code.
Its 1/1.8-inch progressive-scan CMOS sensor records at up to 3840 × 2160. The fixed 2.8mm F1.0 lens provides a 108.8° horizontal field of view. The /SL hardware includes a built-in microphone, a 1.2W speaker, line audio input/output, one alarm input/output, a white warning strobe and audible warning. Infrared and white-light illumination reach up to 30 metres, and compatible memory cards up to 512GB are supported.
Key Benefits
-
Black metal finish: suited to installations where a darker camera housing is required.
-
4K 8MP detail: records at up to 3840 × 2160 for detailed monitoring and playback.
-
Wide 2.8mm view: provides 108.8° horizontal coverage for broad surveillance areas.
-
ColorVu imaging: the 1/1.8-inch sensor and F1.0 aperture support colour-focused low-light detail.
-
Smart Hybrid Light: provides infrared and white-light operation up to 30 metres.
-
Human and vehicle classification: supported events can focus on relevant target types.
-
Two-way audio: a built-in microphone and 1.2W speaker support compatible communication.
-
Active deterrence: a white warning strobe and audible warning can be linked to events.
-
External integration: line audio and alarm input/output are provided.
-
IP67 protection: supports correctly installed indoor or outdoor use.
Key Features
- 8MP maximum resolution of 3840 × 2160
- Black metal turret housing
- 1/1.8-inch progressive-scan CMOS sensor
- 2.8mm fixed F1.0 lens
- 108.8° horizontal, 56.4° vertical and 134.3° diagonal field of view
- Minimum colour illumination of 0.0008 lux
- Infrared and white light up to 30 metres
- Smart Hybrid Light
- 130dB WDR
- Human and vehicle classification
- Built-in microphone and 1.2W speaker
- Audio input/output and alarm input/output
- White warning strobe and audible warning
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3af PoE
- IP67 weather resistance
Technical Specifications
| Base model |
DS-2CD2387G2H-LISU/SL(2.8mm)(eF) |
| Colour |
Black finish |
| Camera type |
Fixed turret network camera with active deterrence |
| Image sensor |
1/1.8-inch progressive-scan CMOS |
| Maximum resolution |
3840 × 2160 |
| Maximum frame rate |
25fps at 4K in 50Hz mode; 24fps at 4K in 60Hz mode, with up to 30fps at supported lower resolutions |
| Minimum illumination |
Colour: 0.0008 lux at F1.0 with AGC on; 0 lux with supplement light |
| Lens |
2.8mm fixed focal lens, F1.0 |
| Field of view |
Horizontal 108.8°; vertical 56.4°; diagonal 134.3° |
| Supplement light |
Infrared and white light up to 30m with Smart Hybrid Light |
| Wide dynamic range |
130dB |
| Analytics |
Human and vehicle classification; face capture and scene-change detection |
| Built-in audio |
Built-in microphone and 1.2W speaker |
| External audio |
One line input and one line output |
| Alarm interface |
One input and one output |
| Active deterrence |
White warning strobe and audible warning |
| Local storage |
Compatible microSD-family cards up to 512GB |
| Network and API |
RJ45 10/100Mbps; ONVIF Profiles S, G and T; ISAPI, SDK and ISUP |
| Power |
12V DC, maximum 9W; IEEE 802.3af PoE Class 3, maximum 10.5W |
| Operating conditions |
-30°C to 60°C; relative humidity 95% or less, non-condensing |
| Protection |
IP67; no specific anti-corrosion protection level stated |
| Dimensions |
Ø138.3 × 115.4mm |
| Weight |
Approximately 820g |
Audio, Deterrence and Compatibility
The built-in microphone and 1.2W speaker support compatible two-way audio. The white strobe and audible warning provide active deterrence. The strobe is a warning signal rather than a general long-range scene illuminator.
Confirm NVR 8MP decoding, human-and-vehicle analytics, two-way audio, audio/alarm interfaces, deterrence control, Smart Hybrid Light, standard PoE capacity, storage-card and mounting compatibility before ordering.
Frequently Asked Questions
Is this the black version?
Yes. Black describes the finish; the base model remains DS-2CD2387G2H-LISU/SL(2.8mm)(eF).
What is the maximum resolution?
3840 × 2160.
What is the field of view?
108.8° horizontal, 56.4° vertical and 134.3° diagonal.
What is the illumination range?
Up to 30 metres.
Does it classify people and vehicles?
Yes, for supported events.
Does it support two-way audio?
Yes.
Does it include active deterrence?
Yes.
Does it have alarm I/O?
Yes, one input and one output.
What storage is supported?
Compatible cards up to 512GB.
What power is required?
12V DC or standard PoE.
