Black Hikvision DS-2CD2347G2H-LISU/SL Product Overview

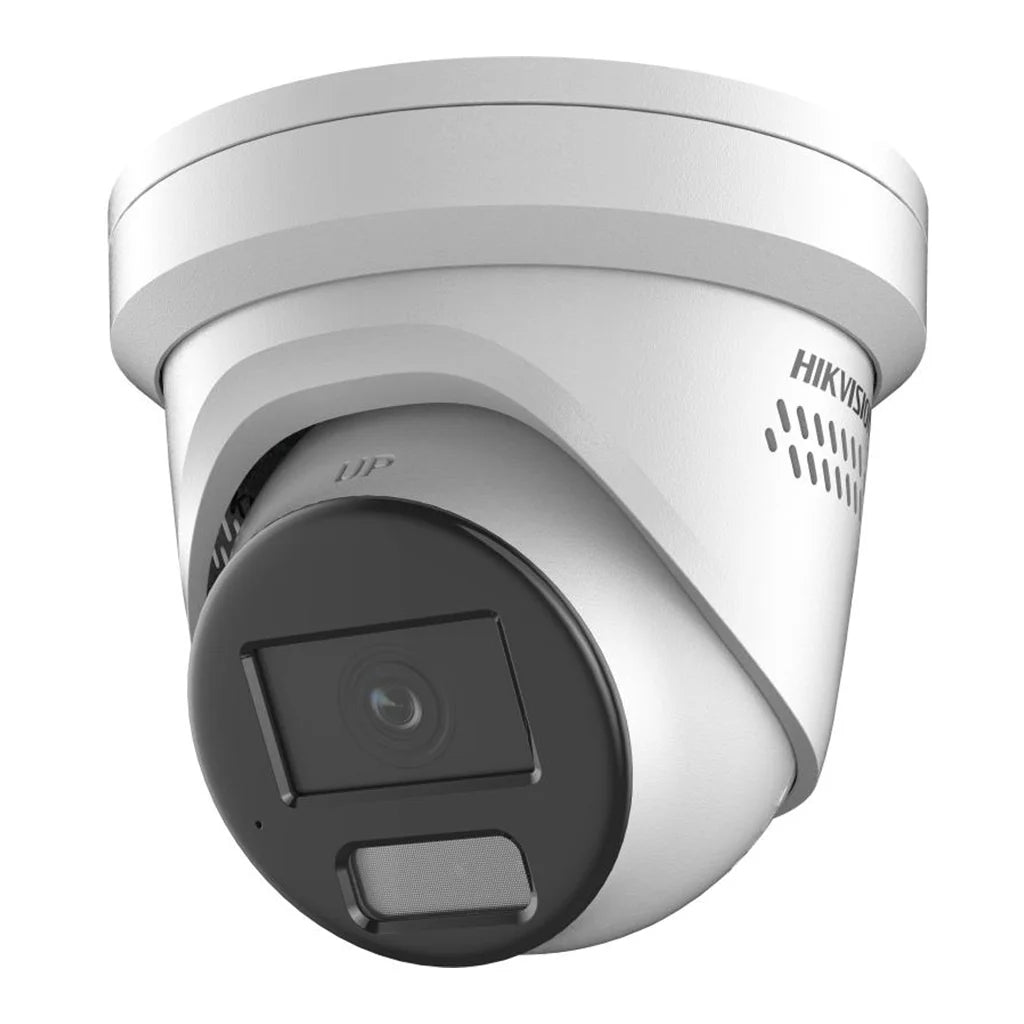

The Hikvision DS-2CD2347G2H-LISU/SL(2.8mm)(eF) in black is a 4MP ColorVu fixed turret network camera with Smart Hybrid Light, integrated two-way audio and active deterrence. Its 1/1.8-inch progressive-scan CMOS sensor records at up to 2688 × 1520, while the fixed 2.8mm F1.0 lens provides a wide 111.1° horizontal field of view.
The camera combines infrared and white-light illumination with a manufacturer-rated range of up to 30 metres, 130dB WDR and human and vehicle classification for supported motion and perimeter events. The /SL hardware includes a built-in microphone, built-in speaker, external audio input/output, one alarm input and output, a white warning strobe and audible-warning capability. Compatible memory cards up to 512GB are supported.
Key Benefits
-
Black metal finish: suited to installations where a darker camera housing is required.
-
Detailed 4MP video: captures up to 2688 × 1520 at 25fps in 50Hz mode or 30fps in 60Hz mode.
-
ColorVu and Smart Hybrid Light: support colour-focused low-light monitoring with infrared and white-light options.
-
Human and vehicle classification: supported events can focus on the selected target types.
-
Integrated two-way audio: a built-in microphone and speaker support compatible live communication.
-
Active deterrence: the /SL model can link its white strobe and audible warning to supported events.
-
External interfaces: audio and alarm input/output support compatible equipment.
-
Protected housing: the black metal enclosure is rated IP67.
Key Features
- 4MP maximum resolution of 2688 × 1520
- Black metal turret housing
- 1/1.8-inch progressive-scan CMOS sensor
- 2.8mm fixed F1.0 lens
- 111.1° horizontal, 57.6° vertical and 138.5° diagonal field of view
- Minimum colour illumination of 0.0005 lux
- IR and white light up to 30 metres
- Smart Hybrid Light
- 130dB WDR
- Human and vehicle classification
- Built-in microphone and speaker
- External audio input/output
- One alarm input and one alarm output
- White warning strobe and audible warning
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3af PoE
- IP67 protection
Technical Specifications
| Model |
DS-2CD2347G2H-LISU/SL(2.8mm)(eF) |
| Colour |
Black finish |
| Camera type |
Fixed turret network camera with active deterrence |
| Image sensor |
1/1.8-inch progressive-scan CMOS |
| Maximum resolution |
2688 × 1520 |
| Maximum frame rate |
25fps in 50Hz mode or 30fps in 60Hz mode |
| Minimum illumination |
Colour: 0.0005 lux at F1.0 with AGC on; 0 lux with supplement light |
| Lens |
2.8mm fixed focal lens, F1.0 |
| Field of view |
Horizontal 111.1°; vertical 57.6°; diagonal 138.5° |
| Physical adjustment |
Pan 0° to 360°, tilt 0° to 75° and rotation 0° to 360° |
| Supplement light |
Infrared and white light up to 30m with Smart Hybrid Light |
| Wide dynamic range |
130dB |
| Analytics |
Human and vehicle classification; face capture and scene-change detection |
| Built-in audio |
Built-in microphone and speaker |
| External audio |
One input and one output |
| Alarm interface |
One input and one output |
| Active deterrence |
White warning strobe and audible warning |
| Local storage |
Compatible microSD-family cards up to 512GB |
| Network and API |
RJ45 10/100Mbps; ONVIF Profiles S, G and T; ISAPI, SDK and ISUP |
| Power |
12V DC, maximum 9W; IEEE 802.3af PoE Class 3, maximum 10.5W |
| Operating conditions |
-30°C to 60°C; relative humidity 95% or less |
| Protection |
IP67; no IK impact rating stated |
| Dimensions |
Ø138.3 × 115.4mm |
| Weight |
Approximately 820g |
Deterrence, Audio and Compatibility
The /SL version can link its warning strobe, audible warning, recording and alarm output to supported events. The strobe is a warning device rather than a general white scene illuminator.
Confirm NVR 4MP support, analytics, two-way audio, alarm and deterrence compatibility, PoE capacity, memory-card support and mounting accessories before ordering.
Frequently Asked Questions
Is this the black version?
Yes. Black describes the finish; the base model remains DS-2CD2347G2H-LISU/SL(2.8mm)(eF).
What is the maximum resolution?
2688 × 1520.
What is the field of view?
111.1° horizontal, 57.6° vertical and 138.5° diagonal.
What is Smart Hybrid Light?
Configurable infrared and white-light operation.
What is the light range?
Up to 30 metres under manufacturer test conditions.
Does it classify people and vehicles?
Yes, for supported events.
Does it support two-way audio?
Yes.
Does it include deterrence?
Yes. It has a white warning strobe and audible warning.
What storage is supported?
Compatible cards up to 512GB.
What is the protection rating?
IP67.
