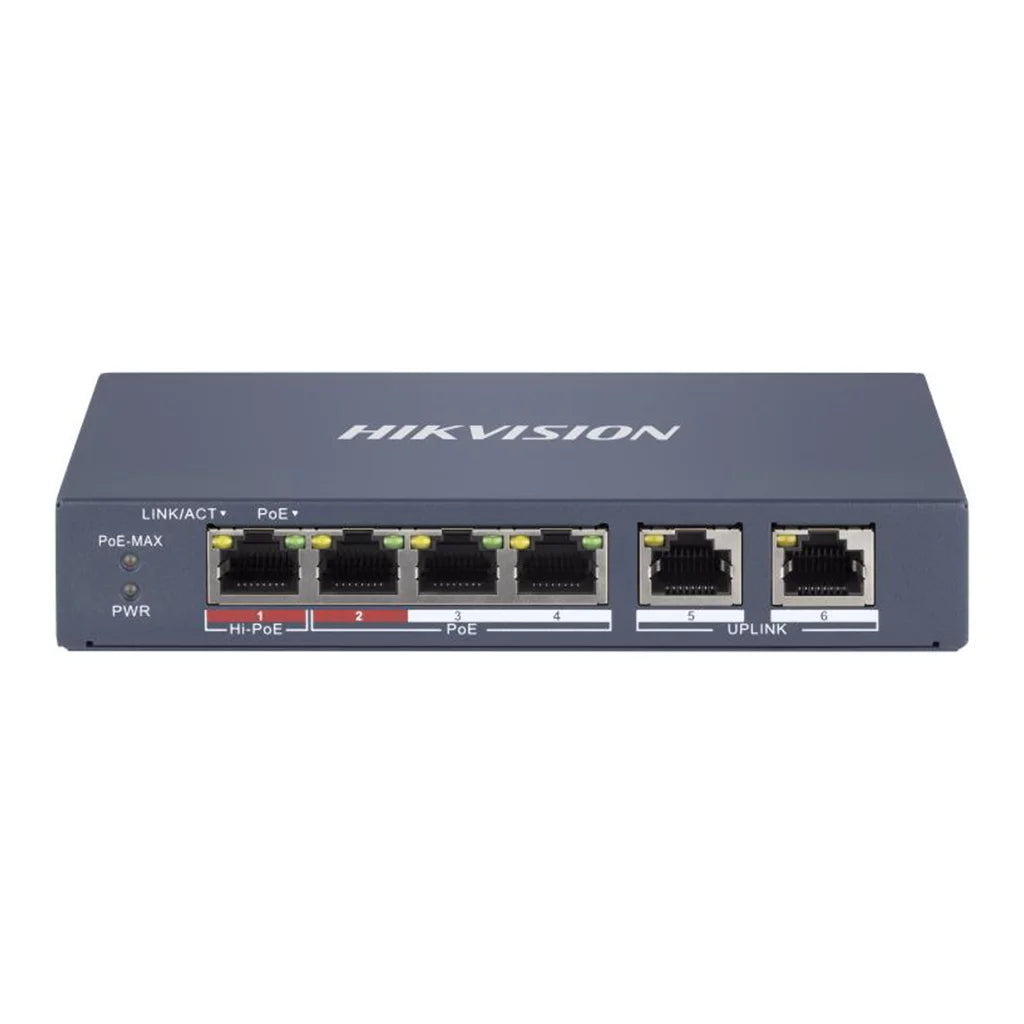

Hikvision DS-3E1106HP-EI 4-Port Fast Ethernet Smart Managed Hi-PoE Switch

The Hikvision DS-3E1106HP-EI is a professional 4-port Fast Ethernet smart managed PoE network switch designed for security surveillance, enterprise offices, and IP camera networking. Delivering a high PoE power budget of 60 W, robust surge protection, and optimized data transmission parameters, it provides a stable and reliable network core.

Hikvision DS-3E1106HP-EI 4-Port Smart Managed PoE Switch

This high-performance Layer 2 network switch features 4 PoE ports designed to power and connect IP cameras, access points, VoIP phones, and other PoE-enabled hardware. With a total PoE power budget of 60 W, it provides up to 30W of power per port under IEEE 802.3af/at standards. Additionally, ports 1 to 1 support high-power Hi-PoE (up to 60W/90W under IEEE 802.3bt), allowing it to directly power high-draw PTZ cameras, dome heaters, and thermal cameras without requiring separate injectors.

The switch features robust 2 × 10/100 Mbps RJ45 uplink ports uplink ports, allowing for high-bandwidth connections to local NVR storage, core switches, or internet routers. Engineered for demanding security workloads, it features a built-in PoE Watchdog that automatically detects and power-cycles unresponsive IP cameras. Housed in a durable rack-mountable metal chassis, it includes 6kV port surge protection to shield the network from electrical spikes.

Reliable Power & 60 W PoE Budget

With a total power capacity of 60 W, the switch provides consistent, regulated power across all connected PoE devices. The high-performance internal power supply ensures stable operation even under peak load conditions.

Integrated PoE Watchdog Technology

Features Hikvision's intelligent PoE Watchdog algorithm. The switch continuously polls connected IP cameras; if a camera stops responding or crashes, the switch automatically cycles the PoE power to that specific port, restarting the camera and restoring the video stream without requiring manual intervention.

High-Bandwidth Uplink Connectivity

Equipped with dedicated 2 × 10/100 Mbps RJ45 uplink ports uplinks to ensure bottleneck-free video transmission. Gigabit SFP optical fiber and RJ45 ports provide long-distance and high-speed data backup runs directly to the local NVR or main network router.

Unified Cloud & Visualized Topology Management

Supports the Easy IP Smart Managed features. Operators can visualize the entire network topology, check port bandwidth, configure VLANs, and perform remote troubleshooting using Hik-Partner Pro or HikCentral software.

KEY BENEFITS

• High PoE budget of 60 W easily powers multiple high-definition IP cameras.
• Hi-PoE ports supporting up to 60W power heavy PTZ and thermal cameras directly.
• PoE Watchdog automatically restarts crashed cameras to maintain continuous recording.
• Gigabit fiber SFP and RJ45 uplinks eliminate bottlenecking and support long-distance runs.
• 6 kV surge protection shields ports and connected devices from lightning strikes.
• Visualized topology management simplifies configuration and monitoring.
• Durable steel enclosure is rack-mountable for clean rack deployment.
• Port isolation mode prevents camera-to-camera traffic to secure video feeds.
• Fanless design ensures quiet operation in office environments.
• Compatible with all standard IEEE 802.3af/at PoE security devices.

KEY FEATURES

• Product Model: Hikvision DS-3E1106HP-EI
• Product Type: 4-Port Fast Ethernet Smart Managed Switch
• PoE Port Count: 4 × PoE RJ45 ports
• PoE Power Budget: 60 W
• PoE Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt (Hi-PoE up to 60W)
• Uplink Ports: 2 × 10/100 Mbps RJ45 uplink ports
• Switching Capacity: 1.2 Gbps
• Packet Forwarding Rate: 0.8928 Mpps
• MAC Address Table: 2 K
• Surge Protection: 6 kV per port
• PoE Watchdog: Supported
• Port Isolation: Supported
• Power Input: 100 to 240 VAC, 50/60 Hz
• Physical Dimensions: 145.0 mm × 25.6 mm × 68.45 mm (5.71" × 1.01" × 2.69")
• Product Weight: Approx. 0.245 kg (0.54 lb)

IDEAL FOR

• Multi-camera security surveillance networks
• Corporate offices needing IP phone power
• Commercial retail shop network cores
• School and university campus security nodes
• Industrial warehouses and logistics centers
• Residential smart home networks
• Small-to-medium business (SMB) server racks
• Gigabit fiber backbone link installations

TECHNICAL SPECIFICATIONS

Frequently Asked Questions

What is the total PoE budget of the DS-3E1106HP-EI?

The switch features a total PoE power budget of 60 W, allowing you to distribute power among all connected PoE devices.

Does it support high-power PTZ cameras?

Yes, the switch supports up to 60W Hi-PoE on port 1, making it ideal for motorized PTZ domes.

What does the PoE Watchdog feature do?

The PoE Watchdog automatically monitors the status of connected cameras. If a camera crashes and stops communicating, the switch power-cycles the port to restart the camera, minimizing network downtime.

Does this switch require software configuration?

No. It is fully plug-and-play and works out of the box. However, you can manage and monitor it via web interface or Hikvision software.

Can I mount this switch in a server rack?

Yes, the switch is standard rack-mountable (1U height) and includes rack mounting ears and screws in the box.

What uplinks are available on this switch?

This model features 2 × 10/100 Mbps RJ45 uplink ports to ensure high-speed data runs to NVRs or main routers without consuming PoE ports.

Is it protected against lightning surges?

Yes. The switch features robust 6 kV surge protection on all RJ45 ports to shield internal circuitry from external voltage spikes.
