The Hikvision DS-3E0508-O is a high-performance 8-port Gigabit unmanaged network switch designed for reliable, easy-to-maintain network connectivity. Featuring standard Gigabit speed, web-based cloud management, and a durable fanless design, it provides an efficient routing core for offices, SMBs, and retail networks.

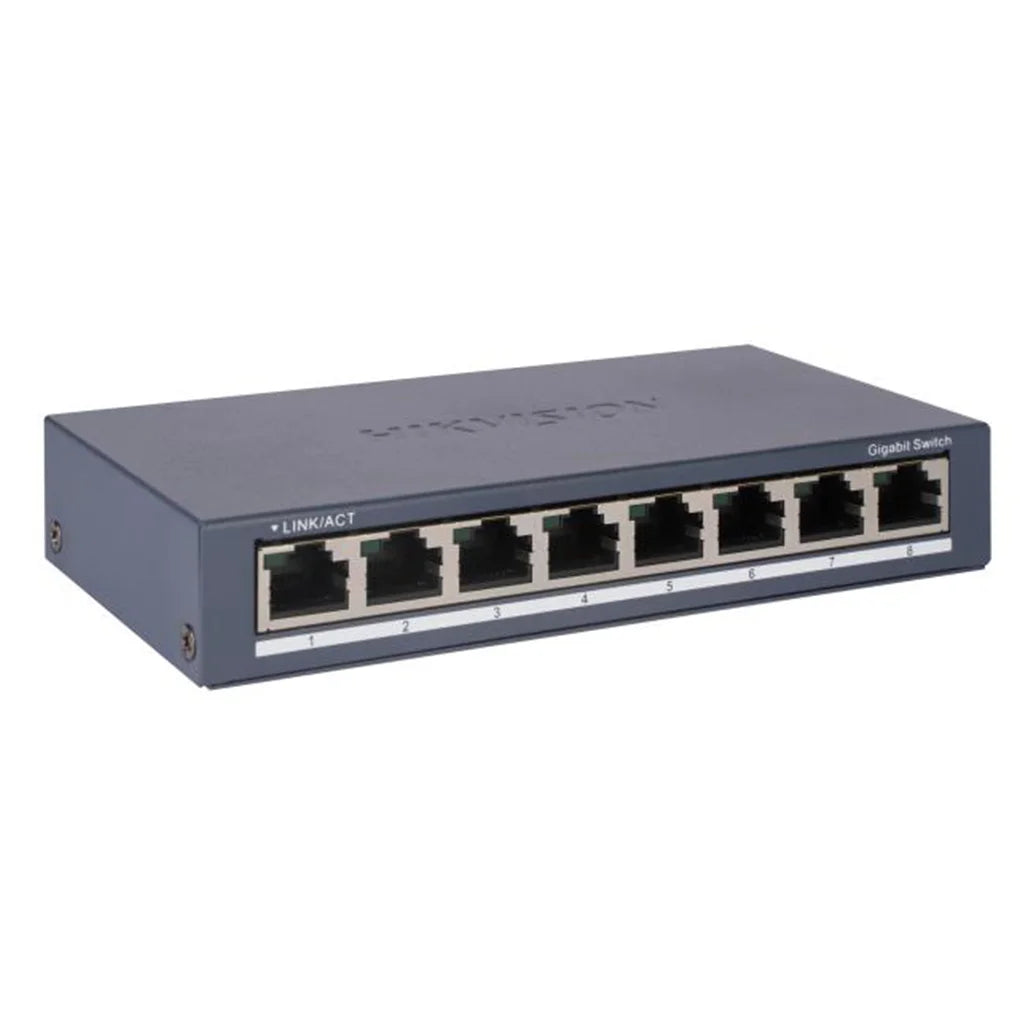

Hikvision DS-3E0508-O 8-Port Unmanaged Gigabit Switch
This high-performance Layer 2 network switch features 8 non-PoE Gigabit RJ45 ports designed for high-speed local data backups and hardware networking. Each port supports auto MDI/MDI-X negotiation and full-duplex traffic, maximizing network throughput for local clients, storage devices, and PC workstations.
Featuring a solid, high-strength metal shell with a fanless design, the switch operates silently and reliably. It provides 6kV surge protection on all ports to shield the internal processor from voltage spikes. Housed in a compact desktop chassis, it can also be wall-mounted or installed on standard rack shelves.
High-Speed Gigabit Networking
Equipped with 8 dedicated Gigabit ports to handle heavy data traffic. Supports up to 16 Gbps switching capacity and packet forwarding, ensuring smooth local backups and real-time database access across the network.
Plug-and-Play Unmanaged Operation
Designed for instant deployment with no software setup required. Simply connect your local devices and the switch will automatically assign speeds.
KEY BENEFITS
- Gigabit speeds on all 8 ports handle high-speed local data backups.
- Gigabit uplinks provide fast backbone routing.
- True wire-speed forwarding ensures lag-free database traffic.
- VLAN support allows segmenting the local network for improved security.
- 6 kV surge protection shields ports and connected devices from lightning strikes.
- Plug-and-play setup requires no complex software configuration.
- Durable steel enclosure is rack-mountable for clean rack deployment.
- Fanless design ensures quiet operation in office spaces.
- Fanless design ensures quiet operation in office environments.
- Compatible with all standard network clients and servers.
KEY FEATURES
- Product Model: Hikvision DS-3E0508-O
- Product Type: 8-Port Gigabit Unmanaged Switch
- Port Count: 8 × Gigabit RJ45 ports
- PoE Support: Non-PoE Switch
- Networking Standards: IEEE 802.3, 802.3u, 802.3ab
- Uplink Interfaces: Built-in high-speed Gigabit ports
- Switching Capacity: 16 Gbps
- Packet Forwarding Rate: 11.90 Mpps
- MAC Address Table: 8 K
- Surge Protection: 6 kV per port
- PoE Watchdog: Not supported
- Port Isolation: Supported
- Power Input: 100 to 240 VAC, 50/60 Hz
- Physical Dimensions: 145.00 mm × 25.60 mm × 68.45 mm (5.71" × 1.01" × 2.69")
- Product Weight: Approx. 0.24 kg (0.53 lb)
IDEAL FOR
- Office workspace local client networking
- SMB local network backbones
- Commercial retail shop network cores
- School and university campus security nodes
- Industrial warehouses and logistics centers
- Residential smart home networks
- Small-to-medium business (SMB) server racks
- Local database backup workstations
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-3E0508-O |
| Product Type |
8-Port Network Switch |
| Management Level |
Unmanaged |
| PoE Ports |
Not supported |
| PoE Power Budget |
Not supported |
| Uplink Interfaces |
Gigabit uplinks via standard ports |
| Switching Capacity |
16 Gbps |
| Packet Forwarding Rate |
11.90 Mpps |
| MAC Address Table |
8 K |
| Internal Cache |
4 Mbits |
| PoE Standard |
Not supported |
| Max Port Power |
Not supported |
| PoE Watchdog |
Not supported |
| Port Isolation |
Supported |
| VLAN Support |
Not supported (Unmanaged) |
| Surge Protection |
6 kV |
| Power Supply Input |
100 to 240 VAC, 50/60 Hz |
| Max Power Consumption |
3 W |
| Operating Temperature |
-10 °C to +55 °C (14 °F to 131 °F) |
| Operating Humidity |
5% to 95% RH (non-condensing) |
| Enclosure Material |
Metal |
| Physical Dimensions |
145.00 mm × 25.60 mm × 68.45 mm (5.71" × 1.01" × 2.69") |
| Product Weight |
Approx. 0.24 kg (0.53 lb) |
Frequently Asked Questions
Does this switch support PoE?
No, this is a non-PoE switch designed for standard high-speed local networking without power transmission.
What is the switching capacity?
The switch has a 16 Gbps switching capacity, ensuring smooth local data transfer without bottlenecks.
Is this switch smart managed?
Yes, it supports web and cloud management to visualize network topology, check port bandwidth, and perform remote debugging.
Is this switch plug-and-play?
Yes, this is an unmanaged switch. Simply connect your power and network cables and it will automatically detect speeds and class-based power demands without configuration.
Can I mount this switch in a server rack?
Yes, the switch is standard rack-mountable (1U height) and includes rack mounting ears and screws in the box.
Is it fanless?
Yes. The switch features a fanless, passive cooling design that runs silently, making it ideal for office desks or reception areas.
Is it protected against lightning surges?
Yes. The switch features robust 6 kV surge protection on all RJ45 ports to shield internal circuitry from external voltage spikes.
