Hikvision DS-2CD23126G3-IS2UY/SL Product Overview

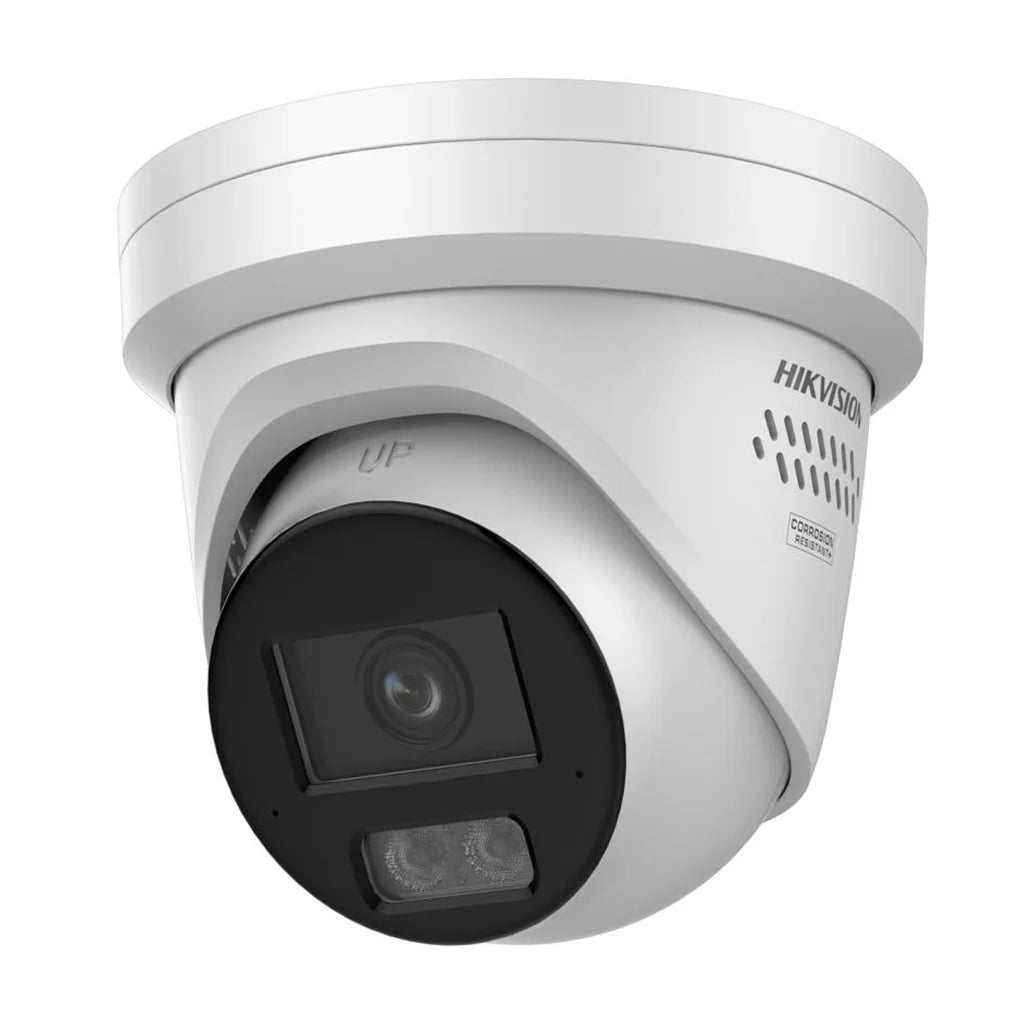

The Hikvision DS-2CD23126G3-IS2UY/SL(2.8mm)(eF) is a 12MP AcuSense Powered-by-DarkFighter fixed turret network camera with integrated two-way audio and active deterrence. Its 1/1.8-inch progressive-scan CMOS sensor records at up to 4608 × 2592, while the fixed 2.8mm F1.6 lens provides a 94.2° horizontal field of view.
The /SL hardware includes an arrayed dual microphone, a 2W built-in speaker, one external audio input and output, one alarm input and output, a white warning strobe and audible-warning capability. The exact datasheet specifies infrared illumination up to 30 metres. The white strobe is a warning device and is not presented as a 30-metre scene illuminator.
Key Benefits
-
12MP evidence: captures up to 4608 × 2592 at up to 20fps.
-
DarkFighter low-light imaging: supports useful detail under limited illumination.
-
30m infrared: built-in IR supports monochrome monitoring in darkness.
-
AcuSense classification: supported motion and perimeter events can distinguish human and vehicle targets.
-
Integrated two-way audio: dual microphones and a 2W speaker support compatible communication and warning playback.
-
Active deterrence: a white strobe and audible warning can be linked to supported events.
-
External integration: one audio input/output and one alarm input/output are provided.
-
Protected housing: IP67 and NEMA 4X moderate anti-corrosion protection.
Key Features
- 12MP maximum resolution of 4608 × 2592
- 20fps at maximum resolution
- 1/1.8-inch progressive-scan CMOS sensor
- 2.8mm fixed F1.6 lens
- 94.2° horizontal, 51.1° vertical and 110.2° diagonal field of view
- Minimum colour illumination of 0.0008 lux at F1.6
- Infrared illumination up to 30 metres
- 130dB WDR
- Human and vehicle classification and face capture
- Arrayed dual microphone and 2W speaker
- One line audio input/output and one alarm input/output
- White warning strobe and audible warning
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3at PoE+ power
- IP67 and NEMA 4X moderate anti-corrosion protection
Technical Specifications
| Model |
DS-2CD23126G3-IS2UY/SL(2.8mm)(eF) |
| Camera type |
Fixed turret network camera with active deterrence |
| Image sensor |
1/1.8-inch progressive-scan CMOS |
| Maximum resolution |
4608 × 2592 |
| Maximum frame rate |
20fps at maximum resolution; up to 25fps in 50Hz mode or 30fps in 60Hz mode at supported 4K and lower resolutions |
| Minimum illumination |
Colour: 0.0008 lux at F1.6 with AGC on; black and white: 0 lux with IR |
| Lens |
2.8mm fixed focal lens, F1.6 |
| Field of view |
Horizontal 94.2°; vertical 51.1°; diagonal 110.2° |
| Physical adjustment |
Pan 0° to 360°, tilt 0° to 75° and rotation 0° to 360° |
| Infrared range |
Up to 30m |
| Wide dynamic range |
130dB |
| Analytics |
Human and vehicle classification for supported motion and perimeter events; face capture |
| Built-in audio |
Arrayed dual microphone and 2W speaker; manufacturer specifies up to 110dB sound pressure at 10cm |
| External audio |
One line input and one line output |
| Alarm interface |
One input and one output |
| Active deterrence |
White warning strobe and audible warning on the /SL model |
| Local storage |
microSD, microSDHC or microSDXC card support up to 512GB |
| Network/API |
RJ45 10/100Mbps; ONVIF Profiles S, G and T, ISAPI, SDK and ISUP |
| Power |
12V DC, maximum 16W; IEEE 802.3at PoE+ Class 4, maximum 18W |
| Operating conditions |
-30°C to 60°C; relative humidity 95% or less, non-condensing |
| Housing |
Metal cover and main body, white finish |
| Protection |
IP67 and NEMA 4X moderate anti-corrosion protection |
| Dimensions |
Ø138.3 × 115.4mm |
| Weight |
Approximately 820g |
Active Deterrence and Audio
The white strobe and audible warning can be linked to supported events. The white strobe is intended as a visible warning signal and should not be represented as general white-light scene illumination. Warning behaviour, volume and event linkage depend on firmware and configuration.
The dual microphones and built-in speaker support compatible two-way audio. External line audio and alarm interfaces are also available. Audio quality and warning effectiveness depend on mounting, environment and network conditions.
Installation and Compatibility
Confirm NVR 12MP decoding, PoE+ budget, AcuSense, two-way audio, alarm and strobe controls, memory-card compatibility and mounting hardware before ordering. Third-party ONVIF integration does not guarantee access to every deterrence or analytics control.
Frequently Asked Questions
What is the maximum resolution?
4608 × 2592, commonly described as 12MP.
What is the frame rate at full resolution?
Up to 20fps.
What is the infrared range?
Up to 30 metres.
Does it support two-way audio?
Yes. It has dual microphones and a built-in speaker.
Does it include active deterrence?
Yes. The /SL model includes a white strobe and audible warning.
Is the white strobe a 30m white illuminator?
No. The datasheet lists 30m infrared and identifies the white light as a warning strobe.
Does it provide audio and alarm interfaces?
Yes, one input and output for each.
What storage is supported?
Compatible cards up to 512GB.
What PoE standard is required?
IEEE 802.3at PoE+ Class 4.
What protection applies?
IP67 and NEMA 4X moderate anti-corrosion protection.
