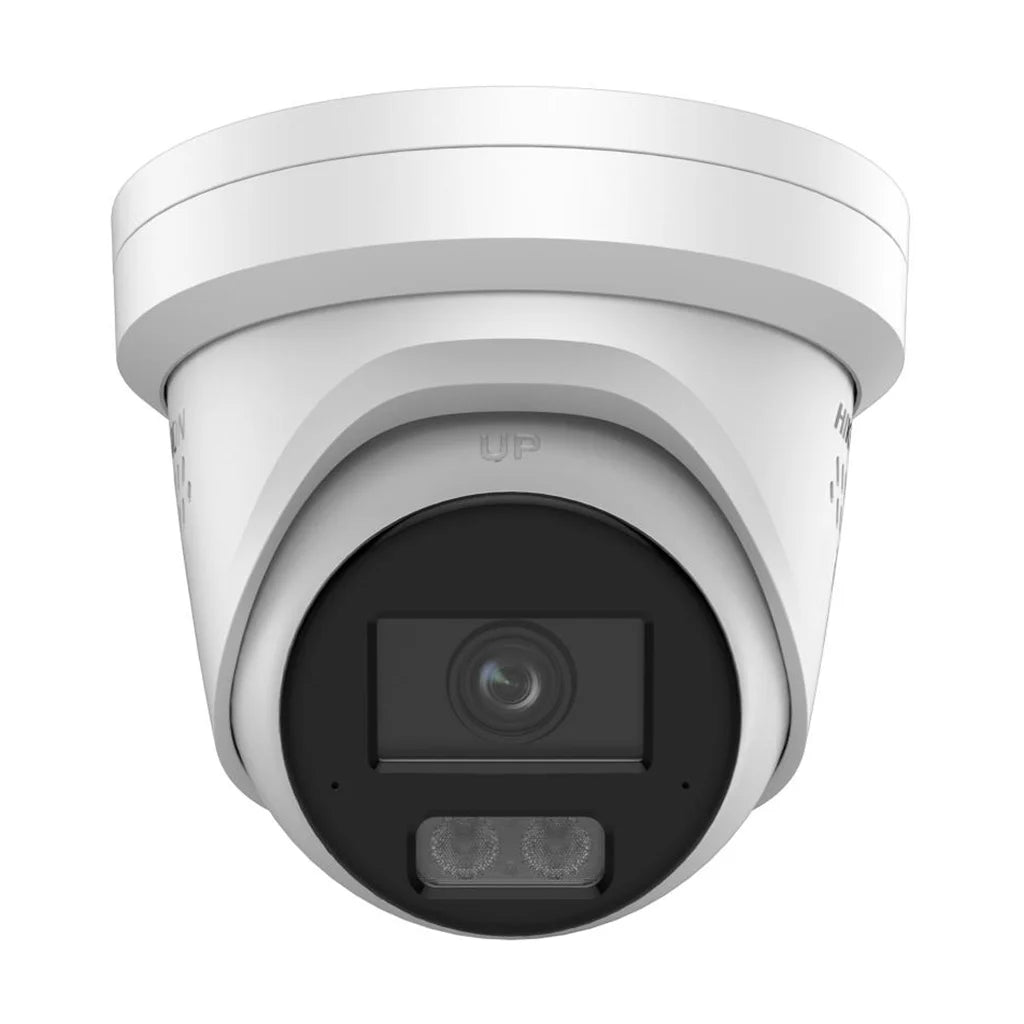

Hikvision DS-2CD23126G3-I2UY Product Overview
The Hikvision DS-2CD23126G3-I2UY(2.8mm)(eF) is a 12MP AcuSense Powered-by-DarkFighter fixed turret network camera. Its 1/1.8-inch progressive-scan CMOS sensor records at up to 4608 × 2592, while the fixed 2.8mm F1.6 lens provides a 94.2° horizontal field of view.
The camera provides infrared illumination up to 40 metres, 130dB WDR and human and vehicle classification for supported motion and perimeter events. The 2U hardware includes an arrayed dual microphone for audio capture, while the memory-card slot accepts compatible cards up to 512GB. This exact I2UY model does not have a manufacturer-stated built-in speaker, external audio input/output or alarm input/output.
Key Benefits
-
12MP image detail: captures up to 4608 × 2592 for high-detail live viewing and playback.
-
Powered-by-DarkFighter imaging: supports useful detail in challenging low-light conditions.
-
40m infrared: built-in IR supports monochrome monitoring in darkness.
-
AcuSense classification: supported events can distinguish human and vehicle targets.
-
130dB WDR: helps retain detail where bright and shaded areas appear together.
-
Arrayed dual microphone: integrated audio capture with environmental-noise filtering.
-
Local recording: compatible microSD-family cards up to 512GB are supported.
-
Protected metal housing: IP67 weather resistance and NEMA 4X moderate anti-corrosion protection.
Key Features
- 12MP maximum resolution of 4608 × 2592
- 20fps at maximum resolution
- Up to 25fps in 50Hz mode or 30fps in 60Hz mode at supported 4K and lower resolutions
- 1/1.8-inch progressive-scan CMOS sensor
- 2.8mm fixed lens with F1.6 aperture
- 94.2° horizontal, 51.1° vertical and 110.2° diagonal field of view
- Minimum colour illumination of 0.0008 lux at F1.6 with AGC enabled
- Infrared illumination up to 40 metres
- 130dB WDR
- Human and vehicle classification and face capture
- Arrayed dual microphone
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3af PoE power
- IP67 and NEMA 4X moderate anti-corrosion protection
Technical Specifications
| Model |
DS-2CD23126G3-I2UY(2.8mm)(eF) |
| Camera type |
Fixed turret network camera |
| Image sensor |
1/1.8-inch progressive-scan CMOS |
| Maximum resolution |
4608 × 2592 |
| Maximum frame rate |
20fps at 4608 × 2592; 25fps in 50Hz mode or 30fps in 60Hz mode at supported 3840 × 2160 and lower resolutions |
| Minimum illumination |
Colour: 0.0008 lux at F1.6 with AGC on; black and white: 0 lux with IR |
| Lens |
2.8mm fixed focal lens, F1.6 |
| Field of view |
Horizontal 94.2°; vertical 51.1°; diagonal 110.2° |
| Depth of field |
2.9m to infinity |
| Physical adjustment |
Pan 0° to 360°, tilt 0° to 75° and rotation 0° to 360° |
| Infrared range |
Up to 40m |
| Wide dynamic range |
130dB |
| Video compression |
H.265+, H.265, H.264+ and H.264; MJPEG on the sub-stream |
| Analytics |
Human and vehicle classification for supported motion, line-crossing, intrusion, region-entry and region-exit events; face capture |
| Built-in audio |
Arrayed dual microphone with environmental-noise filtering |
| Speaker and external I/O |
No built-in speaker, external audio input/output or alarm input/output stated for this exact I2UY model |
| Local storage |
microSD, microSDHC or microSDXC card support up to 512GB |
| Network/API |
RJ45 10/100Mbps; ONVIF Profiles S, G and T, ISAPI, SDK and ISUP |
| Power |
12V DC, maximum 8.5W; IEEE 802.3af PoE Class 3, maximum 10.5W |
| Operating conditions |
-30°C to 60°C; relative humidity 95% or less, non-condensing |
| Housing |
Metal cover and metal main body, white finish |
| Protection |
IP67 and NEMA 4X moderate anti-corrosion protection |
| Dimensions |
Ø138.3 × 115.4mm |
| Weight |
Approximately 750g |
High-Resolution Frame Rate and Detection
The camera records its full 4608 × 2592 resolution at up to 20fps. Up to 25fps or 30fps is available at supported lower resolutions, depending on the 50Hz or 60Hz setting. Recorder decoding capability, display resolution and network bandwidth should be checked where full 12MP recording is required.
AcuSense classification can focus supported motion and perimeter events on human and vehicle targets. Face capture is also available. Detection performance depends on target size, camera angle, lighting, scene conditions and configuration.
Audio, Storage and Compatibility
The built-in dual-microphone array captures audio. No built-in speaker or external audio and alarm interfaces are stated for this exact I2UY version, so the page does not claim two-way audio or active deterrence.
Confirm NVR 12MP decoding, event support, PoE capacity, memory-card compatibility and mounting accessories before ordering. NEMA 4X denotes moderate anti-corrosion protection and does not make the camera suitable for every severe marine or chemical environment.
Frequently Asked Questions
What is the maximum resolution?
4608 × 2592, commonly described as 12MP.
What is the frame rate at 12MP?
Up to 20fps at 4608 × 2592.
What lens is fitted?
A fixed 2.8mm F1.6 lens.
What is the infrared range?
Up to 40 metres under manufacturer test conditions.
Does it classify people and vehicles?
Yes, for supported motion and perimeter events.
Does it have built-in microphones?
Yes. It has an arrayed dual microphone.
Does it support two-way audio?
No built-in speaker or external audio output is stated for this exact model.
Does it include active deterrence?
No strobe, speaker or audible-warning hardware is stated for this exact model.
What memory-card capacity is supported?
Compatible cards up to 512GB.
What protection ratings apply?
IP67 and NEMA 4X moderate anti-corrosion protection.
