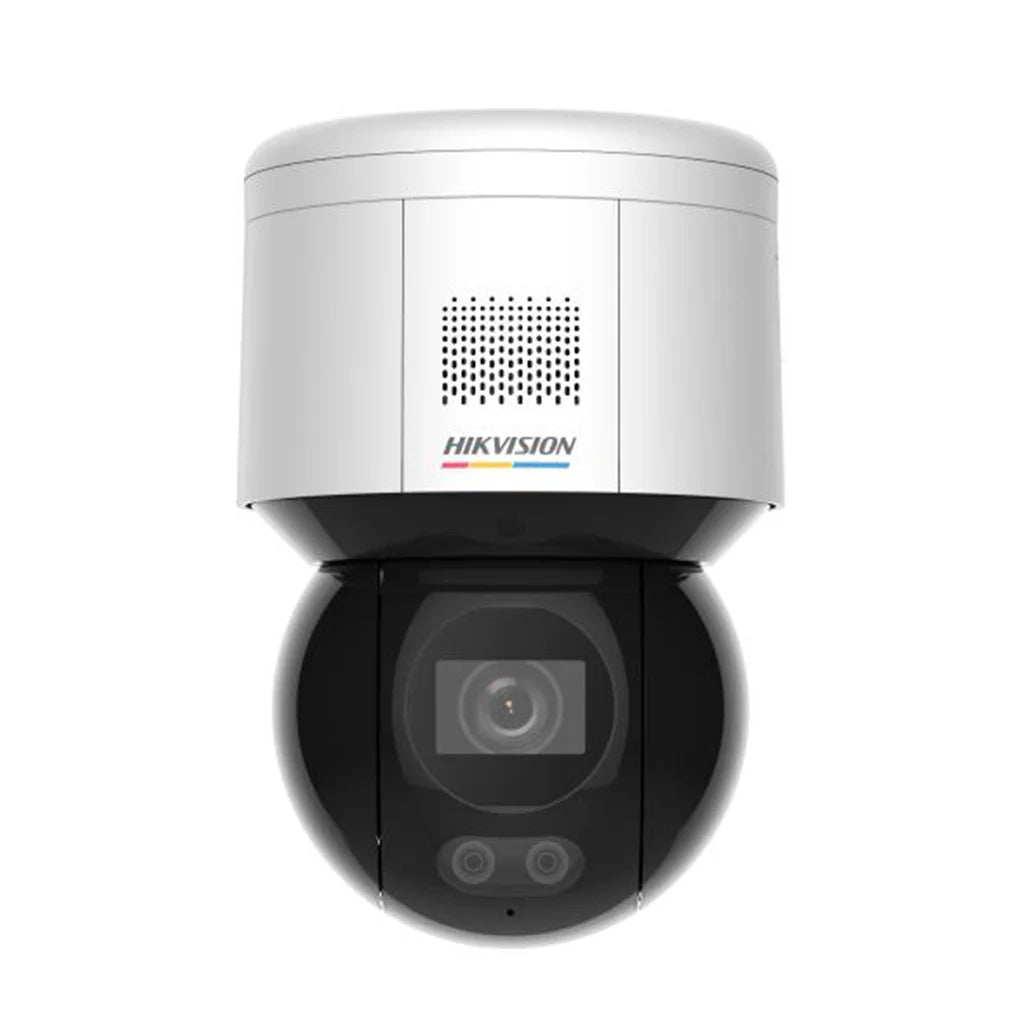

Hikvision DS-2DE3A400BW-DE(F1)(T5) [4MP/PT] ColorVu Dome Camera

The Hikvision DS-2DE3A400BW-DE(F1)(T5) [4MP/PT] is a professional 3-inch network Pan-Tilt camera featuring ColorVu technology for 24/7 full-colour imaging. Powered by AcuSense analytics, it classifies human and vehicle targets and features active deterrence to protect your property day and night.

Hikvision DS-2DE3A400BW-DE(F1)(T5) [4MP/PT] ColorVu Dome Camera

The Hikvision DS-2DE3A400BW-DE(F1)(T5) represents a breakthrough in compact dome surveillance. Housed in a weatherproof casing, it combines pan and tilt movements with ColorVu F1.0 optics and a warm white light supplement to deliver crisp 4MP colour video even in complete darkness. It is ideal for monitoring driveways, building perimeters, and entrances.

By incorporating deep learning AcuSense technology, this model filters out false alarms caused by leaves, rain, or animals. When a security threshold is crossed, its built-in strobe light and speaker activate to warn off intruders, while two-way audio support enables live communication with visitors.

24/7 ColorVu Full-Colour Imaging

ColorVu technology uses a high-performance F1.0 large aperture lens and advanced image sensor to gather more ambient light.

Flexible Pan-Tilt Rotation Control

With a 350° pan and 90° tilt range, users can adjust the lens direction remotely using the Hik-Connect mobile application.

AcuSense Intelligent Target Classification

Built-in deep learning algorithms analyze movement in real time to isolate human and vehicle targets.

Active Deterrence with Light and Sound

When an intrusion event is detected, the camera flashes its built-in white strobe light and plays a customized voice warning.

Built-in Two-Way Audio Communication

Featuring an integrated microphone and high-power speaker, this dome camera supports two-way audio.

Robust IP66 Weatherproof Durability

The camera is rated IP66 weatherproof, which ensures stable operation in harsh outdoor conditions.

Note: Professional installation and system compatibility are highly recommended for optimal hardware performance.

KEY BENEFITS

• Delivers sharp 4MP video with full-colour imaging 24 hours a day
• Eliminates false alarms by identifying human and vehicle targets with AcuSense
• Enables remote pan and tilt adjustments to cover wide monitoring angles
• Warns off intruders actively with a strobe light and voice warnings
• Supports live two-way communication via built-in microphone and speaker
• Operates reliably in harsh weather with an IP66-rated enclosure
• Reduces NVR storage space and bandwidth requirements using H.265+ compression
• Captures clear facial detail using deep learning face capture algorithms
• Simplifies cabling with Power over Ethernet (PoE) single-cable installation
• Maintains image clarity against strong backlight with 120 dB WDR technology

KEY FEATURES

• 4MP high-definition resolution (2560 x 1440)
• ColorVu technology with large F1.0 aperture
• AcuSense human and vehicle classification
• Warm white light illumination up to 30 metres
• Pan range: 350° / Tilt range: 90°
• Built-in high-sensitivity microphone
• Built-in high-power warning speaker
• Active white strobe light deterrence
• Supports microSD card local storage up to 512 GB
• 120 dB Wide Dynamic Range (WDR)
• IP66 weather-resistant rating
• Supports Power over Ethernet (PoE) 802.3at
• H.265+, H.265, H.264+, H.264 video compression
• Includes built-in bracket for easy mounting
• Supports face capture for up to 5 faces simultaneously

IDEAL FOR

• Residential driveways and front porches
• Retail shop fronts and entrances
• Commercial yard and parking lot security
• Loading docks and warehouse entrance gates
• School yards and public spaces
• Office building main lobbies
• Hotel corridors and entry vestibules
• Petrol station forecourts
• Apartment block outdoor common areas
• Storage unit access gates
• Suburban street junction monitoring
• High-privacy zones requiring audio warning

SYSTEM COMPATIBILITY

• Compatible with Hikvision AcuSense network video recorders
• Supports Hik-Connect mobile application (iOS & Android)
• Integrates with iVMS-4200 monitoring software client
• Integrates with HikCentral enterprise video management software
• Supports ONVIF profile S, G, and T protocols
• Powered via PoE (802.3at) or 12 VDC supply
• Works with standard Hikvision ceiling and wall brackets
• Supports standard microSD, microSDHC, and microSDXC cards
• Compatible with standard Web browsers (Chrome, Edge, Safari)
• Supports ISAPI and SDK developer protocols
• Works with Hikvision network microphone stations
• Compatible with standard network PoE switches
• Integrates with standard alarm input systems

TECHNICAL SPECIFICATIONS

FREQUENTLY ASKED QUESTIONS (FAQs)

Does the DS-2DE3A400BW-DE support optical zoom?

No, this camera has a fixed 4mm lens and supports pan-tilt rotation and 16x digital zoom, but does not feature optical zoom.

Can this camera see in colour at night?

Yes, thanks to Hikvision's ColorVu technology and warm white light supplement, it provides full-colour imaging 24/7 in zero-light environments.

What is AcuSense technology?

AcuSense uses deep learning algorithms to identify human and vehicle targets, ignoring false alarms from leaves, animals, or wind.

Is this camera suitable for outdoor use?

Yes, it is rated IP66 weatherproof, which makes it ideal for outdoor installations such as driveways, gardens, and building exteriors.

Can I talk to someone through the camera?

Yes, the camera features a built-in microphone and speaker, allowing for full two-way audio communication via the Hik-Connect mobile app.

How is this camera powered?

It can be powered via a standard 12V DC power adapter or through Power over Ethernet (PoE+) using a single Ethernet network cable.

What is the maximum storage card supported?

The built-in card slot supports microSD, microSDHC, and microSDXC memory cards up to 512 GB for local backup storage.

Can the strobe light be disabled?

Yes, the flashing white strobe light and audible alarms can be enabled, disabled, or scheduled via the camera's configuration settings.

Does it support face detection?

Yes, it supports face capture technology which can detect and capture up to five faces simultaneously in a monitored area.

What mounting bracket is included?

The camera comes with an integrated mounting bracket suitable for wall installations out of the box.
