The Hikvision DS-D5019QE-B is a professional-grade 18.5-inch LED security monitor engineered for continuous 24/7 surveillance monitoring applications. Utilizing a reliable LED backlit panel, it delivers bright, clear 1366 × 768 resolution images and rapid 5 ms response times to ensure smooth video playback in security environments. Housed in a sleek, lightweight black casing with a durable plastic base stand, the DS-D5019QE-B features a low power consumption layout and stable operating design. Equipped with HDMI and VGA inputs, alongside standard VESA mount support, it represents a highly cost-effective display solution for retail offices, cashier desks, and small security rooms.

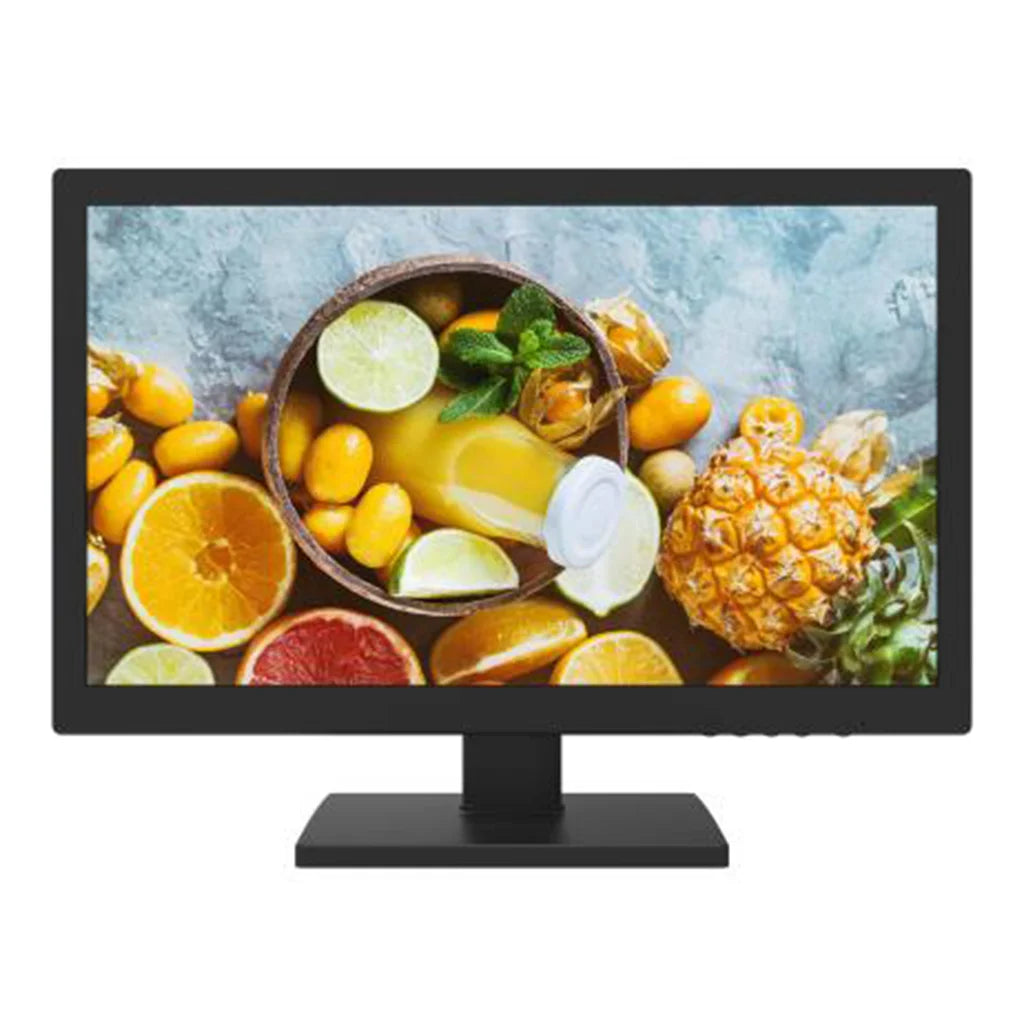

Hikvision DS-D5019QE-B 18.5-inch LED Security Surveillance LCD Monitor
The Hikvision DS-D5019QE-B is a professional-grade 18.5-inch LED security monitor engineered for continuous 24/7 surveillance monitoring applications. Utilizing a reliable LED backlit panel, it delivers bright, clear 1366 × 768 resolution images and rapid 5 ms response times to ensure smooth video playback in security environments. This makes it an essential tool for professional security networks.
Housed in a sleek, lightweight black casing with a durable plastic base stand, the DS-D5019QE-B features a low power consumption layout and stable operating design. Equipped with HDMI and VGA inputs, alongside standard VESA mount support, it represents a highly cost-effective display solution for retail offices, cashier desks, and small security rooms. Installing this device ensures continuous stability and reliability in any access control or surveillance system.
24/7 Continuous Operation
Built with industrial-grade components and thermal management systems to support round-the-clock display operation without pixel burn-in or hardware degradation.
18.5" LED Backlit Panel
The LED screen offers a high 1366 × 768 resolution with a reliable 600:1 contrast ratio, producing clean images critical for identifying security feeds.
Fast 5 ms Response Time
Features a rapid 5 ms panel response time, reducing ghosting and motion blur to ensure high-speed security feeds remain sharp and legible.
Energy Efficient Design
Incorporates a low power consumption configuration, minimizing electricity draw and operating temperatures in multi-monitor racks.
Comprehensive Signal Inputs
Equipped with HDMI and VGA inputs, supporting connection to modern IP NVRs as well as standard computers and servers.
Standard VESA Mount Compatibility
Supports standard VESA mounting patterns, allowing installers to easily attach the screen to wall brackets, desk arms, or monitor racks.
Note: Professional wall mounting brackets and VESA hardware are recommended to ensure stable installation of the surveillance monitor.
KEY BENEFITS
- Compact display size fits easily onto small security desks and server racks.
- Industrial design supports reliable 24/7/365 continuous live security viewing.
- Fast 5 ms panel response reduces video ghosting during high-motion action.
- Lightweight chassis design is easy to mount on standard drywalls.
- Low power draw configuration saves energy costs over long-term operations.
- HDMI and VGA inputs cover standard digital and legacy analog video setups.
- Supports standard 75mm x 75mm VESA brackets for flexible wall or desk arm mounting.
- Cost-effective layout is perfect for budget-conscious surveillance projects.
- Simple button controls allow easy access to color, brightness, and contrast configurations.
- Durable casing design withstands commercial office and warehouse environments.
KEY FEATURES
- Model Code: DS-D5019QE-B
- Screen Size: 18.5 inches diagonal
- Panel Resolution: 1366 × 768 pixels
- Panel Technology: LED backlit display
- Screen Brightness: 200 cd/m²
- Contrast Ratio: High 600:1 contrast
- Response Time: Fast 5 ms response
- Refresh Rate: Standard 60 Hz operations
- Viewing Angles: 90° Horizontal / 65° Vertical
- Video Interfaces: 1 × HDMI, 1 × VGA
- Audio Interfaces: None (analog video pass-only)
- Stand Support: Desktop stand included
- Mounting System: VESA 75 mm × 75 mm compliant
- Power Parameters: AC 100-240V supply
- Active Power Consumption: Energy efficient layout
IDEAL FOR
- Small business offices and cashier monitoring desks.
- Retail shop offices and customer checkouts.
- Residential estate security huts and gate houses.
- Commercial office receptions and front desks.
- School and college administration security offices.
- Industrial plant manager offices and gate check lanes.
- Server rooms and network racks requiring local displays.
- Hotel reception desks and elevator monitoring stations.
- Small businesses needing a dedicated continuous monitor.
- Replacing older, power-hungry CRT or LCD displays.
- Integration inside industrial display columns and kiosks.
- Budget-conscious security monitor replacements.
SYSTEM COMPATIBILITY
- Fully compatible with all Hikvision NVR and DVR series.
- Supports standard HDMI outputs from computers and consoles.
- Works with standard VGA interfaces on older server racks.
- Compatible with standard AC mains power networks.
- Fits standard 75 mm × 75 mm VESA wall and desk mounts.
- Supports standard UK and European power outlet grids.
- Works alongside standard HDMI splitter boxes.
- Supports digital media playback from standard sources.
- Compatible with dual-monitor computer configurations.
- Works with standard security camera NVR client software.
- Fits desktop stand (included) or wall mounting arms.
- Suitable for continuous operation alongside cooling fans.
- Meets standard regulatory electromagnetic emissions requirements.
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-D5019QE-B |
| Product Type |
18.5" LED Security Monitor |
| Screen Size |
18.5 inches |
| Active Display Area |
409.8 mm × 230.4 mm |
| Backlight |
LED |
| Panel Type |
TN or equivalent standard |
| Pixel Pitch |
0.300 mm × 0.300 mm |
| Resolution |
1366 × 768 |
| Brightness |
200 cd/m² |
| Contrast Ratio |
600:1 |
| Response Time |
5 ms |
| Refresh Rate |
60 Hz |
| Viewing Angle |
Horizontal 90°, Vertical 65° |
| Color Depth |
8-bit (16.7 Million Colors) |
| Video Inputs |
1 × HDMI, 1 × VGA |
| Audio Interfaces |
None |
| VESA Mounting |
75 mm × 75 mm |
| Power Supply |
AC 100 to 240 V, 50/60 Hz |
| Power Consumption |
Typical active usage |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Dimensions (with base) |
445.8 mm × 348.1 mm × 170 mm |
| Net Weight |
Approx. 2.5 kg (5.51 lbs) |
FREQUENTLY ASKED QUESTIONS (FAQs)
Can this monitor run continuously 24/7?
Yes, the DS-D5019QE-B is built with industrial-grade components designed to support 24/7 continuous operation without pixel burn-in or failure.
What is the response time of this screen?
The screen features a fast 5 ms response time, preventing ghosting in fast-moving surveillance video.
Does it have built-in speakers?
No, this model does not have built-in speakers; it is designed for visual video monitoring feeds.
What inputs are available on this monitor?
It includes 1 × HDMI port and 1 × VGA port, making it compatible with modern digital recorders and computers.
What VESA mount size does it support?
It supports standard VESA 75 mm × 75 mm wall mounts.
Does it have an eye-protection feature?
It has standard display filters and is designed for reduced blue light emissions to help prevent operator fatigue.
What is the screen resolution?
The screen features a resolution of 1366 × 768 pixels, ideal for cost-effective camera monitoring grids.
Is the desktop stand included in the package?
Yes, a standard plastic desktop stand is included, but it can be removed if you plan to use a VESA wall mount or desk arm.
How much power does this monitor consume?
The monitor is designed for high energy efficiency, utilizing a low-power LED backlight system to minimize operating costs.
What is the size of the screen?
The display measures 18.5 inches diagonally, making it a space-saving option for small counters.
