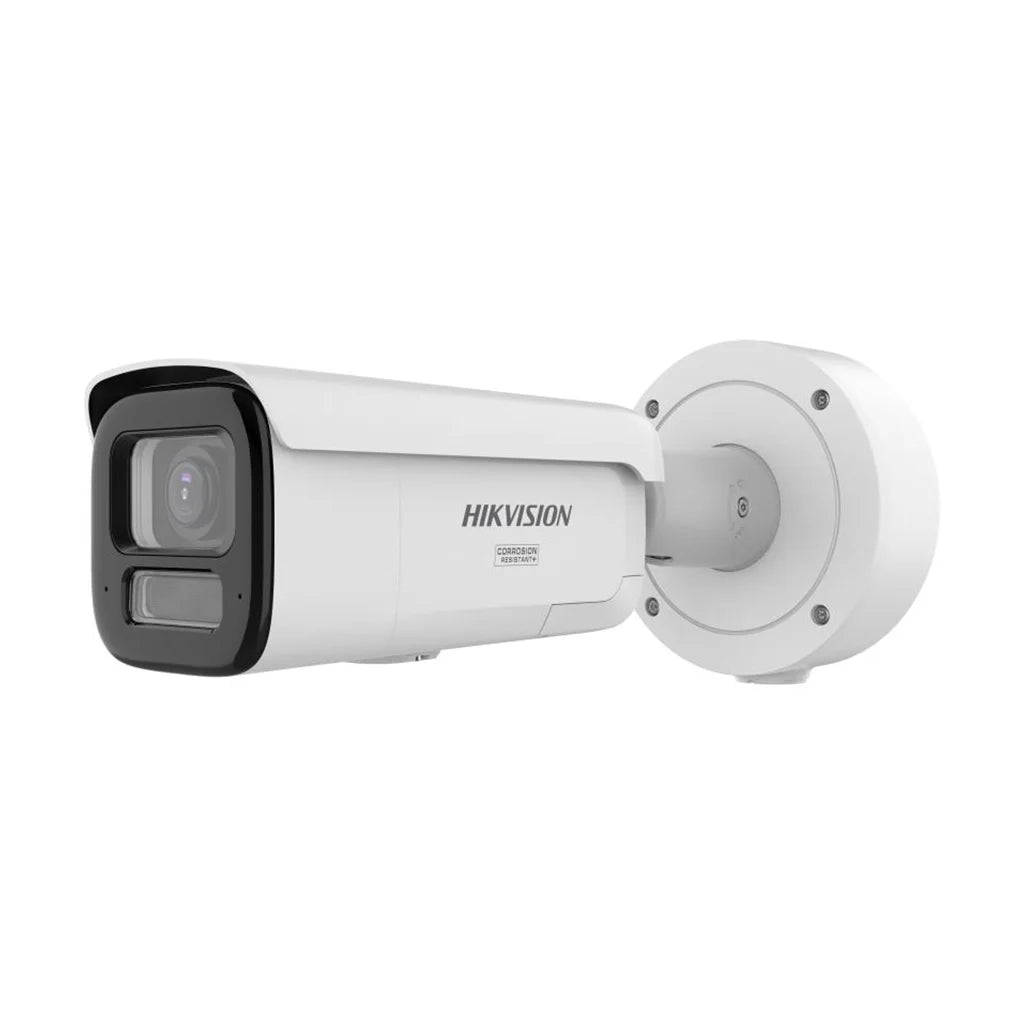

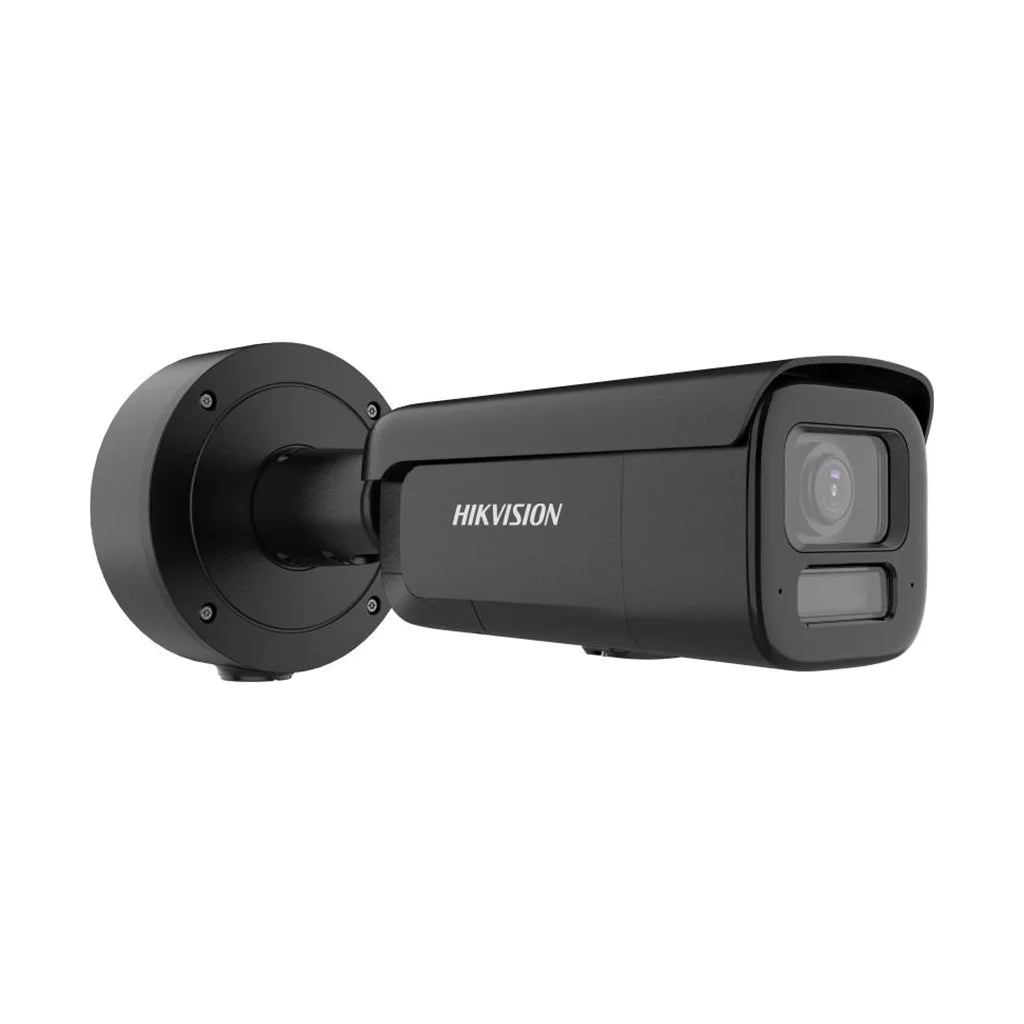

Hikvision DS-2CD2687G3-LIZS2UY/SL Product Overview
The Hikvision DS-2CD2687G3-LIZS2UY/SL(2.8-12mm) is an 8MP ColorVu motorised varifocal bullet network camera with Smart Hybrid Light, integrated two-way audio and active deterrence. Its 1/1.8-inch progressive-scan CMOS sensor records at up to 3840 × 2160, while the 2.8–12mm motorised lens supports remote zoom and focus.
Infrared and white-light illumination are rated up to 60 metres. The /SL hardware includes an arrayed dual microphone, built-in speaker, white strobe and audible warning. The camera also provides human and vehicle classification for supported motion and perimeter events, face capture, 130dB WDR, audio/alarm interfaces and memory-card support up to 512GB.
Key Benefits
-
Detailed 4K video: captures up to 3840 × 2160 at up to 25fps in 50Hz mode or 30fps in 60Hz mode.
-
Motorised varifocal lens: remote zoom and focus across 2.8–12mm support a wide overview or a tighter target view.
-
Flexible night operation: Smart Hybrid Light provides infrared, white-light and combined-light modes.
-
ColorVu imaging: a 1/1.8-inch sensor and F1.2 aperture support colour-focused low-light monitoring.
-
Human and vehicle classification: target filtering for supported event rules.
-
Two-way audio: dual microphones and a built-in speaker support compatible communication and warning playback.
-
Active deterrence: a white strobe and audible warning can be linked to supported events.
-
Protected housing: IP67, IK10 and NEMA 4X moderate anti-corrosion protection.
Key Features
- 8MP maximum resolution of 3840 × 2160
- 1/1.8-inch progressive-scan CMOS
- 2.8–12mm motorised varifocal lens, F1.2
- Horizontal field of view from 112.3° to 41.2°
- Minimum colour illumination of 0.001 lux at F1.2 with AGC enabled
- Infrared and white-light range up to 60 metres
- 130dB WDR
- H.265+, H.265, H.264+ and H.264
- Human/vehicle classification and face capture
- Arrayed dual microphone and built-in speaker
- One audio input/output and two alarm inputs/outputs
- White strobe and audible warning
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3at PoE+
- IP67, IK10 and NEMA 4X
Technical Specifications
| Model |
DS-2CD2687G3-LIZS2UY/SL(2.8-12mm) |
| Camera type |
Motorised varifocal bullet network camera |
| Image sensor |
1/1.8-inch progressive-scan CMOS |
| Maximum resolution |
3840 × 2160 |
| Maximum frame rate |
25fps at 4K in 50Hz mode; 30fps in 60Hz mode |
| Minimum illumination |
Colour: 0.001 lux at F1.2 with AGC on; 0 lux with supplement light |
| Lens |
2.8–12mm motorised varifocal, F1.2 |
| Field of view |
Horizontal 112.3°–41.2°; vertical 58.1°–23.1°; diagonal 137.4°–47.3° |
| Physical adjustment |
Pan 0°–360°, tilt 0°–90° and rotation 0°–360° during installation |
| Supplement light |
Infrared and white light up to 60m |
| Wide dynamic range |
130dB WDR |
| Analytics |
Human and vehicle classification for supported motion and perimeter events; face capture |
| Audio |
Arrayed dual microphone, built-in speaker, one line input and one line output |
| Alarm |
Two inputs and two outputs |
| Deterrence |
White strobe and audible warning on the /SL model |
| Local storage |
microSD, microSDHC or microSDXC up to 512GB |
| Interoperability |
ONVIF Profiles S, G and T; ISAPI, SDK and ISUP |
| Power |
12V DC maximum 14.5W; IEEE 802.3at PoE+ Class 4 maximum 18W |
| Operating conditions |
-30°C to 60°C; humidity 95% or less |
| Housing |
Metal, white finish |
| Protection |
IP67, IK10 and NEMA 4X moderate protection |
| Dimensions |
Ø140 × 333.8mm |
| Weight |
Approximately 1555g |
Detection, Audio and Deterrence
Human and vehicle classification can be applied to supported motion, line-crossing, intrusion, region-entry and region-exit events. Face capture is also supported. Performance depends on target size, mounting, lighting and configuration.
The built-in dual microphones and speaker support audio capture, compatible two-way communication and warning playback. The /SL version can trigger a white strobe and audible warning. External audio and alarm interfaces are also available.
Installation and Compatibility
The motorised lens provides remote zoom and focus, but the bullet camera direction is positioned manually. This is not a PTZ camera. Use a suitable PoE+ source or correctly rated 12V DC supply.
Confirm recorder 8MP decoding, analytics, audio, alarm, storage-card and mounting compatibility. ONVIF supports basic interoperability, but advanced functions may require compatible Hikvision equipment or software.
Frequently Asked Questions
What is the maximum resolution?
3840 × 2160, commonly described as 8MP or 4K.
Is the lens motorised?
Yes, for remote zoom and focus across 2.8–12mm.
Is this a PTZ camera?
No. The camera body is aimed manually.
What is the light range?
Up to 60 metres under manufacturer test conditions.
What is Smart Hybrid Light?
Configurable infrared, white-light and combined-light operation.
Can it classify people and vehicles?
Yes, for supported events.
Does it support two-way audio?
Yes. It includes dual microphones and a built-in speaker.
Does it have active deterrence?
Yes. The /SL version includes a white strobe and audible warning.
What storage is supported?
Compatible memory cards up to 512GB.
What protection ratings apply?
IP67, IK10 and NEMA 4X moderate anti-corrosion protection.
