The Hikvision iDS-7208HUHI-M1/X is a professional 8-channel AcuSense Turbo HD DVR designed for intelligent CCTV systems requiring AI-powered event detection, efficient recording and hybrid camera compatibility. Supporting analogue and IP cameras, Motion Detection 2.0, AcuSearch, 4K HDMI output and H.265 Pro+ compression, it provides a reliable recording solution for residential and commercial surveillance systems.

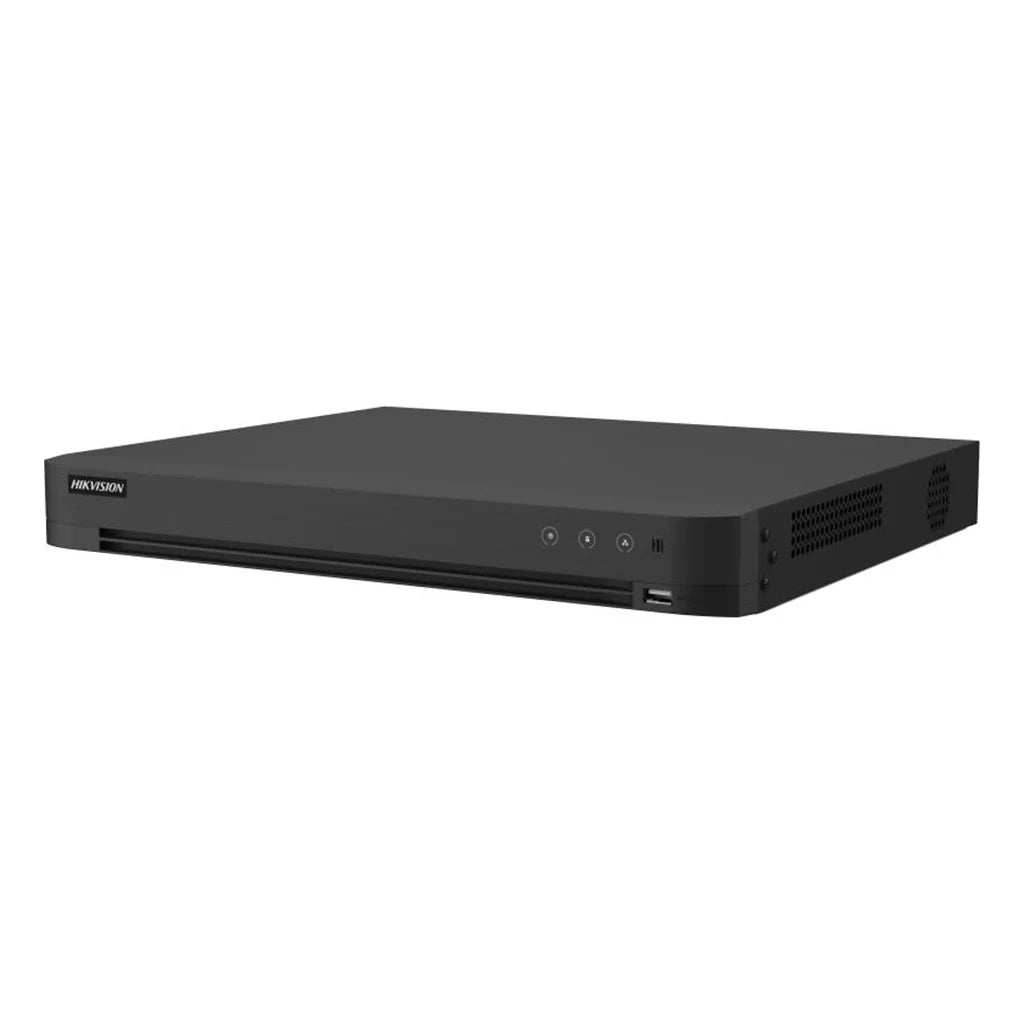

Hikvision iDS-7208HUHI-M1/X 8-Channel AcuSense Turbo HD DVR
The Hikvision iDS-7208HUHI-M1/X is a professional hybrid digital video recorder designed to deliver advanced AI-powered surveillance while supporting both existing analogue infrastructure and modern IP cameras. Compatible with HDTVI, AHD, HDCVI, CVBS and IP cameras, it provides an ideal upgrade path for installers looking to enhance CCTV systems without replacing every camera.
Built for retail stores, offices, schools, warehouses, residential properties and commercial environments, this recorder combines intelligent analytics, high-efficiency compression and flexible connectivity in a compact professional recorder.
Hybrid Recording for Analogue and IP CCTV Systems
The recorder supports both analogue and IP cameras, making it suitable for mixed surveillance environments.
Recording capabilities include:
- 8 analogue channels
- Support for up to 16 IP camera channels
- IP camera resolutions up to 8MP
- Compatible with HDTVI, AHD, HDCVI, CVBS and IP cameras
This flexibility allows CCTV systems to expand over time while protecting existing camera investments.
AI-Powered AcuSense Analytics
The iDS-7208HUHI-M1/X features Hikvision AcuSense deep learning technology, helping distinguish people and vehicles from other moving objects to improve alarm accuracy.
Supported AI functions include:
- Motion Detection 2.0
- Human and vehicle classification
- Perimeter protection
- Facial picture comparison
-
AcuSearch intelligent video search
These intelligent functions help reduce false alarms and make important footage quicker to locate during investigations.
Efficient H.265 Pro+ Video Compression
The recorder supports:
- H.265 Pro+
- H.265 Pro
- H.265
- H.264+
- H.264
These compression technologies help minimise bandwidth usage and storage requirements while maintaining excellent image quality for continuous recording.
4K HDMI Video Output
The DVR provides HDMI output up to 3840 × 2160 (4K) together with VGA output for high-quality live viewing and playback.
Supported output resolutions include:
- 3840 × 2160
- 2560 × 1440
- 1920 × 1080
- Additional lower display resolutions
Professional Recording and Remote Management
The recorder includes a single SATA interface supporting hard drives up to 10TB, making it suitable for long-term surveillance recording.
Additional professional features include:
- HDTVI Two-Way Audio
- Smart Playback
- Hik-Connect remote viewing
- Hik-Central compatibility
- USB backup
- Gigabit Ethernet connectivity
These features provide flexible system management for both local and remote surveillance applications.
KEY BENEFITS
- 8-channel professional AcuSense DVR
- Supports HDTVI, AHD, HDCVI, CVBS and IP cameras
- Supports up to 16 IP camera channels
- AI human and vehicle classification
- Motion Detection 2.0 improves event accuracy
- Facial picture comparison support
- AcuSearch accelerates footage retrieval
- H.265 Pro+ compression reduces storage requirements
- HDMI output up to 4K
- HDTVI Two-Way Audio support
- Hik-Connect remote monitoring
- Suitable for commercial and residential CCTV systems
KEY FEATURES
- 8-channel Turbo HD DVR
- Hybrid analogue and IP recording
- Up to 8MP IP camera support
- Up to 16 IP channels
- AcuSense deep learning
- Motion Detection 2.0
- Human & vehicle classification
- Facial picture comparison
- AcuSearch
- H.265 Pro+ compression
- HDMI output up to 4K
- One SATA HDD bay
- HDTVI Two-Way Audio
- Hik-Connect support
IDEAL FOR
- Homes
- Retail stores
- Offices
- Schools
- Warehouses
- Commercial premises
- Small industrial facilities
- Mixed analogue and IP CCTV upgrades
- Professional surveillance systems
- Property management
- Small to medium business CCTV installations
| Specification |
Details |
| Brand |
Hikvision |
| Model |
iDS-7208HUHI-M1/X |
| Product Type |
8-Channel Turbo HD Digital Video Recorder (DVR) |
| Video Input |
8 BNC Analogue Channels (HDTVI/AHD/HDCVI/CVBS) |
| IP Camera Support |
Up to 16 IP Channels (Enhanced Mode) |
| Maximum IP Camera Resolution |
Up to 8MP |
| Video Compression |
H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| HDMI Output |
1 × HDMI (Up to 3840 × 2160) |
| VGA Output |
1 × VGA |
| Video Resolution Support |
Up to 3840 × 2160 |
| AI Features |
AcuSense, Motion Detection 2.0, Human & Vehicle Classification, Facial Picture Comparison, AcuSearch |
| Motion Detection 2.0 |
Supported on All Analogue Channels |
| Facial Picture Comparison |
Up to 4 Channels |
| Perimeter Protection |
Line Crossing & Intrusion Detection with Human & Vehicle Filtering |
| Audio Compression |
G.711u |
| Audio Input |
1 RCA |
| Audio Output |
1 RCA |
| HDTVI Audio |
Supported |
| Two-Way Audio |
Supported |
| SATA Interfaces |
1 |
| Maximum HDD Capacity |
Up to 10TB |
| Network Interface |
1 × RJ45 10/100/1000 Mbps Ethernet |
| USB Ports |
Front: 1 × USB 2.0, Rear: 1 × USB 3.0 |
| Serial Interface |
RS-485 |
| Remote Access |
Hik-Connect, Hik-Central Compatible |
| Network Protocols |
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP, HTTPS and others |
| Power Supply |
12V DC |
| Power Consumption |
≤18W (Without HDD) |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
10%–90% Non-condensing |
| Chassis Colour |
Black |
| Dimensions |
315 × 242 × 45 mm |
| Weight |
Approx. 1.78 kg (Without HDD) |
| Warranty |
Not specified |
Frequently Asked Questions
What is the Hikvision iDS-7208HUHI-M1/X used for?
The Hikvision iDS-7208HUHI-M1/X is a professional 8-channel AcuSense Turbo HD DVR designed for recording and managing CCTV systems in residential, retail and commercial environments. It combines hybrid camera compatibility with AI-powered analytics to improve event accuracy and simplify surveillance management.
What camera types are supported?
The DVR supports:
- HDTVI cameras
- AHD cameras
- HDCVI cameras
- CVBS analogue cameras
- Hikvision and compatible ONVIF IP cameras
This allows installers to upgrade existing analogue systems while integrating modern IP cameras.
Does it support AI features?
Yes. The recorder includes AcuSense deep learning technology featuring Motion Detection 2.0, human and vehicle classification, facial picture comparison, and AcuSearch, helping reduce false alarms and enabling faster retrieval of important recordings.
Does it support facial recognition?
The iDS-7208HUHI-M1/X supports facial picture comparison on supported channels. It should not be marketed as a dedicated facial recognition recorder with advanced face database management.
Does it support 4K output?
Yes. The HDMI interface supports video output up to 3840 × 2160 (4K) for high-resolution live viewing and playback on compatible monitors.
What storage capacity does it support?
The recorder includes one SATA interface supporting a hard drive of up to 10TB, providing substantial recording capacity for continuous CCTV surveillance.
Does it support remote viewing?
Yes. The DVR supports Hik-Connect and Hik-Central, allowing authorised users to access live video, playback recordings and manage the system remotely.
Is a hard drive included?
No. Hikvision does not specify that a hard drive is supplied with this recorder. Storage drives should be purchased separately unless otherwise stated by the retailer.
Does it support audio?
Yes. The recorder supports HDTVI audio, one RCA audio input, one RCA audio output, and two-way audio with compatible devices.
Is it suitable for home and business CCTV?
Yes. The combination of hybrid camera support, AI-powered AcuSense analytics and efficient video compression makes it suitable for homes, offices, retail premises, schools and small to medium commercial CCTV systems.
