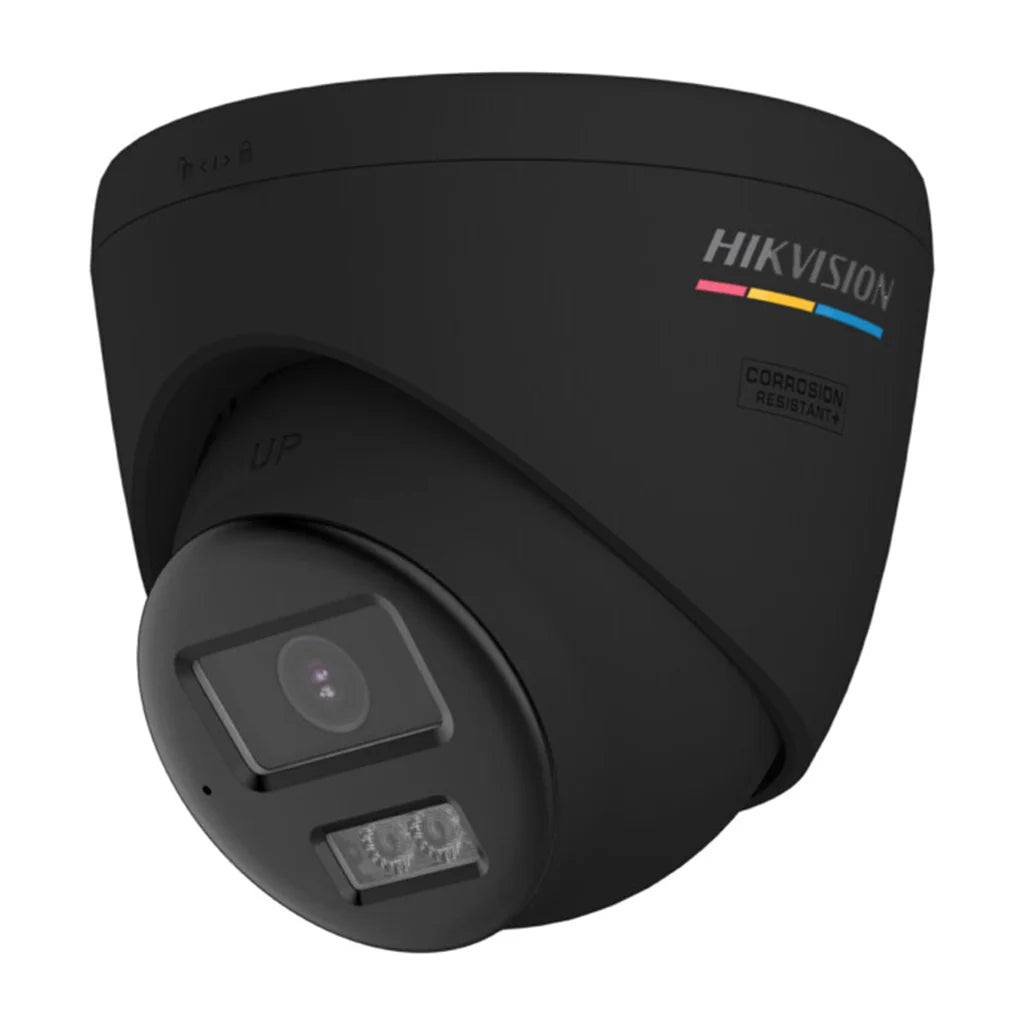

Hikvision DS-2CE72KF3T-LSYE 3K Smart Hybrid Light ColorVu Turret Camera (2.8mm) - Black

The Hikvision DS-2CE72KF3T-LSYE(2.8mm) Black is a professional-grade 3K (5 Megapixel) ColorVu Smart Hybrid Light fixed turret analog camera designed for round-the-clock colour security monitoring. Utilizing a super-aperture F1.0 lens, it captures bright, full-colour video under low-light conditions down to 0.0003 Lux. Housed in a rugged weatherproof IP67 turret casing finished in textured black, this advanced security camera features a built-in microphone for high-quality audio recording over coaxial cable and smart-hybrid dual lighting. With integrated true 130 dB WDR and 3D DNR noise reduction, it represents a complete, reliable surveillance solution for residential facades, retail lobbies, and commercial perimeters.

Hikvision DS-2CE72KF3T-LSYE 3K Smart Hybrid Light ColorVu Turret Camera (2.8mm) - Black

The Hikvision DS-2CE72KF3T-LSYE(2.8mm) Black is a professional-grade 3K (5 Megapixel) ColorVu Smart Hybrid Light fixed turret analog camera designed for round-the-clock colour security monitoring. Utilizing a super-aperture F1.0 lens, it captures bright, full-colour video under low-light conditions down to 0.0003 Lux. This makes it an essential tool for professional security networks.

Housed in a rugged weatherproof IP67 turret casing finished in textured black, this advanced security camera features a built-in microphone for high-quality audio recording over coaxial cable and smart-hybrid dual lighting. With integrated true 130 dB WDR and 3D DNR noise reduction, it represents a complete, reliable surveillance solution for residential facades, retail lobbies, and commercial perimeters. Installing this device ensures continuous stability and reliability in any access control or surveillance system.

ColorVu 24/7 Full-Colour Imaging

ColorVu technology uses an F1.0 super-aperture and high-performance sensor to maintain bright, full-colour video day and night, even in complete darkness.

Smart Hybrid Light Technology

Intelligently switches between invisible Infrared (IR) light and visible white light illumination up to 40 meters, activating the white light only when a critical security event is detected.

3K High-Definition Video Quality

Records at 3K resolution (2960 × 1665) at 20 frames per second, providing exceptional pixel density for positive target identification, digital zoom, and forensic review.

Built-in Audio Recording Over Coax

Includes an integrated microphone that transmits high-quality audio over standard coaxial cabling, eliminating the need to run separate audio wires.

130 dB True Wide Dynamic Range

Incorporates 130 dB true WDR technology to balance high-contrast lighting, rendering clear video detail in both extremely bright and heavily shadowed areas.

IP67 Weatherproof Construction

Features a robust physical enclosure rated IP67 for complete protection against dust and water ingress, suitable for installation in exposed outdoor zones.

Note: Ensure your DVR is configured to support Hikvision coaxial telemetry controls to adjust warning siren settings and alarm outputs.

KEY BENEFITS

• Captures vivid full-colour security video day or night for positive target identification.
• Smart Hybrid Light minimizes light pollution while deterring intruders actively.
• High 3K resolution provides excellent digital zoom detail for license plates and faces.
• Built-in mic allows immediate audio monitoring across the turret field of view.
• IP67 weatherproof rating guarantees continuous operation in rain, snow, and dust.
• 3D DNR technology reduces video noise in low-light environments for sharper images.
• Supports 130 dB WDR to prevent silhouetting in brightly lit entrances.
• Black casing finish blends with dark architectural surfaces and wooden beams.
• EXIR technology provides uniform 40m white light coverage without dark corners.
• Compact turret casing design is easy to mount on ceilings and walls.

KEY FEATURES

• Model Code: DS-2CE72KF3T-LSYE
• Image Sensor: 3K CMOS Sensor
• Video Resolution: 3K (2960 × 1665)
• Minimum Illumination: Colour: 0.0003 Lux @ (F1.0, AGC ON)
• Focal Length: 2.8 mm Fixed Lens
• Field of View: 112° Horizontal, 60° Vertical, 133° Diagonal
• Supplement Light Range: Up to 40 m white light / 40 m IR
• Wide Dynamic Range: 130 dB True WDR
• Built-in Microphone: Yes (audio over coax)
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
• Video Output: TVI/AHD/CVI/CVBS switchable
• Chassis Material: Durable Metal and Plastic
• Chassis Colour: Professional Matte Black finish
• Power Standard: 12 VDC ± 25% (Max. 6.7 W)
• Weather Rating: IP67 dust and water resistant

IDEAL FOR

• Residential driveway and front door perimeter surveillance.
• Commercial building exterior walls and parking structures.
• Retail storefront doors and checkout counter areas.
• School campus perimeters and outdoor corridors.
• Industrial yard boundaries requiring active deterrence.
• Gated entrance and driveway access monitoring.
• Unattended warehouses needing proactive warning systems.
• Construction sites requiring standalone edge recording.
• Car parks and vehicle entrance lanes requiring color capture.
• Replacing older analog cameras with 3K resolution.
• Extreme weather outdoor security camera installations.
• Dark facades, modern cladding, and concrete structures.

SYSTEM COMPATIBILITY

• Compatible with Hikvision Turbo HD 3K DVR series.
• Supports standard TVI, CVI, AHD, and CVBS signals.
• Works with standard 12V DC power distribution units.
• Compatible with standard BNC coaxial video cables (RG59/RG6).
• Configurable via Hikvision DVR OSD coaxial menu system.
• Supports Hikvision DS-1272ZJ-110 wall mount brackets in black.
• Integrates with Hikvision DS-1280ZJ-TR13 junction mounting boxes in black.
• Works alongside coax telemetry DVR configurations.
• Supports standard video baluns over UTP grids.
• Compatible with standard VMS platforms via DVR integration.
• Works alongside Hikvision access control and intercom networks.
• Supports standard 12V DC power loops.
• Integrates with Hikvision smart event notification cloud system.

TECHNICAL SPECIFICATIONS

FREQUENTLY ASKED QUESTIONS (FAQs)

What is the resolution of this camera?

The camera has an 3K sensor that records at 2960 × 1665 resolution for maximum video clarity.

How does ColorVu technology work?

ColorVu utilizes an F1.0 super-aperture and high-performance sensor to maintain bright, full-colour video day and night, even in complete darkness.

How does the Smart Hybrid Light feature work?

The camera has both Infrared (IR) and white light. It runs in IR mode silently at night and switches to visible white light when a human or vehicle is detected, flashing to deter the intruder.

Can it record audio?

Yes, the camera features a built-in microphone that transmits audio over standard coaxial cables directly to compatible DVRs.

Is the camera weatherproof?

Yes, the camera carries an IP67 rating, indicating it is completely protected against dust and heavy rain, suitable for outdoor installation.

What power source does it require?

It operates on a standard 12V DC power input (± 25%). Power consumption is max. 6.7 W.

Does this model support Power over Coaxial (PoC)?

No, this model requires standard 12V DC power wiring. Ensure you have a local 12V power adapter or distribution box channel.

What mounting brackets are compatible?

It is compatible with standard DS-1272ZJ-110 wall mounts and DS-1280ZJ-TR13 junction boxes in matching black.

What is the lens focal length?

This specific variant uses a 2.8 mm fixed lens, providing a horizontal field of view of 112°.

Does it support WDR?

Yes, it features 130 dB true Wide Dynamic Range (WDR), which balances scenes with high contrast backlighting to prevent silhouetting.
