The Hikvision DS-2CE12UF3T-LSYE(3.6mm) is a professional-grade 8 Megapixel (4K) fixed bullet analog camera incorporating ColorVu and Smart Hybrid Light technologies. Designed for comprehensive 24/7 color security monitoring, it captures ultra-sharp, full-colour video under low-light conditions down to 0.0005 Lux and utilizes hybrid lighting to deter intruders. Housed in an architectural white bullet casing, this advanced security camera features a built-in microphone for high-quality audio recording over coaxial cable. With integrated Power over Coaxial (PoC) support, 130 dB true WDR, and an IP67 weatherproof housing, it represents a complete, reliable surveillance solution for residential properties, commercial offices, and industrial perimeters.

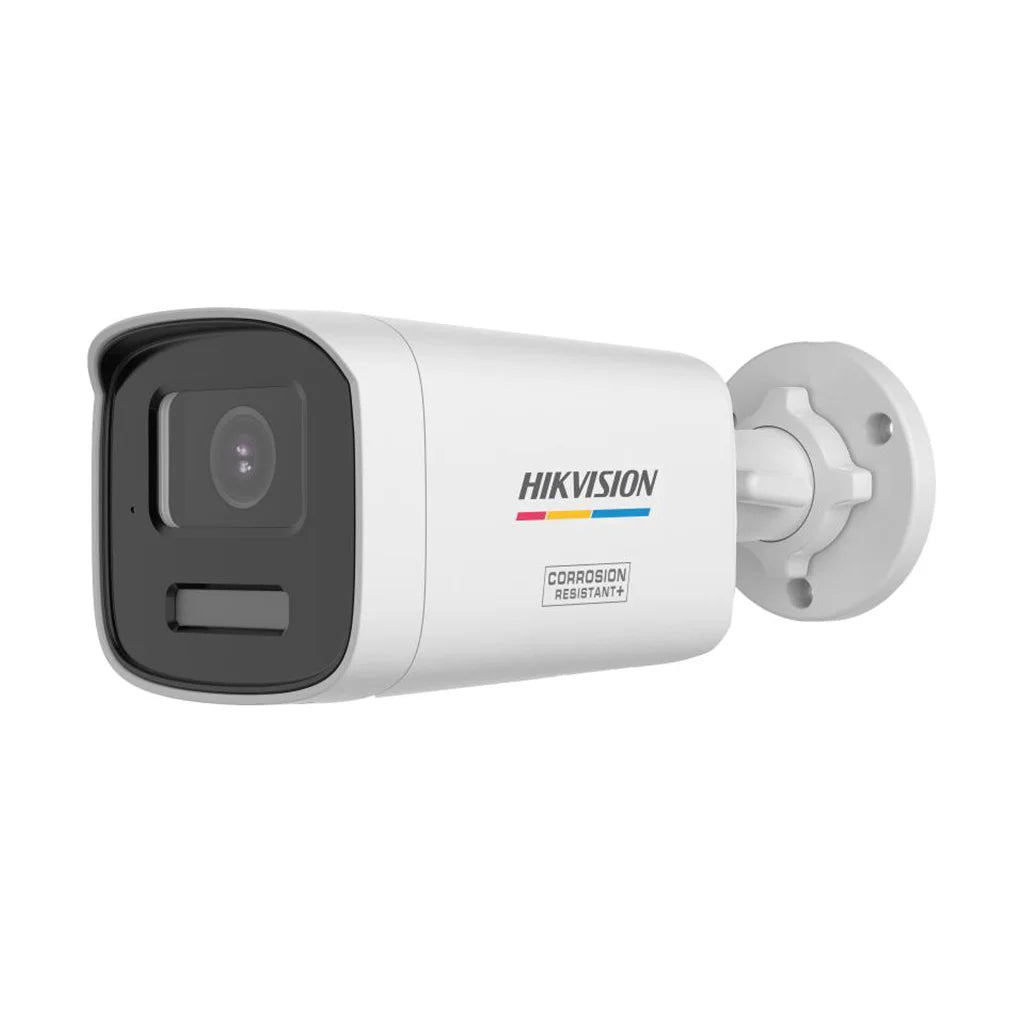

Hikvision DS-2CE12UF3T-LSYE 8MP Smart Hybrid Light ColorVu Bullet Camera (3.6mm)
The Hikvision DS-2CE12UF3T-LSYE(3.6mm) is a professional-grade 8 Megapixel (4K) fixed bullet analog camera incorporating ColorVu and Smart Hybrid Light technologies. Designed for comprehensive 24/7 color security monitoring, it captures ultra-sharp, full-colour video under low-light conditions down to 0.0005 Lux and utilizes hybrid lighting to deter intruders. This makes it an essential tool for professional security networks.
Housed in an architectural white bullet casing, this advanced security camera features a built-in microphone for high-quality audio recording over coaxial cable. With integrated Power over Coaxial (PoC) support, 130 dB true WDR, and an IP67 weatherproof housing, it represents a complete, reliable surveillance solution for residential properties, commercial offices, and industrial perimeters. Installing this device ensures continuous stability and reliability in any access control or surveillance system.
ColorVu 24/7 Full-Colour Imaging
Equipped with a super-aperture F1.0 lens, the camera captures bright, detailed, full-colour video even in near-total darkness without switching to black and white.
Smart Hybrid Light Technology
Intelligently switches between invisible Infrared (IR) light and visible white light illumination up to 40 meters, activating the white light only when a critical security event is detected.
4K Ultra HD Resolution CMOS
The 4K sensor records at 3840 × 2160 resolution, providing outstanding pixel density for positive target identification, digital zoom, and forensic review.
Built-in Audio Recording Over Coax
Includes an integrated microphone that transmits high-quality audio over standard coaxial cabling, eliminating the need to run separate audio wires.
130 dB True Wide Dynamic Range
Incorporates 130 dB true WDR technology to balance high-contrast lighting, rendering clear video detail in both extremely bright and heavily shadowed areas.
IP67 Weatherproof Construction
Features a durable physical housing rated IP67 for dust and water resistance, suitable for installation in exposed outdoor zones.
Note: Professional installation and coaxial telemetry configurations are recommended to ensure optimal performance of the ColorVu hybrid light camera.
KEY BENEFITS
- Captures vivid full-colour security video day or night for positive target identification.
- Smart Hybrid Light minimises light pollution by using visible light only when needed.
- Built-in mic allows immediate audio monitoring at perimeters or entrance doors.
- High 8MP resolution provides excellent digital zoom detail for license plates and faces.
- PoC support simplifies installation by delivering power and video over one coaxial cable.
- IP67 weatherproof rating guarantees continuous operation in rain, snow, and dust.
- 3D DNR technology reduces video noise in low-light environments for sharper images.
- Supports 130 dB WDR to prevent silhouetting in brightly lit entrances.
- NEMA 4X anti-corrosion coating ensures physical durability in marine or industrial areas.
- Matte white styling matches modern architectural Facades and commercial buildings.
KEY FEATURES
- Model Code: DS-2CE12UF3T-LSYE
- Sensor: 4K High-Quality CMOS Sensor
- Video Resolution: 8MP (3840 × 2160)
- Minimum Illumination: Colour: 0.0005 Lux @ (F1.0, AGC ON)
- Focal Length: 3.6 mm Fixed Lens
- Field of View: 90° Horizontal, 50° Vertical
- Supplement Light Range: Up to 40 m dual-light
- Wide Dynamic Range: 130 dB True WDR
- Built-in Microphone: Yes (audio over coax)
- Pickup Range: Up to 5 meters microphone range
- Chassis Colour: Architectural White finish
- Power Standard: 12 VDC / PoC (Power over Coax)
- Anti-Corrosion Design: NEMA 4X compliant casing
- Weather Rating: IP67 dust and water resistant
- Camera Net Weight: Heavy-duty build at approx. 445g
IDEAL FOR
- Residential driveway and front perimeter surveillance.
- Commercial building exterior walls and parking lot zones.
- Retail storefront doors and loading bay areas.
- School campus perimeters and outdoor corridors.
- Industrial yard boundaries requiring active deterrence.
- Gated entrance and driveway access monitoring.
- Unattended warehouses needing proactive warning systems.
- Construction sites requiring standalone edge recording.
- Car parks and vehicle entrance lanes requiring color capture.
- Offices and commercial receptions requiring audio interaction.
- Extreme weather outdoor security camera installations.
- Marine and coastal environments requiring anti-corrosion casings.
SYSTEM COMPATIBILITY
- Fully compatible with Hikvision Turbo HD PoC DVR series.
- Supports standard TVI, CVI, AHD, and CVBS signals.
- Works with standard 12V DC power distribution units.
- Compatible with standard BNC coaxial video cables (RG59/RG6).
- Configurable via Hikvision DVR OSD coaxial menu system.
- Supports Hikvision DS-1280ZJ-S junction mounting boxes.
- Integrates with Hikvision DS-1275ZJ-SUS pole mounting brackets.
- Works with alarm system panels via DVR audio/alarm links.
- Supports standard video baluns over UTP grids.
- Compatible with standard VMS platforms via DVR integration.
- Works alongside Hikvision access control and intercom networks.
- Supports PoC power injection over standard coaxial wiring.
- Integrates with Hikvision smart event notification cloud system.
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-2CE12UF3T-LSYE(3.6mm) |
| Product Type |
8MP ColorVu Smart Hybrid Bullet Camera |
| Image Sensor |
4K Progressive Scan CMOS |
| Resolution |
8MP (3840 × 2160) |
| Min. Illumination |
Colour: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light |
| Focal Length |
3.6 mm Fixed Lens |
| Horizontal FOV |
90° |
| Vertical FOV |
50° |
| Diagonal FOV |
112° |
| Smart Hybrid Light |
Infrared (IR) & Visible White Light |
| Light Range |
Up to 40 m (Smart Hybrid Light Range) |
| WDR |
130 dB True Wide Dynamic Range |
| Built-in Microphone |
Yes (supports audio over coax) |
| Audio Pickup Range |
Up to 5 m |
| Anti-Corrosion |
NEMA 4X compliant design |
| Video Output |
TVI/AHD/CVI/CVBS switchable |
| Operating Temperature |
-40 °C to +60 °C (-40 °F to +140 °F) |
| Operating Humidity |
Up to 90% RH (Non-condensing) |
| Power Supply |
12 VDC (±25%) / PoC (Power over Coaxial) |
| Power Consumption |
Max. 8.6 W |
| Dimensions (W x D x H) |
205.7 mm × 83.7 mm × 80.7 mm |
| Net Weight |
Approx. 445 g (0.98 lbs) |
FREQUENTLY ASKED QUESTIONS (FAQs)
What is ColorVu technology in this camera?
ColorVu technology uses an F1.0 super-aperture and high-performance sensor to collect more light, capturing vivid full-colour images even in near-total darkness.
How does the Smart Hybrid Light illumination work?
The camera has both Infrared (IR) and visible white light. It can run in IR mode silently at night and immediately switch on the visible white light when a human or vehicle is detected, flashing to deter the intruder and capture colour details.
Can I record audio with this camera?
Yes, the camera features a built-in microphone that captures audio, transmitting it over standard coaxial cables directly to compatible PoC DVRs.
What is the resolution of this camera?
The camera records at 8 Megapixel (4K) resolution (3840 × 2160) for outstanding detail representation.
Is the camera weatherproof?
Yes, the camera has an IP67 rating, indicating it is completely protected against dust and water ingress, suitable for all outdoor weather conditions.
Does it support PoC?
Yes, the camera supports Power over Coaxial (PoC), allowing it to receive power and transmit video/audio over a single coaxial cable when connected to PoC DVRs.
What type of bracket does it require?
It is compatible with standard Hikvision DS-1280ZJ-S junction boxes for secure cabling installation.
What is the lens focal length?
This specific variant uses a 3.6 mm fixed lens, providing a horizontal field of view of 90° for slightly longer range views.
Does it support WDR?
Yes, it incorporates 130 dB true Wide Dynamic Range (WDR), which balances scenes with high contrast backlighting to prevent silhouetting.
What is NEMA 4X anti-corrosion protection?
NEMA 4X rating guarantees that the camera casing is protected against rust, corrosive agents, and salt water, making it perfect for marine environments.
