The Hikvision DS-2CE10KF0T-LFS(2.8mm) is a professional-grade 3K (5 Megapixel) ColorVu Smart Hybrid Light fixed bullet analog camera designed for round-the-clock colour security monitoring. Utilizing a super-aperture F1.0 lens, it captures bright, full-colour video under low-light conditions down to 0.001 Lux. Housed in a rugged weatherproof IP67 mini bullet casing, this advanced security camera features a built-in microphone for high-quality audio recording over coaxial cable and smart-hybrid dual lighting. With integrated 3D DNR noise reduction and EXIR night illumination up to 20 meters, it represents a complete, reliable surveillance solution for perimeters and walkways.

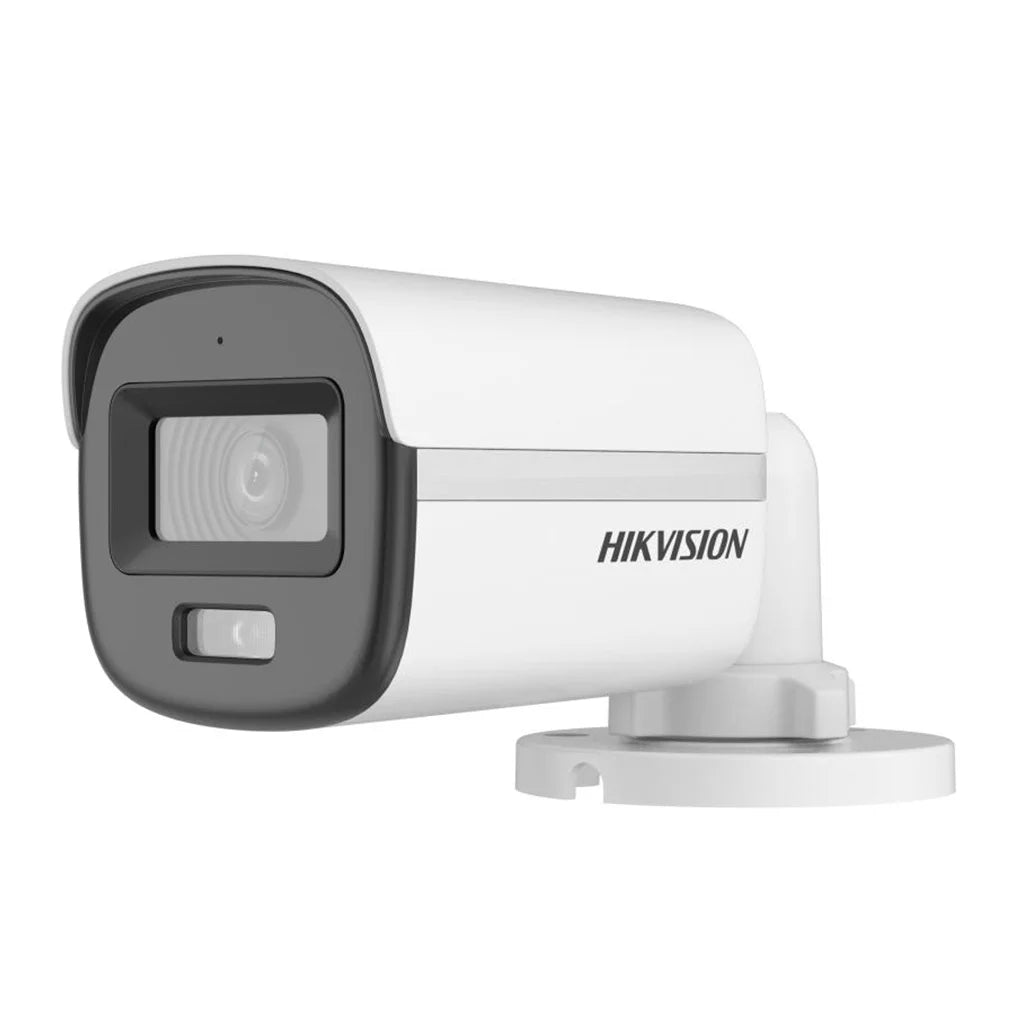

Hikvision DS-2CE10KF0T-LFS 3K ColorVu Smart Hybrid Light Bullet Camera (2.8mm)
The Hikvision DS-2CE10KF0T-LFS(2.8mm) is a professional-grade 3K (5 Megapixel) ColorVu Smart Hybrid Light fixed bullet analog camera designed for round-the-clock colour security monitoring. Utilizing a super-aperture F1.0 lens, it captures bright, full-colour video under low-light conditions down to 0.001 Lux. This makes it an essential tool for professional security networks.
Housed in a rugged weatherproof IP67 mini bullet casing, this advanced security camera features a built-in microphone for high-quality audio recording over coaxial cable and smart-hybrid dual lighting. With integrated 3D DNR noise reduction and EXIR night illumination up to 20 meters, it represents a complete, reliable surveillance solution for perimeters and walkways. Installing this device ensures continuous stability and reliability in any access control or surveillance system.
ColorVu 24/7 Full-Colour Imaging
ColorVu technology uses an F1.0 super-aperture and high-performance sensor to maintain bright, full-colour video day and night, even in complete darkness.
Smart Hybrid Light Technology
Intelligently switches between invisible Infrared (IR) light and visible white light illumination up to 20 meters, activating the white light only when a critical security event is detected.
3K High-Definition Video Quality
Records at 3K resolution (2960 × 1665) at 20 frames per second, providing exceptional pixel density for positive target identification, digital zoom, and forensic review.
Built-in Audio Recording Over Coax
Includes an integrated microphone that transmits high-quality audio over standard coaxial cabling, eliminating the need to run separate audio wires.
3D Digital Noise Reduction (3D DNR)
Incorporates advanced 3D DNR noise reduction technology to filter video noise in low-light environments, rendering clear video detail.
IP67 Weatherproof Construction
Features a robust physical enclosure rated IP67 for complete protection against dust and water ingress, suitable for installation in exposed outdoor zones.
Note: Ensure your DVR is configured to support Hikvision coaxial telemetry controls to adjust warning settings and alarm outputs.
KEY BENEFITS
- Captures vivid full-colour security video day or night for positive target identification.
- Smart Hybrid Light minimizes light pollution while deterring intruders actively.
- High 3K resolution provides excellent digital zoom detail for license plates and faces.
- Built-in mic allows immediate audio monitoring across the bullet field of view.
- IP67 weatherproof rating guarantees continuous operation in rain, snow, and dust.
- 3D DNR technology reduces video noise in low-light environments for sharper images.
- Supports digital WDR to prevent silhouetting in brightly lit entrances.
- Durable metal front cover provides rugged physical protection in exposed areas.
- EXIR technology provides uniform 20m white light coverage without dark corners.
- Compact mini bullet casing design is easy to mount on walls and eaves.
KEY FEATURES
- Model Code: DS-2CE10KF0T-LFS
- Image Sensor: 3K CMOS Sensor
- Video Resolution: 3K (2960 × 1665)
- Minimum Illumination: Colour: 0.001 Lux @ (F1.0, AGC ON)
- Focal Length: 2.8 mm Fixed Lens
- Field of View: 110° Horizontal, 59° Vertical, 137° Diagonal
- Built-in Microphone: Yes (audio over coax)
- Audio Over Coaxial: Simplified cabling for audio transmission
- Supplement Light Range: Up to 20 m white light / 20 m IR
- Wide Dynamic Range: Digital WDR
- Signal Output: TVI/AHD/CVI/CVBS switchable
- Weather Rating: IP67 dust and water resistant
- Dimensions: 161.1 mm × 70 mm × 70 mm
- Casing Material: Durable Metal and Plastic
- Chassis Colour: Architectural White finish
IDEAL FOR
- Residential driveway and front door perimeter surveillance.
- Commercial building exterior walls and walkways.
- Retail storefront perimeters and checkout counters.
- School campus perimeters and outdoor fences.
- Industrial yard boundaries requiring active deterrence.
- Gated entrance and driveway access monitoring.
- Unattended warehouses needing proactive warning systems.
- Construction sites requiring standalone edge recording.
- Car parks and vehicle entrance lanes requiring color capture.
- Replacing older analog bullet cameras with 3K resolution.
- Extreme weather outdoor security camera installations.
- High-contrast entrances with strong backlighting.
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-2CE10KF0T-LFS(2.8mm) |
| Product Type |
3K Smart Hybrid Light Bullet Camera |
| Image Sensor |
3K CMOS Sensor |
| Resolution |
3K (2960 × 1665) |
| Min. Illumination |
Colour: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with Light |
| Focal Length |
2.8 mm Fixed Lens |
| Horizontal FOV |
110° |
| Vertical FOV |
59° |
| Diagonal FOV |
137° |
| Smart Hybrid Light Range |
Up to 20 m (White Light) / 20 m (IR) |
| Light Type |
Smart Hybrid (IR and White Light) |
| WDR |
Digital WDR |
| Built-in Microphone |
Yes (audio over coax) |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Video Output |
TVI/AHD/CVI/CVBS switchable |
| Operating Temperature |
-40 °C to +60 °C (-40 °F to +140 °F) |
| Operating Humidity |
Up to 90% RH (Non-condensing) |
| Power Supply |
12 VDC (±25%) |
| Power Consumption |
Max. 4.9 W |
| Dimensions (W x D x H) |
161.10 mm × 70.00 mm × 70.00 mm |
| Net Weight |
Approx. 400 g (0.89 lbs) |
| Chassis Material |
Metal & Plastic combination |
Frequently Asked Questions
What is the resolution of this camera?
The camera has an 3K sensor that records at 2960 × 1665 resolution for maximum video clarity.
How does ColorVu technology work?
ColorVu utilizes an F1.0 super-aperture and high-performance sensor to maintain bright, full-colour video day and night, even in complete darkness.
How does the Smart Hybrid Light feature work?
The camera has both Infrared (IR) and white light. It runs in IR mode silently at night and switches to visible white light when a human or vehicle is detected, flashing to deter the intruder.
Can it record audio?
Yes, the camera features a built-in microphone that transmits audio over standard coaxial cables directly to compatible DVRs.
Is the camera weatherproof?
Yes, the camera carries an IP67 rating, indicating it is completely protected against dust and heavy rain, suitable for outdoor installation.
What power source does it require?
It operates on a standard 12V DC power input (± 25%). Power consumption is max. 4.9 W.
Does this model support Power over Coaxial (PoC)?
No, this model requires standard 12V DC power wiring. Ensure you have a local 12V power adapter or distribution box channel.
What mounting brackets are compatible?
It is compatible with standard DS-1280ZJ-XS junction boxes for clean cabling.
What is the lens focal length?
This specific variant uses a 2.8 mm fixed lens, providing a horizontal field of view of 110°.
Does it support WDR?
Yes, it features digital Wide Dynamic Range (DWDR) to maintain clear images in high-contrast backlight settings.
