Hikvision DS-2CD2387G3-LI2UY 4mm Product Overview

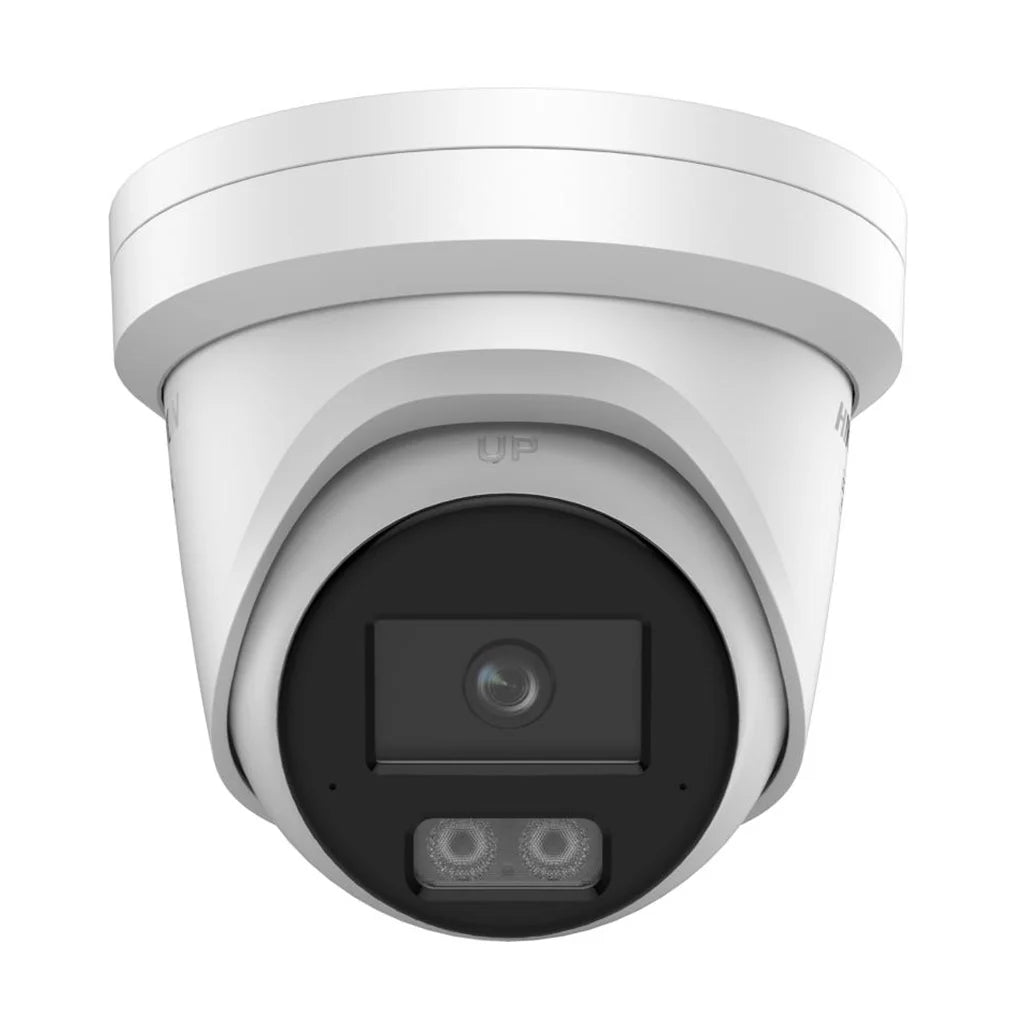

The Hikvision DS-2CD2387G3-LI2UY(4mm) is an 8MP ColorVu Smart Hybrid Light fixed turret network camera with an arrayed dual microphone and a narrower fixed 4mm lens. Its 1/1.8-inch progressive-scan CMOS sensor records at up to 3840 × 2160, while the F1.0 lens provides a 93.3° horizontal field of view.
The camera combines infrared and white-light illumination up to 30 metres with 130dB WDR and person and vehicle classification for supported events. It also provides face capture, scene-change detection and local storage up to 512GB. This exact LI2UY version records audio through its dual microphones but has no manufacturer-stated speaker, external audio input/output or alarm input/output.
Key Benefits
-
4K 8MP monitoring: captures up to 3840 × 2160 at 25fps in 50Hz mode or 30fps in 60Hz mode.
-
Tighter 4mm view: the 93.3° horizontal field of view gives narrower framing than the 2.8mm model.
-
ColorVu low-light imaging: the large sensor and F1.0 aperture support colour-focused detail under limited illumination.
-
Smart Hybrid Light: provides configurable infrared and white-light operation up to 30 metres.
-
Person and vehicle classification: supported events can focus on selected target types.
-
130dB WDR: supports high-contrast entrances and backlit scenes.
-
Arrayed dual microphone: provides integrated audio capture without implying speaker playback.
-
Protected housing: IP67 and NEMA 4X support exposed installations and moderate anti-corrosion protection.
Key Features
- 8MP maximum resolution of 3840 × 2160
- 1/1.8-inch progressive-scan CMOS sensor
- 4mm fixed focal lens with F1.0 aperture
- 93.3° horizontal, 47.2° vertical and 114.2° diagonal field of view
- Minimum colour illumination of 0.0005 lux at F1.0
- Infrared and white-light illumination up to 30 metres
- Smart Hybrid Light
- 130dB WDR
- Person and vehicle classification
- Face capture and scene-change detection
- Built-in arrayed dual microphone
- Memory-card support up to 512GB
- 12V DC or IEEE 802.3af PoE
- IP67 and NEMA 4X protection
Technical Specifications
| Model |
DS-2CD2387G3-LI2UY(4mm) |
| Camera type |
Fixed turret network camera |
| Image sensor |
1/1.8-inch progressive-scan CMOS |
| Maximum resolution |
3840 × 2160 |
| Maximum frame rate |
25fps in 50Hz mode or 30fps in 60Hz mode |
| Minimum illumination |
Colour: 0.0005 lux at F1.0 with AGC on; 0 lux with supplement light |
| Lens |
4mm fixed focal lens, F1.0 |
| Field of view |
Horizontal 93.3°; vertical 47.2°; diagonal 114.2° |
| Depth of field |
Approximately 3.8m to infinity |
| Supplement light |
Infrared and white light up to 30m with Smart Hybrid Light |
| Wide dynamic range |
130dB |
| Analytics |
Person and vehicle classification for supported events; face capture and scene-change detection |
| Built-in audio |
Arrayed dual microphone |
| Speaker and external interfaces |
No built-in speaker, external audio input/output or alarm input/output stated |
| Local storage |
Compatible microSD-family cards up to 512GB |
| Network and API |
RJ45 10/100Mbps; ONVIF Profiles S, G and T; ISAPI, SDK and ISUP |
| Power |
12V DC, maximum 8.5W; IEEE 802.3af PoE Class 3, maximum 11W |
| Operating conditions |
-30°C to 60°C; relative humidity 95% or less, non-condensing |
| Housing |
Metal, white finish |
| Protection |
IP67 and NEMA 4X moderate anti-corrosion protection |
| Dimensions |
Ø138.3 × 115.4mm |
| Weight |
Approximately 750g |
Choosing the 4mm Lens
The 4mm lens provides a narrower view than the 2.8mm option, making subjects appear larger at the same distance while covering less width. It can suit defined entrances, paths, gates or target areas. The lens is fixed and cannot zoom remotely, so the required field of view should be confirmed before ordering.
Audio and Compatibility
The dual microphones provide audio capture. No speaker or audio output is stated, so the page does not claim two-way audio. Confirm NVR 8MP decoding, analytics, Smart Hybrid Light control, audio recording, PoE, storage and mounting compatibility.
Frequently Asked Questions
What is the maximum resolution?
3840 × 2160.
What lens is fitted?
A fixed 4mm F1.0 lens.
What is the field of view?
93.3° horizontal, 47.2° vertical and 114.2° diagonal.
How does 4mm differ from 2.8mm?
The 4mm version provides a tighter view and less scene width.
Can the lens zoom?
No. It is a fixed lens.
What is the light range?
Up to 30 metres under manufacturer test conditions.
Does it have built-in microphones?
Yes. It has an arrayed dual microphone.
Does it support two-way audio?
No built-in speaker or audio output is stated.
What storage is supported?
Compatible cards up to 512GB.
What protection applies?
IP67 and NEMA 4X.
