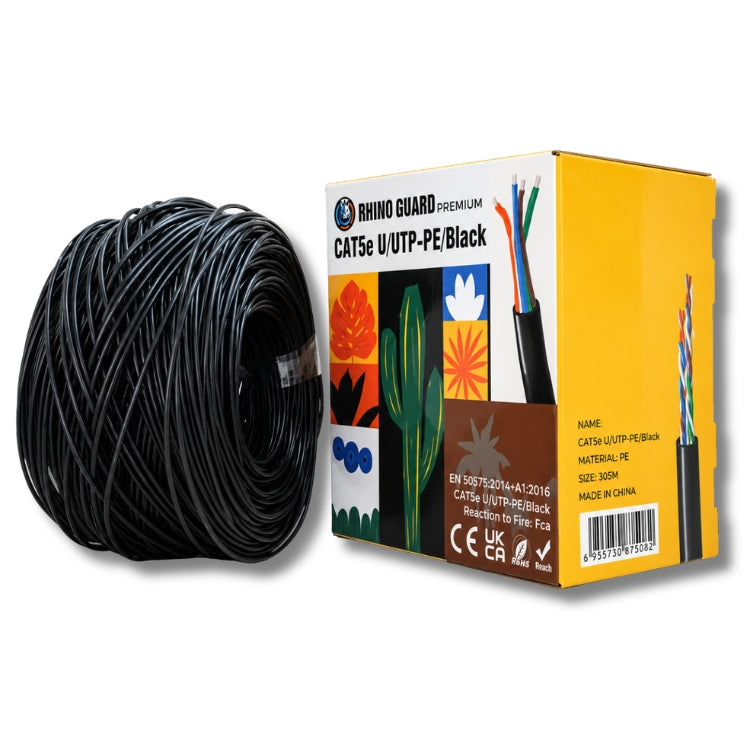

Rhino Guard CAT5e U/UTP PE Black Solid Copper External Cable 305m

Rhino Guard CAT5e U/UTP PE Black Solid Copper External Cable – 305m

The Rhino Guard CAT5e U/UTP-PE/Black is a professional 305 metre external-grade Category 5e network cable designed for outdoor, duct-grade, structured networking and compatible IP CCTV cabling installations.

Manufactured with solid bare copper conductors and a tough black polyethylene outer jacket, this cable is designed for fixed external network cabling where a durable PE-sheathed CAT5e cable is required. It is supplied in an easy-pull 305m box and is clearly metre marked to help installers monitor cable usage during larger installations.

Key Features

• Brand: Rhino Guard
• Product Code: RHI0002
• Model: CAT5e U/UTP-PE/Black
• Cable Category: CAT5e
• Cable Construction: U/UTP
• Conductor Material: Solid Bare Copper
• Cable Length: 305m
• Installation Type: External / Duct Grade
• Outer Sheath: Polyethylene / LDPE
• Outer Colour: Black
• Colour Reference: RAL 9005
• UV & Weather Resistant Sheath: Yes
• Nylon Rip-Cord: Yes
• Metre Marked: Yes
• Packaging: Easy-Pull 305m Box

Solid Copper CAT5e Construction

The Rhino Guard CAT5e U/UTP-PE/Black uses solid bare copper conductors rather than copper-clad aluminium. This makes it a strong choice for professional fixed structured cabling applications where full copper cable is preferred.

The cable uses four conventional twisted pairs in a U/UTP construction. U/UTP means the individual twisted pairs do not have additional foil shielding and there is no overall braided or foil screen.

External-Grade Black Polyethylene Sheath

This model is specifically designed as an external-grade CAT5e cable. Its black polyethylene outer jacket is specified as UV and weather resistant, helping make the cable suitable for appropriate outdoor and duct-based network installations.

The external PE construction distinguishes this product from standard internal PVC or low-smoke network cables. For installations exposed to outdoor conditions, always ensure the complete cable route, containment and termination method are appropriate for the environment.

Black RAL 9005 Cable Finish

The Rhino Guard cable is finished with a black outer jacket specified as RAL 9005. The dark external-grade finish is particularly suitable for professional CCTV and networking installations where black external cabling is preferred for visual consistency or identification.

305m Easy-Pull Box

Each box contains 305 metres of CAT5e cable. The easy-pull boxed format helps installers dispense cable cleanly during multi-camera, network and structured cabling projects.

The cable is clearly metre marked, allowing installers to monitor cable usage and estimate how much cable remains during an installation.

Nylon Rip-Cord

An internal nylon rip-cord is included to assist with opening the outer cable sheath during termination and preparation. This can help installers prepare the cable more efficiently while reducing unnecessary cutting into the internal twisted pairs.

Designed for CCTV and Data Cabling

The Rhino Guard CAT5e U/UTP-PE/Black can be used as part of compatible Ethernet-based networking and IP CCTV installations. Typical applications can include external camera cabling, network infrastructure and other fixed data-cabling runs where external-grade CAT5e cable is appropriate.

Always check the connected equipment, network design, total cable length and installation environment before installation.

Verified Technical Specifications

Frequently Asked Questions

Is the Rhino Guard CAT5e U/UTP-PE/Black cable full copper?

Yes. The verified specification lists bare solid copper conductors rather than copper-clad aluminium.

How much cable is supplied?

Each box contains 305 metres of Rhino Guard CAT5e external network cable.

Is this an internal or external CAT5e cable?

This model is specifically described as an external and duct-grade CAT5e cable with a polyethylene outer sheath.

What type of outer sheath does it use?

The cable uses a black polyethylene / LDPE outer jacket designed for external-grade applications.

Is the cable UV resistant?

Yes. The product information describes the black polyethylene outer sheath as UV and weather resistant.

What does U/UTP mean?

U/UTP means the cable uses unshielded twisted pairs without additional foil or braided screening.

What colour is the cable?

The outer jacket is black and is specified as RAL 9005.

Does it have a rip-cord?

Yes. The verified specification lists an internal nylon rip-cord.

Does the cable have metre markings?

Yes. The cable is clearly metre marked to help installers monitor cable usage during installation.

Can this cable be used for CCTV installations?

Yes. It is suitable for use as CAT5e network cabling within compatible IP CCTV and data-network installations. The connected equipment and total cable run should always be checked before installation.

Can this cable be installed outdoors?

Yes. This particular Rhino Guard model is specified as external and duct-grade cable with a UV and weather resistant polyethylene outer sheath.

Can it be buried directly in the ground?

No direct-burial certification has been verified for this exact product. Where cable is installed underground, use an appropriate protected duct or containment system unless separate manufacturer documentation confirms direct-burial suitability.

Is this an LSZH or LSHF cable?

No LSZH or LSHF specification has been verified for this black PE model. Rhino Guard offers other cable variants specifically identified as LSHF, but this product is the CAT5e U/UTP-PE/Black external polyethylene version.

Is this CCA cable?

No. The product is specified with solid bare copper conductors.
