The Hikvision DS-2CE72DF3T-LXTS(2.8mm) is a professional-grade 2 Megapixel (1080p) ColorVu Smart Hybrid Light fixed turret analog camera featuring integrated two-way audio support. Designed for active interactive security, it utilizes a super-aperture F1.0 lens to capture bright, full-colour video under low-light conditions down to 0.0005 Lux. Housed in a rugged weatherproof IP67 turret casing, the DS-2CE72DF3T-LXTS features both an integrated microphone and a high-performance 2W speaker to support two-way intercom audio over standard coaxial cabling. With a 40 meters light range for both IR and white-light, true 120 dB WDR, and coaxial telemetry controls, it represents a complete proactive communication and monitoring solution.

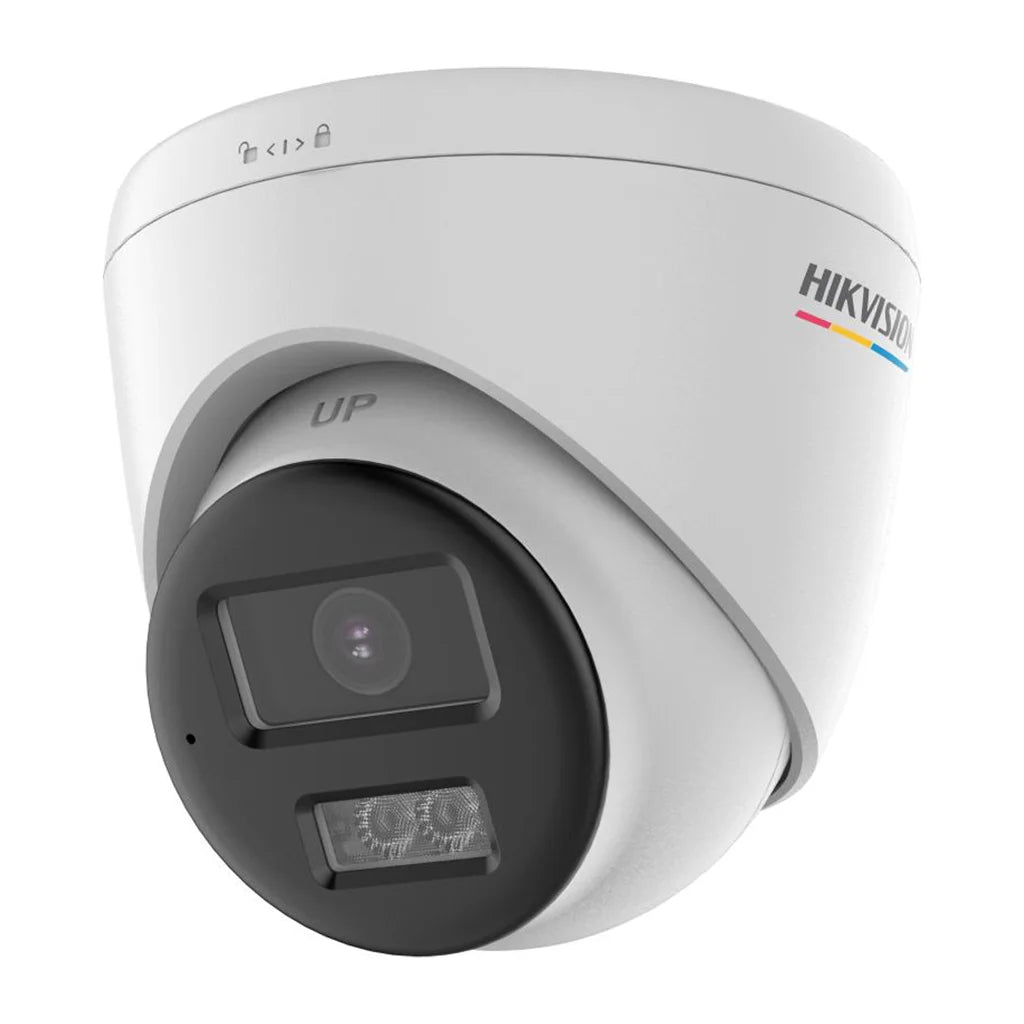

Hikvision DS-2CE72DF3T-LXTS 2MP ColorVu Two-Way Audio Turret Camera (2.8mm)
The Hikvision DS-2CE72DF3T-LXTS(2.8mm) is a professional-grade 2 Megapixel (1080p) ColorVu Smart Hybrid Light fixed turret analog camera featuring integrated two-way audio support. Designed for active interactive security, it utilizes a super-aperture F1.0 lens to capture bright, full-colour video under low-light conditions down to 0.0005 Lux. This makes it an essential tool for professional security networks.
Housed in a rugged weatherproof IP67 turret casing, the DS-2CE72DF3T-LXTS features both an integrated microphone and a high-performance 2W speaker to support two-way intercom audio over standard coaxial cabling. With a 40 meters light range for both IR and white-light, true 120 dB WDR, and coaxial telemetry controls, it represents a complete proactive communication and monitoring solution. Installing this device ensures continuous stability and reliability in any access control or surveillance system.
ColorVu 24/7 Full-Colour Imaging
ColorVu technology uses an F1.0 super-aperture and high-performance sensor to maintain bright, full-colour video day and night, even in complete darkness.
Integrated Two-Way Audio Intercom
Features a built-in high-sensitivity microphone (5m range) and a 2W high-volume speaker (5m range) to support real-time audio interaction over the coax cable.
Smart Hybrid Light Technology
Intelligently switches between invisible Infrared (IR) light and visible white light illumination up to 40 meters, activating the white light only when a critical security event is detected.
2MP Full HD Video Quality
The high-performance sensor records at 1080p resolution at 30 frames per second, providing clear video detail for positive occupant identification and logs.
120 dB True Wide Dynamic Range
Incorporates 120 dB true WDR technology to balance high-contrast lighting, rendering clear video detail in both extremely bright and heavily shadowed areas.
IP67 Weatherproof Construction
Features a robust physical enclosure rated IP67 for complete protection against dust and water ingress, suitable for installation in exposed outdoor zones.
Note: Ensure your DVR firmware is updated to support two-way coaxial audio communication before enabling speaker and mic controls.
KEY BENEFITS
- Vivid 2MP full-colour video Day and Night ensures high-quality video logs.
- Built-in two-way audio supports talking directly to visitors at perimeters.
- Smart Hybrid Light minimizes light pollution while deterring intruders actively.
- Built-in speaker allows automated warning alerts and high decibel output.
- IP67 weatherproofing ensures stable operation in heavy rain, snow, and dust.
- EXIR technology provides uniform 40m IR night vision without dark corners.
- True 120 dB WDR prevents silhouetting in brightly lit entrances or glass doors.
- Durable metal base housing provides rugged physical protection in exposed areas.
- Compact turret casing design is easy to mount on ceilings and walls.
- Wide operating temperature range ensures performance in freezing winter conditions.
KEY FEATURES
- Model Code: DS-2CE72DF3T-LXTS
- Image Sensor: 2MP Progressive Scan CMOS
- Video Resolution: 1920 × 1080 (1080p HD)
- Minimum Illumination: 0.0005 Lux @ (F1.0, AGC ON)
- Focal Length: 2.8 mm Fixed Focal Lens
- Field of View: 105.0° Horizontal, 56.0° Vertical, 126.0° Diagonal
- Two-Way Audio: Built-in microphone (5m) & 2W speaker (5m)
- Active Communication: Talk and listen over coaxial cable
- Supplement Light Range: Up to 40 m white light / 40 m IR
- Wide Dynamic Range: 120 dB True WDR
- Signal Output: Coaxial TVI/AHD/CVI/CVBS switchable
- Weather Rating: IP67 dust and water resistant
- Dimensions: Ø 110.00 mm × 102.70 mm
- Casing Material: Durable Metal and Plastic
- Chassis Colour: Architectural White finish
IDEAL FOR
- Residential driveway and front door perimeter surveillance.
- Commercial building exterior walls and parking structures.
- Retail storefront doors and checkout counter areas.
- School campus perimeters and outdoor corridors.
- Industrial yard boundaries requiring active deterrence.
- Gated entrance and driveway access monitoring.
- Unattended warehouses needing proactive warning systems.
- Construction sites requiring standalone edge recording.
- Car parks and vehicle entrance lanes requiring color capture.
- Replacing older analog cameras with 2MP resolution.
- Extreme weather outdoor security camera installations.
- High-contrast entrances with strong backlighting.
TECHNICAL SPECIFICATIONS
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-2CE72DF3T-LXTS(2.8mm) |
| Product Type |
2MP Two-Way Audio Turret Camera |
| Image Sensor |
2MP CMOS Sensor |
| Resolution |
2MP (1920 × 1080) |
| Min. Illumination |
Colour: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light |
| Focal Length |
2.8 mm Fixed Lens |
| Horizontal FOV |
105.0° |
| Vertical FOV |
56.0° |
| Diagonal FOV |
126.0° |
| Visible Light Night Vision |
Yes (White Light visible) |
| Light Range |
Up to 40 m (White Light range) / 40 m (IR) |
| WDR |
120 dB True Wide Dynamic Range |
| Built-in Microphone |
Yes (5m pickup range) |
| Built-in Speaker |
Yes (2W, 5m broadcast range) |
| Video Output |
TVI/AHD/CVI/CVBS switchable |
| Operating Temperature |
-40 °C to +60 °C (-40 °F to +140 °F) |
| Operating Humidity |
Up to 90% RH (Non-condensing) |
| Power Supply |
12 VDC (±25%) |
| Power Consumption |
Max. 11.1 W |
| Dimensions (Dia x H) |
Ø 110.00 mm × 102.70 mm |
| Net Weight |
Approx. 395 g (0.87 lbs) |
| Chassis Material |
Metal & Plastic combination |
Frequently Asked Questions
What is the resolution of this camera?
The camera has a 2MP sensor that records at 1920 × 1080 resolution (1080p HD) for clear surveillance logs.
How does ColorVu technology work?
ColorVu utilizes an F1.0 super-aperture and high-performance sensor to maintain bright, full-colour video day and night, even in complete darkness.
Does it support two-way talk?
Yes, the camera has both a built-in microphone and a built-in 2W speaker, allowing you to talk to visitors directly through your smartphone app or DVR VMS console.
How does the Smart Hybrid Light feature work?
The camera has both Infrared (IR) and white light. It runs in IR mode silently at night and switches to visible white light when a human or vehicle is detected, flashing to deter the intruder.
Is the camera weatherproof?
Yes, the camera carries an IP67 rating, indicating it is completely protected against dust and heavy rain, suitable for outdoor installation.
What power source does it require?
It operates on a standard 12V DC power input (± 25%). Power consumption is max. 11.1 W.
Does this model support Power over Coaxial (PoC)?
No, this model requires standard 12V DC power wiring. Ensure you have a local 12V power adapter or distribution box channel.
What mounting brackets are compatible?
It is compatible with standard DS-1272ZJ-110 wall mounts and DS-1280ZJ-TR13 junction boxes.
What is the lens focal length?
This specific variant uses a 2.8 mm fixed lens, providing a horizontal field of view of 105°.
Does it support WDR?
Yes, it features 120 dB true Wide Dynamic Range (WDR) to maintain clear images in high-contrast backlight settings.
